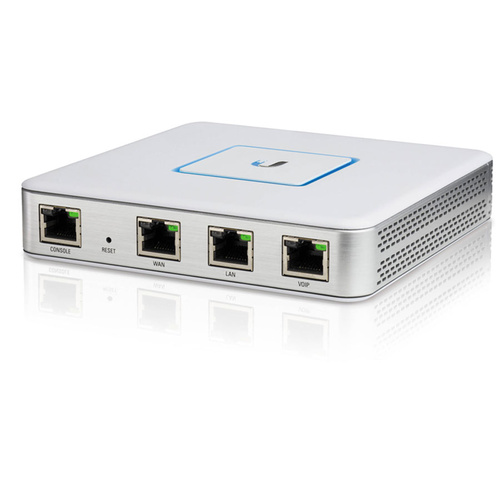

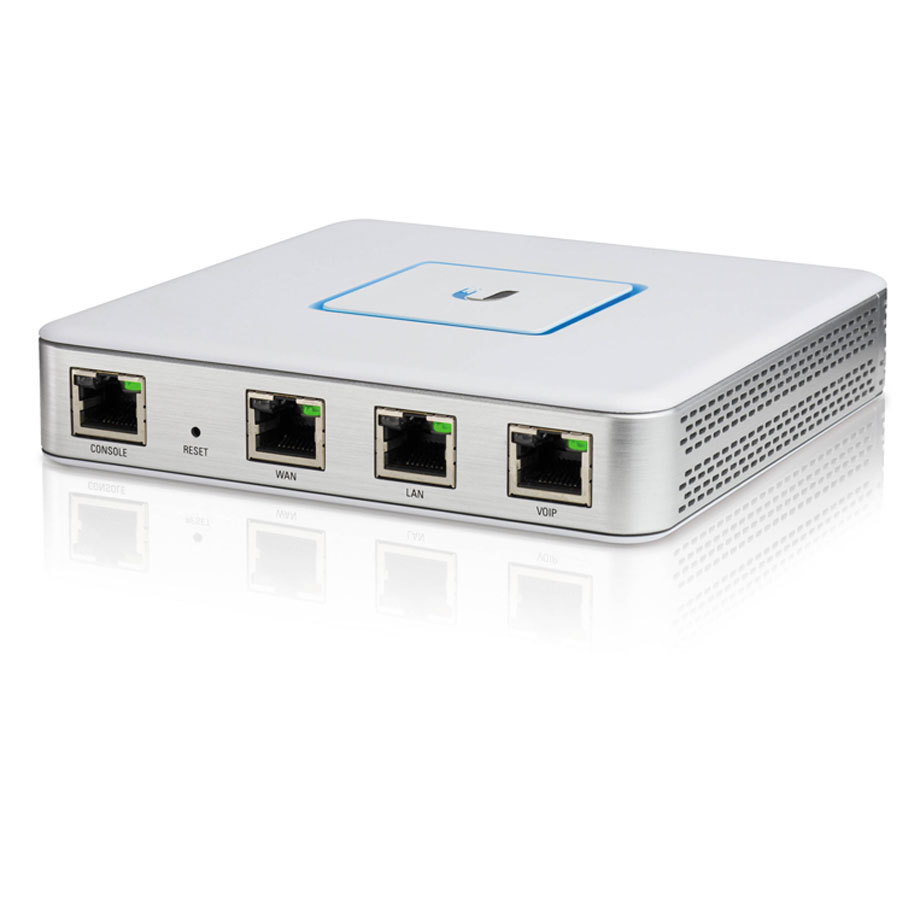

UniFi Security Gateway Router
USG
Ubiquiti Enterprise Gateway Router with Gigabit Ethernet
The Ubiquiti UniFi® Security Gateway extends the UniFi Enterprise System to provide cost-effective, reliable routing and advanced security for your network. Bundled at no extra charge, the UniFi® Controller software conducts device discovery, provisioning, and management of the UniFi Security Gateway and other UniFi devices through a single, centralized interface. The Ubiquiti UniFi® Security Gateway can create virtual network segments for security and network traffic management. A site-to-site VPN secures and encrypts private data communications traveling over the Internet and top QoS priority is assigned to voice/video call traffic for clear calls and lag-free, video streaming.
Enterprise Gateway Router with Gigabit Ethernet
- Advanced Security, Monitoring, and Management
- Sophisticated Routing Features
- Integrated with UniFi® Controller Software
(USG)
UniFi Security Gateway
Pack Includes:
- 1 x UniFi Security Gateway
- 2 x Screws (M2.9x20)
- 2 x Screw Anchors (M2.9)
- 1 x Power Adapter (12V, 1A)*
- 1 x Power Cord*
- Quick Start Guide
UniFi Security Gateway - Specifications
| SECURITY GATEWAY | |
|---|---|
| Dimensions | 135 x 135 x 28.3 mm (5.32 x 5.32 x 1.11") |
| Weight | 366 g (12.9 oz) |
| Max. Power Consumption | 7W |
| Power Supply | 12VDC, 1A Power Adapter (Included) |
| Power Input | 9 to 24VDC, Supported Voltage Range |
| LEDs | Status, Power, Speed/Link/Activity |
| Networking Interface | (1) RJ45 Serial Port (3) 10/100/1000 Ethernet Ports |
| Layer 3 Forwarding Performance | 1,000,000 pps, 3 Gbps (Line Rate) |
| Processor | Dual-Core 500 MHz, MIPS64 with Hardware Acceleration for Packet Processing |
| Memory | 512 MB DDR2 RAM |
| Flash Memory Support | 2 GB |
| Certifications | CE, FCC, IC |
| Rackmount | No |
| Operating Temperature | -10 to 45° C (14 to 113° F) |
| Operating Humidity | 10 to 90% Noncondensing |
Shipping Specifications
| SKU | USG |
| Model # | USG |
| Barcode # | 8.18E+11 |
| Brand | Ubiquiti |
| Shipping Weight | 0.4950kg |
| Shipping Width | 0.165m |
| Shipping Height | 0.090m |
| Shipping Length | 0.180m |
| Shipping Cubic | 0.002673000m3 |
| Unit Of Measure | ea |
UniFi Security Gateway - Documents
Datasheet UniFi Security GatewayBe The First To Review This Product!
