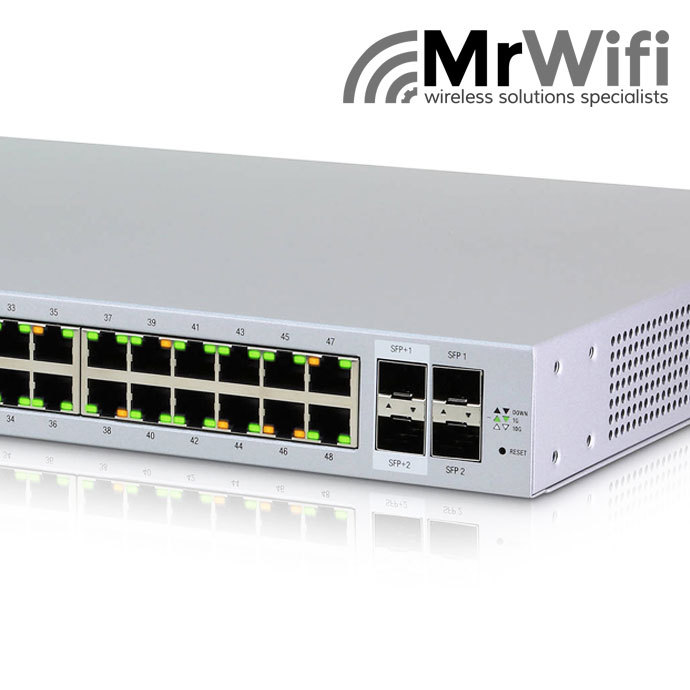

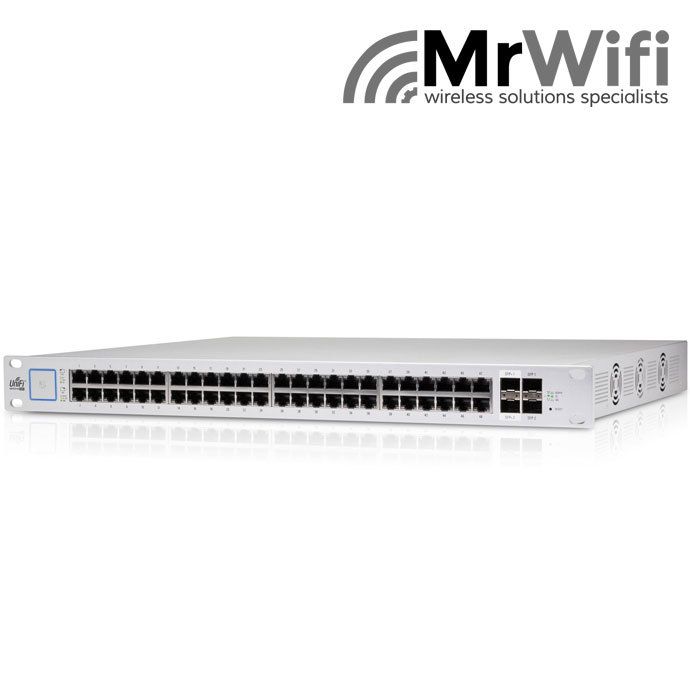

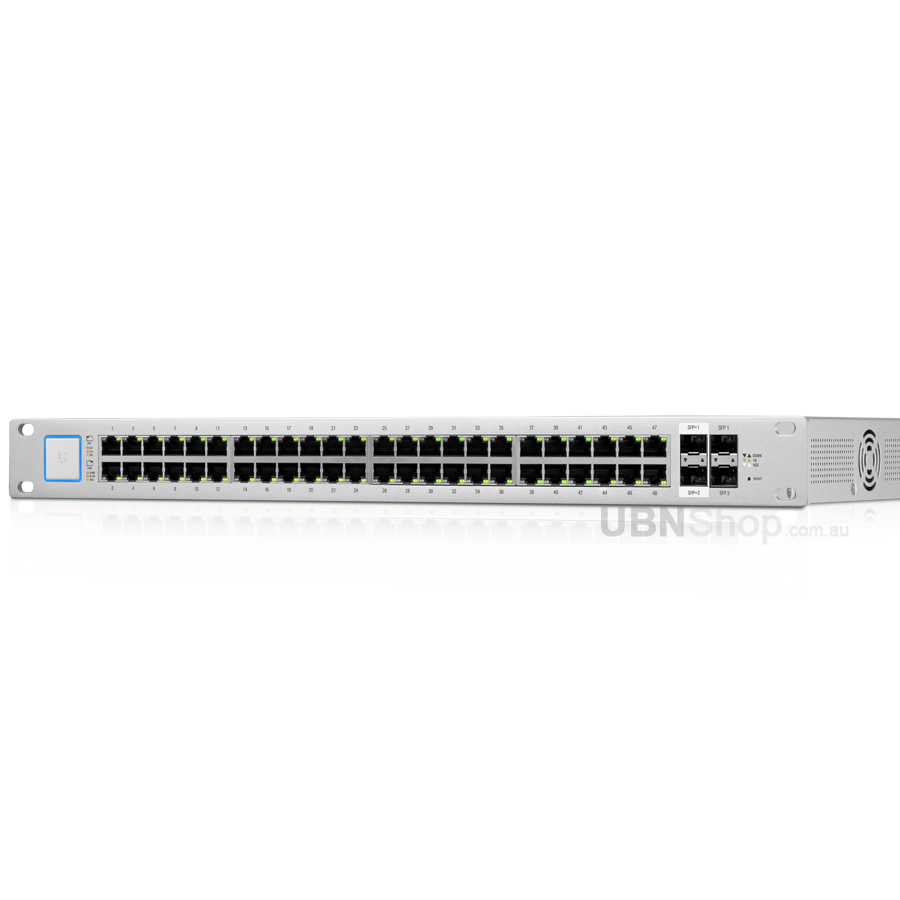

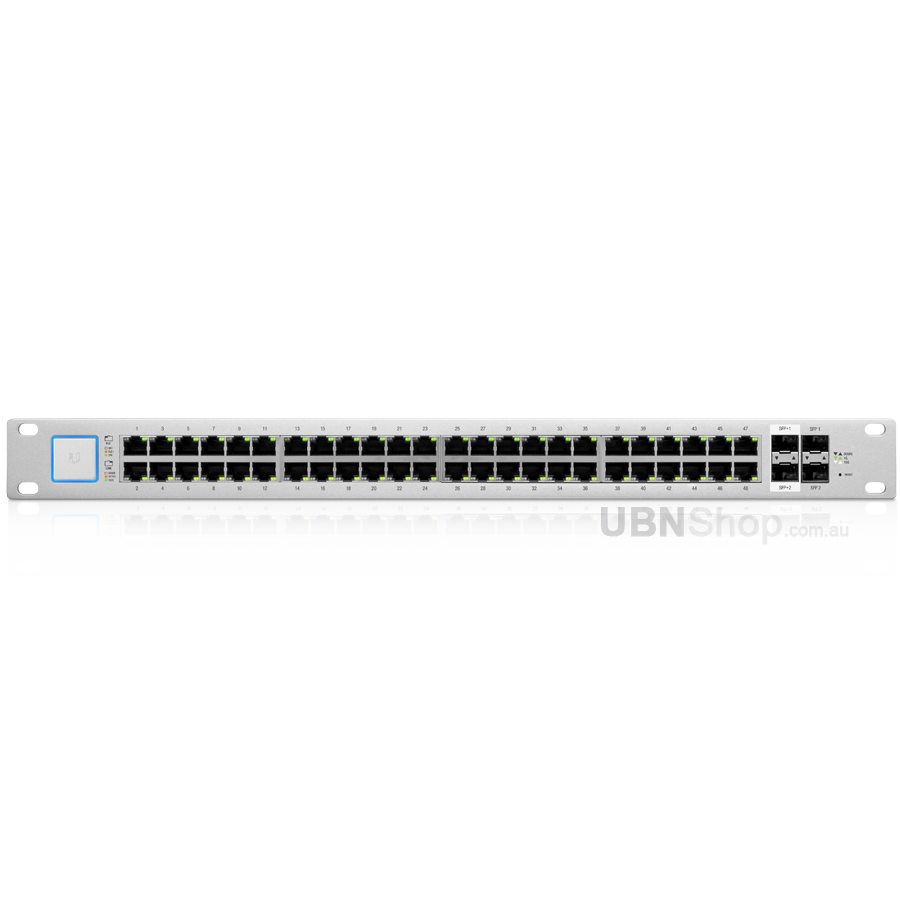

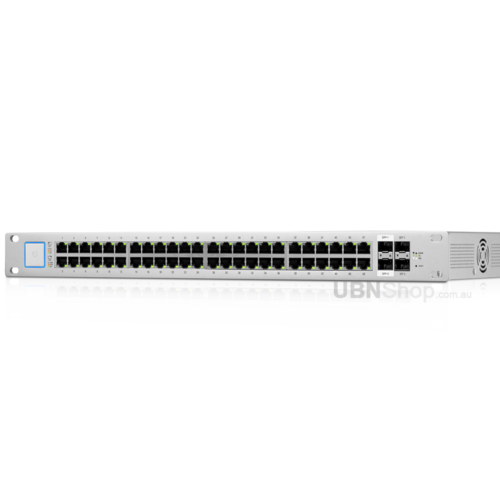

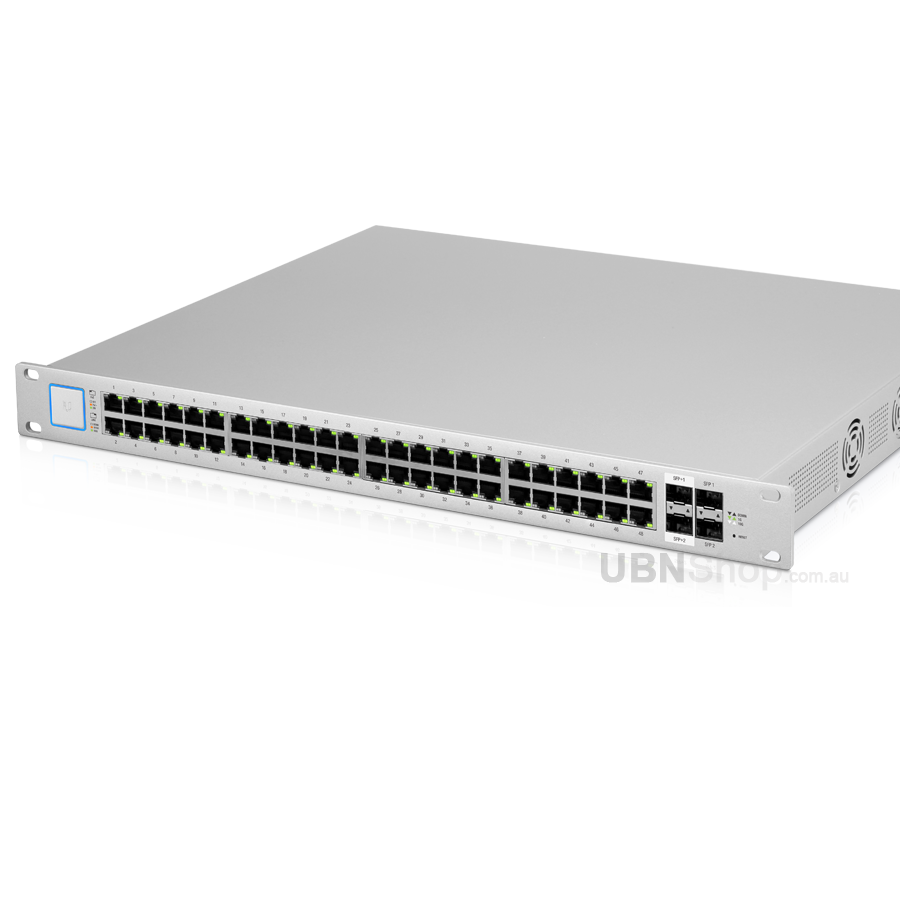

UniFi 48 Port 500W Managed Gigabit Switch PoE
Managed PoE+ Gigabit Switch with SFP
The UniFi® Switch delivers robust performance with PoE+ support, and intelligent switching for growing networks. The UniFi® Switch delivers the forwarding capacity to simultaneously process traffic on all ports at line rate without any packet loss and non-blocking throughput: up to 70 Gbps for 48-port models.
Each switch port offers custom settings: port name, PoE, network/VLAN configuration, and operation mode (switching, mirroring, or aggregate) - as well as 802.1X Authentication and Radius VLAN support. Two SFP ports support uplinks of up to 1 Gbps. For high-capacity uplinks, each 48-port model includes two SFP+ ports for uplinks of up to 10 Gbps.
UniFi Switch 48 500W
- 1 x UniFi Switch 48 500W
- 4 x Mounting Screws
- 4 x Cage Nuts
- 1 x Power Cord
- Quick Start Guide
UniFi Switch 48 500W - Specifications
|UNIFI SWITCH 48 (500W)|
|Dimensions||485.04 x 44.45 x 347.6 mm (19.1 x 1.75 x 13.69")|
|Weight||5.3 kg (11.68 lb)|
|Total Non-Blocking Throughput||70 Gbps|
|Max. Power Consumption||500W|
|Power Method||100-240VAC/50-60 Hz, Universal Input|
|Power Supply||AC/DC, Internal, 500W DC|
|Networking Interface||(48) 10/100/1000 Mbps RJ45 Ethernet Ports
(2) 1/10 Gbps SFP+ Ethernet Ports
(2) 1 Gbps SFP Ethernet Ports
|Management Interface||(1) RJ45 Serial Port (Reserved for Future Use), Ethernet In/Out Band|
|Certifications||CE, FCC, IC|
|Rackmount||Yes, 1U High|
|Operating Temperature||-5 to 40° C (23 to 104° F)|
|Operating Humidity||5 to 95% Noncondensing|
|Unit Of Measure||ea|
