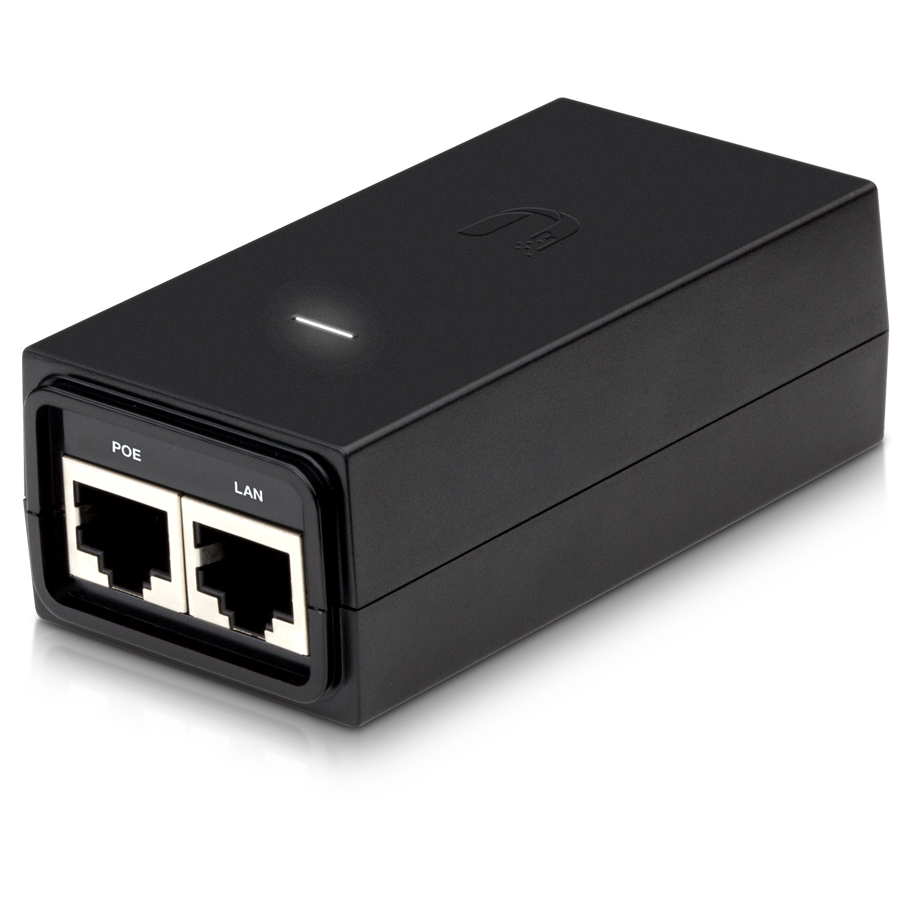

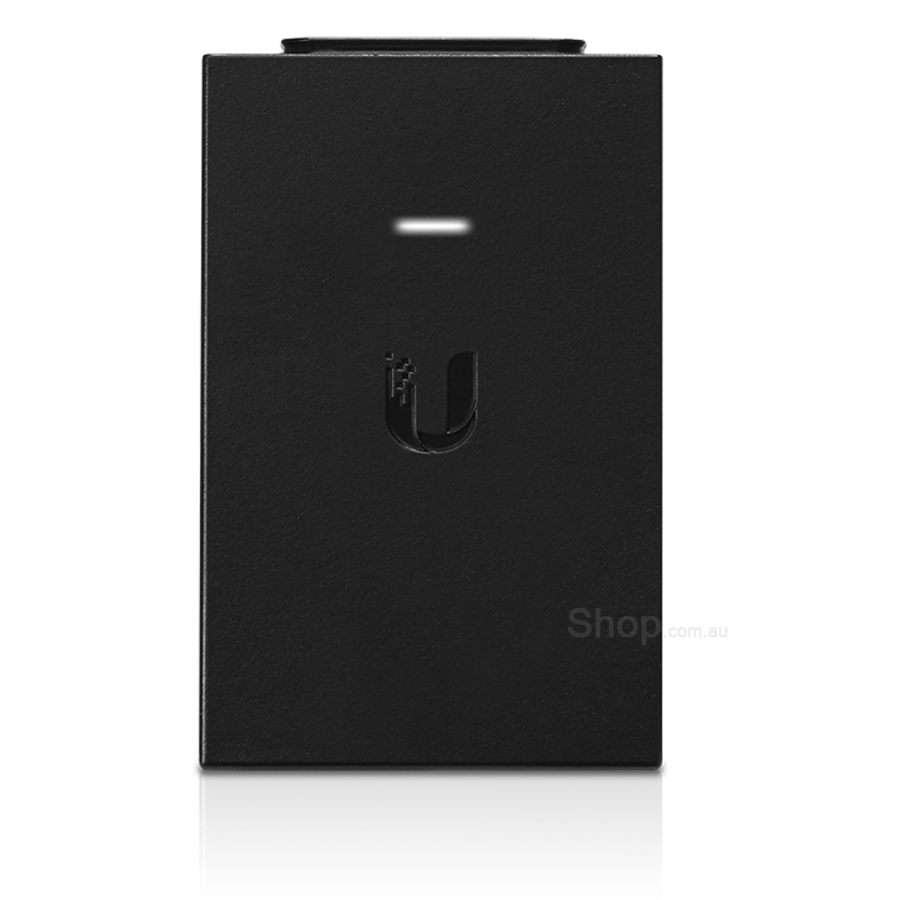

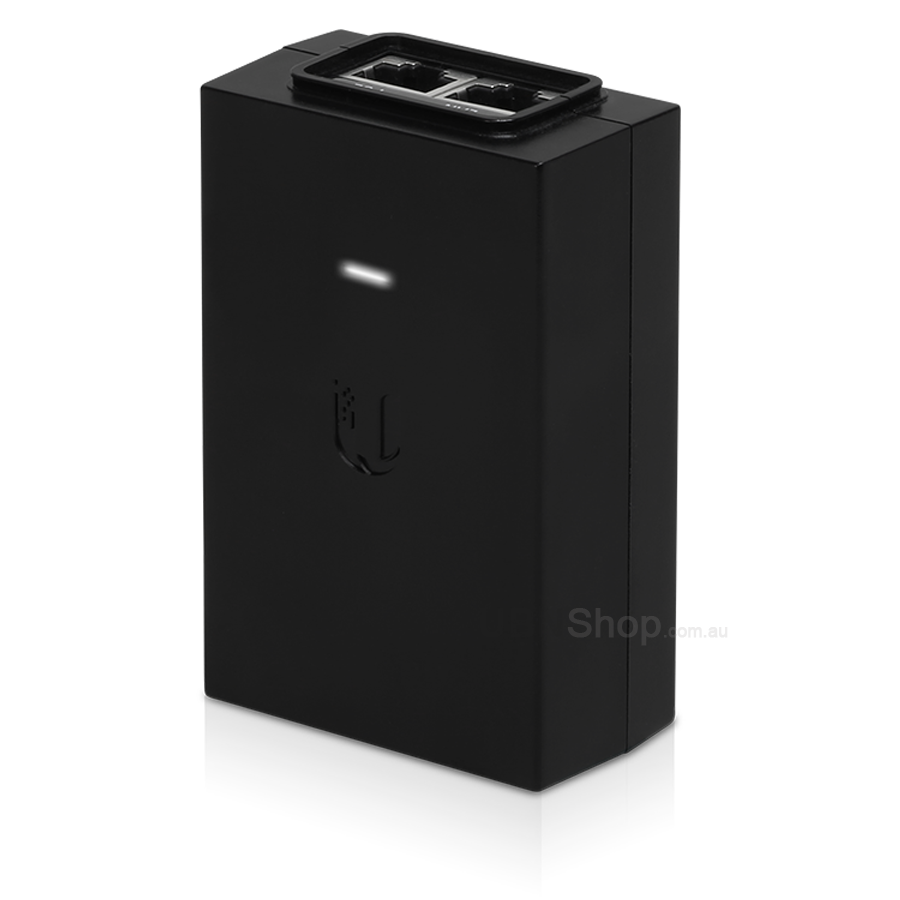

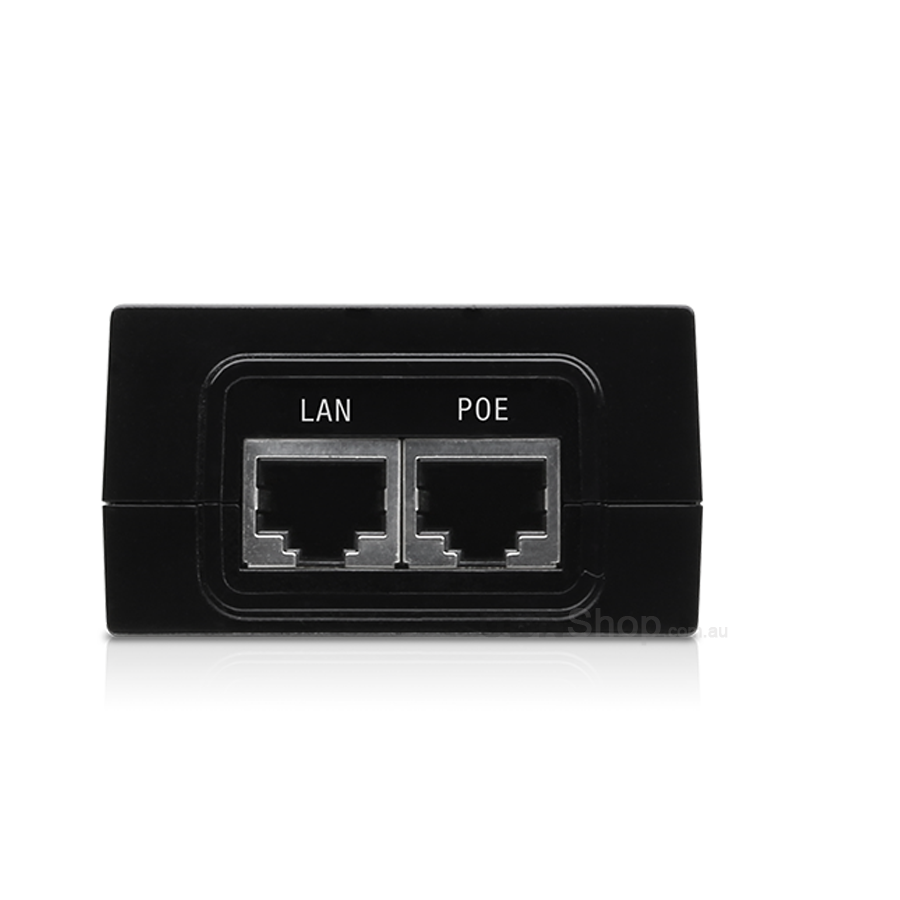

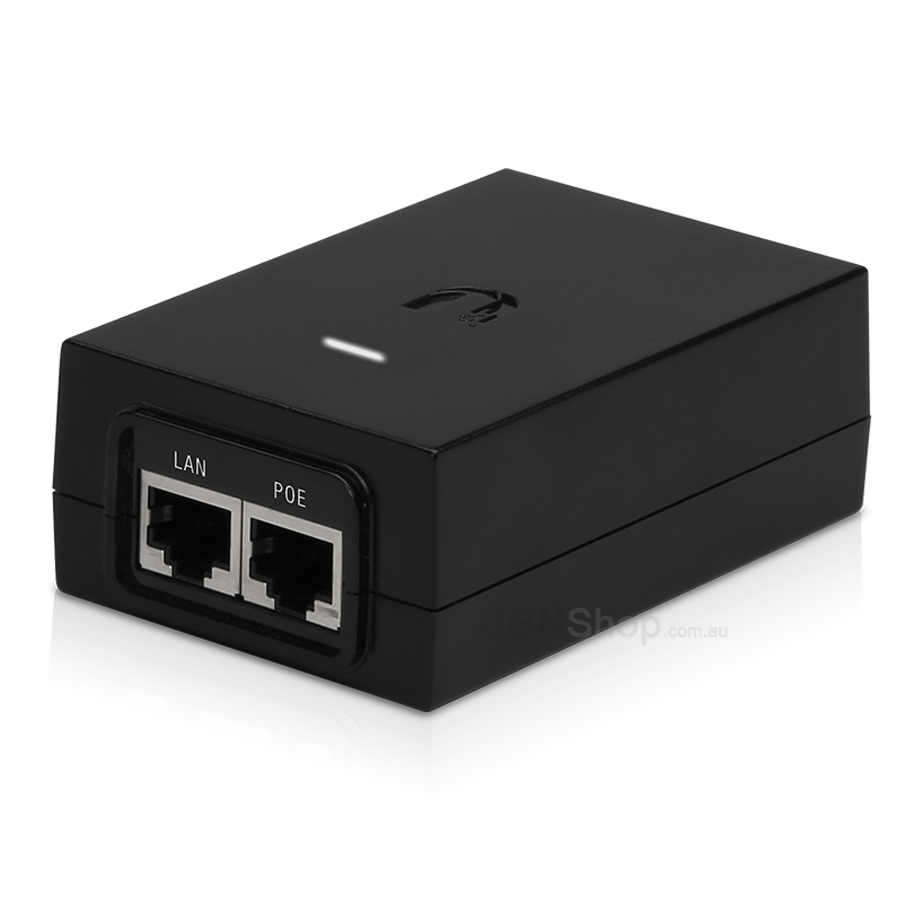

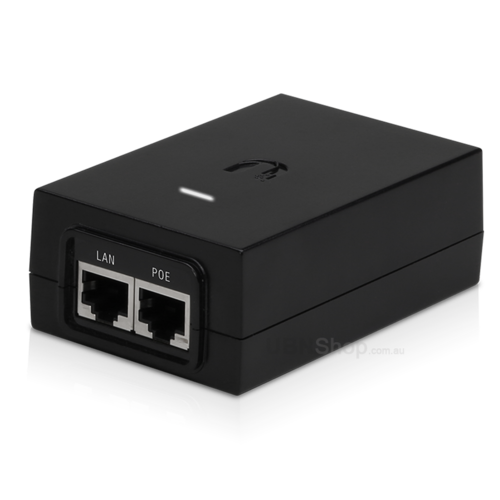

Power over Ethernet Adapter 24VDC 12W Gigabit



Ubiquiti Networks offers Power over Ethernet (PoE) Adapters to power a variety of Ubiquiti products. The PoE Adapters are compatible with most Ubiquiti PoE devices*, including:

  • airFiber®
  • EdgeMAX®
  • mFi®
  • UniFi® AP
  • UniFi Video® / airVision®
  • UniFi LED
  • UFiber

* Check product specifications to verify PoE compatibility



Ubiquiti POE Injector, 24VDC, 12W Gigabit - Documents



Ubiquiti POE Injector, 24VDC, 12W Gigabit

Ubiquiti POE Injector, 24VDC, 12W Gigabit - Specifications



Model POE-24-12W-G
Dimensions 87 x 44 x 29 mm (3.43 x 1.73 x 1.14")
Weight 99.4 g (3.51 g)
Output Voltage 24VDC @ 0.5A
LAN Activity Indicator No
Gigabit LAN Port Yes
Remote Reset Capability Yes
Reset Button Yes
Rated Voltage 100-240VAC @ 50/60Hz
Input Current 0.3A @ 120VAC, 0.2A @ 240VAC
Inrush Current <30A Peak @ 120VAC, <60A Peak @ 230VAC
Efficiency 75+%
Output Ripple 1% Max.
Switching Frequency 50 kHz
Line Regulation ≤ 3%
Load Regulation ≤ 5%
2-Pair Powering Pins Pins 4, 5 (+) and Pins 7, 8 (-)
4-Pair Powering
Operating Temperature 0 to 40° C (32 to 104° F)
Storage Temperature -30 to 70°C (-22 to 158° F)
Operating Humidity 35 to 95% Noncondensing
AC Connector IEC-320 C6
Data IN / POE RJ45 Shielded Socket
Surge Protection Difference and Common Mode
Clamping Protection 11V Data, 60V Power
Max. Surge Discharge 1500A (8/20 µs) Power
Peak Pulse Current 36A (10/1000 µs) Data
Shunt Capacitance <5 pF data
Response Time <1 ns
Certifications CE, FCC, IC, UL

Shipping Specifications

SKU POE-24-12W-G
Model # POE-24-12W-G
Barcode # 810354021190
Brand Ubiquiti
Shipping Weight 0.0500kg
Shipping Width 0.030m
Shipping Height 0.020m
Shipping Length 0.050m
Shipping Cubic 0.000030000m3
Unit Of Measure ea
