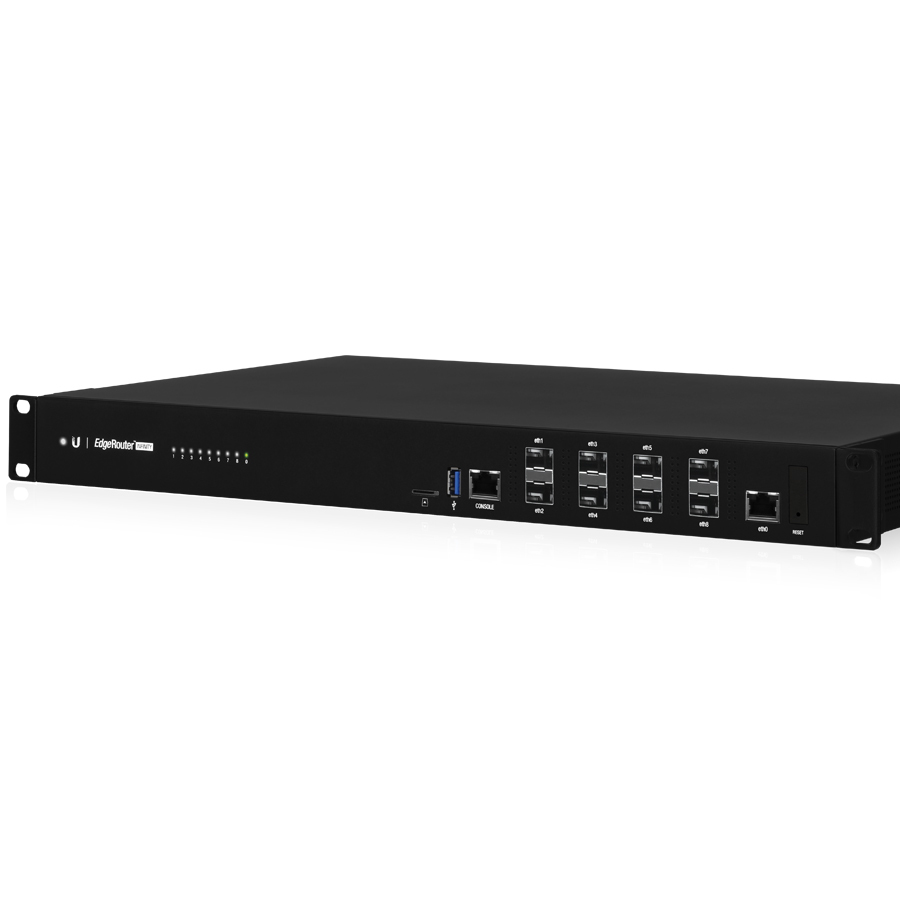

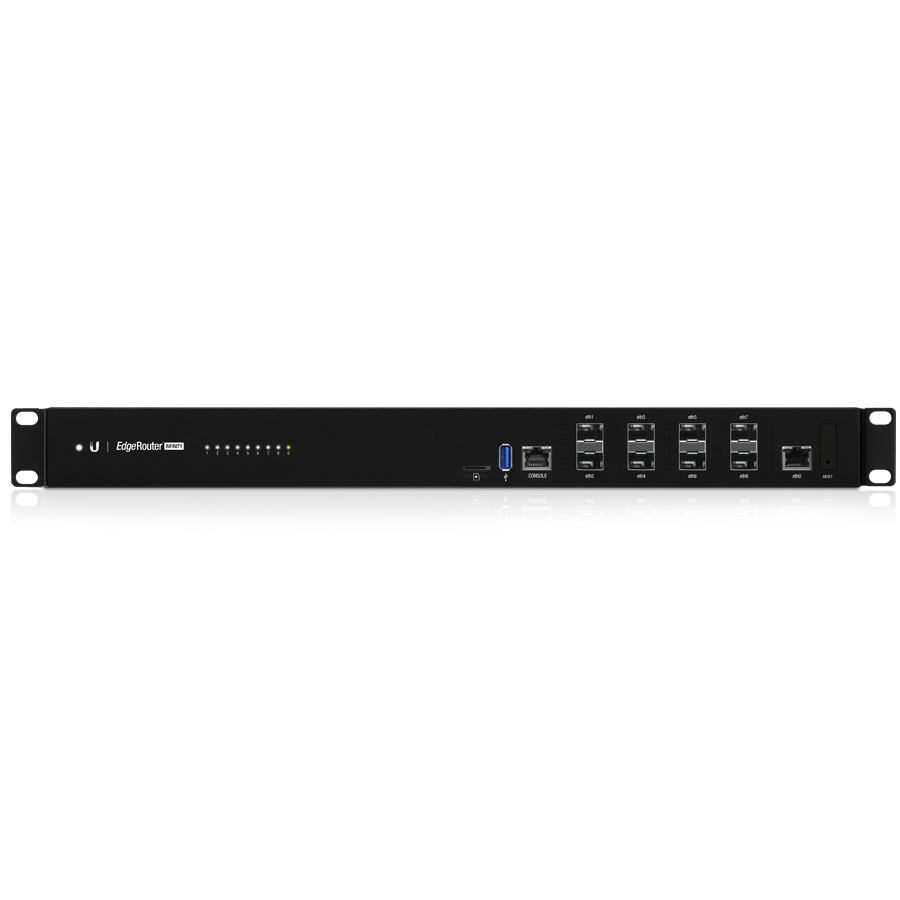

EdgeRouter Infinity 10-Gigabit SFP+
ER-8-XG
10G SFP+ EdgeRouter Infinity
The EdgeRouter™ Infinity combines 80 Gbps aggregate throughput and price/performance value in a compact rackmountable form factor.
- High-end routing technology for the masses
- Features 16 cores
- 16GB RAM
- Hardware acceleration for packet processing
10G Routing Technology for the Masses

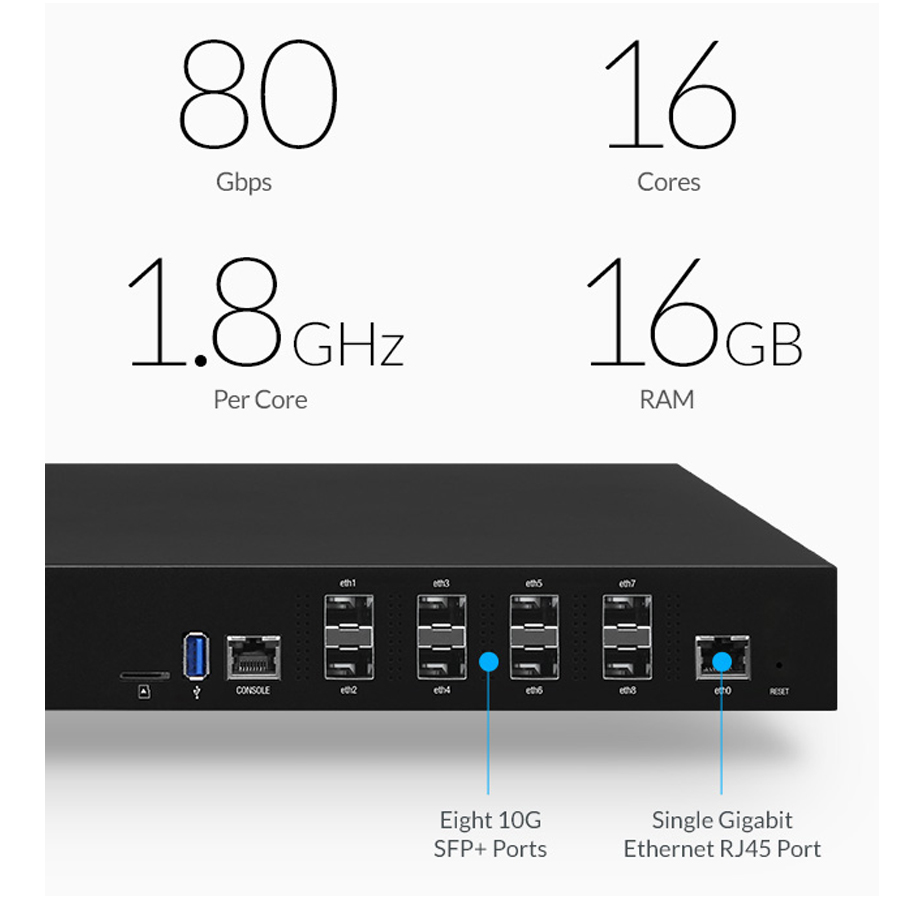

The EdgeRouter Infinity features eight 10G SFP+ ports for fibre connectivity and a Gigabit Ethernet RJ45 port for copper connectivity.
Rackmount Design
The 1U-high metal chassis allows for convenient mounting in a standard-sized, 19”-wide rack.
Power Versatility

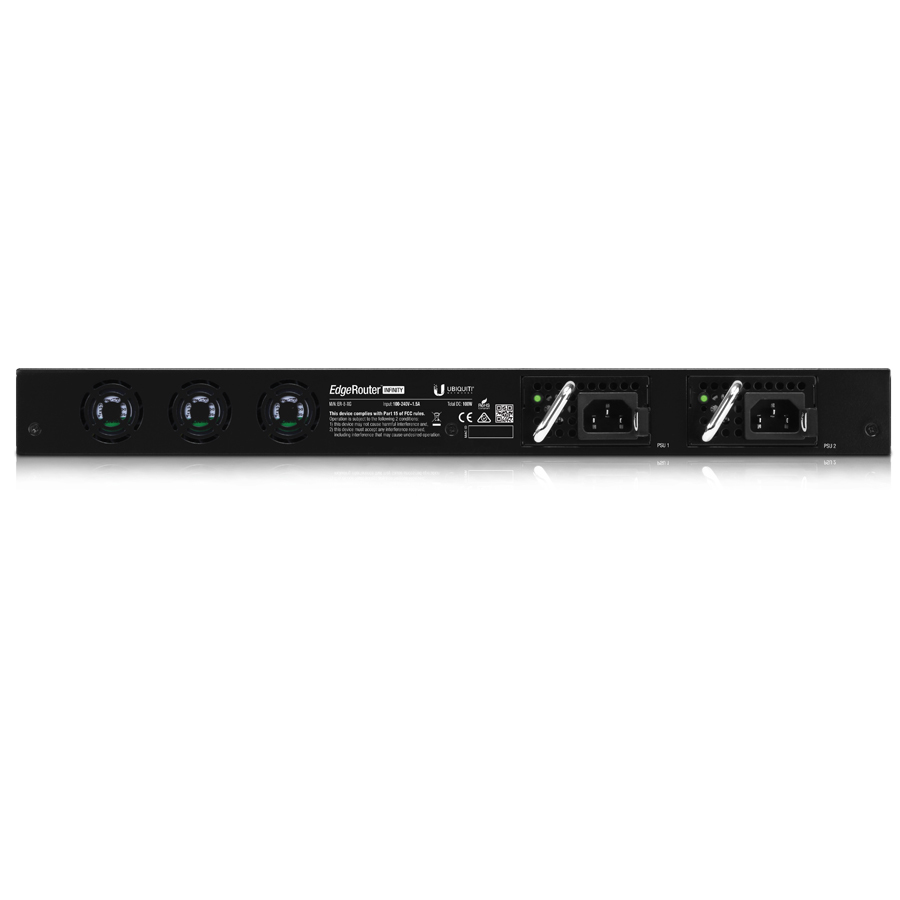

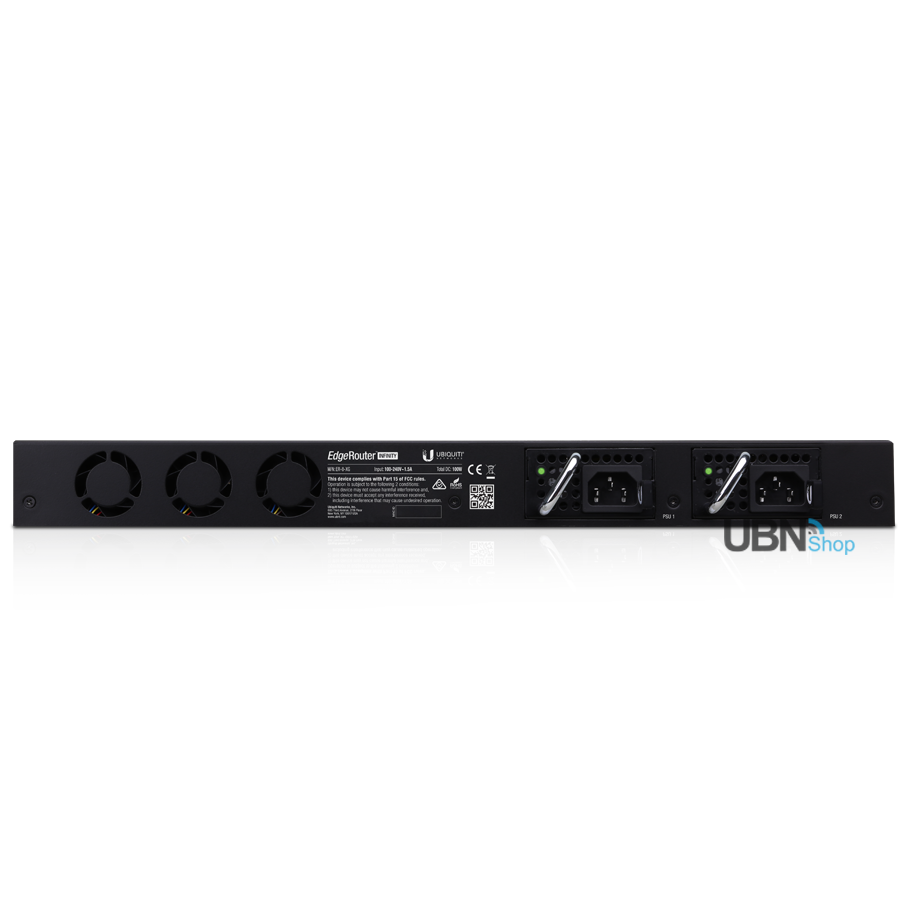

The EdgeRouter Infinity includes two AC/DC power modules – one for backup. An optional DC/DC power module is available for use with DC power.
Centralized Management
The EdgeRouter Infinity is supported and managed by UNMS™ (Ubiquiti® Network Management System), a comprehensive controller with an intuitive UI. A single control plane manages registered EdgeMAX® devices across multiple sites.
(ER-8-XG)
EdgeRouter Infinity ER 8 XG
Package Includes
- 1 x EdgeRouter Infinity ER 8 XG
- 2 x Mounting Brackets
- 8 x Bracket Screws
- 4 x Mounting Screws
- 4 x Cage Nuts
- 2 x Power Cord
- 4 x Rubber Feet
- Quick Start Guide
EdgeRouter Infinity ER 8 XG - Specifications
| EDGEROUTER INFINITY ER-8-XG | |
|---|---|
| Dimensions | 442.4 x 285.6 x 43.7 mm (17.42 x 11.24 x 1.72") |
| Weight | Without Mount: 4.950 kg (10.91 lb) With Mount: 5.045 kg (11.12 lb) |
| Max. Power Consumption | 100W |
| Power Method | 110 - 240VAC |
| Power Supply | (2) Hotswappable AC/DC PSU |
| Supported Voltage Range | AC Input: 100 to 240VAC |
| Button | Reset |
| Processor | MIPS64 16 Core 1.8 GHz |
| System Memory | 16 GB DDR4 RAM |
| On-Board Flash Storage | 8 MB NOR Flash 4 GB eMMC NAND Flash |
| LEDs | System: Status SFP+ Data Ports: Link/Activity RJ45 Data Port: Link/Activity |
| Interfaces | Serial Console Port: (1) RJ45 Serial Port Data Ports: (1) RJ45 Serial Port, (8) SFP+ Ports (1) RJ45 Gigabit Ethernet Port |
| Certifications | CE, FCC, IC |
| Rackmount | Yes |
| ESD/EMP Protection | Air: ± 24 kV, Contact: ± 24 kV |
| Operating Temperature | -5 to 40° C (23 to 104° F) |
| Operating Humidity | 5 - 95% Noncondensing |
Shipping Specifications
| SKU | ER-8-XG |
| Model # | ER-8-XG |
| Barcode # | 810354026584 |
| Brand | Ubiquiti |
| Shipping Weight | 5.6000kg |
| Shipping Width | 0.300m |
| Shipping Height | 0.047m |
| Shipping Length | 0.450m |
| Shipping Cubic | 0.006345000m3 |
| Unit Of Measure | ea |
EdgeRouter Infinity ER 8 XG - Documents
