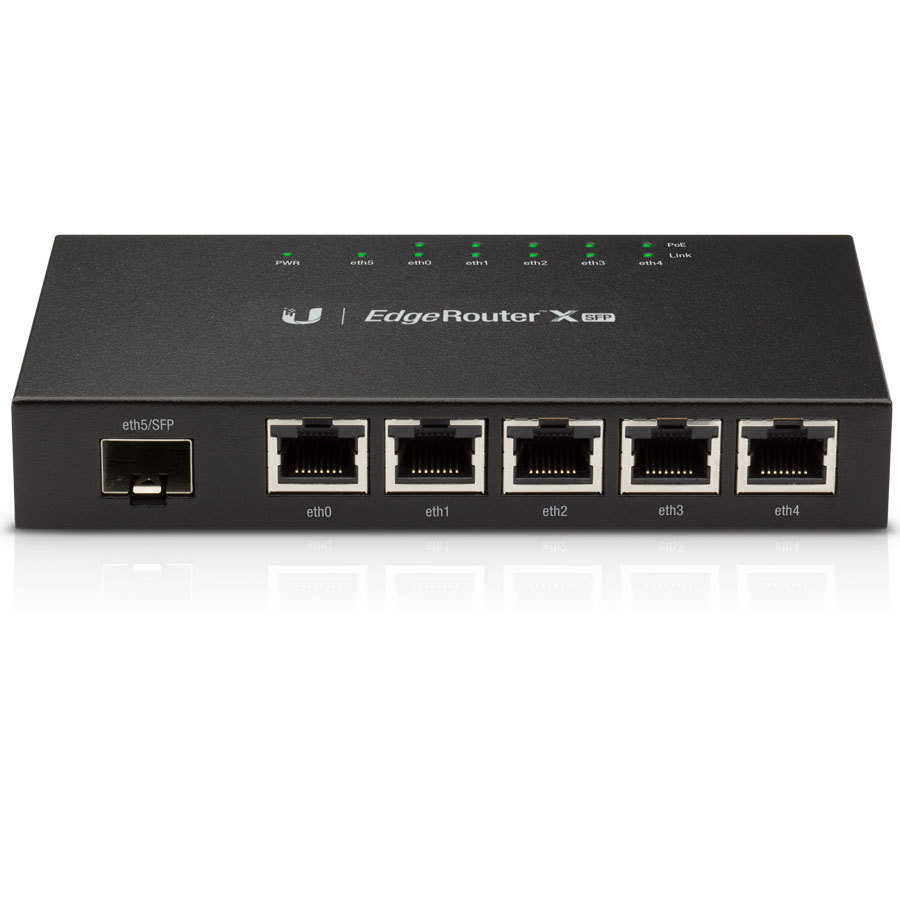

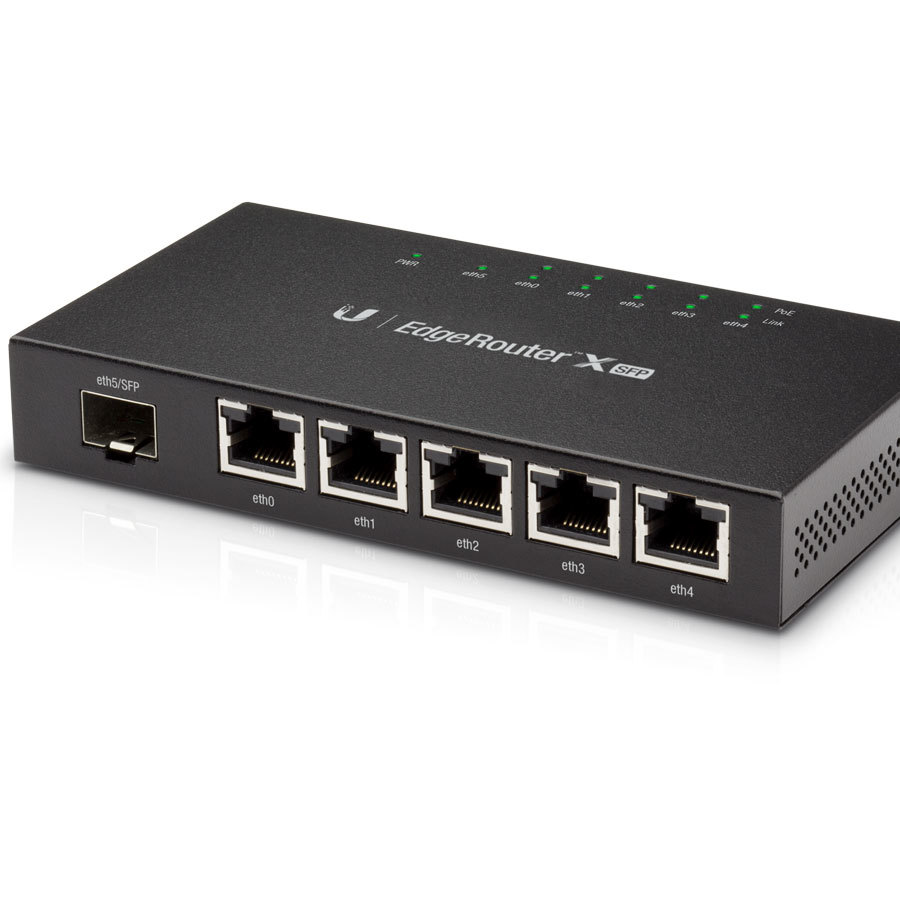

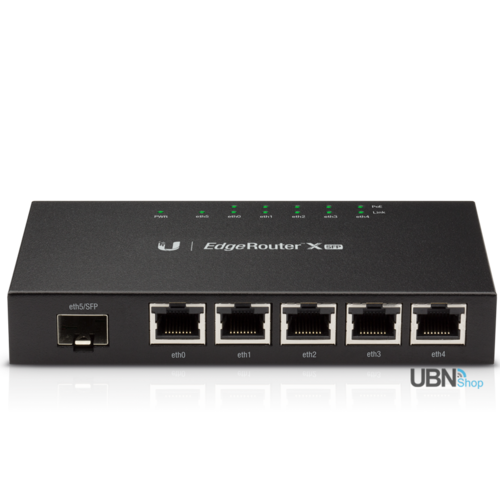

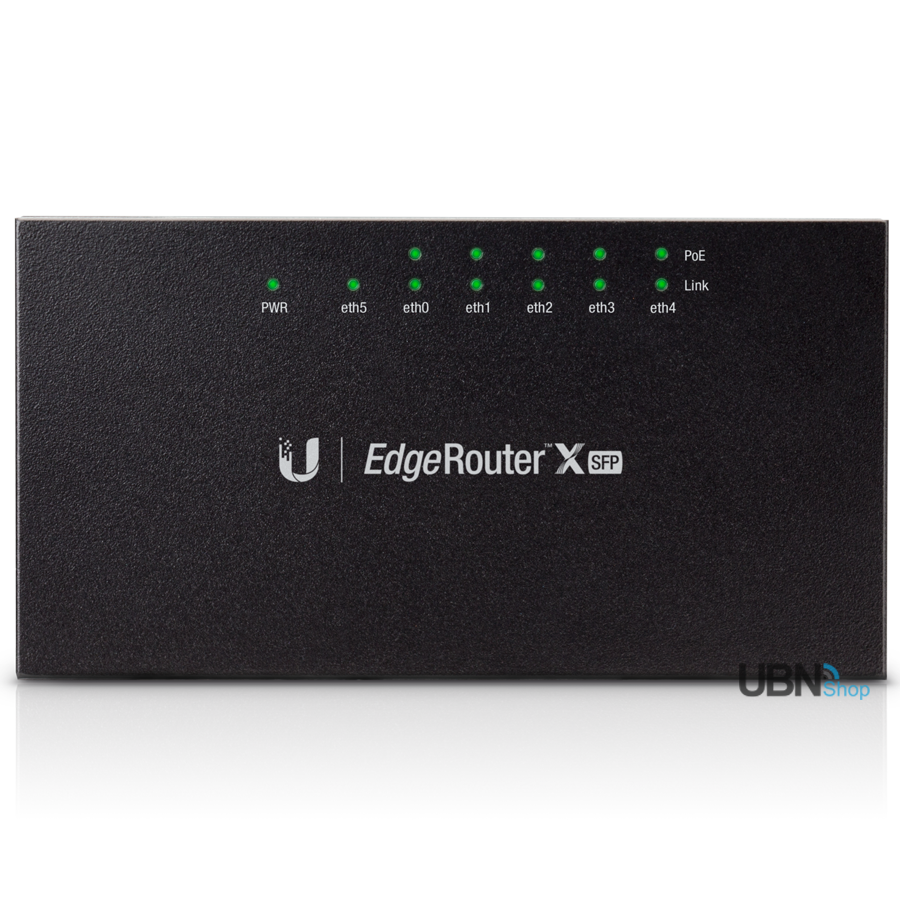

Advanced Gigabit Router with PoE and SFP

The EdgeRouter™ X SFP combines cost-effective routing performance with the convenience of passive PoE support in a compact form factor.

Versatile PoE Capability
The EdgeRouter™ X SFP supports 24V passive PoE to power up to five airMAX® devices.

Gigabit Connectivity

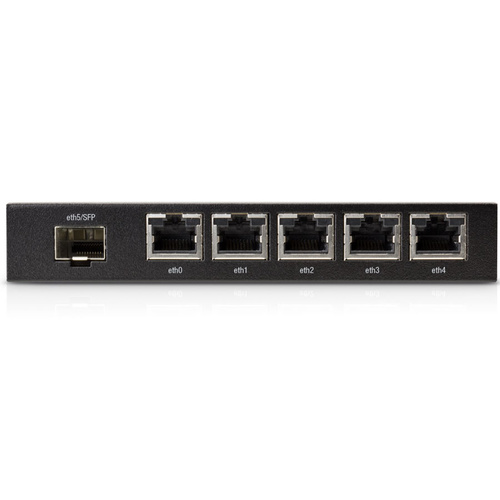

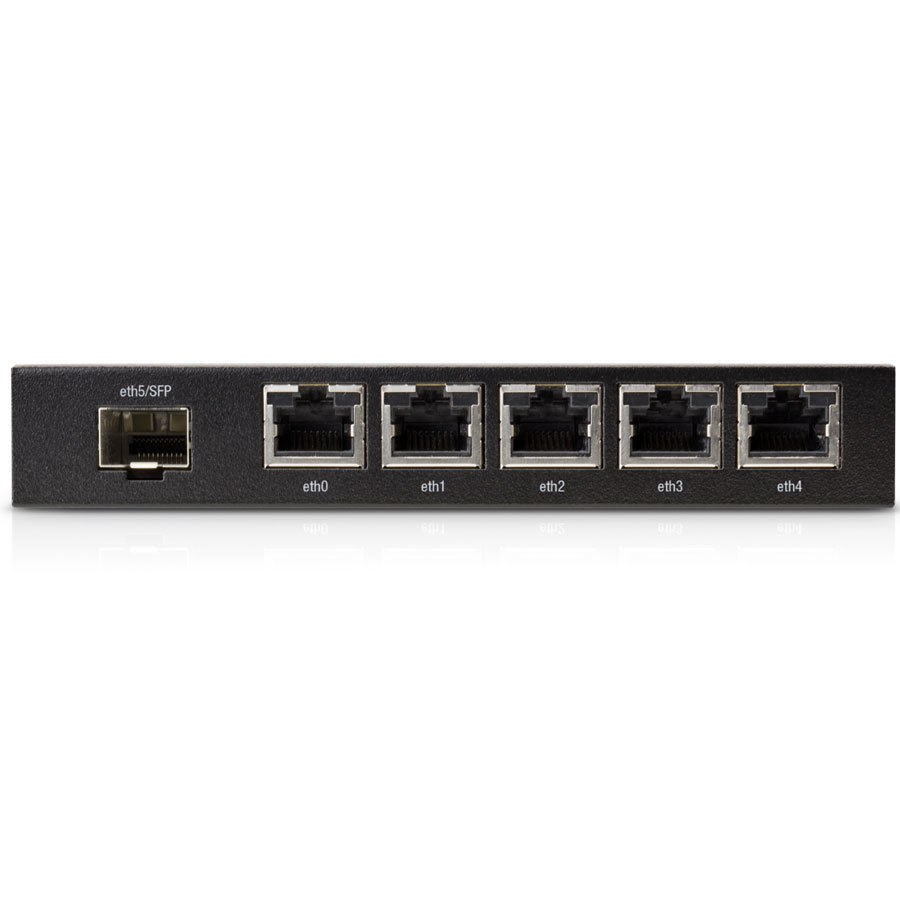

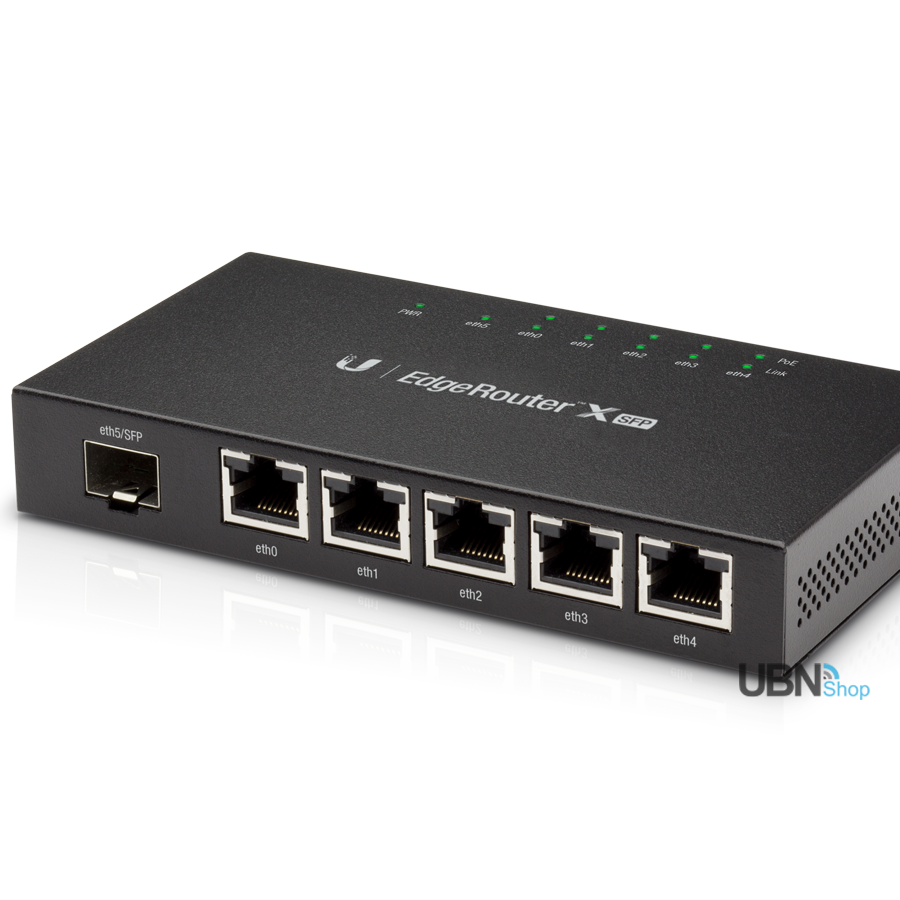

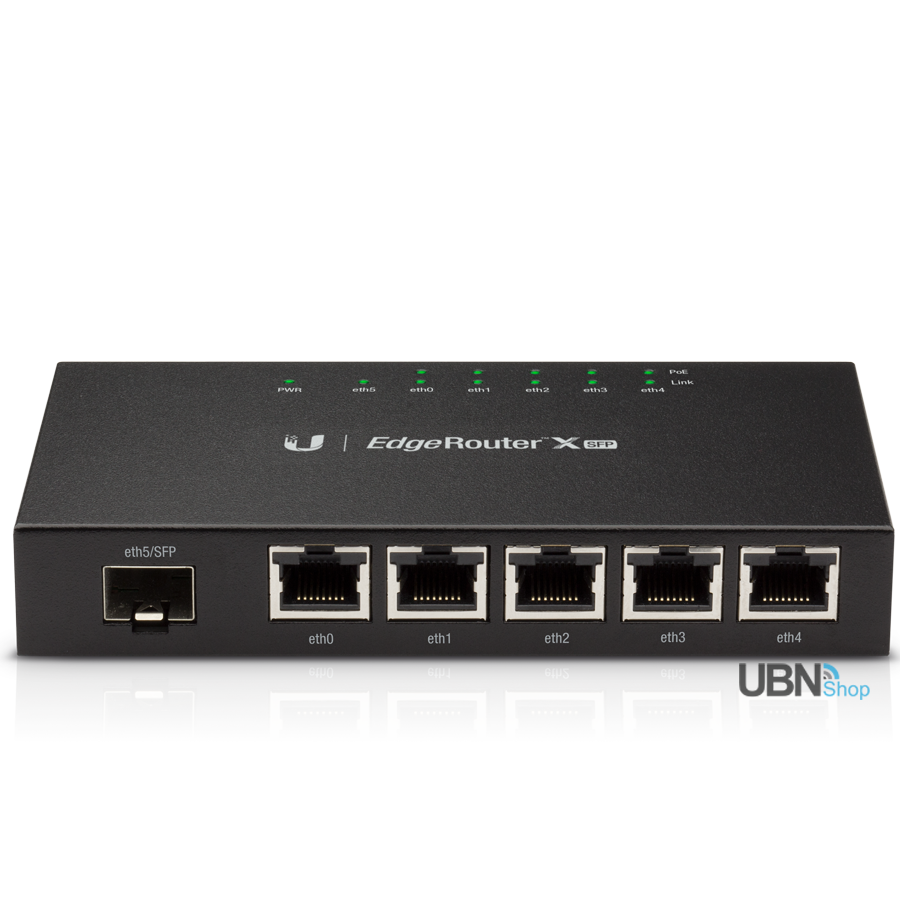

The EdgeRouter™ X SFP features five independent, Gigabit RJ45 ports and one Gigabit SFP port – all six are configurable for switching.

Optical SFP for Backhaul
The Gigabit SFP port provides fiber connectivity to support backhaul applications for carrier-class networks.

Centralized Management
The EdgeRouter™ X SFP is supported and managed by UNMS™ (Ubiquiti® Network Management System), a comprehensive controller with an intuitive UI. A single control plane manages registered EdgeMAX® devices across multiple sites.



EdgeRouter X SFP - Documents

EdgeRouter X SFP

Package Includes

  • 1 x EdgeRouter X SFP
  • 1 x Power Adapter (24V, 2.5A)
  • 1 x Power Cord
  • Quick Start Guide

EdgeRouter X SFP - Specifications

EDGEROUTER X SFP
Dimensions 142 x 75 x 23 mm (5.59 x 2.95 x 0.91")
Weight 215 g (7.58 oz)
Max. Power Consumption 5W
Power Input 24VDC, 2.5A Power Adapter (Included)
Power Supply External AC/DC Adapter
Supported Voltage Range 9 to 26VDC

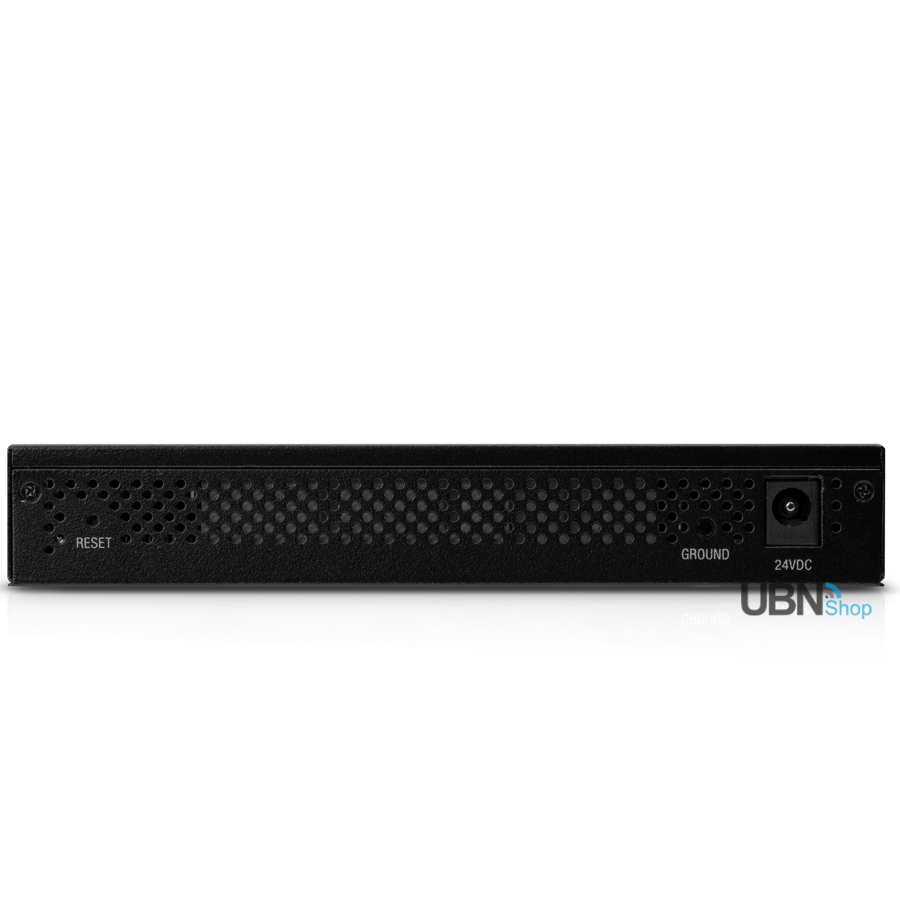

Buttons Reset

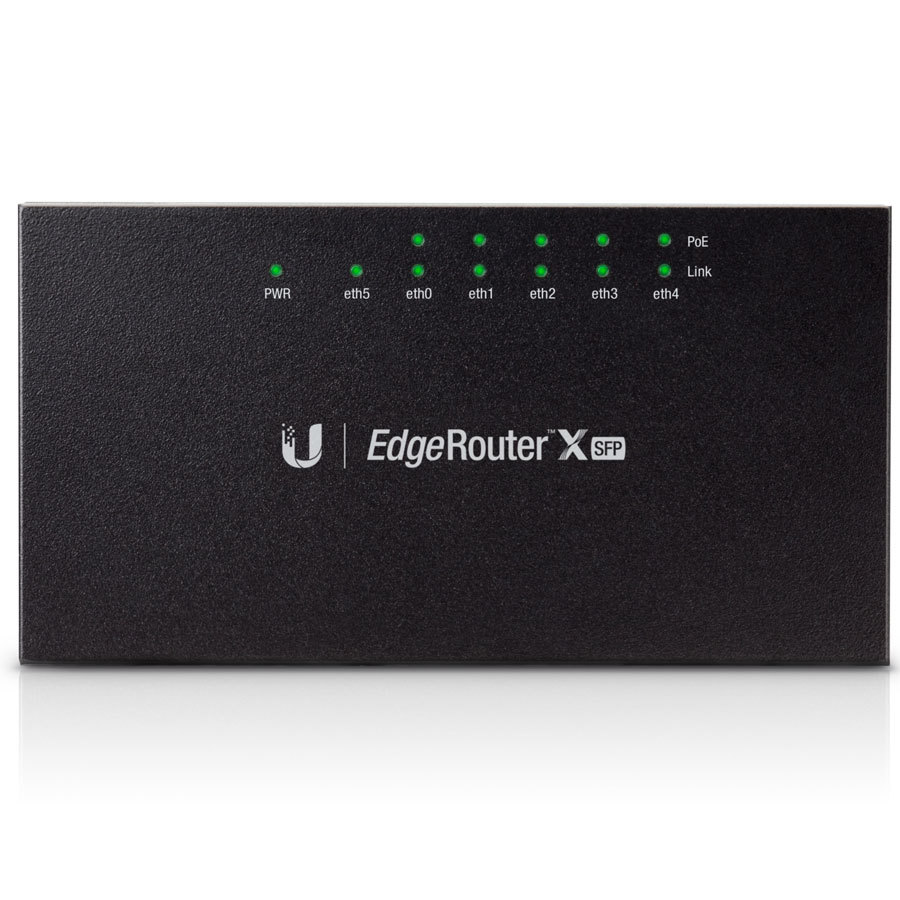

LEDs Power, Link/Activity (6), PoE (5)
Processor Dual-Core 880 MHz, MIPS1004Kc
Memory 256 MB DDR3 RAM
Code Storage 256 MB NAND
Certifications CE, FCC, IC

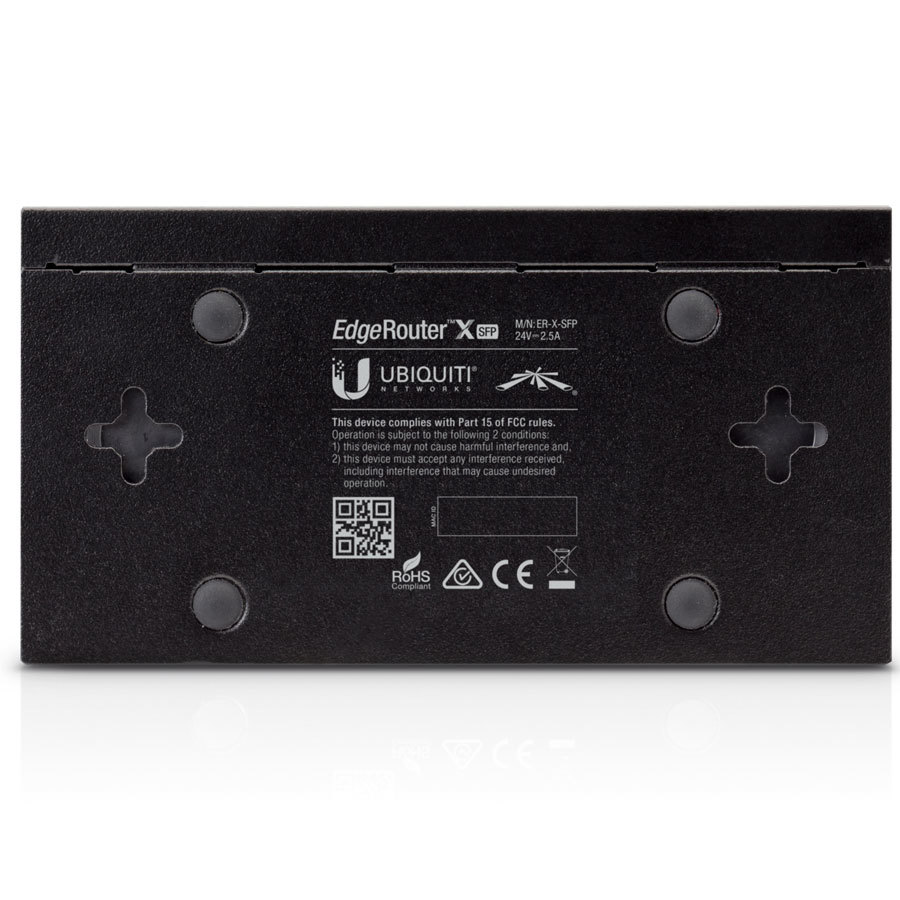

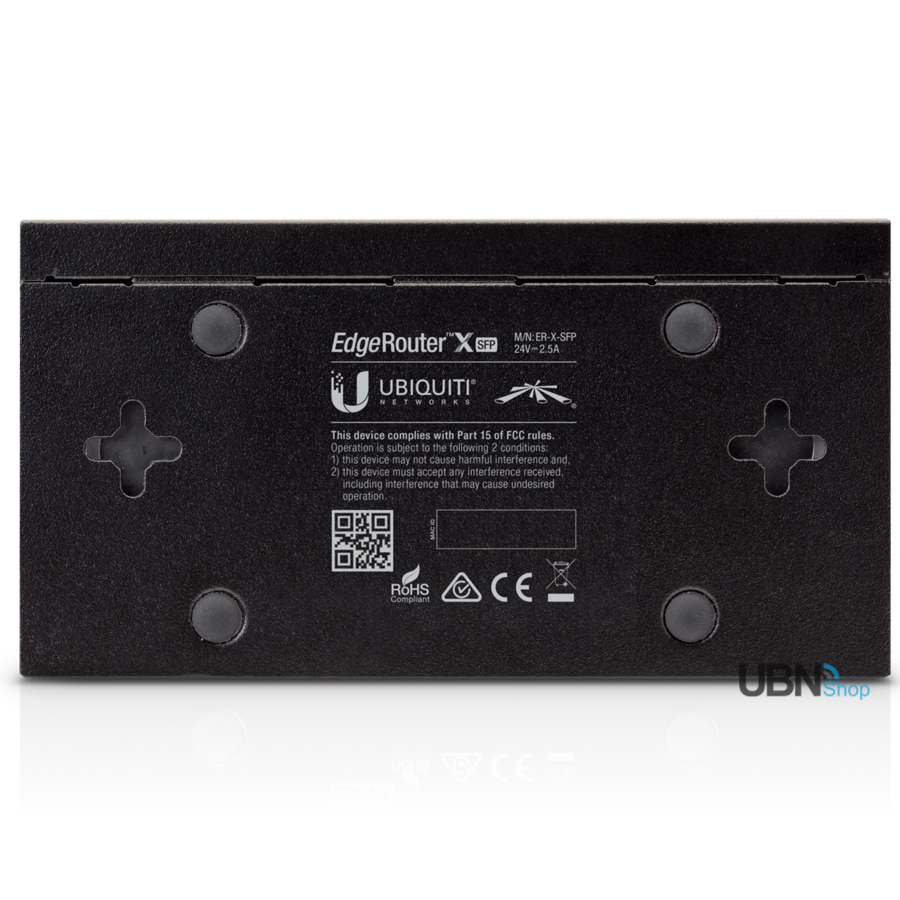

Wall Mount Yes
Operating Temperature -10 to 45° C (14 to 113° F)
Operating Humidity 10 to 90% Noncondensing
NETWORKING INTERFACES
Data/PoE Input Port (5) 10/100/1000 RJ45 Ports
Data Port (1) 100/1000 SFP Port
POE WITH 24VDC POWER ADAPTER
PoE Out Voltage Range 22-24VDC
Max. PoE Wattage Per Data Port 12W (24V)
Max. PoE Wattage Combined for All 5 Data Ports 50W
PoE Method Passive

Shipping Specifications

SKU ER-X-SFP
Model # ER-X-SFP
Barcode # 8.18E+11
Brand Ubiquiti
Shipping Weight 0.4900kg
Shipping Width 0.103m
Shipping Height 0.080m
Shipping Length 0.222m
Shipping Cubic 0.001829000m3
Unit Of Measure ea
