SMA Female to CRC9 RF Coaxial Adapter The "RF ADAPTER"
ADAPT-OA-CRC9-SMAF

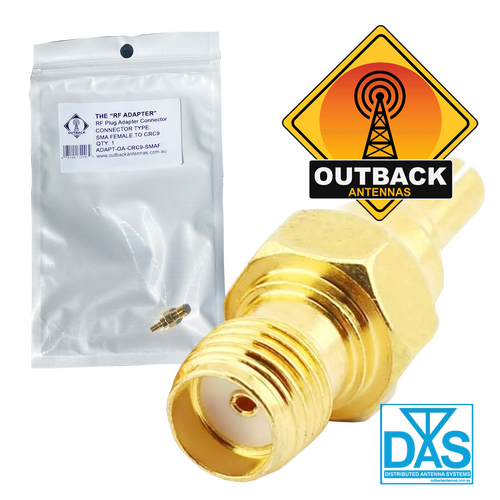

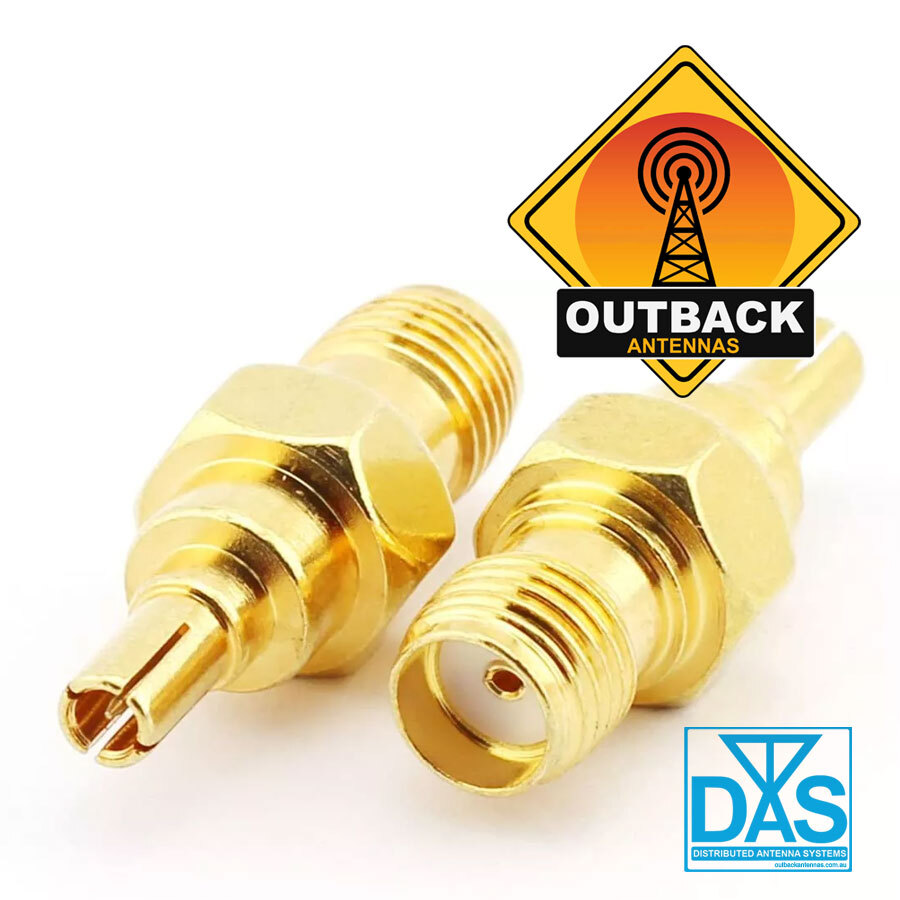

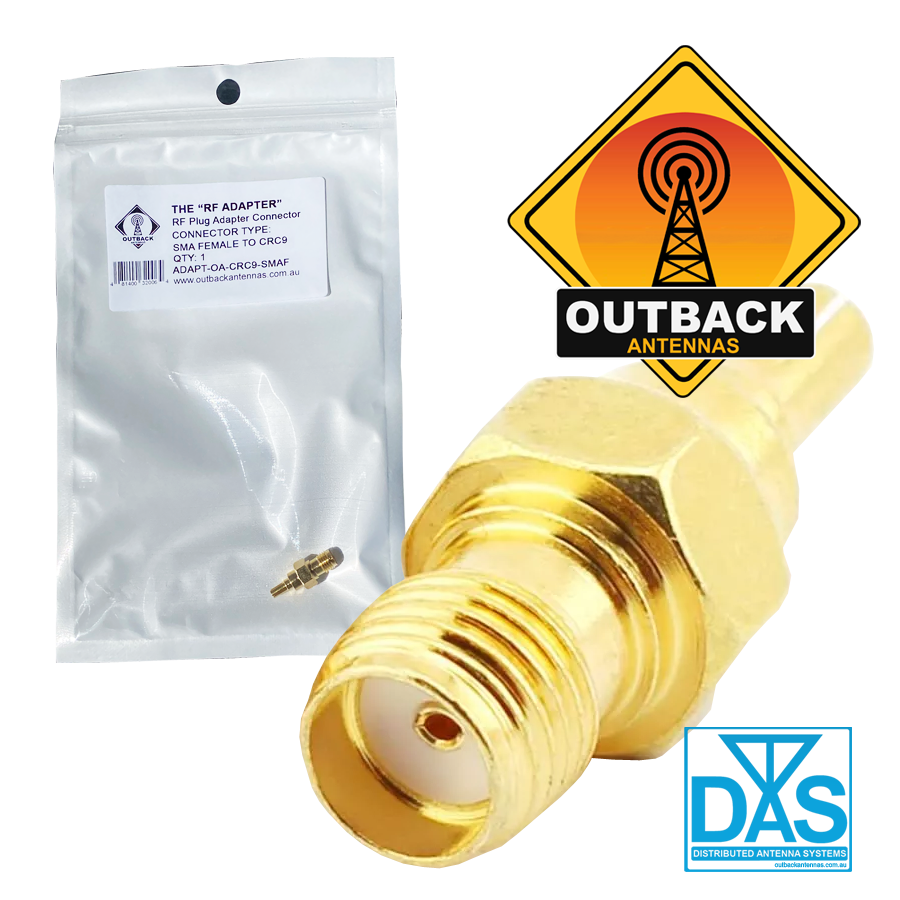

SMA Female to CRC9 Male RF Coaxial Adapter The "RF ADAPTER" by Outback Antennas
Type: CRC9 to SMA RF coaxial adapter. Great for many projects which involves CRC9 Type and SMA connector. Suitable for external antenna connection on many 4G modems including brands such as Huawei and ZTE use the CRC9 connection to allow the attachment of larger 4G antennas. 4G modems generally use two CRC9 connectors to attach 2×2 MIMO external antennas.
Applications: Suitable for Antennas, Broadcast, Radios, Wi-Fi, Telecom, Coaxial cable, LMR, Wireless LAN Devices, CCTV, Microwave Applications and Digital Communication System etc. Package Content :1 x SMA female to CRC9 male Adapter
.
Features:
- Protective Dust Cap Keeps Adapter’s Interior Clean from Dust
- No Tools Required for Assembly
- Available in A Variety of Connector Types
Description:
| Model: | The "RF ADAPTER" | Body Style | Straight |
| SKU: | ADAPT-OA-CRC9-SMAF | Weight: | 200g |
| Connector Type | CRC9 Male to SMA-Type Female | Colour: | Gold / Silver |
| Material: | Brass | Package: | Single |
| Impedance: | 50 ohm | Adapter Type: | RF Connector Adapter |
(ADAPT-OA-CRC9-SMAF)
SMA Female to CRC9 Male RF Coaxial Adapter The "RF ADAPTER" by Outback Antennas
Pack Includes:
- 1 x SMA Female to CRC9 Male RF Coaxial Adapter
SMA Female to CRC9 Male RF Coaxial Adapter The "RF ADAPTER" by Outback Antennas - Specifications
Description:
| Model: | The "RF ADAPTER" | Body Style | Straight |
| SKU: | ADAPT-OA-CRC9-SMAF | Weight: | 200g |
| Connector Type | CRC9 Male to SMA-Type Female | Colour: | Gold / Silver |
| Material: | Brass | Package: | Single |
| Impedance: | 50 ohm | Adapter Type: | RF Connector Adapter |
| SKU | ADAPT-OA-CRC9-SMAF |
| Model # | ADAPT-OA-CRC9-SMAF |
| Barcode # | 481400320064 |
| Brand | OUTBACK ANTENNAS |
| Shipping Weight | 0.0850kg |
| Shipping Width | 0.110m |
| Shipping Height | 0.030m |
| Shipping Length | 0.180m |
| Shipping Cubic | 0.000594000m3 |
| Unit Of Measure | ea |
