Antenna "G-BANGER" (White) Omni Vehicle Cellular Antenna Heavy Duty 4G LTE 698-2700mhz Detachable Barrel Spring White
The "G-BANGER" (White) Omni Antenna, Vehicle Cellular Antenna Heavy Duty 4G LTE 698-2700mhz Detachable Barrel Spring 73cm 4/7 dBi
Definitely a good " BANG FOR YA BUCK"
|Designed for the Rugged Australian Outback where the mobile signal is s***. Ideal for the True Blue Aussie Chariot, Ute, 4B’s or Light & Heavy Rigs. Fairdinkum Reliability for the 3G, 4G, 4GX, LTE applications and 2.4GHz WiFi applications|
The "G-BANGER" Cellular Antenna by Outback Antennas is named according to its capabilities. Designed for all Australian Mobile Carriers that operate in the 698-2700mhz frequency range - including Telstra 3G, 4G/LTE, 4GX, and Optus, Vodaphone 3G, 4G/LTE, The heavy duty antennas will compliment any vehicle, and offers flexible mounting options. The "G-BANGER" offers 4dBi gain on the higher frequencies and an impressive 7dBi on the lower frequencies.

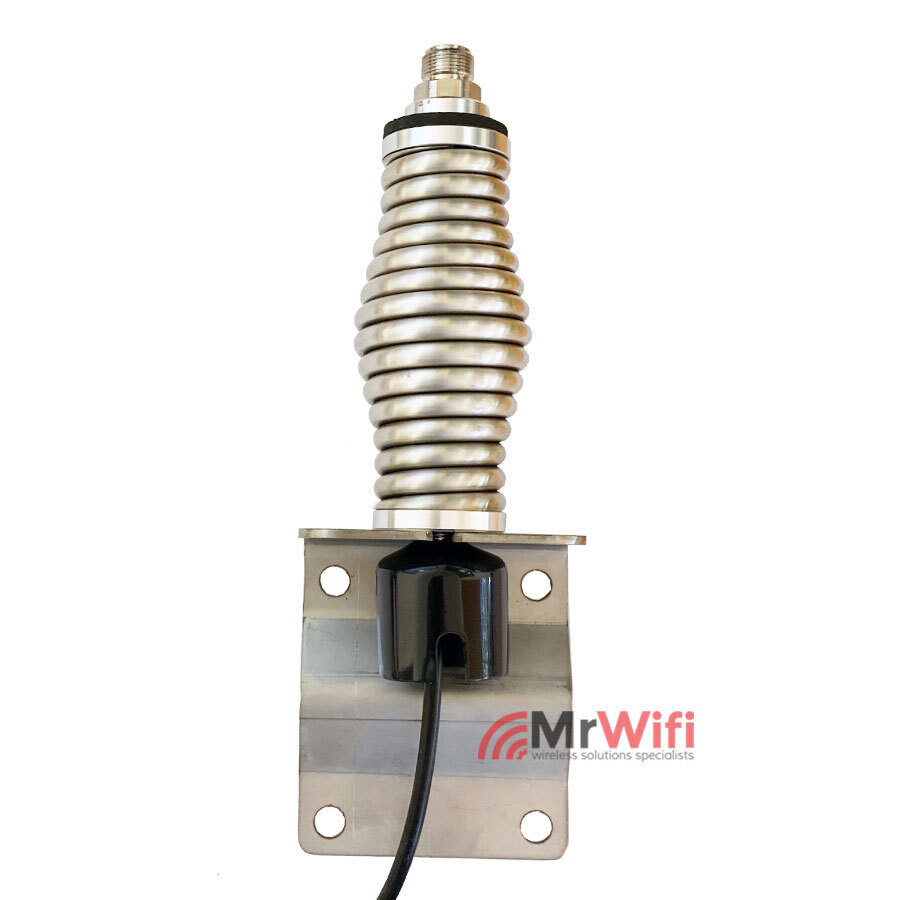

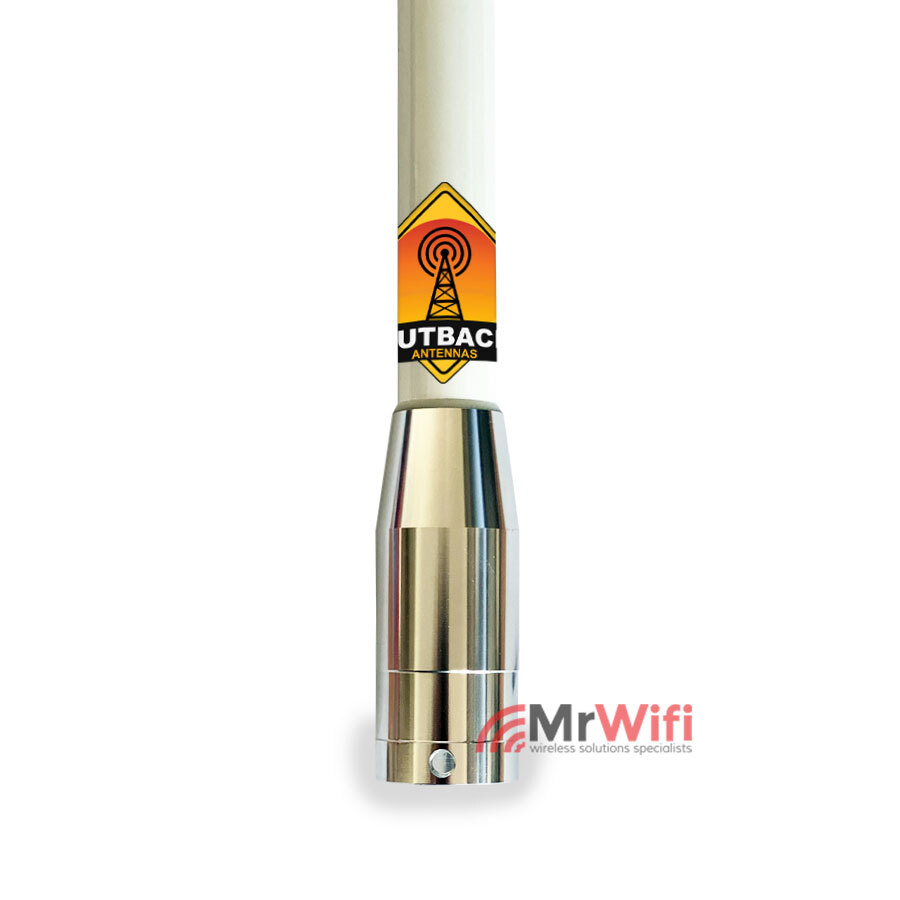

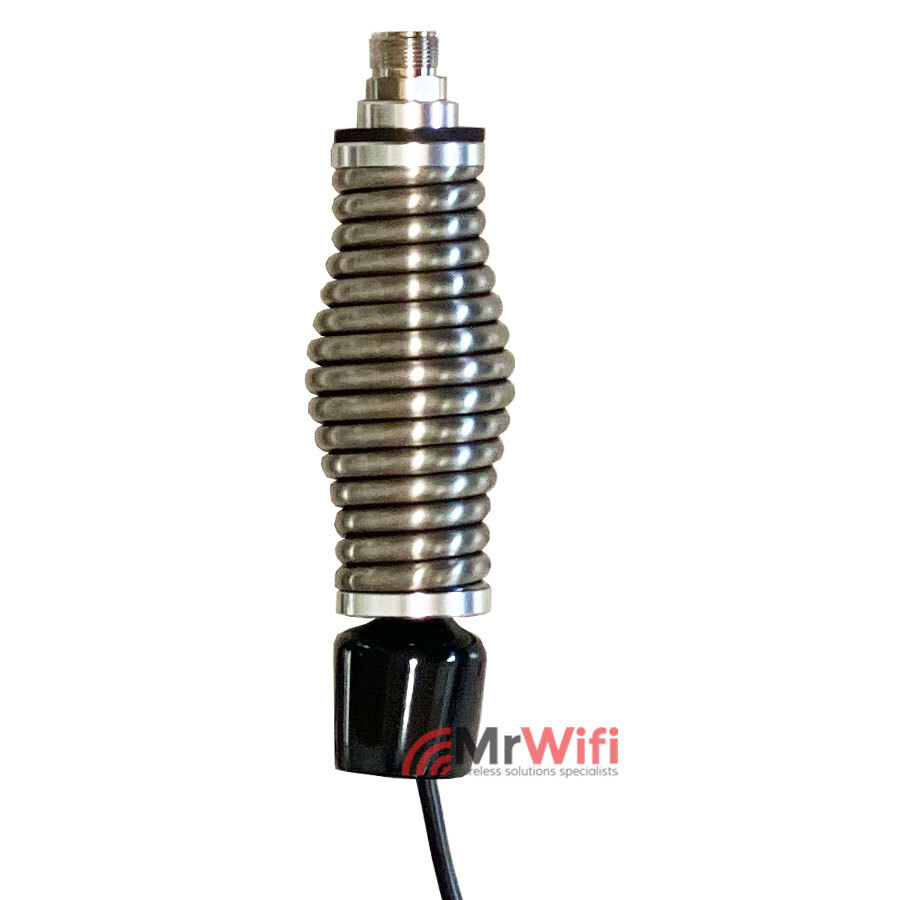

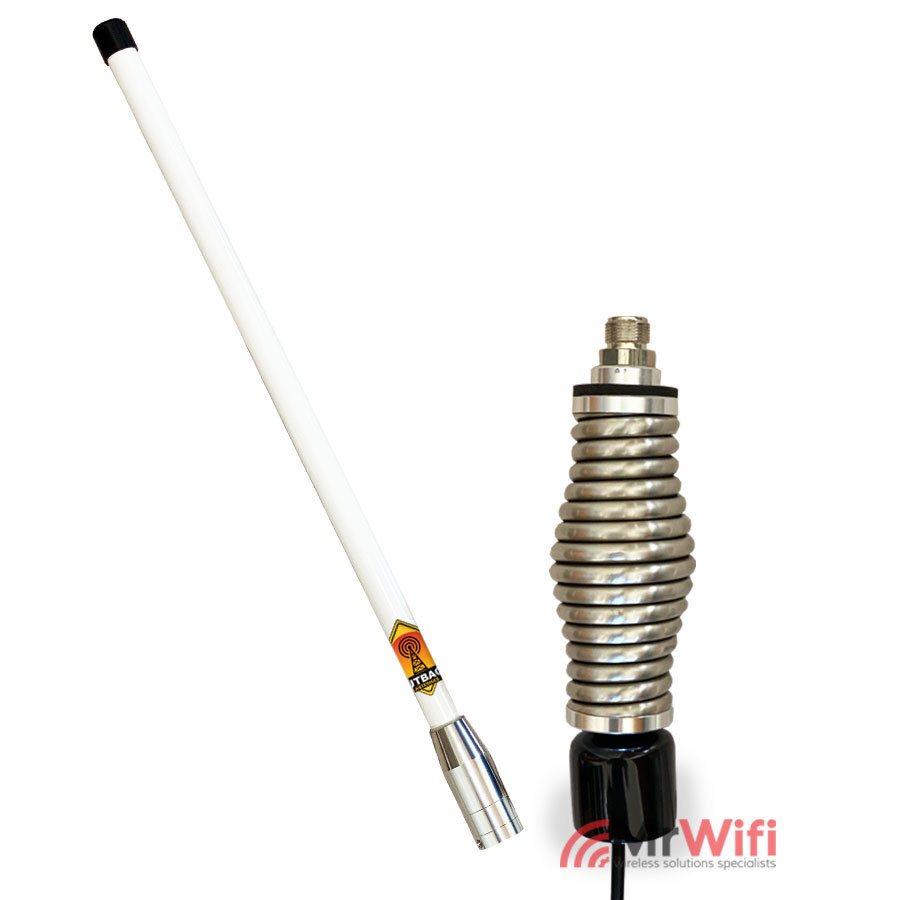

The cellular antenna whip is made from fibreglass which is detachable from the quality heavy duty stainless steel spring base designed to last in the roughest of Australian conditions. Fitting this antennas to your vehicle is sure to keep you connected at times that matter, with the detachable whip you have the option of fitting larger or smaller whips to the same base depending on your requirements or location.
This antenna will handle pretty much anything you throw at it. At 73cm in length, the antenna will sit below the roofline of most vehicles meaning no more worries about underground car parks or other low clearance areas. The "G-Banger" Cellular Antenna is a high performance antenna carefully selected to withstand Australian conditions.
Combine the "G-Banger" with a Cel-Fi vehicle booster to never be out of contact when away from home. The antenna has an SMA male connector which will screw directly into your Cel-Fi vehicle booster, providing full signal inside your car or truck.
- Available in Black or White
- Length 73cm Outback Antenna Omni "G-BANGER" Antenna.
- Whip detachable from Heavy Duty Stainless Steel Mount
- 7 dBi gain across upper bands 698-960MHz
- 4 dBi gain across lower bands 1800-2600MHz
- Ruggedised construction for Australian conditions
- Suited for mounting to Bull Bar, Roof Racks etc. with appropriate mounting bracket (Sold Separately)

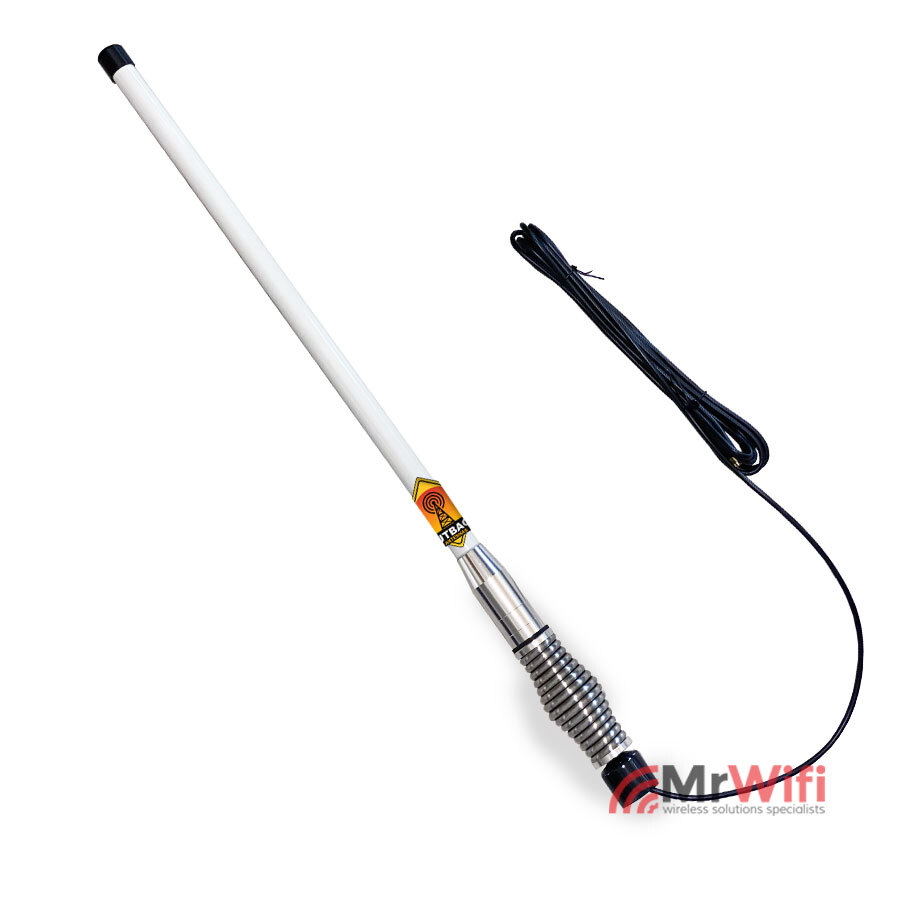

- Supplied with 4.5m of flexible LMR200 Low Loss cable with a pre-fitted SMA male connector
- Ideal for vehicles, caravans, motor homes and freight vehicles
The "G-BANGER" Omni Antenna, Vehicle Cellular Antenna Heavy Duty 4G LTE
- 1 x "G-BANGER" Omni Antenna, Heavy Duty 4G LTE 698-2700mhz Barrel Spring Detachable Antenna (Black or White)
- 1 x L Shape Hex Allen Key
- Dust Cap
The "G-BANGER" Omni Antenna, Vehicle Cellular Antenna Heavy Duty 4G LTE 698-2700mhz Detachable Barrel Spring - Specifications
|Telstra 4GX||700 MHz||Yes||6.5 dBi|
|Telstra Next-G||850 MHz||Yes||7 dBi|
|Telstra 4G||1800 MHz||Yes||6 dBi|
|Telstra 3G (Metro)||2100 MHz||Yes||6 dBi|
|Telstra 4G (Metro)||2600 MHz||No||-|
|Optus 4G+||700 MHz||Yes||6.5 dBi|
|Optus 3G||900 MHz||Yes||6.5 dBi|
|Optus 4G||1800 MHz||Yes||4 dBi|
|Optus 3G (Metro)||2100 MHz||Yes||4 dBi|
|Optus 4G TDD||2300 MHz||No||-|
|Optus 4G (Metro)||2600 MHz||No||-|
|Vodafone 4G+||850 MHz||Yes||7 dBi|
|Vodafone 3G||900 MHz||Yes||6.5 dBi|
|Vodafone 4G||1800 MHz||Yes||4 dBi|
|Vodafone 3G (Metro)||2100 MHz||Yes||4 dBi|
|Frequency Range||698-960 MHz / 1710-2170 MHz|
|Input Impedance||50 Ω|
|Peak Gain||4 / 7 dBi|
|VSWR||≤2.0:1 / ≤2.0:1|
|Horizontal Beamwidth||360° (omnidirectional)|
|Lighting Protection||DC Ground|
|Maximum Input Power||50 W|
|Input Connector||SMA Male|
|Cable||4.5m LMR200 Low Loss cable|
|Lightning Protection||DC Ground|
|Antenna Construction||Fibreglass radome, heavy duty spring base|
|Mounting||Suits L bracket for Bull Bar mounting|
|Dimensions||730 x Ø50 mm|
|Rated Wind Velocity||210 km/h|
|Operating Temperature||-40 to +65°C|
|Antenna Color||Black or White|
|Unit Of Measure||ea|
