Antenna "G-BANGER" (Black) Omni Vehicle Cellular Antenna Heavy Duty 4G LTE 698-2700mhz Detachable Barrel Spring Black

ANT-OA-GBANG-B


The "G-BANGER" (Black) Omni Antenna, Vehicle Cellular Antenna Heavy Duty 4G, LTE and WiFi 2.4Ghz 698-2700mhz Detachable Barrel Spring 73cm 4/7 dBi Black



Definitely a GOOD " BANG FOR YA BUCK"

Designed for the Rugged Australian Outback where the mobile signal is s***. Ideal for the True Blue Aussie Chariot, Ute, 4B’s or Light & Heavy Rigs. Fairdinkum Reliability for the 3G, 4G, 4GX & LTE applications.



Outback Antennas Vehicle Omni Cel-Fi, 4G LTE, 3G



The "G-BANGER" Cellular Antenna by Outback Antennas is named according to its capabilities. Designed for all Australian Mobile Carriers that operate in the 698-2700mhz frequency range - including Telstra 3G, 4G/LTE, 4GX, and Optus, Vodaphone 3G, 4G/LTE, The heavy duty antennas will compliment any vehicle, and offers flexible mounting options. The "G-BANGER" offers 4dBi gain on the higher frequencies and an impressive 7dBi on the lower frequencies.

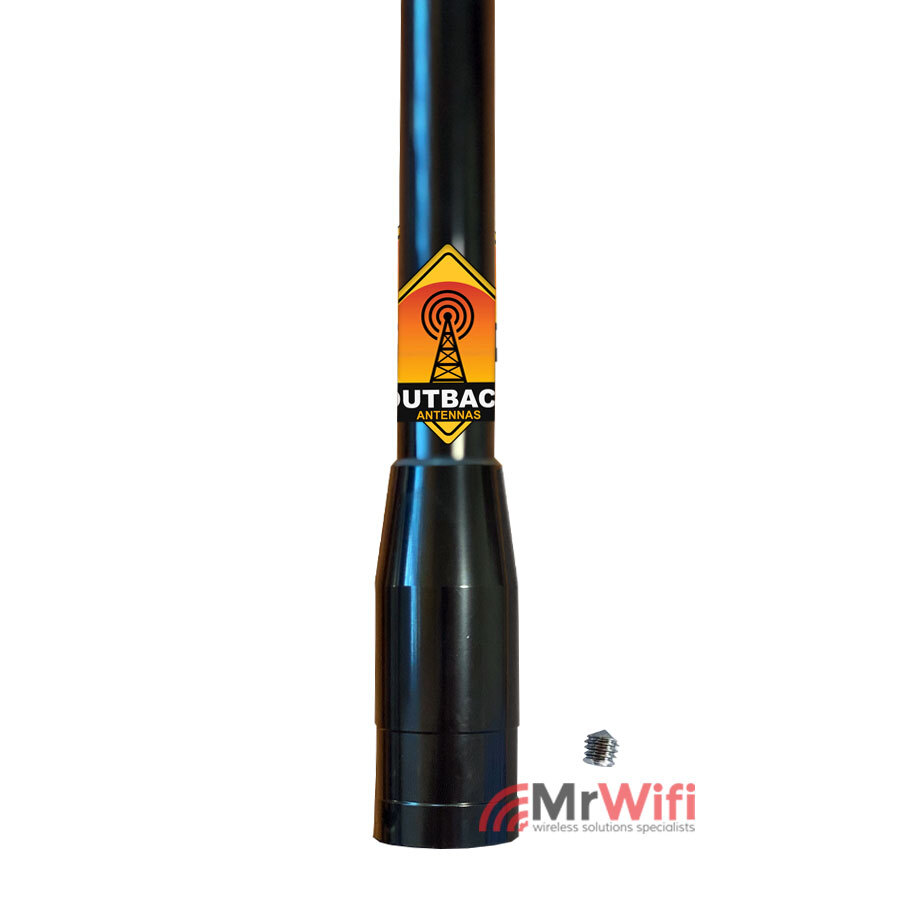

The cellular antenna whip is made from fibreglass which is detachable from the quality heavy duty stainless steel spring base designed to last in the roughest of Australian conditions. Fitting this antennas to your vehicle is sure to keep you connected at times that matter, with the detachable whip you have the option of fitting larger or smaller whips to the same base depending on your requirements or location.

This antenna will handle pretty much anything you throw at it. At 73cm in length, the antenna will sit below the roofline of most vehicles meaning no more worries about underground car parks or other low clearance areas. The "G-Banger" Cellular Antenna is a high performance antenna carefully selected to withstand Australian conditions.

Combine the "G-Banger" with a Cel-Fi vehicle booster to never be out of contact when away from home. The antenna has an SMA male connector which will screw directly into your Cel-Fi vehicle booster, providing full signal inside your car or truck.

Features

  • Available in Black or White
  • Length 73cm Outback Antenna Omni "G-BANGER" Antenna.

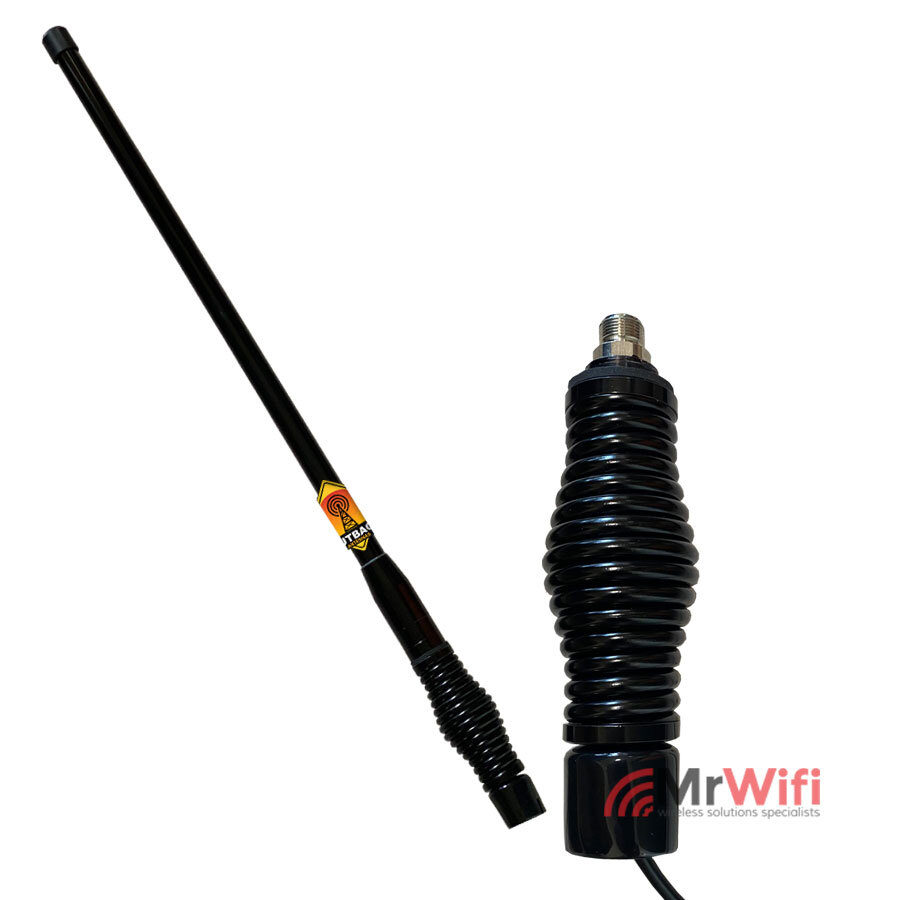

  • Whip detachable from Heavy Duty Stainless Steel Mount
  • 7 dBi gain across upper bands 698-960MHz
  • 4 dBi gain across lower bands 1800-2600MHz
  • Ruggedised construction for Australian conditions

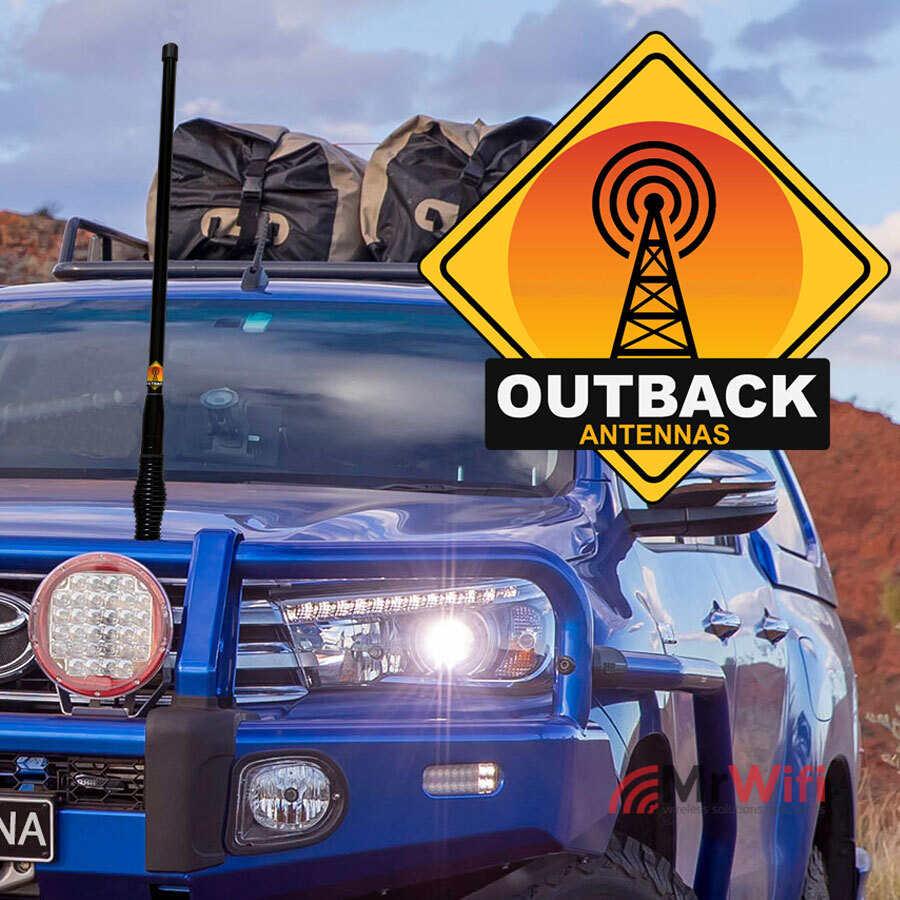

  • Suited for mounting to Bull Bar, Roof Racks etc. with appropriate mounting bracket (Sold Separately)
  • Supplied with 4.5m of flexible LMR200 Low Loss cable with a pre-fitted SMA male connector
  • Ideal for vehicles, caravans, motor homes and freight vehicles

(ANT-OA-GBANG-B)

The "G-BANGER" Omni Antenna, Vehicle Antenna Heavy Duty 4G LTE 698-2700mhz Detachable Barrel Spring

Pack Includes:

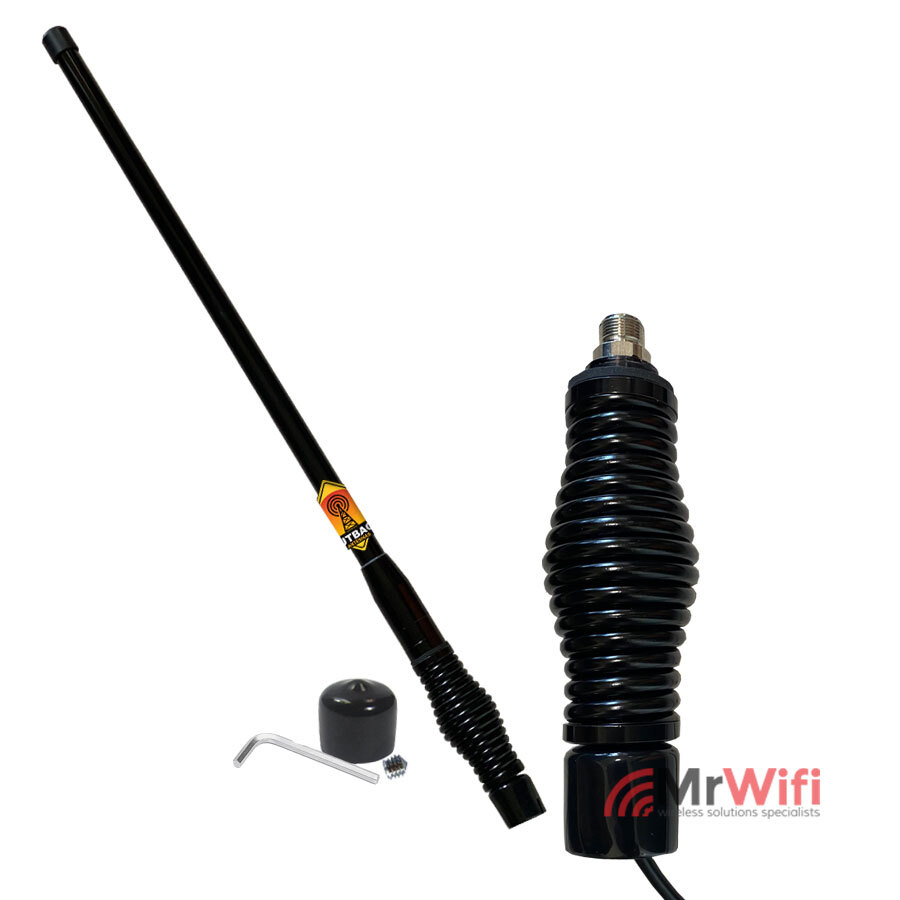

  • 1 x "G-BANGER" Omni Antenna, Heavy Duty 4G LTE 698-2700mhz Barrel Spring Detachable Antenna (Black or White)
  • 1 x L Shape Hex Allen Key



The "G-BANGER" Omni Antenna, Vehicle Antenna Heavy Duty 4G LTE 698-2700mhz Detachable Barrel Spring - Specifications

NETWORK COMPATABILITY
Network Bandwidth Coverage Gain
Telstra 4GX 700 MHz Yes 6.5 dBi
Telstra Next-G 850 MHz Yes 7 dBi
Telstra 4G 1800 MHz Yes 6 dBi
Telstra 3G (Metro) 2100 MHz Yes 6 dBi
Telstra 4G (Metro) 2600 MHz No -

Optus 4G+ 700 MHz Yes 6.5 dBi
Optus 3G 900 MHz Yes 6.5 dBi
Optus 4G 1800 MHz Yes 4 dBi
Optus 3G (Metro) 2100 MHz Yes 4 dBi
Optus 4G TDD 2300 MHz No -
Optus 4G (Metro) 2600 MHz No -

Vodafone 4G+ 850 MHz Yes 7 dBi
Vodafone 3G 900 MHz Yes 6.5 dBi
Vodafone 4G 1800 MHz Yes 4 dBi
Vodafone 3G (Metro) 2100 MHz Yes 4 dBi
ELECTRICAL SPECIFICATIONS
Frequency Range 698-960 MHz / 1710-2170 MHz
Input Impedance 50 Ω
Peak Gain 4 / 7 dBi
VSWR ≤2.0:1 / ≤2.0:1
Polarisation Vertical
Horizontal Beamwidth 360° (omnidirectional)
Lighting Protection DC Ground
Maximum Input Power 50 W
MECHANICAL SPECIFICATIONS
Input Connector SMA Male
Cable  4.5m LMR200 Low Loss cable
Lightning Protection DC Ground
Antenna Construction Fibreglass radome, heavy duty spring base
Mounting Suits L bracket for Bull Bar mounting
Dimensions 730 x Ø50 mm
Weight 1.5 kg
Rated Wind Velocity 210 km/h
Operating Temperature -40 to +65°C
Antenna Color Black or White



Shipping Specifications

SKU ANT-OA-GBANG-B
Model # ANT-OA-GBANG-B
Brand OUTBACK ANTENNAS
Shipping Weight 1.5000kg
Shipping Width 0.900m
Shipping Height 0.050m
Shipping Length 0.125m
Shipping Cubic 0.005625000m3
Unit Of Measure ea
