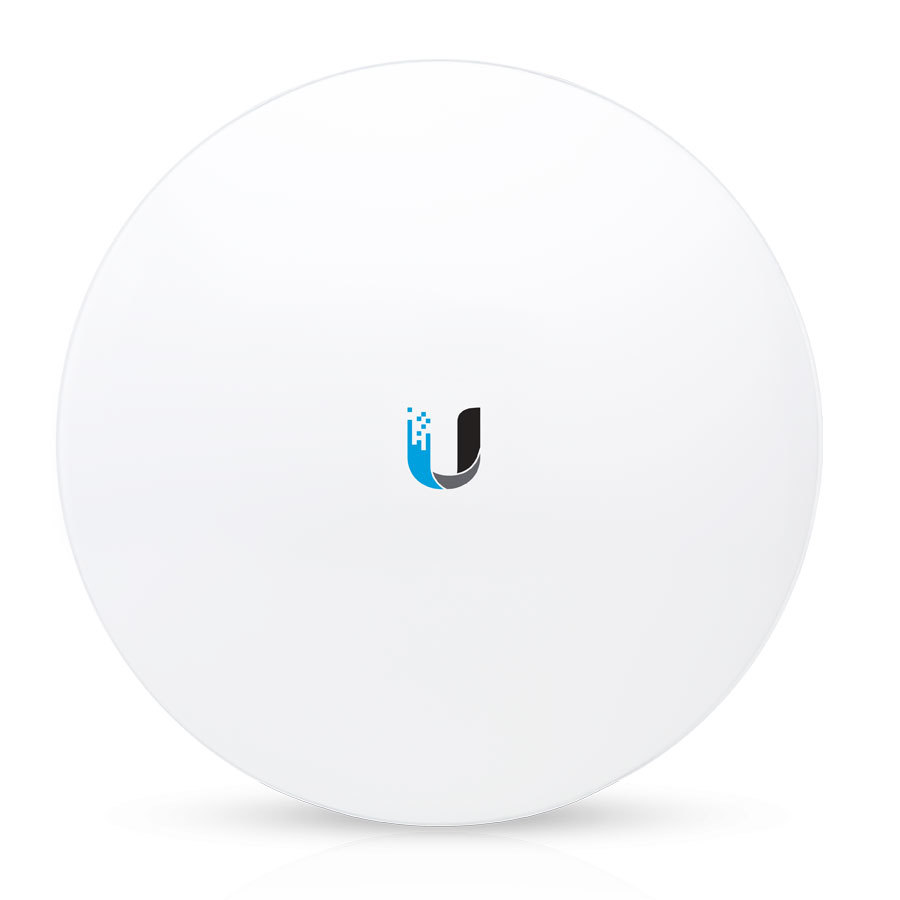

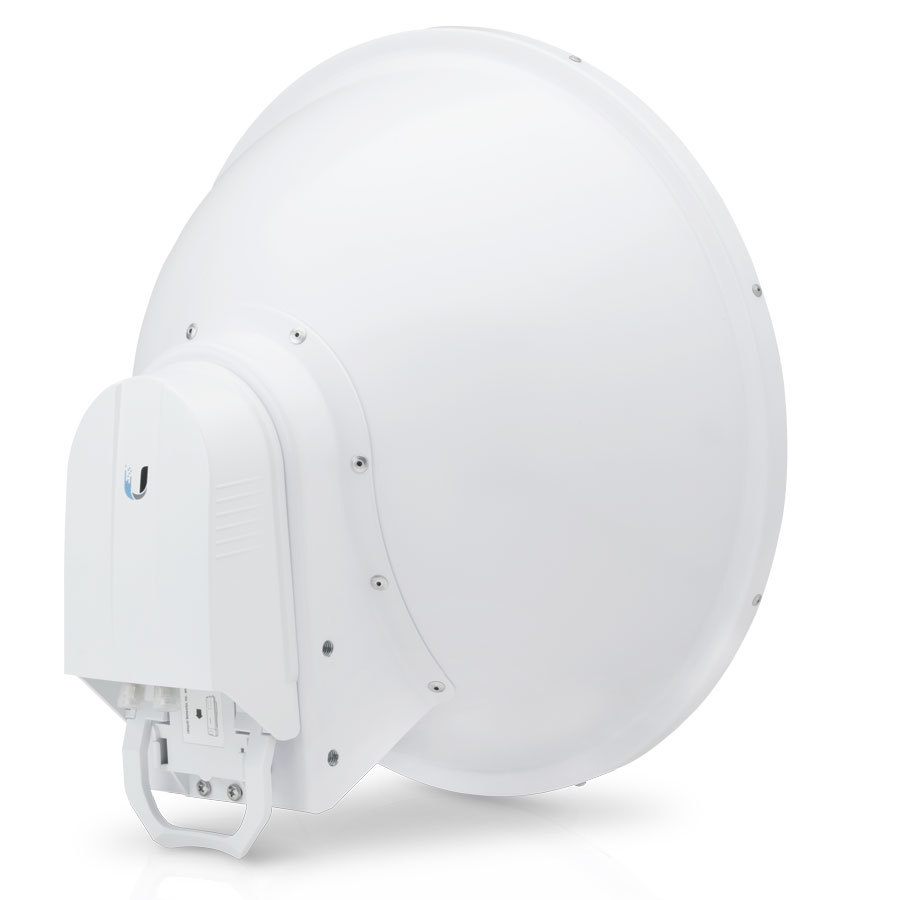

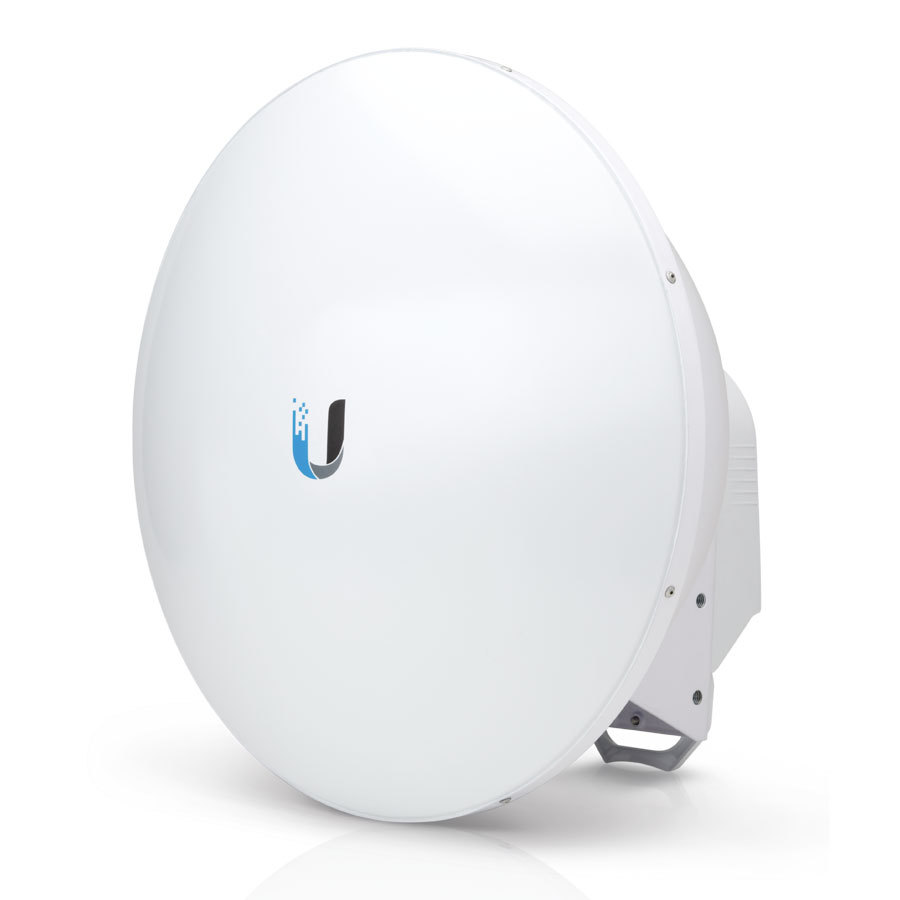

airFiber Antenna 5GHz, 23dBi Slant 45

AF‑5G23‑S45

$206.25
In Stock
ALTERNATE PRODUCT:
AF-5G30-S45-
airFiber Antenna 5GHz, 30dBi Slant 45

In Stock: YES

5GHz 23dBi Slant 45 Antenna for airFiber®



The airFiber® X Antennas feature significant advances in noise isolation and beam performance to complement the airFiber X radios for carrier backhauls and Point-to-Point (PtP) bridging.

Pair an airFiber® X antenna with an airFiber X radio to create the endpoint of a high-performance, Point-to-Point (PtP) bridge or network backhaul (airFiber X radio sold separately).

Powerful Performance
The airFiber X antenna delivers 2x2, dual-polarity performance. On the right is one example of how the airFiber X antenna with an airFiber X radio can be deployed as endpoints in a backhaul link to deliver bandwidth from a WISP network out to a neighborhood tower. From there, an airMAX® Sector antenna with a Rocket® radio delivers bandwidth to the WISP’s customers.

Carrier Class Construction
Incorporating a dish reflector design for excellent beam directivity, the airFiber X antennas feature robust mechanical design using industrial-strength hardware for outdoor application use.

Plug & Play Integration

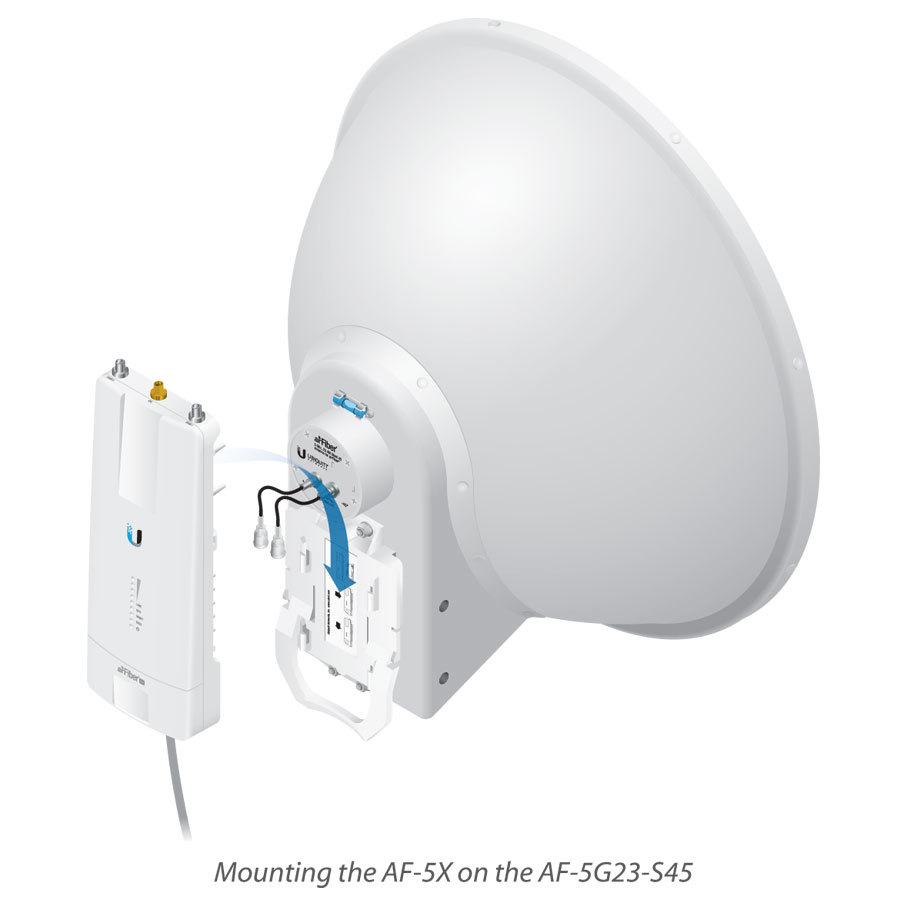

airFiber X antennas and airFiber X radios have been designed to seamlessly work together. Every airFiber X antenna has a built-in airFiber X radio mount, so installation requires no special tools. Snap the airFiber X radio securely into place and mount the antenna; you then have the optimal combination of airFiber X antenna and airFiber X radio for your PtP application.

Optimal Design
Housed in a compact form factor (378-mm diameter size), the AF-5G23-S45 offers 23 dBi of gain and features the following advantages:

  • Low sidelobes reduce interference from other transmitters in the area.
  • High isolation enhances performance for co-location in tower-mounted installations.
  • The low-profile design with integrated radome reduces wind-loading.







(AF-5G23-S45)

airFiber X Antenna 5GHz, 23dBi Slant 45

Package Includes

  • 1 x airFiber X Antenna
  • 1 x Protective Shroud
  • 1 x Mounting Bracket
  • 1 x Clamp Bracket
  • 1 x U Bolt
  • 1 x Cable Tie
  • 4 x Hex Bolts with Washer Set (M8x20)
  • 2 x Flange Nuts (M8)
  • 2 x Hex Nuts (M8)
  • Quick Start Guide

airFiber X Antenna 5GHz, 23dBi Slant 45 - Specifications



AF-5G23-S45
Dimensions 378 x 378 x 290 mm (14.88 x 14.88 x 11.42")
Weight 3.4 kg (7.5 lb) (Mount Included)
Frequency Range 5.1 - 5.9 GHz
Gain 23 dBi
F/B Ratio 33 dB
Max. VSWR 1.5:1
Wind Loading 190 N @ 200 km/h (43 lbf @ 125 mph)
Wind Survivability 200 km/h (125 mph)
Polarization Dual-Linear
ETSI Specification EN 302 326 DN2
Mounting Universal Pole Mount for Ø 38 - 64 mm (Ø 1.5 - 2.5") Poles



Shipping Specifications

SKU AF-5G23-S45
Model # AF‑5G23‑S45
Barcode # 810354023293
Brand Ubiquiti
Shipping Weight 4.0000kg
Shipping Width 0.460m
Shipping Height 0.335m
Shipping Length 0.460m
Shipping Cubic 0.070886000m3
Unit Of Measure ea
