2.4/5GHz Dual Band Outdoor Antenna 2400-2483/5150-5875MHz 5/7dBi

ANT-OA-PADDLE

$49.95
In Stock

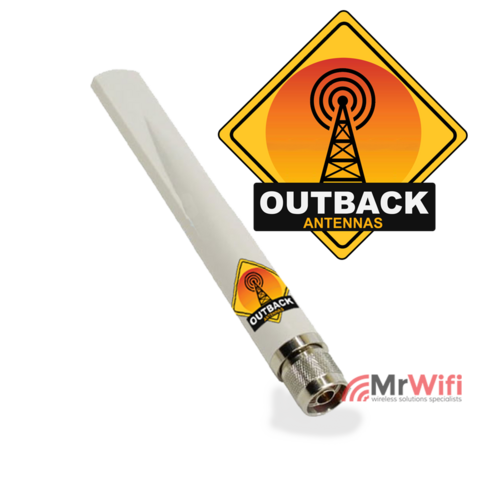

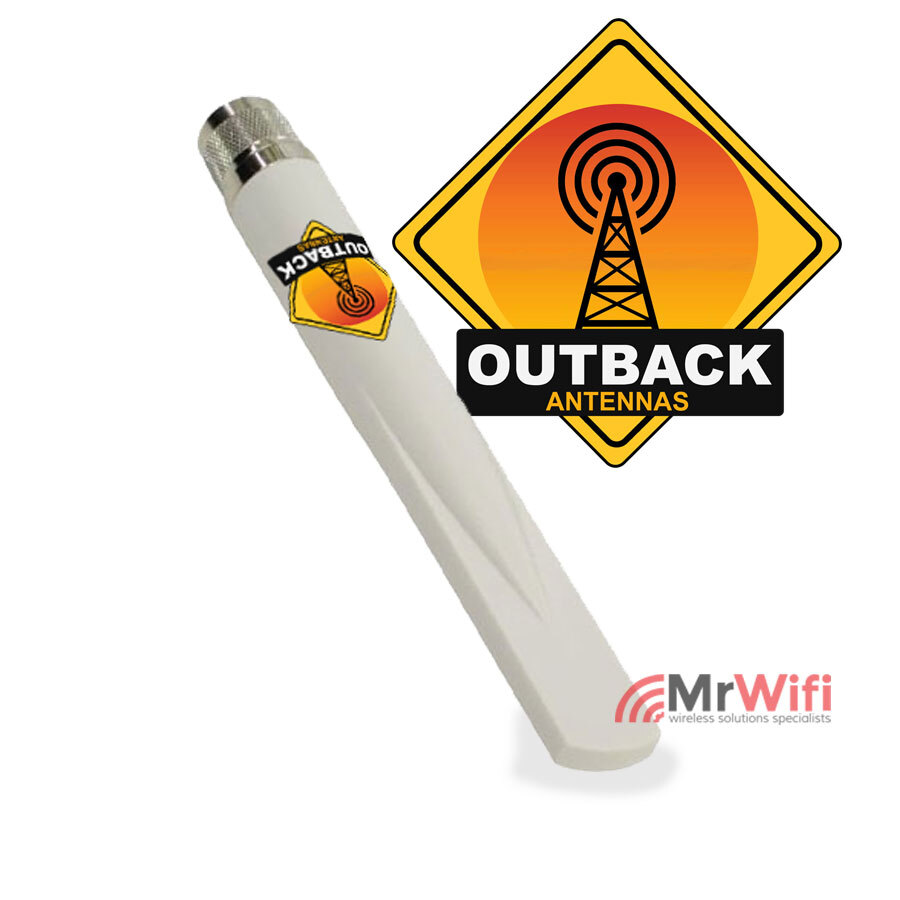

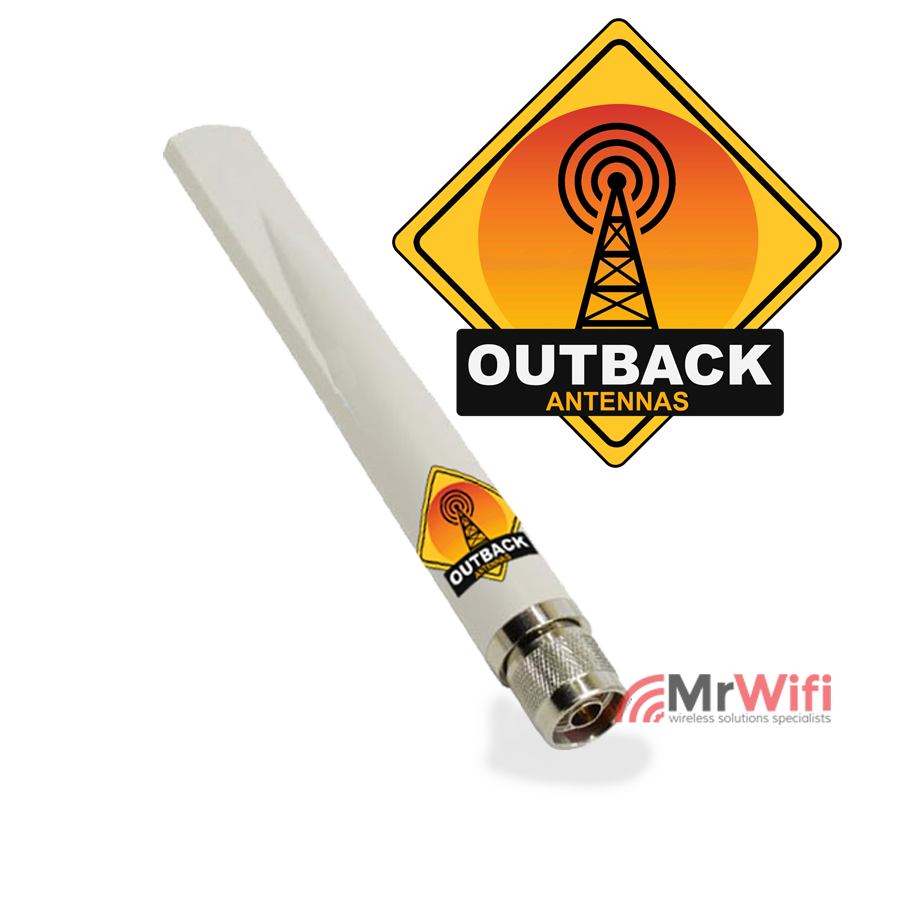

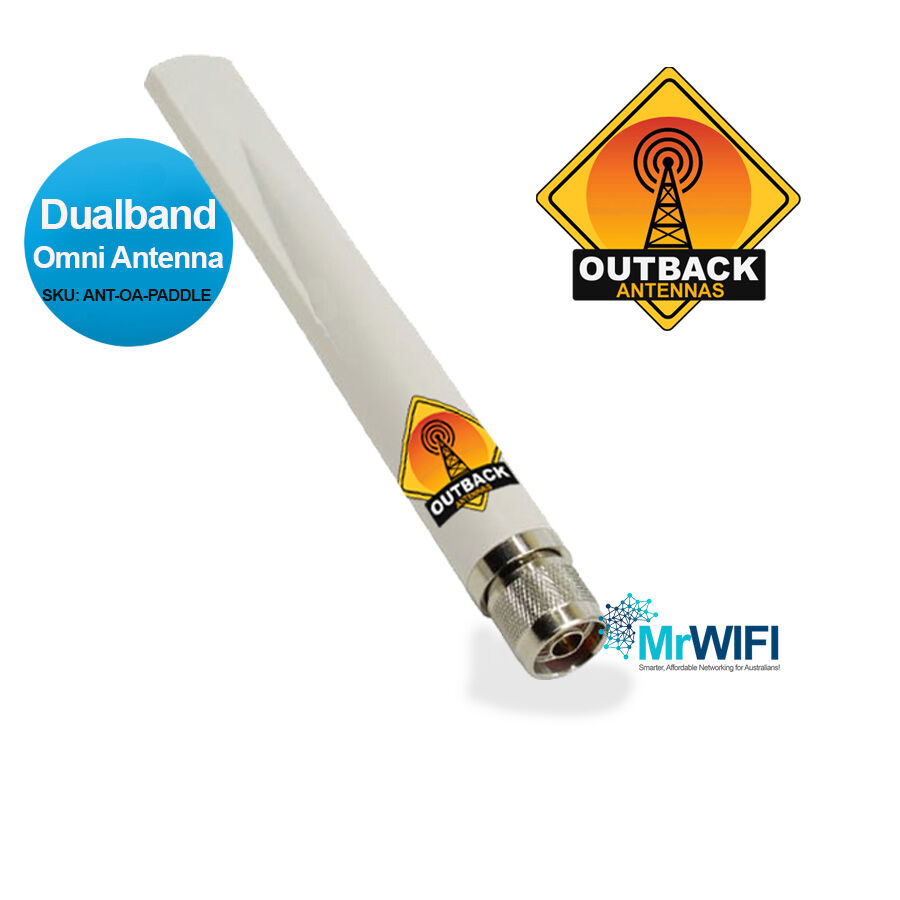

2.4/5GHz Dual Band Low Profile Outdoor Antenna 2400-2483/5150-5875MHz 5/7dBi



Ideal for use with the Ubiquiti Bullet for use on work vehicles, caravans, boats for WiFi 2.4GHz and 5GHz or the cellular 3G, 4G LTE or 5G networks.

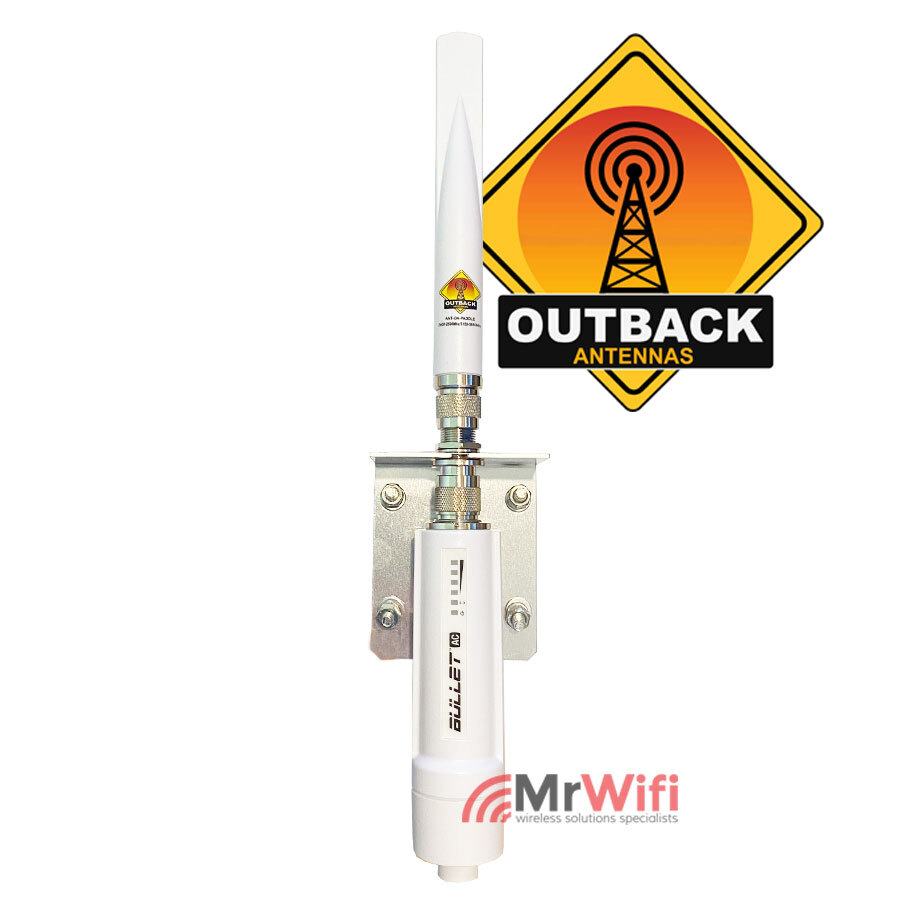

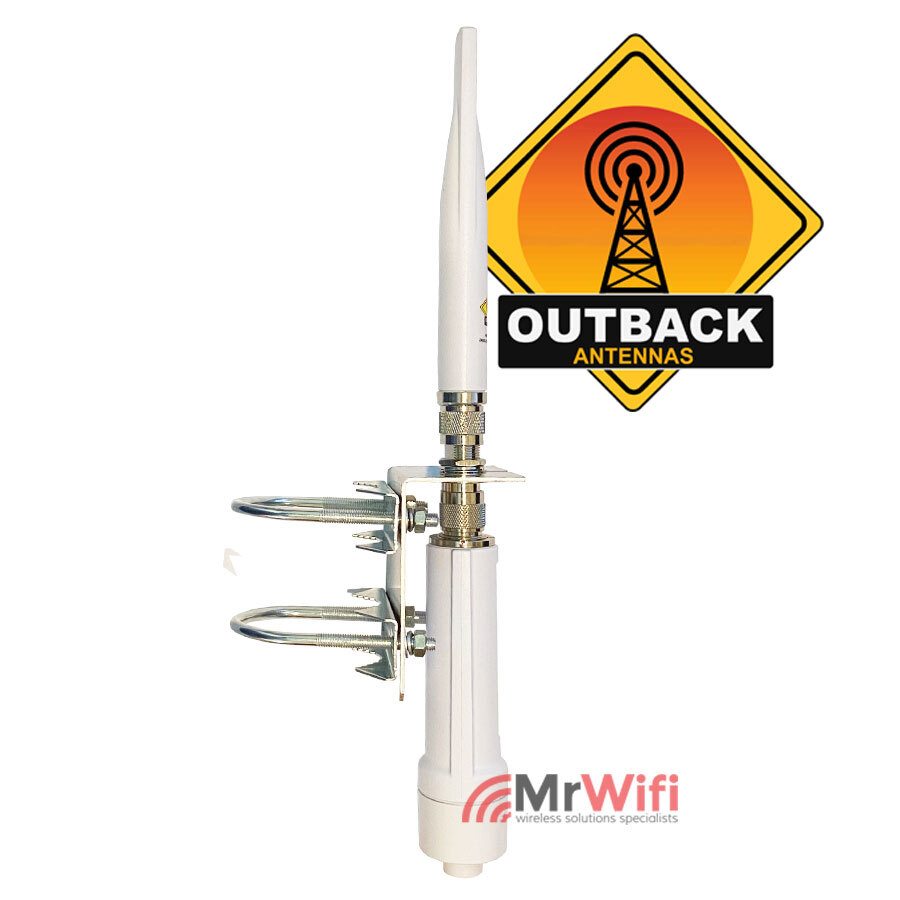

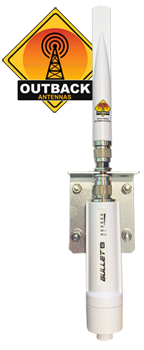

The Paddle antenna is a fantastic low profile dual band antenna offering good performance with a lightweight, low profile design. The antenna is simple and effective, and a great antenna for temporary or permanent installations or those travelling who need something compact. Mounting is made simple when combined with the Outback Antennas "L Bracket" and "The Double Plugger" N-Type bulkhead adapter.



Features

  • 5 dBi gain across lower bands 2400-2483MHz
  • 7 dBi gain across higher bands 5150-5875MHz
  • Lightweight, compact design
  • Easy mounting options
  • 18 cm Low Profile Antenna
  • Pre-terminated N Female connector
  • Ideal for high speed 3G, 4G LTE and 5G & WiFi applications.



(ANT-OA-PADDLE)

2.4/5GHz Dual Band Outdoor Antenna 2400-2483/5150-5875MHz 5/7dBi.

Pack Includes:

  • 1 x Outback Antennas Paddle Antenna 2400-2483/5150-5875MHz 5/7dBi.



2.4/5GHz Dual Band Screw Mount Antenna 2400-2483/5150-5875MHz 5/7dBi - SPECIFICATIONS



Electrical
Frequency Range  2400-2483/5150-5875MHz
Band width   83/725MHz
Gain  5/7dBi
V.S.W.R  ≤2.0
Radiation  Omni-Direction
Polarization  Vertical
Maximum Input Power  50W
Impedance 50ohm
Connector  N Male
Antenna Radome Material TPE
Mechanical
Dimensions Φ22x180mm
Weight 70g
Operating Temperature -40℃ to+70℃
RoHS Compliant YES

SHIPPING SPECIFICATIONS

SKU ANT-OA-PADDLE
Model # ANT-OA-PADDLE
Barcode # 481400202063
Brand OUTBACK ANTENNAS
Shipping Weight 0.0700kg
Shipping Width 0.060m
Shipping Height 0.060m
Shipping Length 0.220m
Shipping Cubic 0.000792000m3
Unit Of Measure ea
