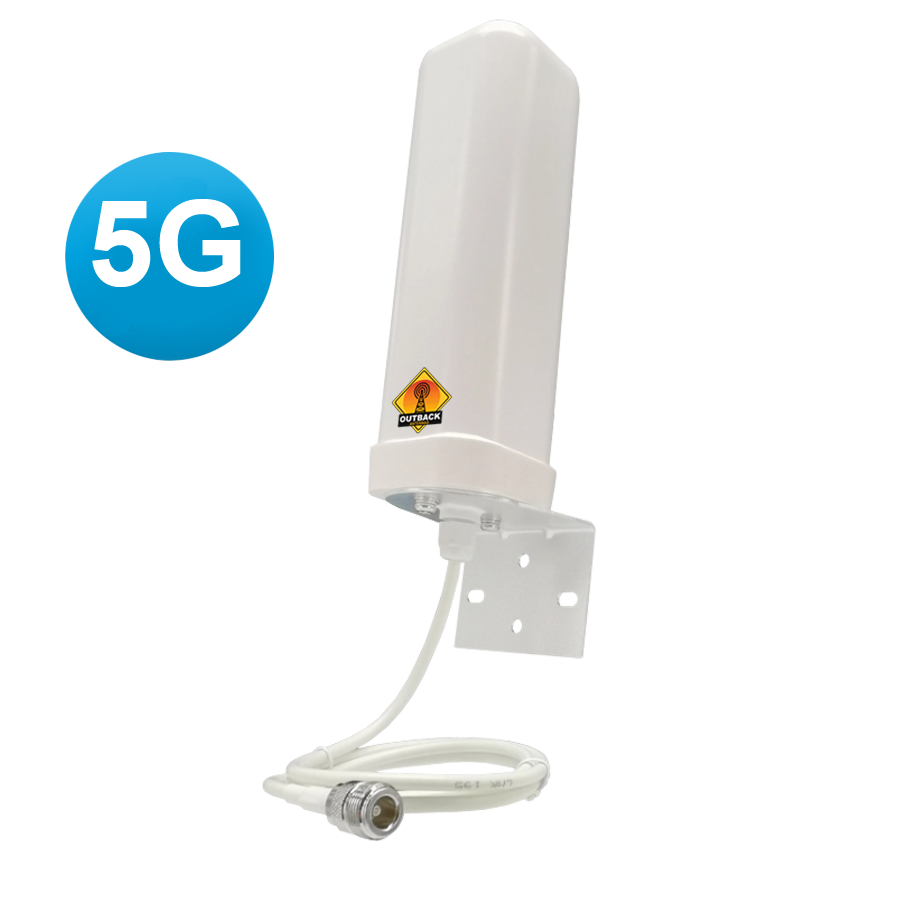

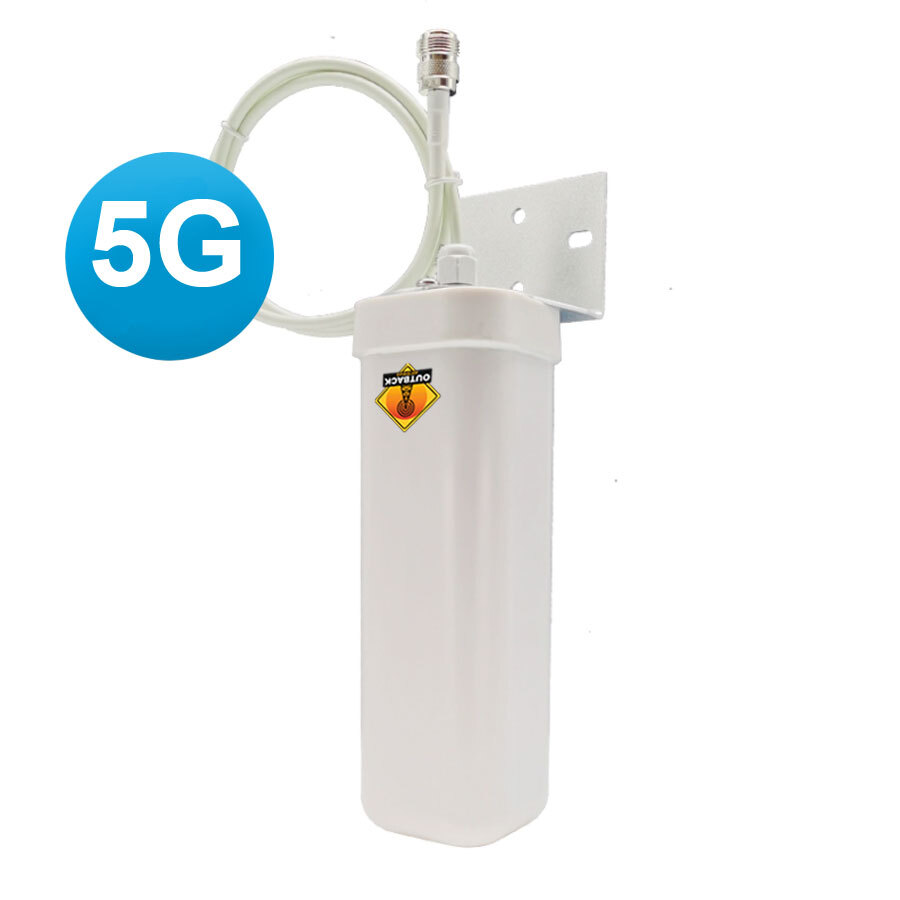

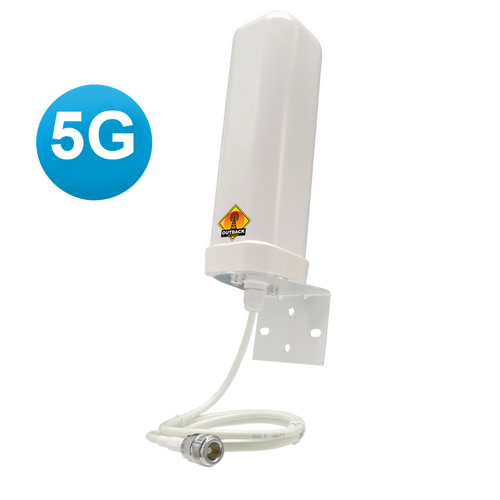

The "NUB" Omni Antenna OUTDOOR 3G, 4G, LTE, 5G or 2.4Ghz WiFi 5dBi, 698-4000MHz
ANT-OA-NUB
OMNI ANTENNA OUTDOOR 5dBi, 698-4000MHz for 3G, 4G, LTE, 5G Mobile Networks or 2.4Ghz WiFi
The "NUB" Outdoor Omni antenna is designed to operate on the cellular network with all mobile carriers, regardless of what frequency they operate on. This low profile roof mountable antenna offers a 5dBi gain and is suitable as an outdoor antenna with a weather rating of IP66. No longer do you have to buy a new antenna when you switch carriers or be concerned what frequency your antenna supports. Perfect for outdoor mobile repeater applications.
The "NUB" Outback Antenna will provide the perfect solution for voice and data applications. Perfect for repeater applications that require beamwidth for complete outdoor coverage.
Features
- Suitable for all mobile carriers
- Low Profile Antenna
- Provides a 5dbi gain for 698-4000 MHz
- Includes RG58 cable x 300mm Long
- Short cable tail with N female connector
- Pole Mountable
- Weather rating IP66
- Ideal for Cel-Fi GO repeater applications for Home. Office, Marine and Caravan
- or 2.4Ghz WiFi Applications
Dimensions: 65Dx65Wx190Lmm
Weight: 380g
(ANT-OA-NUB)
The "NUB" Omni Antenna OUTDOOR 5dBi, 698-4000MHz 3G, 4G & 5G

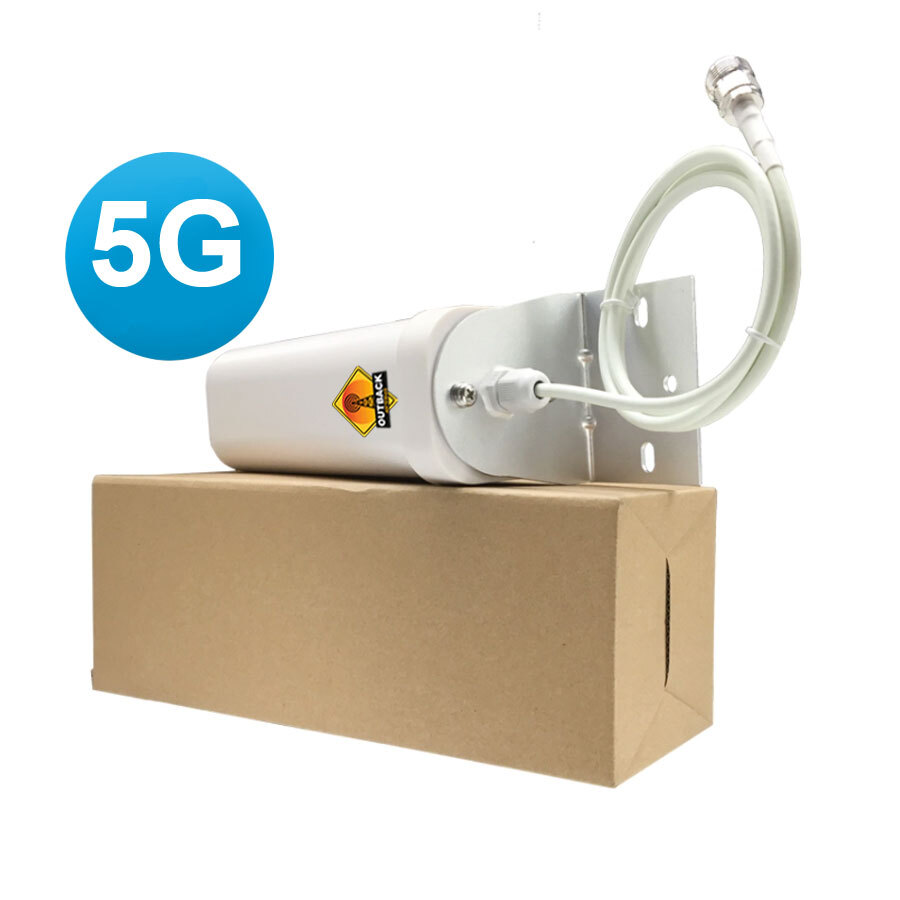

Pack Includes:
- 1 x The "NUB" Omni Antenna Outdoor 5dBi, 698-4000MHz

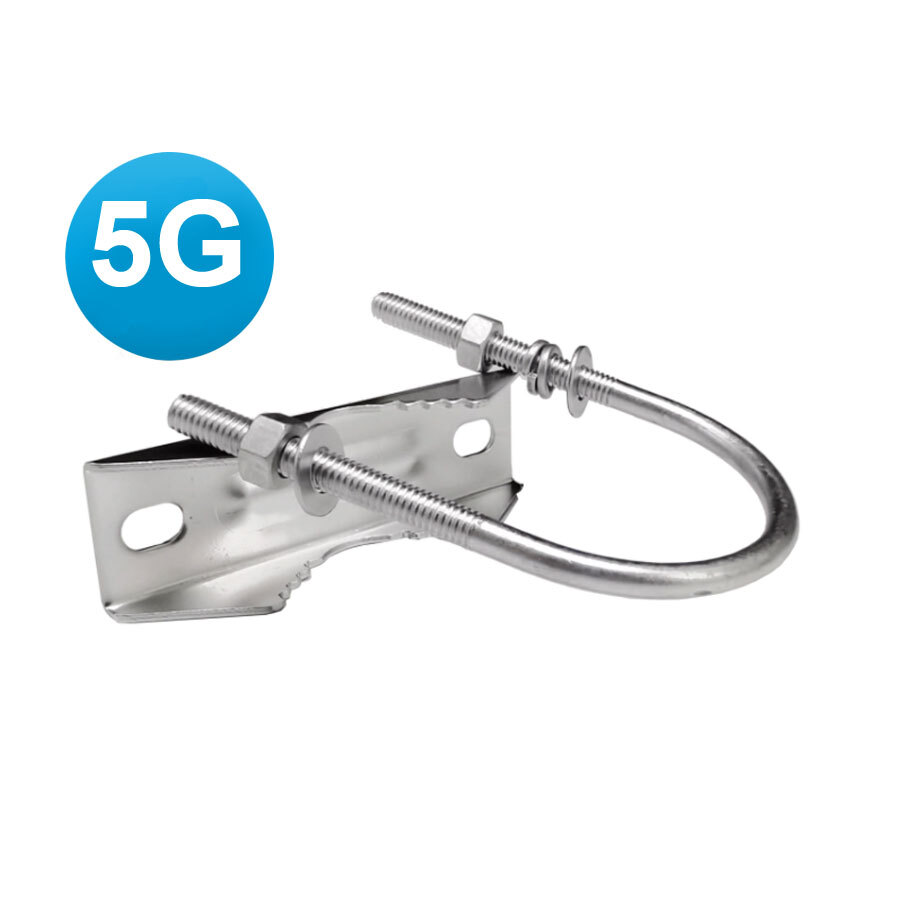

- 1 x Mount Bracket
The "NUB" Omni Antenna OUTDOOR 5dBi, 698-4000MHz - SPECIFICATIONS
| Electrical Characteristics | |
| Frequency Range (MHz) | 698-4000MHz |
| Polarization | Vertical |
| Gain (dBi) | 5 |
| 3dB Beamwidth | H: 360° E: 60° |
| VSWR | ≤1.5 |
| Input Impedance (Ω) | 50 |
| Maximum Power (W) | 100 |
| Lightning Protection | DC grounding |
| Mechanical Characteristics | |
| Connector type | Type N Female |
| Mount Type | Mast Mount |
| Cable length (Meter) | 3 (customizable) |
| Radome material | UV-ABS |
| Mount way | Pole-Holding |
| Reflector material | Brass |
| Dimensions (mm) | 65x65x190 |
| Weight (g) | 380 |
| Environmental Characteristics | |
| Noise Factor (dBi) | ≤1.5 |
| Waterproof | IP66 |
| Operating Temperature (℃) | -30-+60°C |
| Relative Humidity | Up to 95% |
| ROHS Compliant | yes |
SHIPPING SPECIFICATIONS
| SKU | ANT-OA-NUB |
| Model # | ANT-OA-NUB |
| Brand | OUTBACK ANTENNAS |
| Shipping Weight | 0.4560kg |
| Shipping Width | 0.095m |
| Shipping Height | 0.098m |
| Shipping Length | 0.270m |
| Shipping Cubic | 0.002514000m3 |
| Unit Of Measure | ea |
The "NUB" Omni Antenna OUTDOOR 5dBi, 698-4000MHz - Documents
