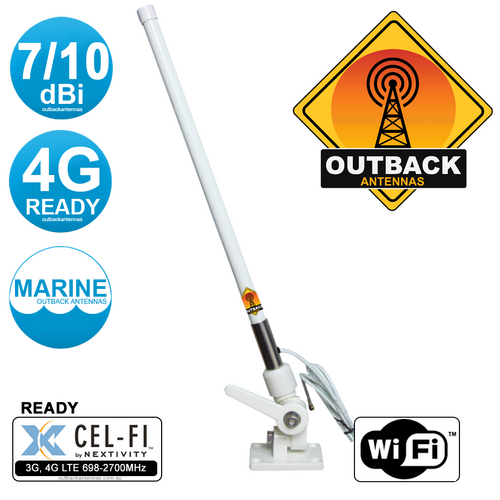

Antenna "RIPPA" Marine Antenna Omni Waterproof 4G and WiFi 2.4Ghz, 698-2700 MHz 7-10dBi

ANT-OA-RIPPA

$269.94
In Stock

The "RIPPA" Marine Antenna Omni Waterproof 4G and WiFi 2.4Ghz, 698-2700 MHz 7-10dBi. The "RIPPA". Suits Adjustable "WET-SPOT" Mounts by Outback Antennas



Ideal for Telstra Next-G and 4GX networks, Optus, and Vodafone 3G/4G.

The RIPPA Omni Marine Antenna is designed for versatility, for use in a variety of environments, in low to high signal areas and mounted in a marine environment

The RIPPA Omni Marine Antenna will operate with all mobile carriers across Australia, New Zealand and Internationally within the wide band frequency ranges 698-960 and 1710-2700 MHz. With a high 7 - 10 dBi gain and supporting all bands, this antenna will provide the perfect solution for voice and data applications where high gain marine antennas are required.

The antennas do not require a level mounting surface and are supplied with your choice of suitable marine antenna mount (PVC deck mount, stainless steel deck mount) which allows the antenna to be mounted vertically regardless of the mounting surface used. All mounts allow the marine antennas to be laid down when not in use. The RIPPA Omni Marine Antenna offers superior performance, maximum range and reliability - it is perfect for fixed wireless terminals, mobile broadband internet applications and smart repeater applications to improve mobile signal coverage.



Features

  • 7 dBi gain across lower bands 698-960 MHz
  • 10 dBi gain across upper bands 1710-2700 MHz
  • Suitable for all 3G/4G/4GX bandwidths across all mobile carriers
  • Comes with base marine mount choice of deck/stainless steel deck
  • 5m pre-terminated N Female connector
  • Ruggedised construction built especially for the harsh marine environment
  • Suitable for marine, caravans, motor homes and freight vehicles
  • Mounting Options: (Sold Separately)
    • Nylon Adjustable Mount "WET-SPOT-NYLON"
    • Stainless Steel Adjustable Mount "WET-SPOT-SS"
    • Stainless Steel Fixed Mount "WET-SPOT"

Note: Mount Sold Separately.

(ANT-OA-RIPPA)

The "RIPPA" Marine Antenna Omni Waterproof 4G 698-2700 MHz 7-10dBi

Pack Includes:

  • 1 x "RIPPA" Marine Antenna Omni Waterproof 4G 698-2700 MHz 7-10dBi
  • 1 x Mounting Option (Sold Separately)
    • "WET-SPOT" NYLON adjustable marine antenna mount
    • "WET-SPOT" STAINLESS STEEL adjustable marine antenna mount
    • "WET-SPOT" STAINLESS STEEL FIXED marine antenna mount
    • "WET-SPOT" STAINLESS STEEL RAIL marine antenna mount

The "RIPPA" Marine Antenna Omni Waterproof 4G 698-2700 MHz 7-10dBi

INDIVIDUAL SKU:

SPECIFICATIONS
Frequency Range 698-2700MHz 4g outdoor marine antenna
Input Impedance 50 Ω
Gain 6-10dBi
VSWR ≤3.0
Polarisation Vertical
Radiation Omni
Horizontal Beam Width 360º
Radiation Direction 360° (omnidirectional)
Maximum Input Power 50 W
MECHANICAL SPECIFICATIONS
Antenna Length 650x21x21mm
Cable 5m
Connector Type N-Type Female
Mounting Deck, Rail
Radome Color White
Cable RG58U
Attachment Welding

SHIPPING SPECIFICATIONS

SKU ANT-OA-RIPPA
Model # ANT-OA-RIPPA
Brand OUTBACK ANTENNAS
Shipping Weight 0.4700kg
Shipping Width 0.070m
Shipping Height 0.050m
Shipping Length 0.800m
Shipping Cubic 0.002800000m3
Unit Of Measure ea
