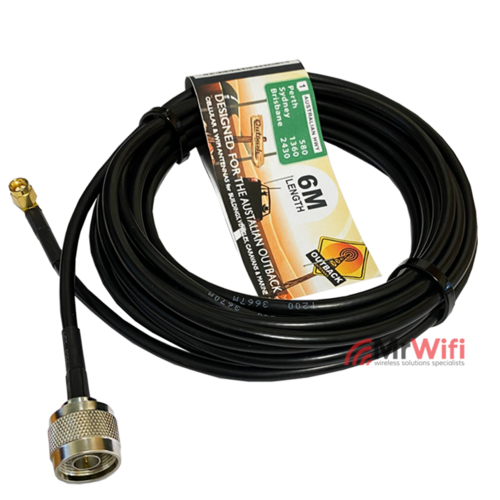

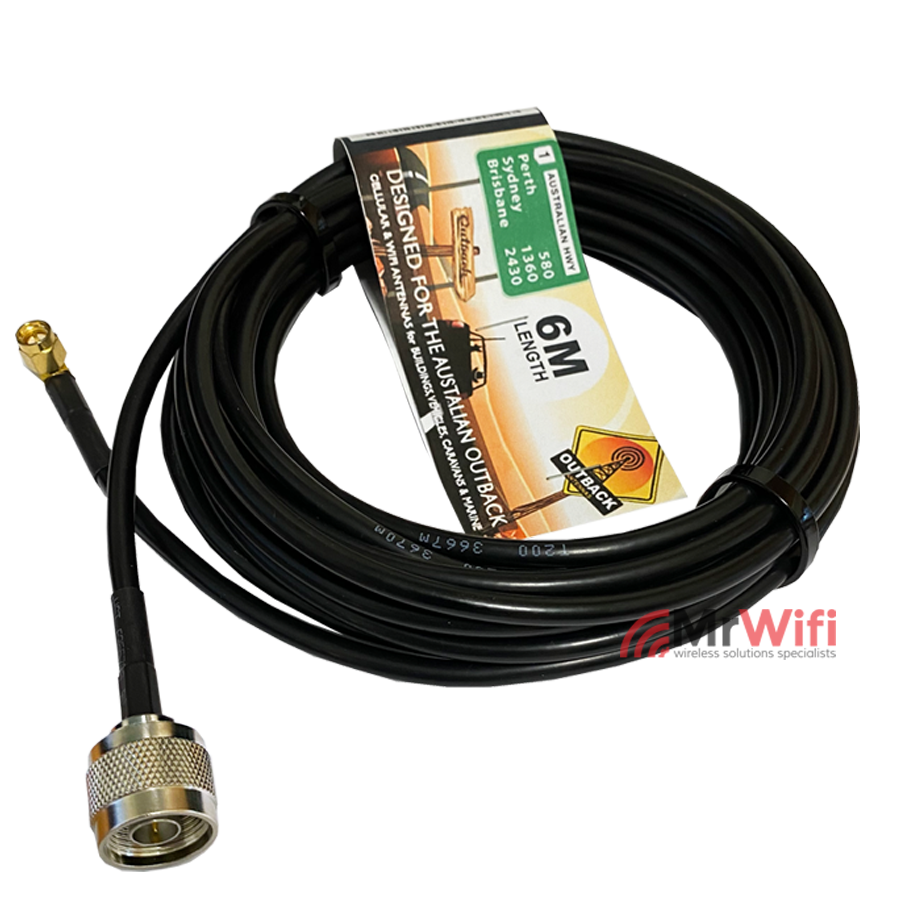

Cable Antenna N-Type Male to SMA Male Right Angle Low Loss 6M

CBL-OA-NMSMAM-200-6

$49.95
In Stock

Length

Cable Antenna Extension N-Type Male to SMA Male Right Angle LMR200 Low Loss



Outback Antennas N-Type Male to SMA Male extension cable low loss with LMR200 cable.

LMR-200 "Low loss cable" and is superior to RG58 and other coax standards due to double shielding resulting in less attenuation (signal loss in the cable) than the standard cables (e.g. RG58). The signal loss (attenuation) with LMR200 at 2.4 GHz WiFi: 0.3dB per foot | 0.98 per meter.

50 Ω COAXIAL CABLE MATERIAL DIAMETER
INNER CONDUCTOR Copper solid 1.12 mm
DIELECTRIC PE foamed 2.95 mm
SHIELDING Copper braid tinned / Aluminium Foil 3.66 mm
CABLE SHEATH PVC 4.95 mm

Applications: Antenna cables for frequency bands between 0 and 18GHz: IOT and Wireless / WiFi networks: 802.11ac, 802.11n, AC, G, A, B. 900MHz, 2.4GHz & 5GHz
Temperature range -40°C to +85°C
50Ω (50 Ohms)

Rated for outdoor use and are also suitable for indoor use. very flexible/easily bendable coax

The double-shielding is a major factor in the higher quality of this cable, which translates into lower loss/better performance. Suitable for applications, as well as any other frequency.

Available in various lengths:
3M, 6M & 10M

(CBL-OA-NMSMAM-200)

Cable Antenna N-Type Male to SMA Male Right Angle Low Loss

Pack Includes:

  • CABLE LMR200 Low Loss Series (diameter ~5mm) Available Lengths: 3m. 6m, 10m.
  • Connector 1: N Plug (Male Pin)
  • Connector 2: SMA Plug (Male Pin)
  • Fully Tested Cables
  • 12 Months Warranty on all cables



Cable Antenna N-Type Male to SMA Male Right Angle Low Loss - Specifications

SHIPPING SPECIFICATIONS

SKU CBL-OA-NMSMAM-200
Model # CBL-OA-NMSMAM-200
Brand OUTBACK ANTENNAS
Shipping Weight 0.3600kg
Shipping Width 0.030m
Shipping Height 0.030m
Shipping Length 0.030m
Shipping Cubic 0.000027000m3
Unit Of Measure ea
