Cel-Fi GO Cellmate V2 - Portable Mobile Repeater IP67 Telstra

RPR-CF-00538

$2,189.95
In Stock

Outdoor Antenna
Antenna Colour
Choose Carrier

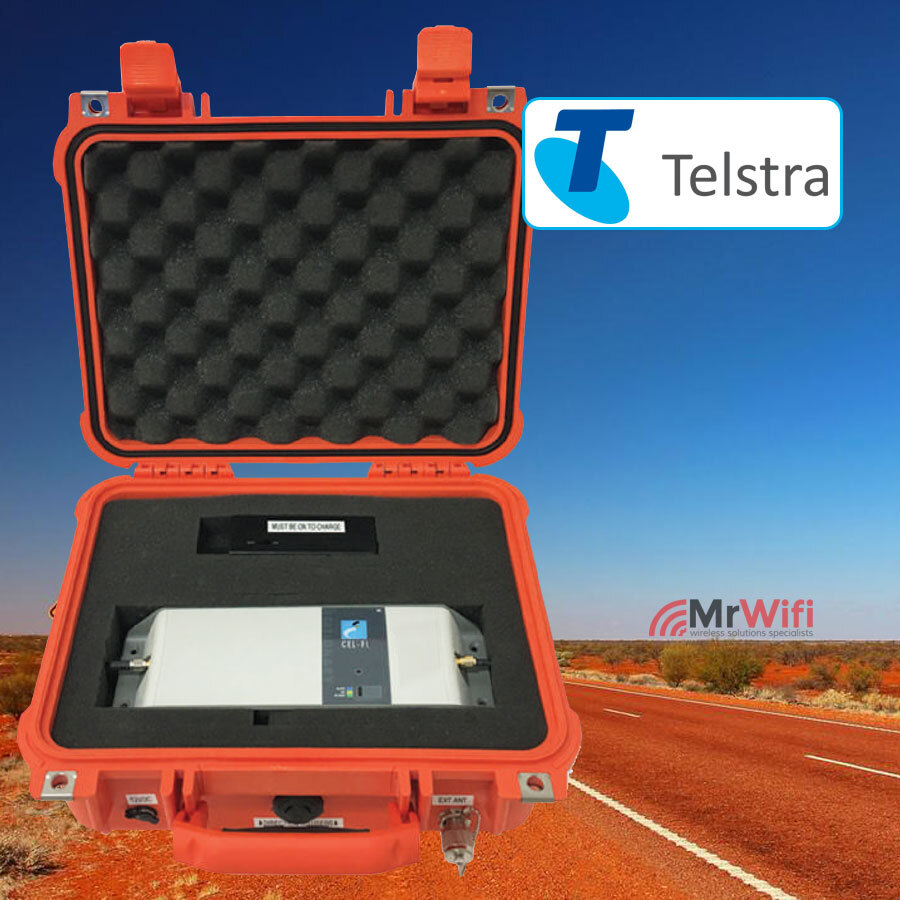

Cel-Fi GO Cellmate V2 - Portable Mobile Repeater by Nextivity



Introducing the Cel-Fi Cellmate, a portable mobile repeater in an industrial case that can be transported and used where mobile signal is needed.

Ideal for emergency services, being transported between fleet vehicles, construction or mining sites. The Cellmate includes a Cel-Fi Mobile repeater that can boost a 3G or 4G mobile signal on the Telstra, Optus and Vodafone network.

Note: An external antenna is required to be added to this pack.

(RPR-CF-CELLMATE)

Cel-Fi GO Cellmate V2 - Portable Mobile Repeater by Nextivity



Pack Includes:

  • 1 x Pelican Case 1400 - IP67 Watertight, crushproof, and dustproof - 339mm x 295mm x 152mm
  • 1 x Cel-Fi Backup Battery - Supplies power for 10 hours
  • 1 x Cel-Fi GO Mobile Repeater
    Carrier Options:
    • Telstra
    • Optus
    • Vodafone
  • 1 x Internal Antenna in base of case - Blackkhawk 2dBi thin panel antenna
  • 1 x Power Supply
    • Power Supply Adapter 240V (Included)
    • Cigarette Lighter Adapter 12V (Included)
  • External power and antenna ports

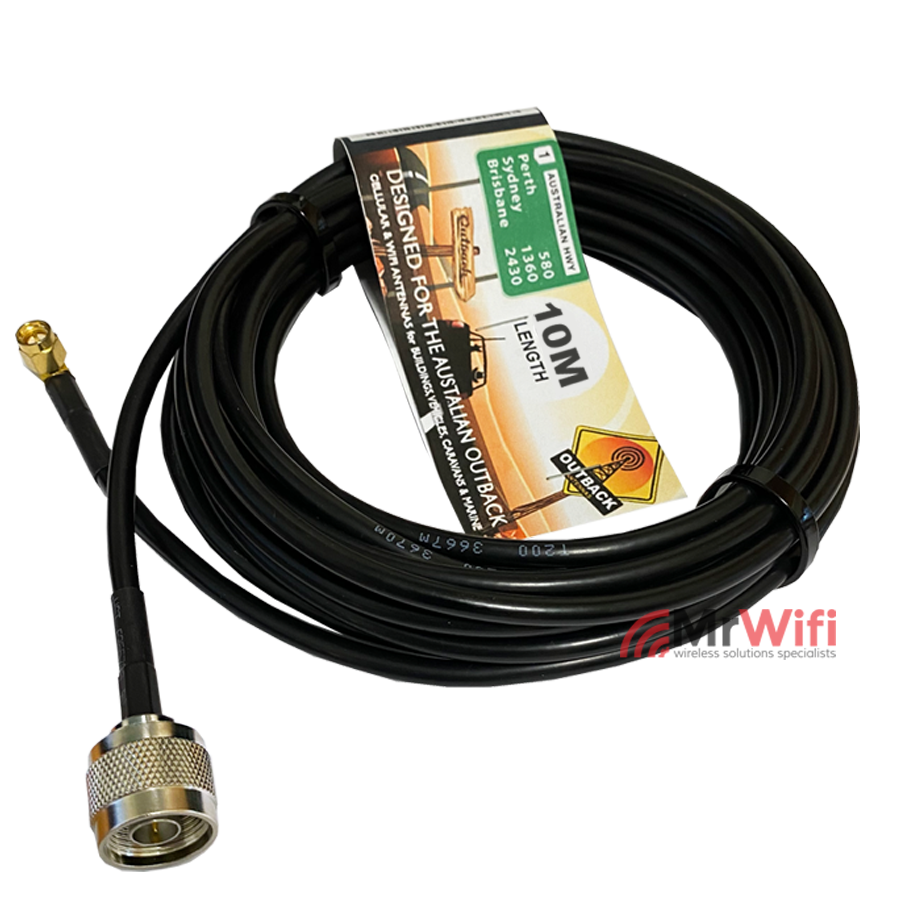

Note:External Antenna and antenna cable sold separately

Cel-Fi GO Mobile Repeater Kits for Cars, 4WD's & Trucks -SPECIFICATIONS



Cel-Fi GO - Mobile Model

Details
Manufacturer Nextivity
Output Power NA
Model Cel-Fi-Go Mobile
Antenna Port 2 x SMA Female
Frequency 3G 850MHz, 4G 700/1800MHz (boosts one band at a time)
Warranty 24 Months
Gain 100dB




INDOOR  ADHESIVE MOUNT ANTENNA "GUMMY" - 700-2700MHZ

ELECTRICAL SPECIFICATIONS
Frequency Range 698-960 MHz / 1710-2170 MHz
Input Impedance 50 Ω
Gain 3.5 dBi
VSWR ≤3.0
Polarisation Vertical
Radiation Direction 360° (omnidirectional)
Maximum Input Power 50 W
MECHANICAL SPECIFICATIONS
Antenna Length 115x21x3mm
Cable 300mm
Connector Type SMA Male
Mounting 3M Sticker
Radome Color Black
Cable RG174
Suction 07kg
Attachment Welding



HEAVY DUTY "G-BANGER" Spring Mounted Omni Antenna by Outback Antennas 698-2700MHZ - SPECIFICATIONS

NETWORK COMPATABILITY
Network Bandwidth Coverage Gain
Telstra 4GX 700 MHz Yes 4 dBi
Telstra Next-G 850 MHz Yes 4 dBi
Telstra 4G 1800 MHz Yes 6 dBi
Telstra 3G (Metro) 2100 MHz Yes 6 dBi
Telstra 4G (Metro) 2600 MHz No -

Optus 4G+ 700 MHz Yes 4 dBi
Optus 3G 900 MHz Yes 4 dBi
Optus 4G 1800 MHz Yes 6 dBi
Optus 3G (Metro) 2100 MHz Yes 6 dBi
Optus 4G TDD 2300 MHz No -
Optus 4G (Metro) 2600 MHz No -

Vodafone 4G+ 850 MHz Yes 4 dBi
Vodafone 3G 900 MHz Yes 4 dBi
Vodafone 4G 1800 MHz Yes 6 dBi
Vodafone 3G (Metro) 2100 MHz Yes 6 dBi
ELECTRICAL SPECIFICATIONS
Frequency Range 698-960 MHz / 1710-2700 MHz
Input Impedance 50 Ω
Peak Gain 4 / 6 dBi
VSWR ≤2.0:1 / ≤2.0:1
Polarisation Vertical, linear
Horizontal Beamwidth 360° (omnidirectional)
Vertical Beamwidth 48 / 23°
Maximum Input Power 50 W
MECHANICAL SPECIFICATIONS
Input Connector SMA Male
Cable 4 m LMR200 cable
Lightning Protection DC Ground
Antenna Construction Fibreglass radome, heavy duty spring base
Mounting L bracket for fender mounting
Dimensions 730 x Ø50 mm
Weight 1.5 kg
Rated Wind Velocity 210 km/h
Operating Temperature -40 to +65°C

SHIPPING SPECIFICATIONS

SKU RPR-CF-CELLMATE
Model # RPR-CF-OA-VEHICLES
Brand CEL-FI
Shipping Weight 5.0000kg
Shipping Width 0.255m
Shipping Height 0.152m
Shipping Length 0.339m
Shipping Cubic 0.013139640m3
Unit Of Measure ea

Cel-Fi GO Cellmate V2 - Portable Mobile Repeater - Documents
