airMAX® ac Beamwidth Sector Isolation Antenna Horn 5GHz 45°

Interchangeable Isolation™ 5 GHz Beamwidth Horn Antenna

With flexible sectorization for optional antenna beamwidths, the horn antennas are interchangeable and improve beam‑shaping for specific deployment and environment needs. Sector horn antennas are designed to increase co‑location performance without sacrificing gain.

Scalability There are two symmetrical horn antennas:

Horn-5-30: 30° beamwidth
Horn-5-45: 45° beamwidth

These models offer breakthrough scalability options for wireless systems. Unique beam performance and great co-location characteristics allow for a higher density of sectors than traditional sector technology.

Enhanced Co-Location
There are two asymmetrical horn antennas:

Horn-5-60: 60° beamwidth
Horn-5-90: 90° beamwidth

These models have naturally attenuated side lobes and extremely low back radiation. They offer best front-to-back ratio in the industry and the lowest side lobe radiation. Asymmetrical horn antennas are ideal for cluster sector installations with high co-location requirements.

Versatility
The horn antennas can be used with the following radios:

airFiber LTU™ AF-LTU
IsoStation IS-5AC
IsoStation IS-M5
PrismStation PS-5AC

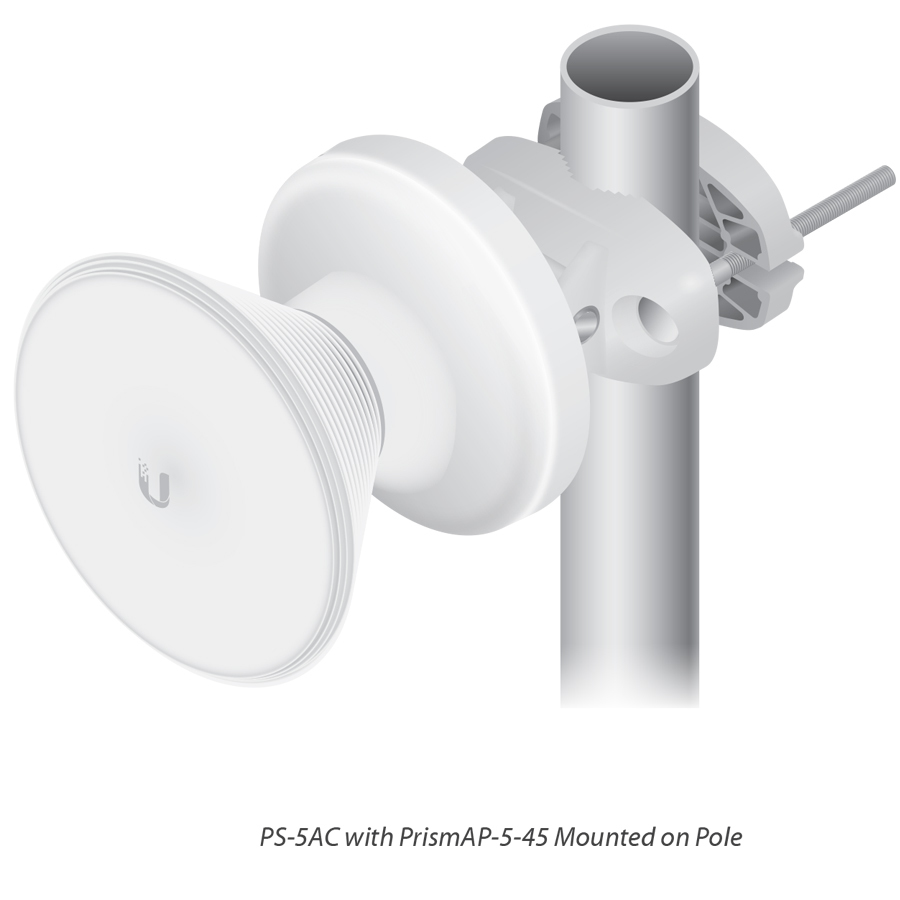

Modular Design - The isolation antennas are interchangeable and feature high-performance beam patterns for a range of demanding deployment needs. Combined with the PrismStation 5AC or airFiber LTU radio, the system gets maximum gain out of the smallest footprint.

Symmetrical horn antenna - 30° and 45° versions offer breakthrough scalability options for wireless systems. Unique beam performance and great co‐location characteristics allow for a higher density of sectors than traditional sector technology.

Asymmetrical horn antennas - 60° and 90° versions have naturally attenuated side lobes and extremely low back radiation. They offer the best front-to-back ratio in the industry and the lowest side lobe radiation. Asymmetrical horn antennas are ideal for cluster sector installations with high co-location requirements.

Application Example PtMP Client Links- The PrismStation™ 5AC (with a horn antenna) is used as an AP to communicate with the IsoStation™ 5AC for each client in an airMAX PtMP (Point-to-MultiPoint) network. | Application Example PtP Link
- Use an IsoStation 5AC on each side of a PtP (Point-to-Point) link.

(Horn-5-45)

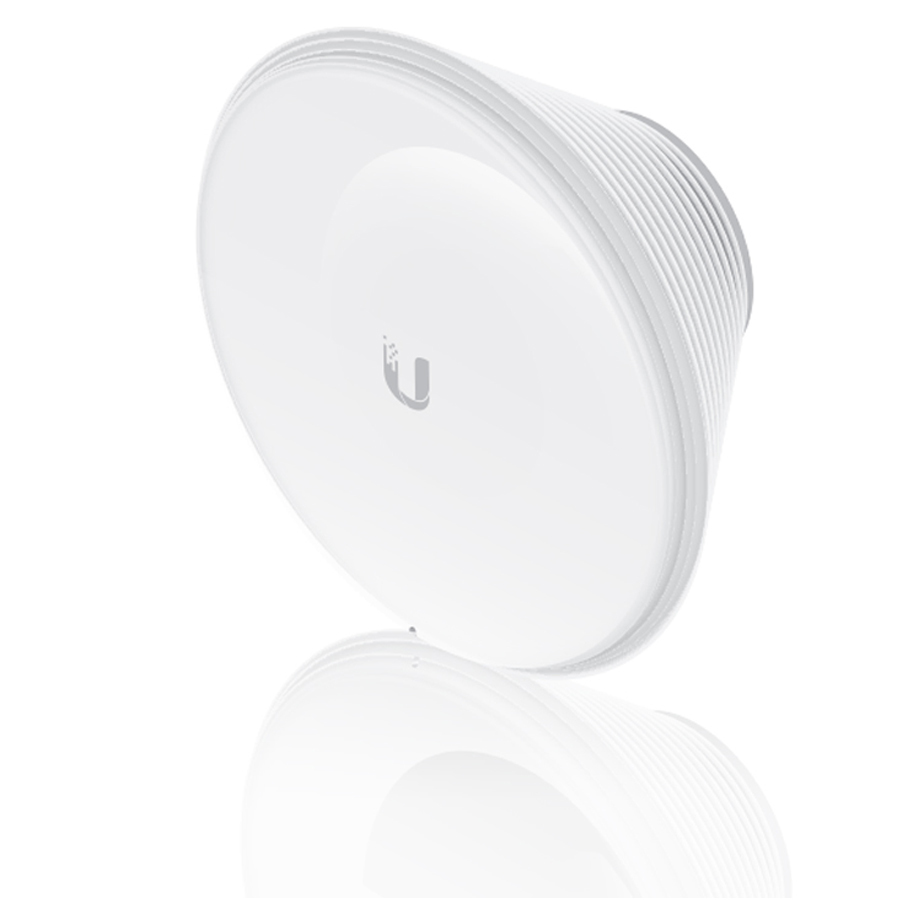

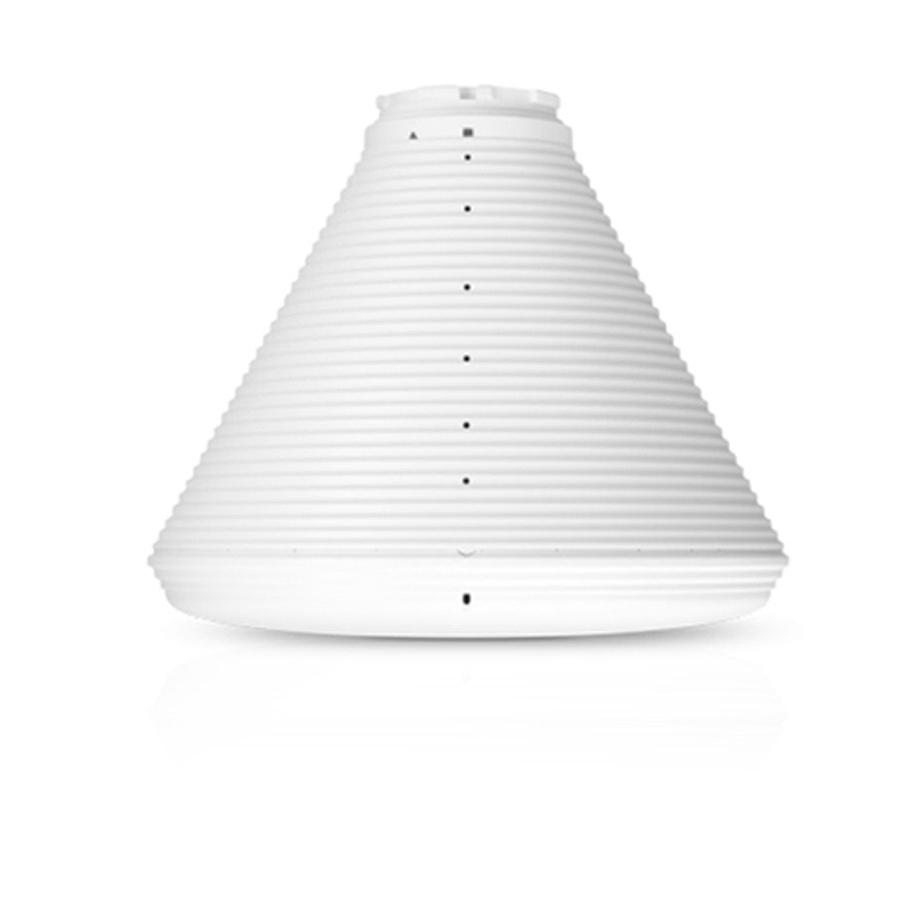

Horn5 45°, 5 GHz Beamwidth Horn Antenna

Package Includes

1 x Horn-5-45 Antenna
Quick Start Guide

Horn5 45°, 5 GHz Beamwidth Horn Antenna - Specifications

airMAX - Horn-5-45
Dimensions (mm)	Ø 175 x 96 mm (6.9 x 3.78")
Weight	1.34 kg (47.23 oz)
Frequency Range	5.15 - 5.85 GHz
Gain	15.5 dBi
HPOL Beamwidth	45° (6 dBi)
VPOL Beamwidth	45° (6 dBi)
Elevation Beamwidth	45°
Max. VSWR	1.7:1
Wind Survivability	200 km/h (125 mph)
Wind Loading	56 N @ 200 km/h (12.6 lbf @ 125 mph)
Polarization	Dual-Linear
Cross-pol Isolation	17 dB Min.

Shipping Specifications

SKU	Horn-5-45
Model #	Horn-5-45
Barcode #	817882022712
Brand	Ubiquiti
Shipping Weight	1.5590kg
Shipping Width	0.195m
Shipping Height	0.122m
Shipping Length	0.197m
Shipping Cubic	0.004687000m3
Unit Of Measure	ea
