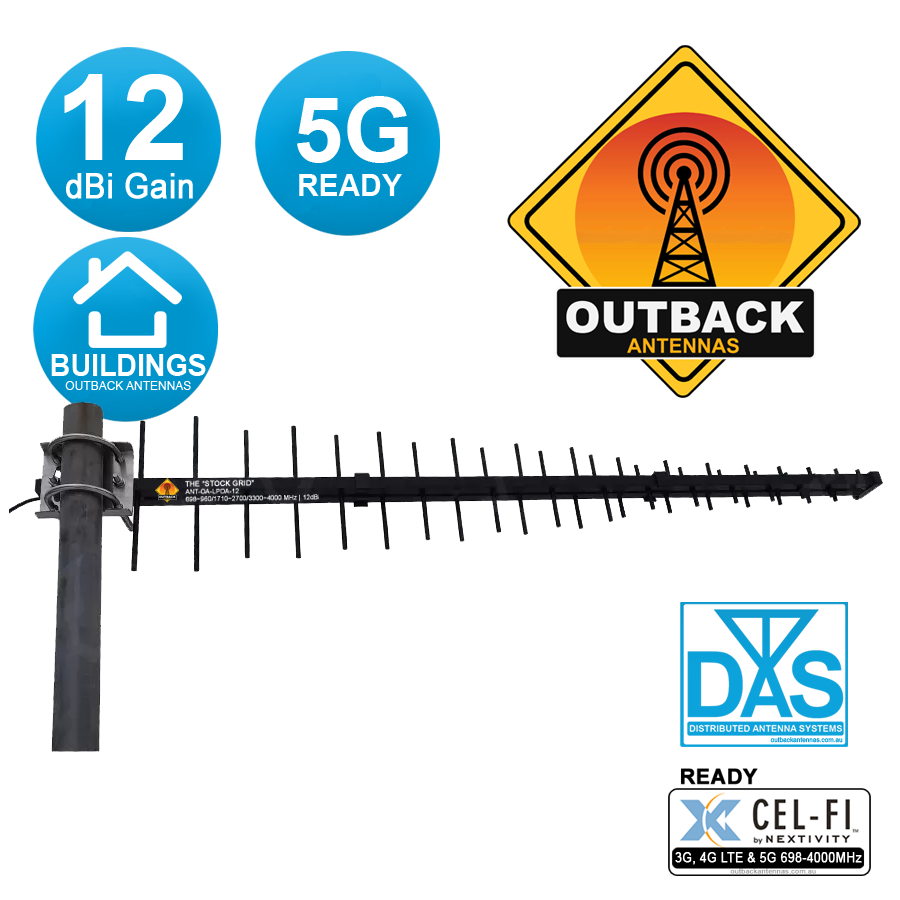

Yagi Cellular Antenna LPDA 12dBi, 698MHz-4000MHz Mobile 3G, 4G/LTE & 5G. The "STOCK GRID" (No Ext Cable)

ANT-OA-STOCK-GRID-LPDA-12

$259.94
In Stock

Include a Cable

Yagi Antenna 12dBi, 698-4000MHz, Extend Your Mobile Signal 3G, 4G/LTE & 5G. The "STOCK GRID" By Outback Antennas



The STOCK GRID Directional LPDA Yagi 3G, 5G/LTE, 5G Antenna by Outback Antennas

Ideal for Boosting Telstra Next-G, LTE mobile networks, Optus and Vodafone 3G/4G & 5G

The "STOCK GRID" Yagi antenna is a high performance long distance directional antenna with 12 elements welded for improved performance fantastic antenna providing good performance. The "STOCK GRID" Yagi antenna is simple to install with its included mounting bracket. This antenna is great for areas where mobile signal is weak, and only a simple antenna on the roof is enough to give a fantastic improvement. The antenna is simple and effective, and a great antenna for fixed long term installations or those travelling who need long distance connectivity. Popular in rural areas for long distance connectivity.



Features

  • 12dBi gain across lower bands The "STOCK GRID"
  • Lightweight, compact design
  • Stylish welded design for improved performance
  • 50 cm tail with pre-terminated N Female connector
  • Ideal for high speed 3G, 4G LTE and 5G applications.





(ANT-OA-STOCK-GRID)

Yagi LPDA Antenna 12dBi, 698-4000MHz Welded 3G, 4G/LTE & 5G. The "STOCK GRID"

Pack Includes:

  • 1 x Outback Antennas STOCK GRID Yagi-12 Antenna 698~4000Mhz 12dBi
  • 1 x 50cm of RG58 cable with N Type Female connector
  • Optional Extension Cable LMR200 Low Loss (Available 6m or 10m length)
    • Connector 1: N Male
    • Connector 2: SMA Male





Yagi LPDA Antenna 12dBi, 698-4000MHz Welded 3G, 4G/LTE & 5G. The "STOCK GRID" - SPECIFICATIONS



ELECTRICAL SPECIFICATIONS


Frequency Range-----------------698-4000MHz
Impedance---------------------------50 Ohm
VSWR-----------------------------------Less than 1.5
Gain-------------------------------------12 dBi
Polarization-------------------------Horizontal or Vertical
Horizontal 3dB Beam Width--40°
Vertical 3dB Beam Width----36°
Front To Back Ratio------------≥18 dB
Max. Power Input----------------200W
Lighting Protection--------------Direct Ground
Connector----------------------------N-Female
MECHANICAL SPECIFICATIONS

Length-------------------------------957±10 mm
Coaxial Cable------------------- SYWV-50-7
Length of Cable-----------------0.5m
Mounting hardware-----------Ø40-Ø60 mm
Max. Wind Load-----------------60 m/s


SHIPPING SPECIFICATIONS

SKU ANT-OA-STOCK-GRID
Model # ANT-OA-STOCK-GRID
Brand OUTBACK ANTENNAS
Shipping Weight 1.5000kg
Shipping Width 0.700m
Shipping Height 0.100m
Shipping Length 1.300m
Shipping Cubic 0.091000000m3
Unit Of Measure ea

Yagi LPDA Antenna 12dBi, 698-4000MHz Welded 3G, 4G/LTE & 5G. The "STOCK GRID" - DOCUMENTS
