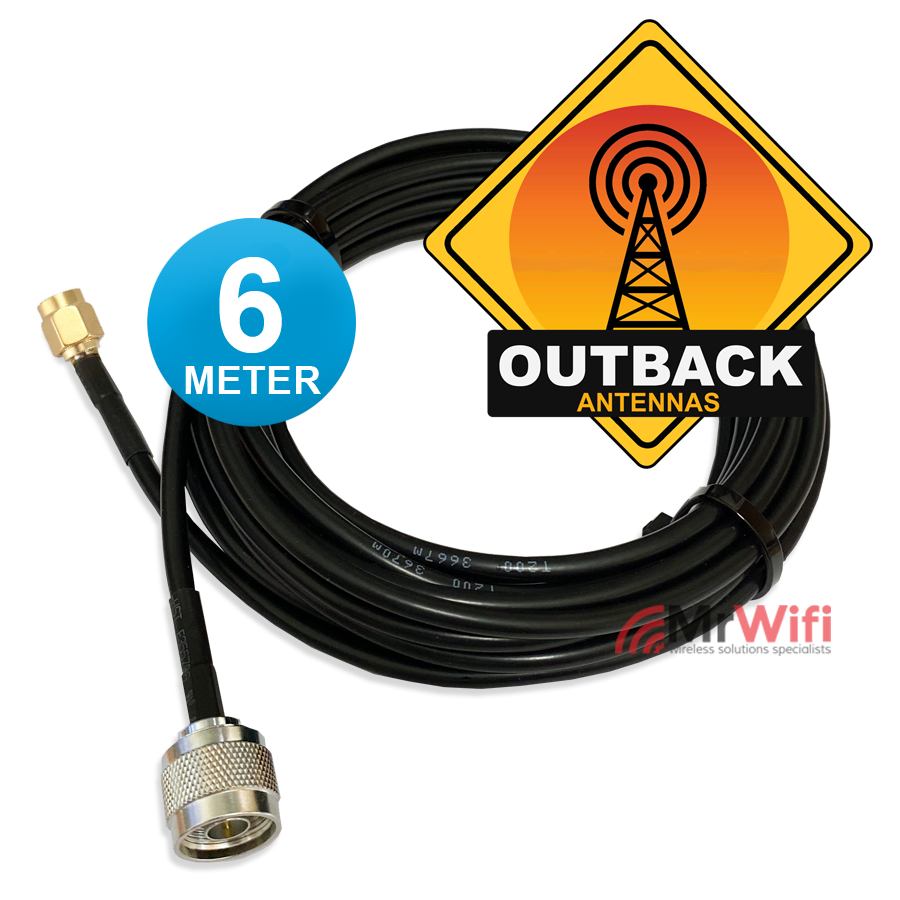

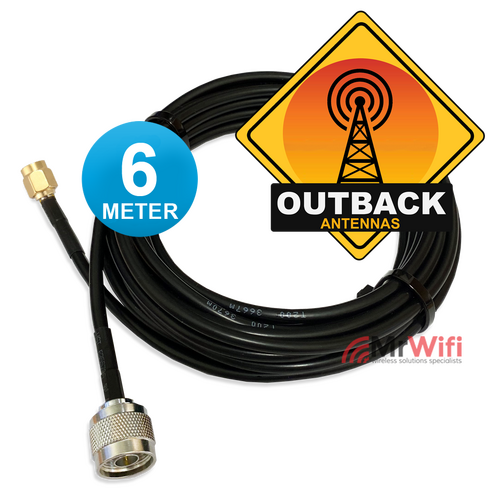

Cable Coaxial Antenna Pigtail, N-Type Male to SMA Male Straight Low Loss 6M
Cable Antenna Extension N-Type Male to SMA Male Straight LMR200 Low Loss
Outback Antennas N-Type Male to SMA Male extension cable low loss with LMR200 cable.
LMR-200 "Low loss cable" and is superior to RG58 and other coax standards due to double shielding resulting in less attenuation (signal loss in the cable) than the standard cables (e.g. RG58). The signal loss (attenuation) with LMR200 at 2.4 GHz WiFi: 0.3dB per foot | 0.98 per meter.
|50 Ω COAXIAL CABLE||MATERIAL||DIAMETER|
|INNER CONDUCTOR||Copper solid||1.12 mm|
|DIELECTRIC||PE foamed||2.95 mm|
|SHIELDING||Copper braid tinned / Aluminium Foil||3.66 mm|
|CABLE SHEATH||PVC||4.95 mm|
Applications: Antenna cables for frequency bands between 0 and 18GHz: IOT and Wireless / WiFi networks: 802.11ac, 802.11n, AC, G, A, B. 900MHz, 2.4GHz & 5GHz
Temperature range -40°C to +85°C
50Ω (50 Ohms)
Rated for outdoor use and are also suitable for indoor use. very flexible/easily bendable coax
The double-shielding is a major factor in the higher quality of this cable, which translates into lower loss/better performance. Suitable for applications, as well as any other frequency.
Available in various lengths:
3M, 6M & 10M
Cable Antenna N-Type Male to SMA Male Straight Low Loss
- CABLE LMR200 Low Loss Series (diameter ~5mm) Available Lengths: 3m. 6m, 10m.

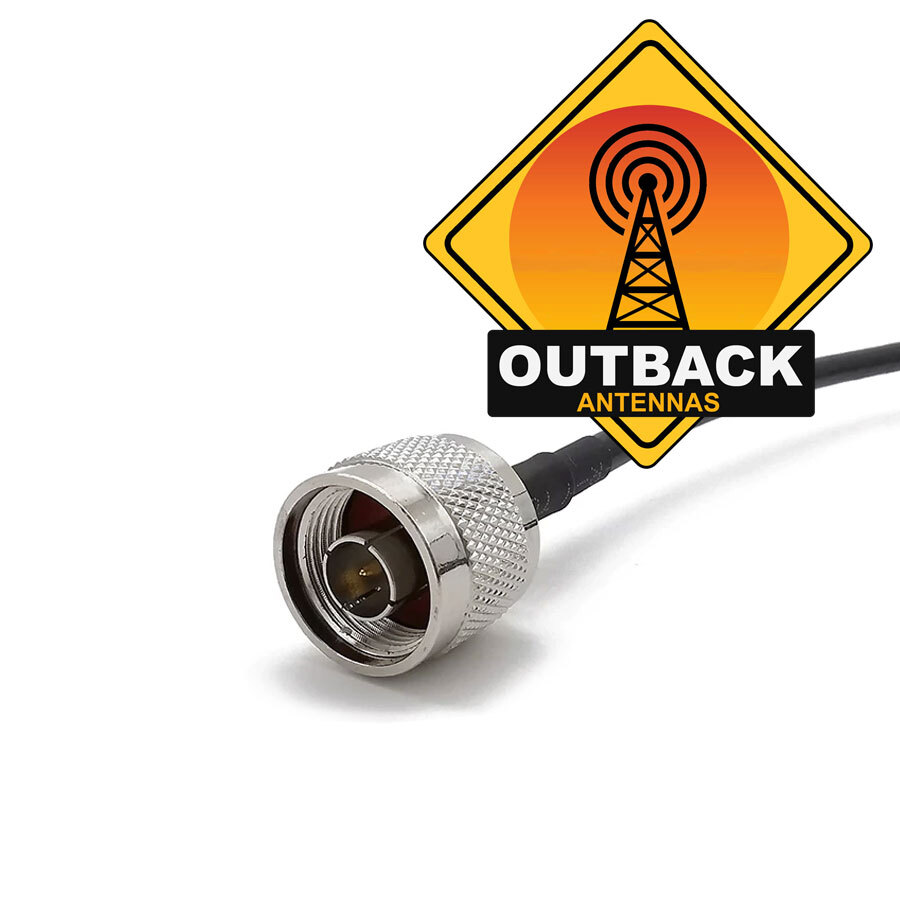

- Connector 1: N Plug (Male Pin)

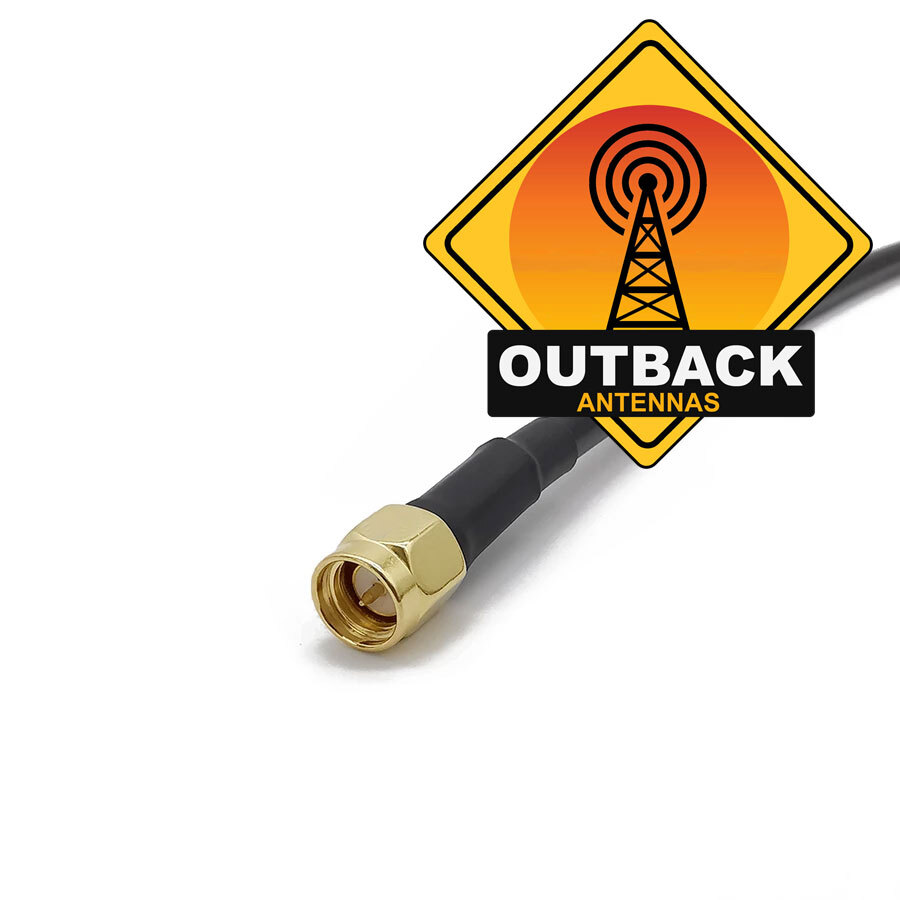

- Connector 2: SMA Plug Straight (Male Pin)
- Fully Tested Cables
- 12 Months Warranty on all cables
Cable Antenna N-Type Male to SMA Male Straight Low Loss - Specifications
|Unit Of Measure||ea|
Cable Antenna N-Type Male to SMA Male Straight Low Loss - Documents
