TP-ESP-1000-POE Surge Protector Gigabit
TP-ESP-1000-POE
ALTERNATE PRODUCT:
SURGE-OA-RJ45-48V-1GB-Surge Protector Lightning 7.5V RJ45 48V POE 1Gigabit. The "ZAPPA"
In Stock: YES
Ethernet Surge Protector 48V POE 1GB

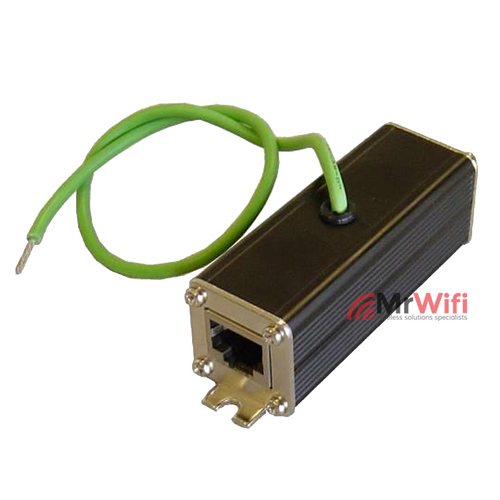

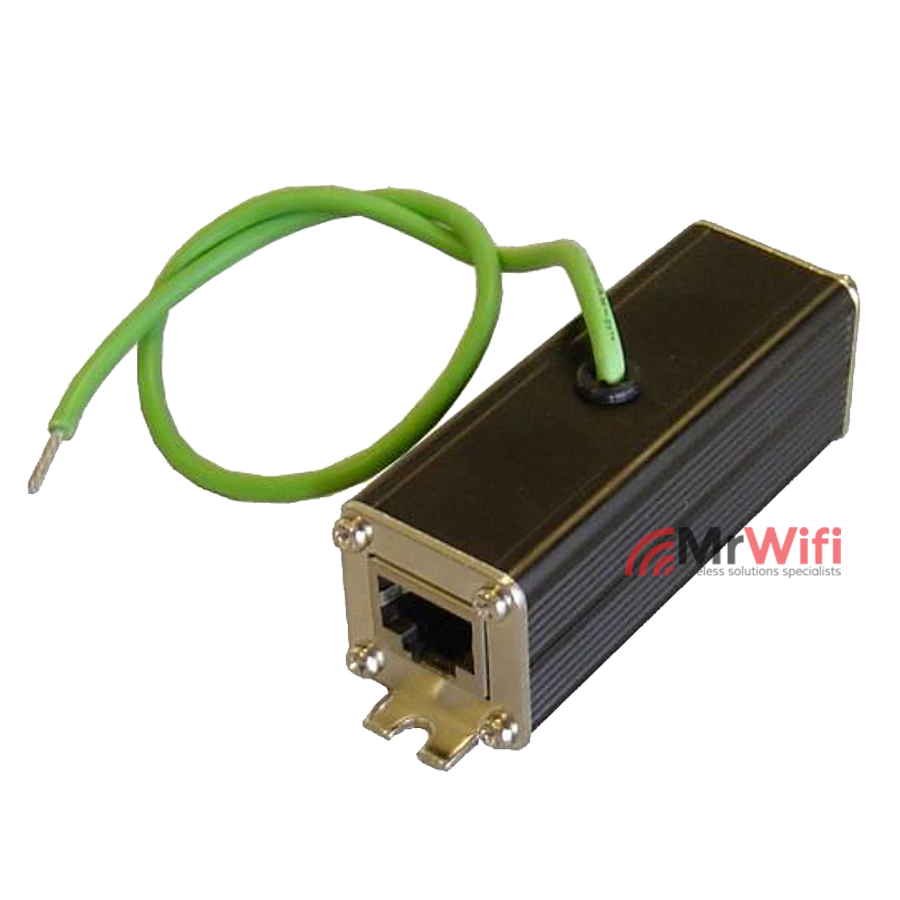

The ESP-POE are a low cost Ethernet surge protector to help protect sensitive equipment from surges caused by lightning and grid power fluctuations. They have a full metal body for improved EMI suppression and have integral mounting feet and separate ground wire. They are designed for indoor or outdoor use inside a weatherproof enclosure. The ESP-1000-POE is compatible with 10/100/1000M PoE systems up to 57V. The ESP-1000-POE24 is compatible with 10/100/1000M PoE systems up to 30V. The ESP-100-POE24 is for 10/100M passive PoE systems up to 30V. Protection is provided on all 8 CAT5/6 wires.
Features:
- 10/100/1000Mb Data Rate (24 or 48V POE Model)
- CAT5/6 Compatible. All 8 pins protected.
- Shielded jacks and full metal housing
- Complies with IEC 61643-21 Standard
- UL497B Listed (TP-ESP-1000-POE)
Applications:
- Wireless Access Points and Client Devices
- IP Phone and Security Camera Systems
- Industrial Control Systems
* Check product specifications to verify PoE compatibility
(TP-ESP-1000-POE)
TP-ESP-1000-POE Surge Protector Gigabit
Pack Includes:
- 1x TP-ESP-1000-POE
TP-ESP-1000-POE Surge Protector Gigabit - Specifications
| Operating Voltage | Data 5V ; PoE 48V |
| Clamping Voltage | 70V POE (All 8 Pins) |
| Max Surge Discharge Current | 5KA (8/20us) |
| Peak Pulse Current | 100A (10/1000us) |
| Protection Mode | Differential & Common Mode |
| Insulation Resistance | >1000 MOhm |
| Shunt Capacitance | < 25 pF |
| Data Rate | 10/100/1000 Mbps |
| Response Time | <5 ns |
| Operating Temperature | -40 to +85°C |
| Storage Temperature | -40 to +125°C |
| Operating Humidity | 0% to 95% non condensing |
| Size (L x W x H) | 4 x 1 x 1" (102 x 25 x 25mm) |
| Weight | 3.1oz (88g) |
| Ground Wire | 14 AWG, 10" (26cm) long |
| Connectors | RJ45 Shielded Jacks |
| IEC Standard | 61000-4-5, 61643-21 |
| UL Standard | 497B |
| IEEE/ ANSI Standard | C62.45 |
| MTBF (Mean Time Between Failure) | 819,049 Hours |
| Warranty | 3 Years |
Shipping Specifications
| SKU | TP-ESP-1000-POE |
| Model # | TP-ESP-1000-POE |
| Barcode # | 1PTP-ESP-1000-POE |
| Brand | Tycon Power |
| Shipping Weight | 0.0900kg |
| Shipping Width | 0.025m |
| Shipping Height | 0.025m |
| Shipping Length | 0.102m |
| Shipping Cubic | 0.000064000m3 |
| Unit Of Measure | ea |
