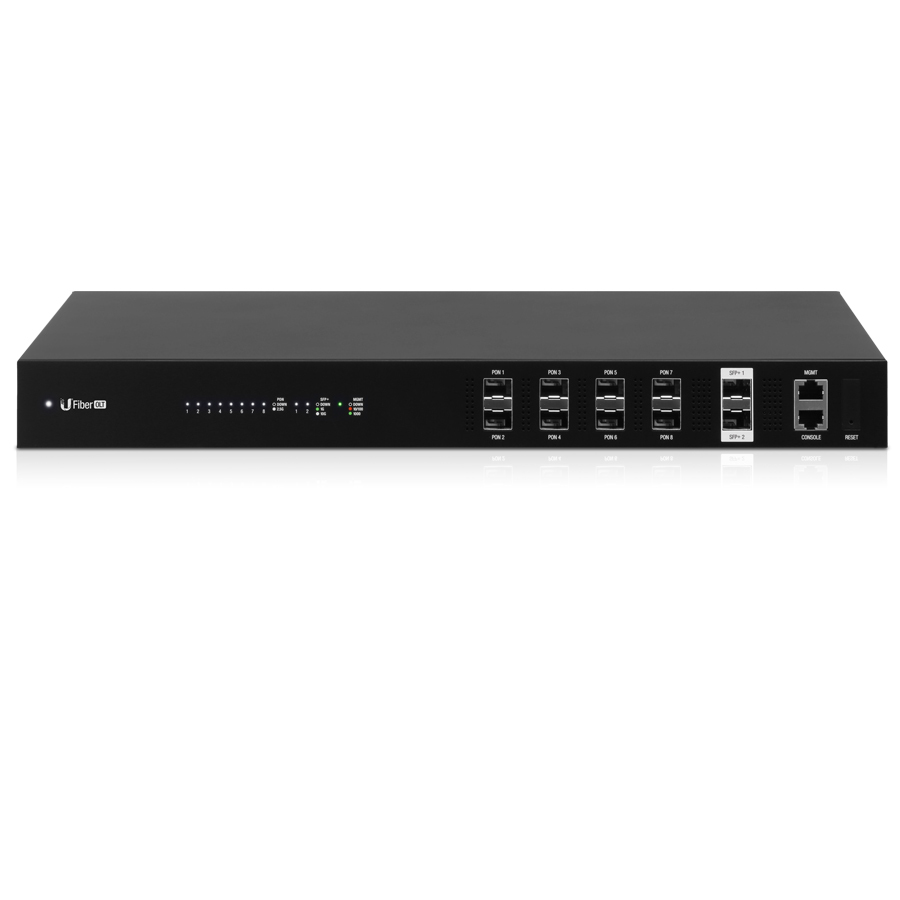

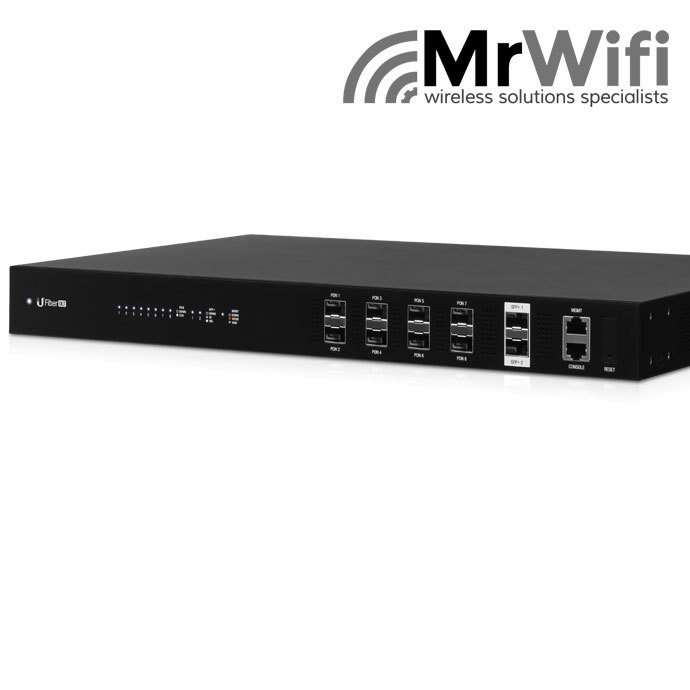

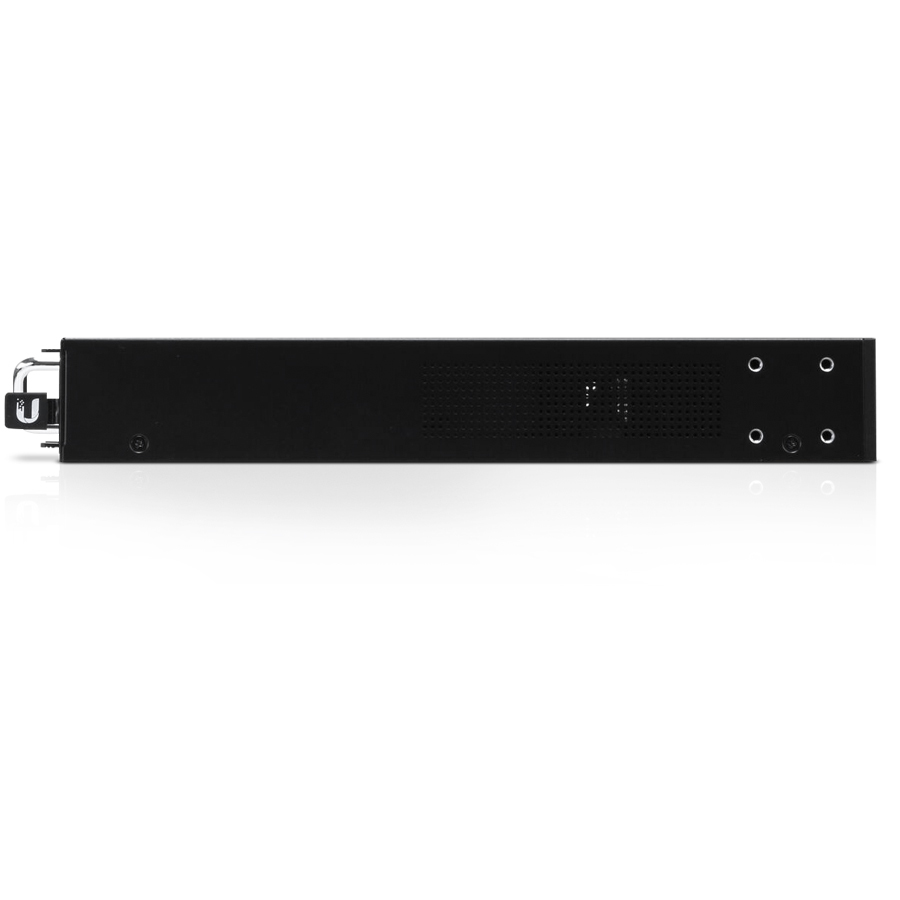

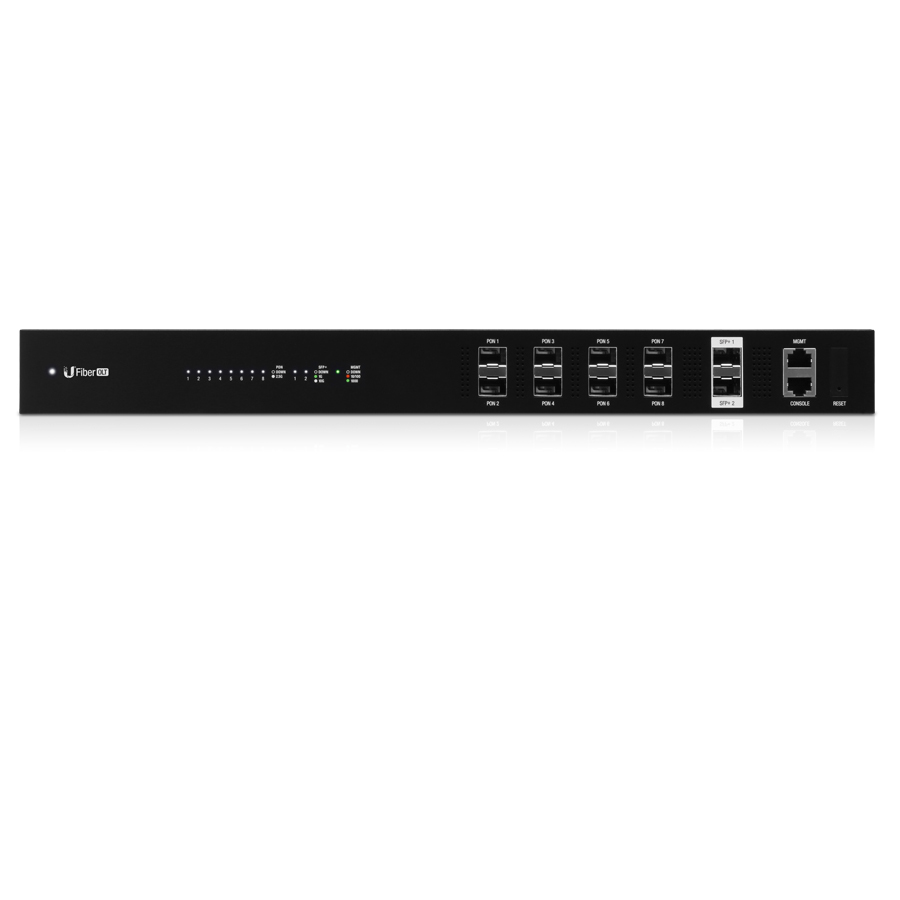

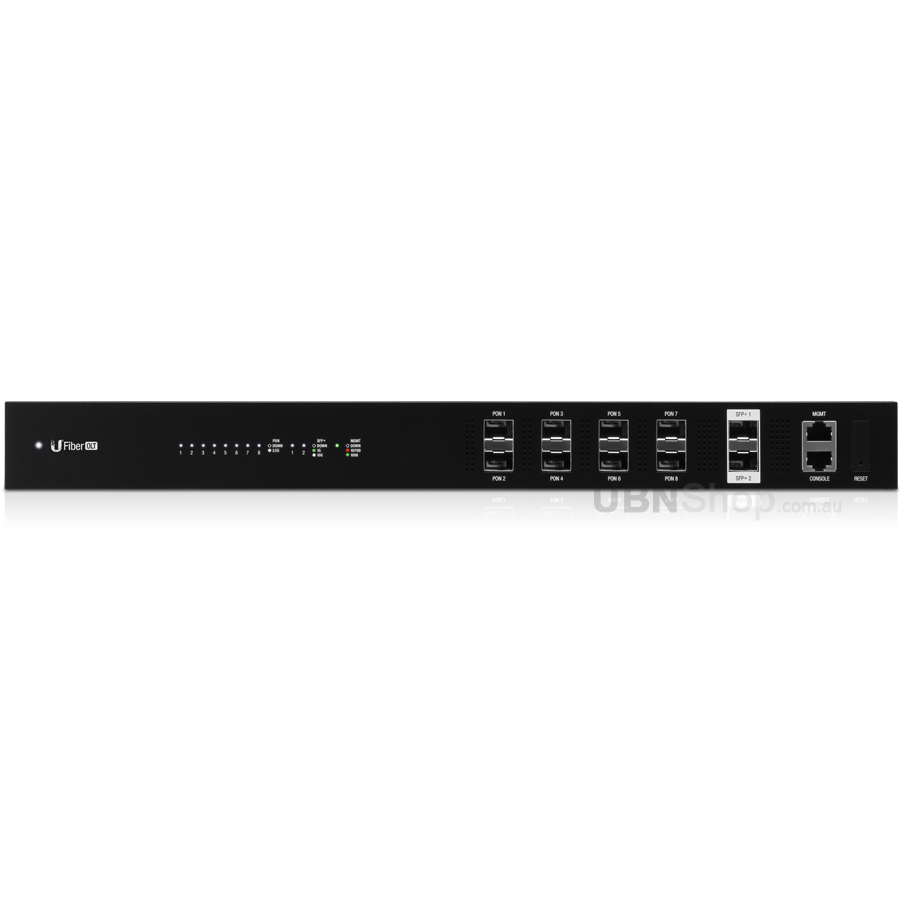

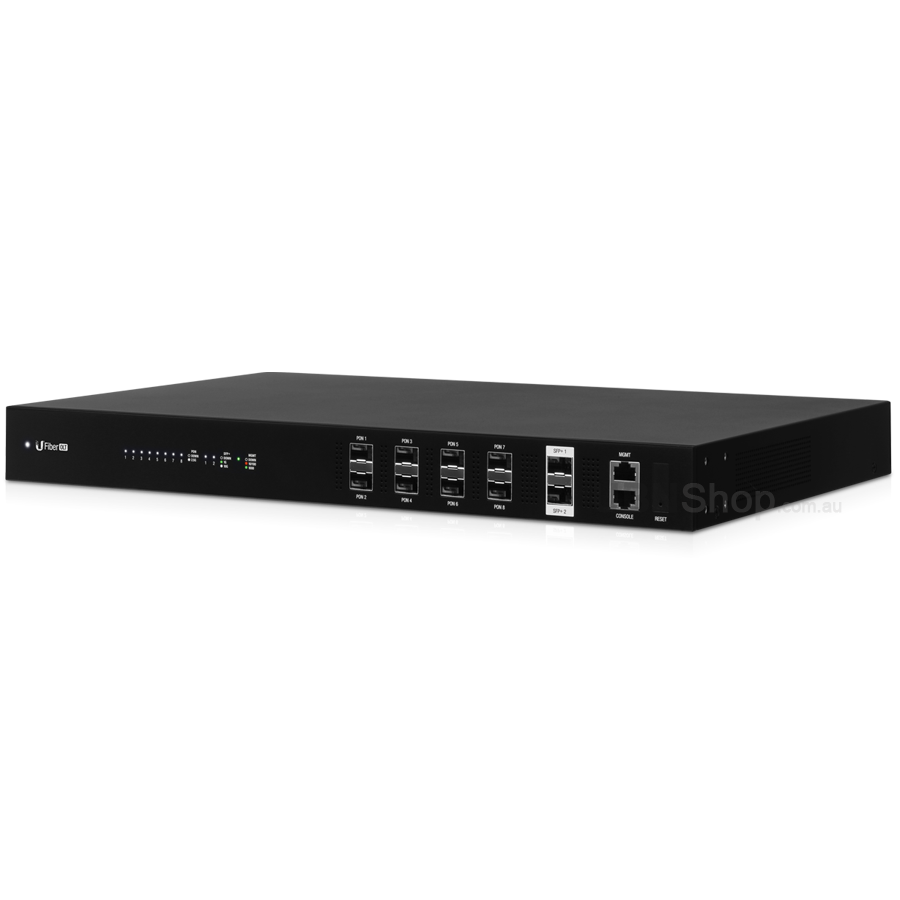

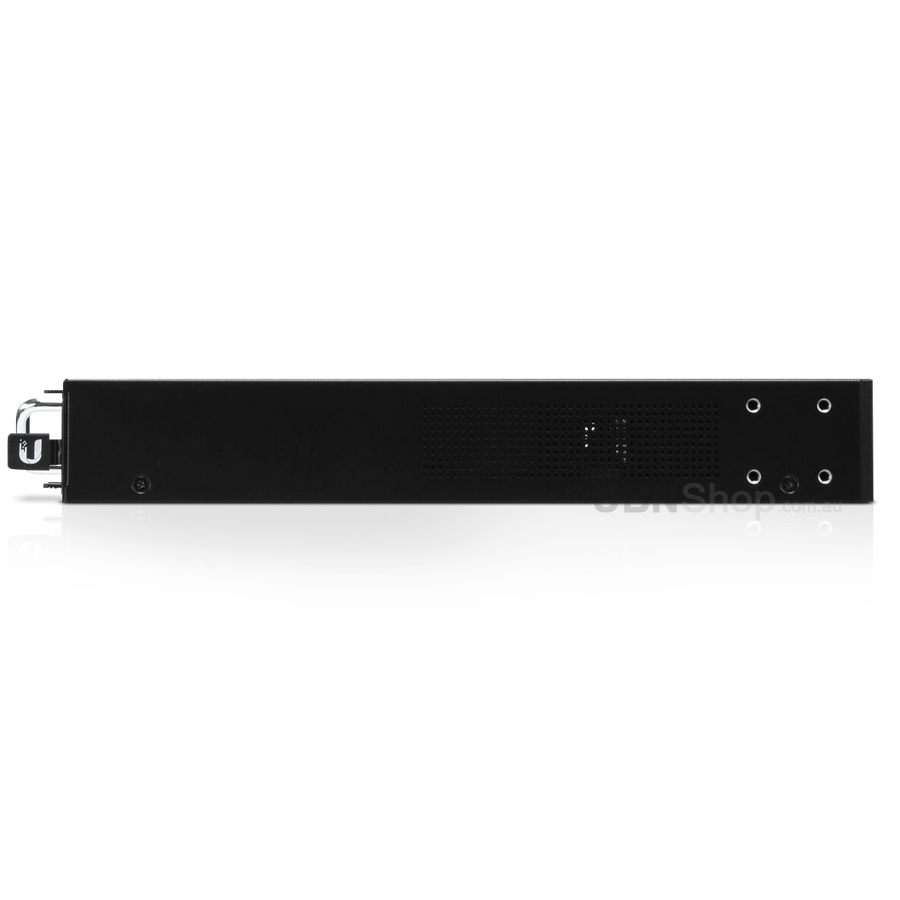

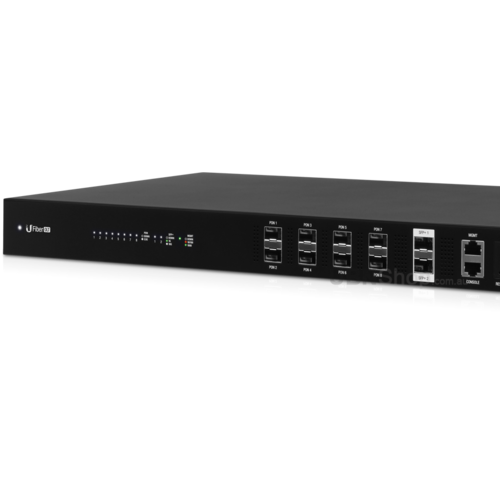

U Fiber Optical Line Terminal (OLT)
UF-OLT
8-Port GPON Optical Line Terminal
Configuring a fiber network just became as easy as setting up a smartphone. Say goodbye to command lines, manuals, and paid support licenses. Introducing the UFiber OLT – a fiber solution that anyone can deploy. The OLT features eight PON ports to connect up to 1024 Nano G devices, and two SFP+ ports deliver up to 20 Gbps of uplink connectivity. The 1U-high metal chassis allows for convenient mounting in a standard-sized, 19"‑wide rack.
Easily configure the OLT and manage multiple sites using the comprehensive UNMS™ (Ubiquiti® Network Management System) software and features low power consumption, the OLT offers two modular power bays. The first bay includes an AC/DC power module. The second bay can house an optional power module, either an AC/DC backup or a DC/DC power module.
Features
- 8 Gigabit Passive Optical Network Ports
- Supports up to 1024 Clients (128 per PON Port)
- Up to 2.488 Gbps TX and 1.244 Gbps RX
- Two 1G/10G SFP+ Ethernet Ports
- Flexible Layer 2/3 Management Features
- FastEthernet port for management
- Console serial port for management
(UF-OLT)
U Fiber Optical Line Terminal (OLT)
Pack Includes:
- 1 x Ubiquiti Fiber Optical Line Terminal (OLT)
- 2 x Rack Mounting Brackets
- 8 x Bracket Screws
- 4 x Screws
- 4 x Cage Nuts
- 1 x SC/UPC GPON SFP Transceiver (UF-GP-B+)
- 1 x Power Cord
- 4 x Rubber Feet
- Quick Start Guide
*POE Adapter Sold Separately
U Fiber Optical Line Terminal (OLT) - Specifications
| MECHANICAL | |
|---|---|
| Dimensions | 442.4 x 285.6 x 43.7mm |
| Weight | 4400g (without hangers) 4495g (with hangers) |
| Enclosure Characteristics | SGCC steel |
| HARDWARE | |
| Processor | MIPS 1004Kc 880 Mhz dual core |
| Memory | 256 Mbyte DDR3, 256M Byte NAND |
| Management Interface | (1) Ethernet out-of-band management (1) Ethernet in-band management (1) RJ45 Serial Console Por (1) Bluetooth |
| Networking Interface | (8) GPON OLT SFP (2) 10 Gbps SFP+ |
| Buttons | (1) Reset, Press 5 seconds - Reset to default |
| LEDs/Display | (1) Power, Blue/White, Blinking Blue: reset to default Steady Blue: system is booting Steady White: service is ready (8) GPON OLT SFP, Steady/Blinking white : GPON link/activity (2) SFP+ Ethernet. White(10G) Green(1G), steady on after link is up, blinking while activity (1) Ethernet RJ45 Out-of-band Management: Green(1G), steady on after link is up, blinking while activity |
| Power Method | 100-240VAC/50-60 Hz universal input |
| Power Supply | (2) Hotswap AC/DC PSU |
| Supported Voltage Range | AC input: 100 to 240 VAC |
| Max. Power Consumption | 40W (Excluding SFP modules) |
| Operating Temperature | -10 to 45°C (14 to 113°F) |
| Operating Humidity | 10% to 90% Non-Condensing |
| SOFTWARE | |
| Mode | OLT 2/3 Ethertnet Switch and GPON Core |
| Advanced QoS | Support 8 priority queues per user port and traffic classification |
| Concurrent Clients | 1024 ONUs/ONTs registered |
| Ubiquiti Specific Features | UBNT Discovery and UBNT mcagent |
| Minimum Software Requirements | Any Modern Web Browser |
Shipping Specifications
| SKU | UF-OLT |
| Model # | UF-OLT |
| Barcode # | 810354026577 |
| Brand | Ubiquiti |
| Shipping Weight | 4.9000kg |
| Shipping Width | 0.385m |
| Shipping Height | 0.096m |
| Shipping Length | 0.580m |
| Shipping Cubic | 0.021437000m3 |
| Unit Of Measure | ea |
U Fiber Optical Line Terminal (OLT) - Documents
