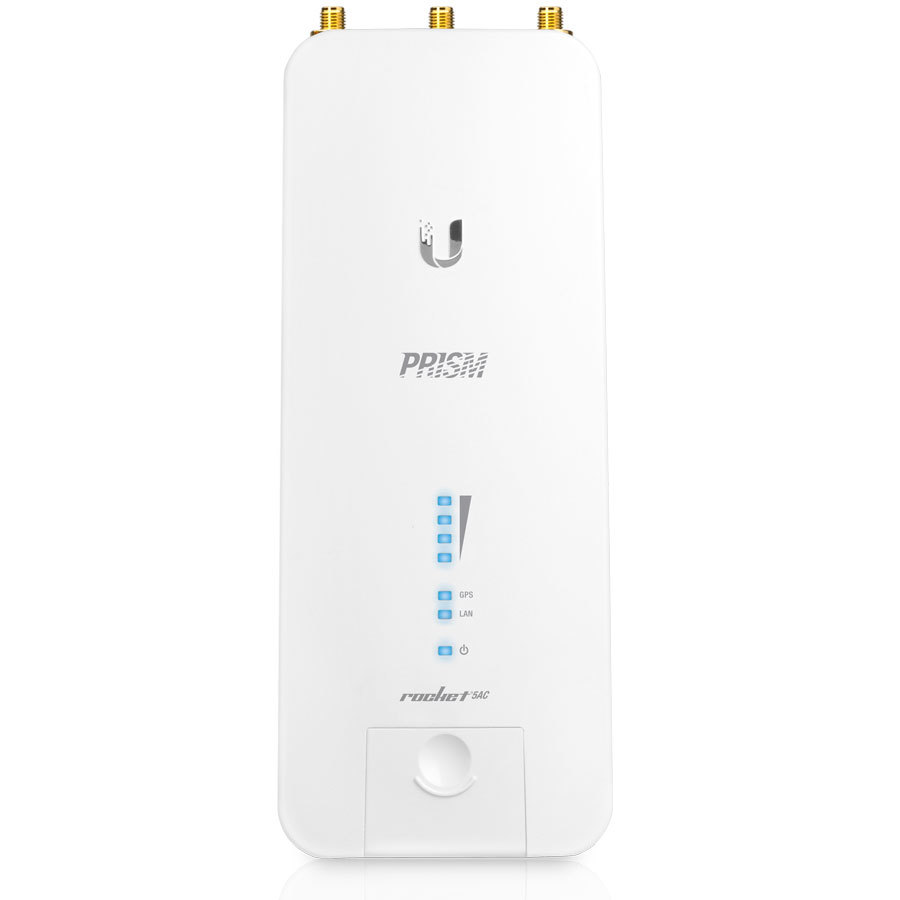

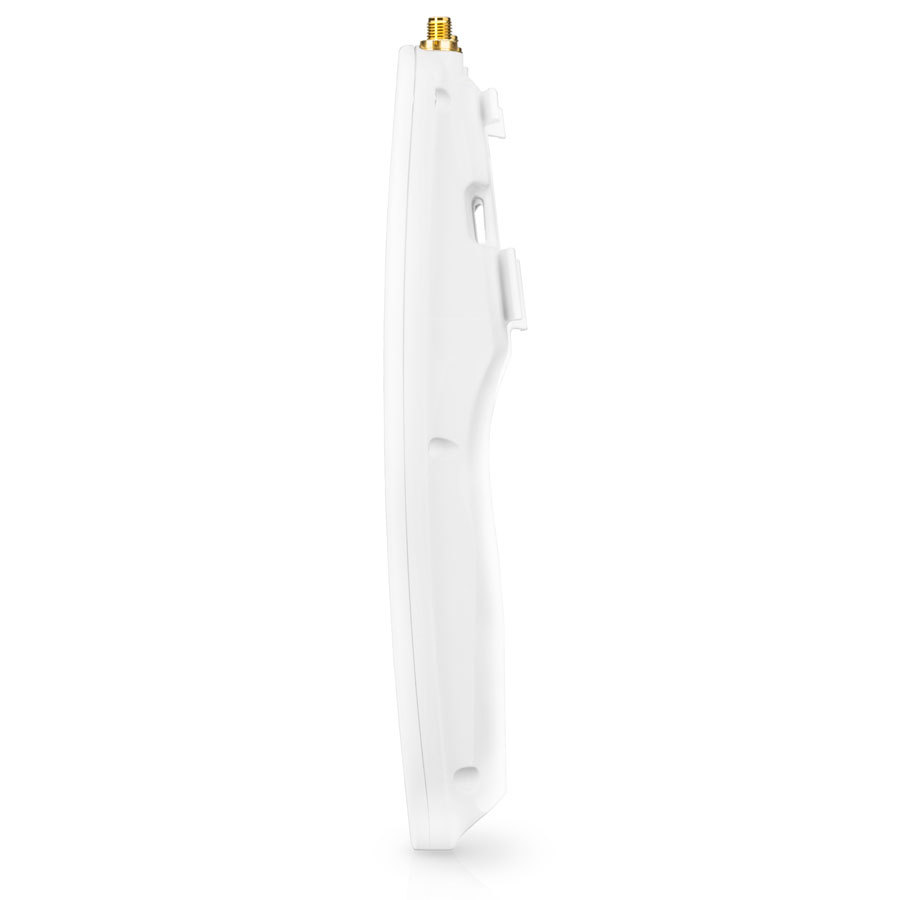

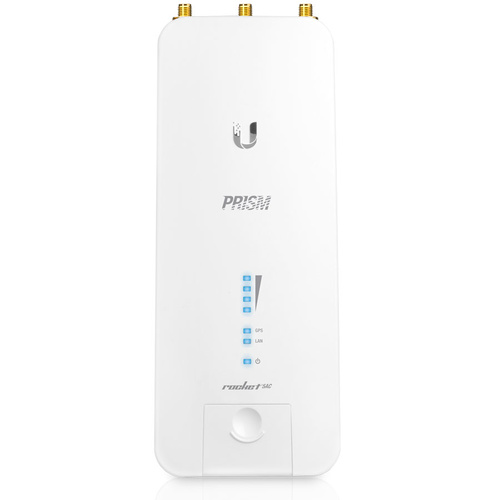

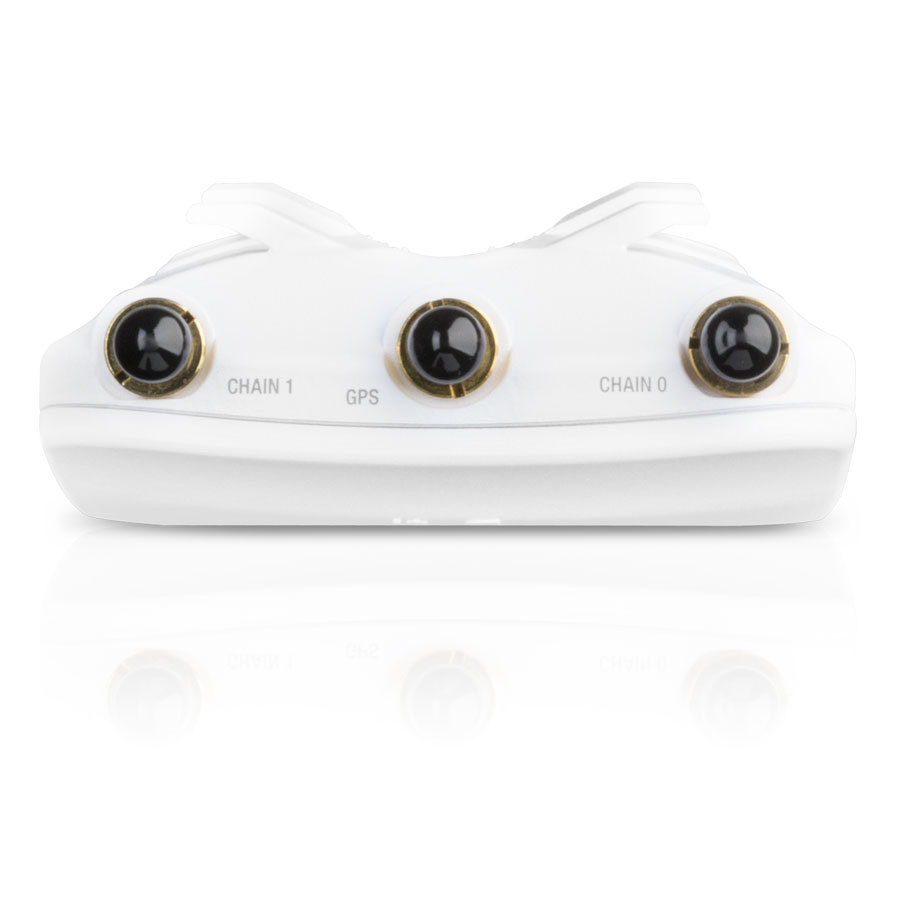

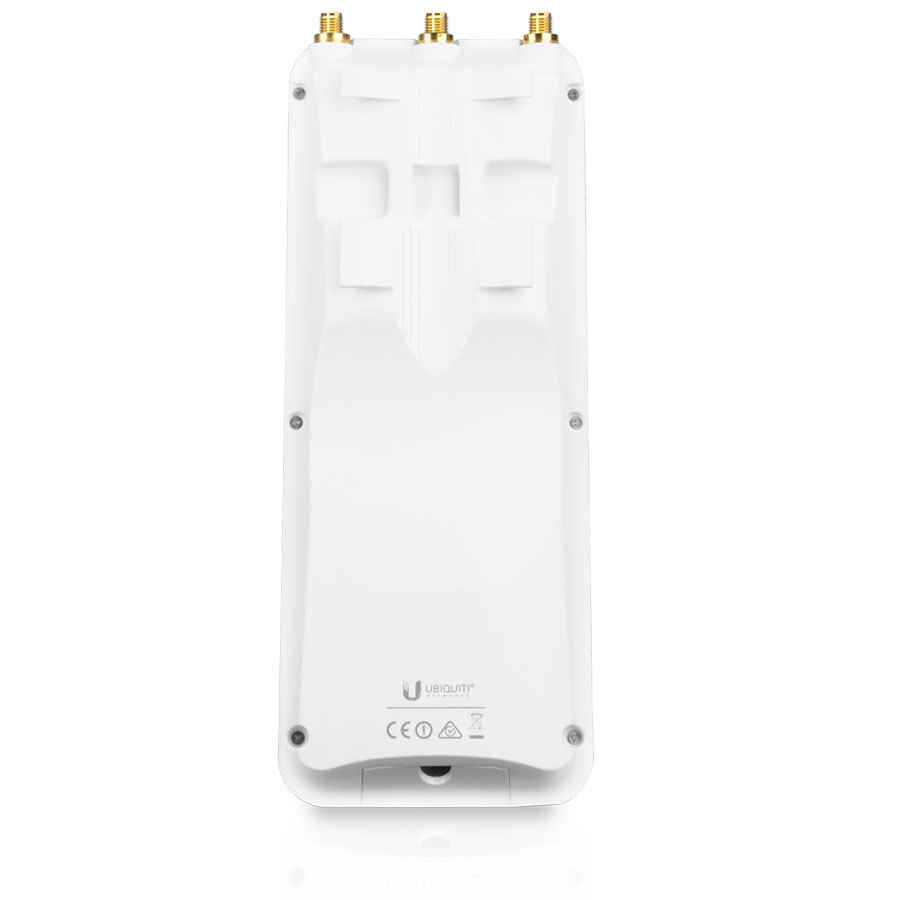

RocketPrism 5AC Gen2
RP-5AC-Gen2
5 GHz airMAX® ac Radio BaseStation with airPrism® Active RF Filtering Technology
Ubiquiti Networks has designed airMAX ac radios with high performance and ease of installation in mind. The Rocket®Prism 5AC Gen 2 features both airMAX ac and airPrism technologies for maximum wireless performance in high‑density areas. Pair the Rocket Prism 5AC Gen 2 with airMAX ac antennas for optimal performance:.
Pair the Rocket 5AC Gen2 with airMAX ac antennas for optimal performance:
- PtP backhaul RocketDish™ ac Antenna
- PtMP links airMAX ac Sector
Worldwide 5 GHz Coverage
Deploy the Rocket Prism 5AC Gen 2 anywhere in the world. It delivers complete coverage of the 5 GHz spectrum with a single radio. The Rocket Prism 5AC Gen 2 allows for flexibility in configuring channel bandwidths (subject to local country regulations).
(RP-5AC-Gen2)
Rocket Prism 5AC Gen2
Package Includes
- 1 x Rocket Prism 5 AC Gen2
- 1 x GPS Antenna
- 1 x Gigabit PoE (24V, 1A) with Mounting Bracket
- 1 x Power Cord
- Quick Start Guide
Rocket Prism 5AC Gen2 - Specifications
| ROCKET PRISM - RP-5AC-Gen2 | |
|---|---|
| Dimensions | 88 x 40 x 230 mm (3.47 x 1.58 x 9.06") |
| Weight | 400 g (14.11 oz) |
| Networking Interface | (1) 10/100/1000 Ethernet Port |
| LEDs | (4) Signal Strength, GPS, Power, LAN |
| Enclosure Characteristics | Die-Cast Aluminum with White Powder Coating |
| Max. Power Consumption | 9.5W |
| Power Supply | 24V, 0.5A Gigabit PoE Adapter (Included) |
| Power Method | Passive PoE (Pairs 4, 5+; 7, 8 Return) |
| Processor | MIPS 74Kc |
| Memory | 128 MB DDR2 SDRAM |
| Operating Temperature | -40 to 80° C (-40 to 176° F) |
| Operating Humidity | 5 to 95% Noncondensing |
| Certifications | CE, FCC, IC |
| Operating Frequency | Worldwide: 2400 - 2483.5 MHz 5150-5875 MHz USA: U-NII-1: 5150-5250 MHz, U-NII-2-A: 5250-5350 MHz, U-NII-2C: 5470-5725 MHz, U-NII-3: 5725-5850 MHz |
Shipping Specifications
| SKU | RP-5AC-Gen2 |
| Model # | RP-5AC-Gen2 |
| Barcode # | 817882020251 |
| Brand | Ubiquiti |
| Shipping Weight | 0.5000kg |
| Shipping Width | 0.119m |
| Shipping Height | 0.090m |
| Shipping Length | 0.300m |
| Shipping Cubic | 0.003213000m3 |
| Unit Of Measure | ea |
Rocket Prism 5AC Gen2 - Documents
Datatsheet RocketPrism 5AC Gen2Be The First To Review This Product!
