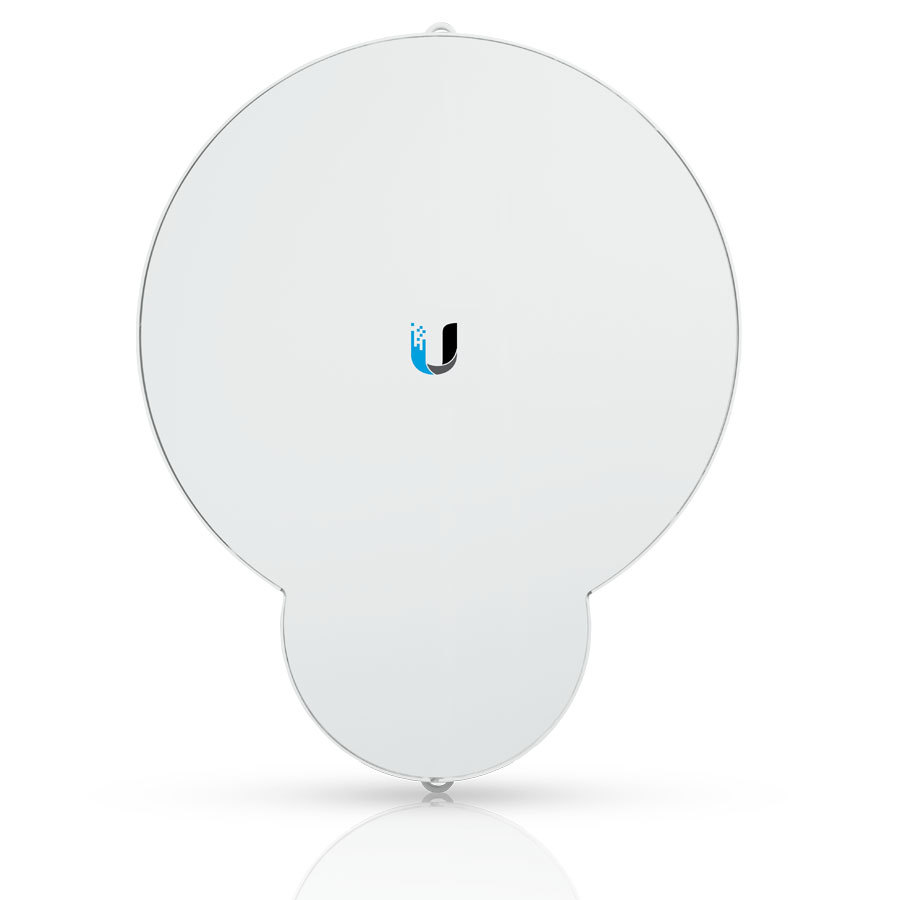

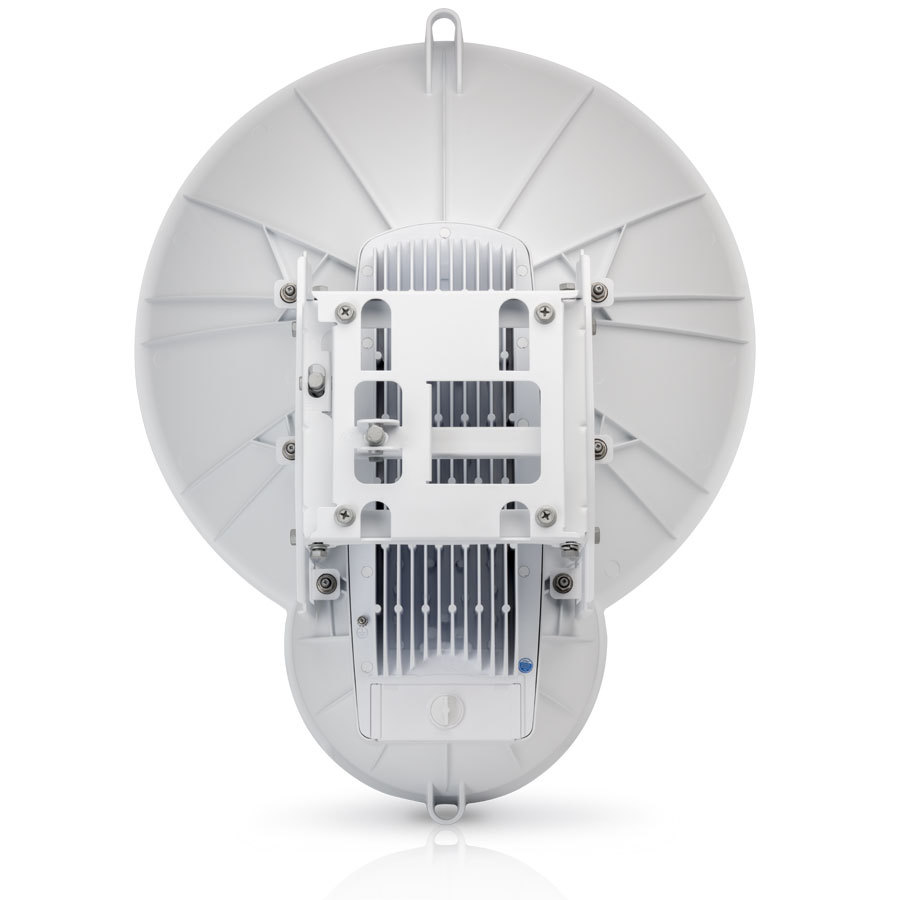

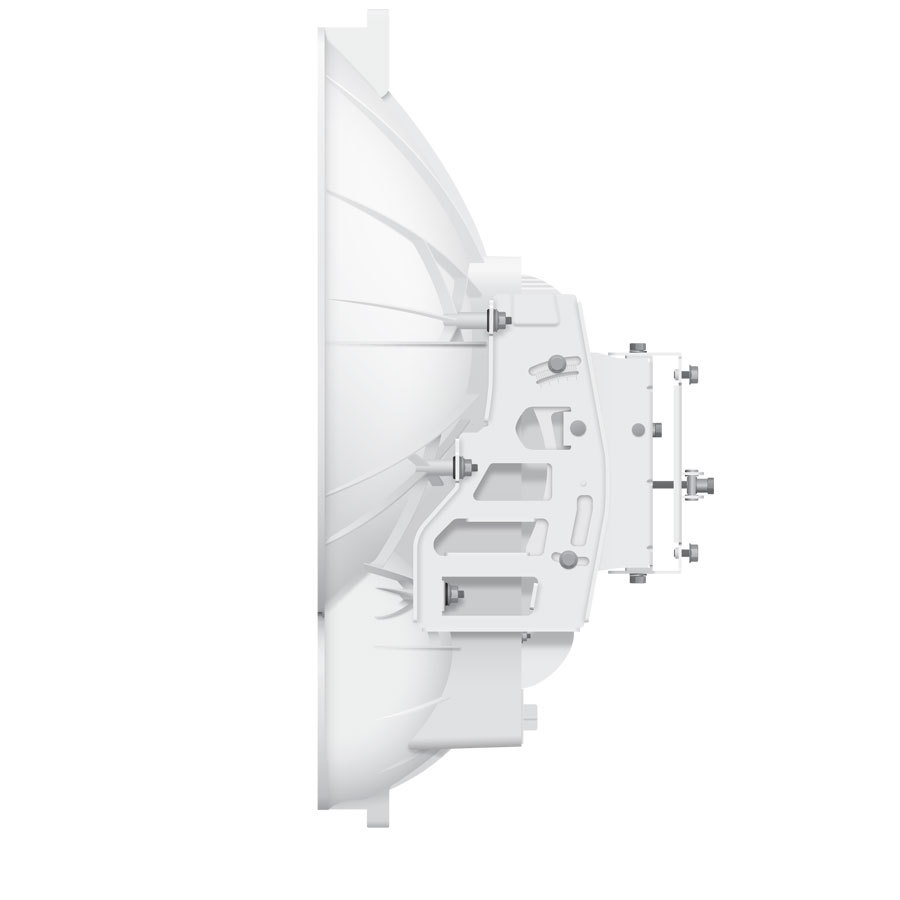

airFiber 24GHz HD, 2Gbps+ 20+km Backhaul

AF-24HD

$7,438.86
Sold Out

Ubiquiti airFiber 24GHz HD, 24 GHz Full Duplex Point-to-Point 2 Gbps Radio



Our INVICTUS custom silicon dramatically improves wireless performance. The AF-24HD model supports the dense modulation rates, up to 256QAM, that are required for high data rates, up to 2 Gbps. The airFiber AF-24/AF-24HD features the most powerful automatic compensation for path loss degradation due to rain fade, so it provides the best range among 24 GHz products and allows for constellation threshold extension.

Full-Duplex, Point-to-Point Gigabit Radio

Introducing Ubiquiti airFiber®, a truly revolutionary Point-to-Point wireless platform from Ubiquiti Networks. Housed in a compact, highly efficient form factor, airFiber delivers amazing wireless gigabit+ performance, low latency, and long range. airFiber ushers in a new era in price-disruptive wireless technology ideal for carrier backhaul, building-to-building enterprise use, or public safety applications.

Efficient by Design
Every detail of airFiber was designed and engineered by the Ubiquiti R&D Team. From the silicon chip up to the innovative split-antenna architecture, the Ubiquiti R&D Team created airFiber to deliver superior throughput with efficiency. airFiber was purpose-built to create a high performance backhaul.

Plug and Play Deployment
Based on Ubiquiti’s innovative and intuitive airOS®, the airFiber Configuration Interface enables quick deployment. With installation efficiency in mind, the mechanical design allows easy installation by one person. A two-person installation crew can effectively install and align an airFiber link. To fine-tune the alignment, the received signal levels can be conveniently accessed via any of these methods:

  • airFiber LED display
  • airFiber Configuration Interface
  • Audio tone feature

Designed for Freedom
airFiber operates in worldwide, license-free, 24 or 5 GHz frequencies. Anyone around the world can purchase and operate airFiber without any special permits, paperwork, or added licensing costs. Users are free to locate, deploy, and operate airFiber practically anywhere they choose (subject to local country regulations).

*ACMA EIRP limit at 24 GHz is 100mW (20 dBm)

(AF-24HD)

airFiber 24GHz HD

Package Includes

  • 1 x airFiber AF-24HD
  • 1 x Pole Mount Bracket
  • 2 x Pole Clamp
  • 1 x GPS Antenna Mount
  • 4 x Carriage Bolts (M10x150)
  • 4 x Flat Washers (M10,)
  • 4 x Split Lock Washers (M10)
  • 4 x Hex Nuts (M10)
  • 1 x Metal Strap
  • 1 x External GPS Antenna
  • 3 x Cable Ties
  • 1 x Gigabit PoE Adapter (50V, 1.2A)
  • 1 x Power Cord
  • Quick Start Guide

airFiber 24GHz HD - Specifications

airFiber AF-24HD
Dimensions
Radio
Box

593 x 768 x 370 mm (23.35 x 30.24 x 14.57")
796 x 696 x 49.5 mm (31.34 x 27.40 x 1.95")
Weight
Radio (Mount Included)
Box

17.3 kg (38.14 lb)
25.5 kg (56.22 lb)
Max. Power Consumption 50W
Power Supply 50V, 1.2A PoE GigE Adapter (Included)
Power Method Passive Power over Ethernet
Supported Voltage Range +42 to +58VDC, -48VDC
Certifications CE, FCC, IC
Wind Loading 770 N @ 200 km/hr (170 lbf @ 125 mph)
Wind Survivability 200 km/hr (125 mph)

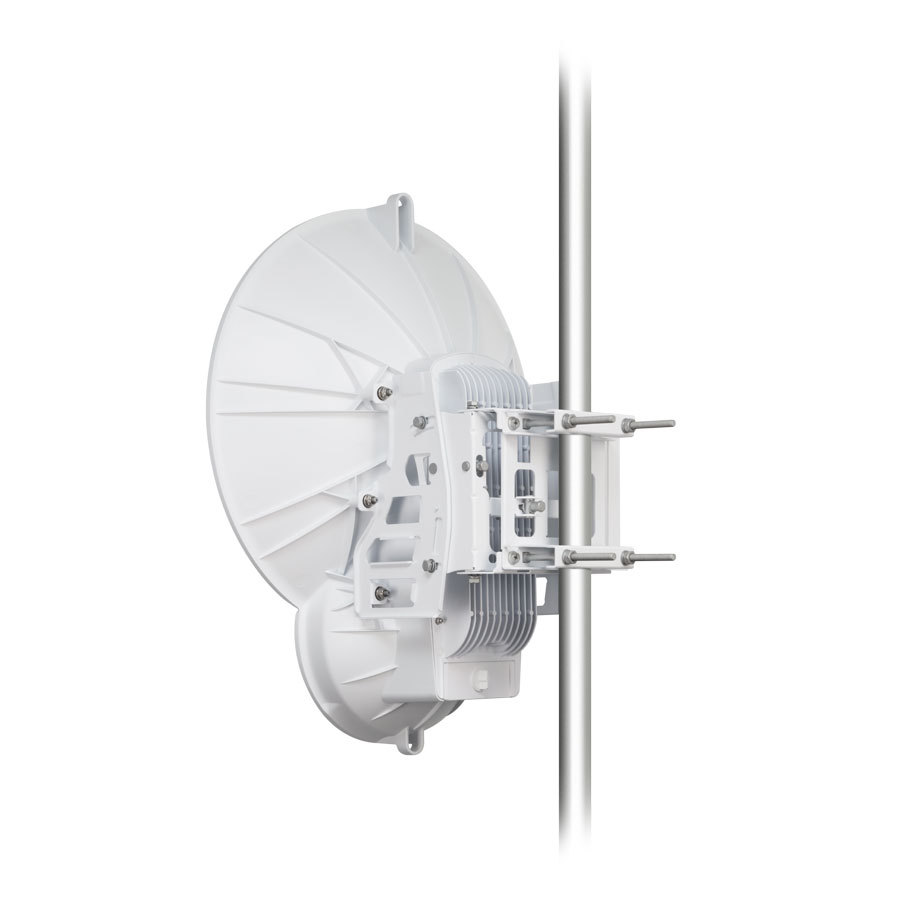

Mounting Pole Mount Kit (Included)
Operating Temperature -40 to 55° C (-40 to 131° F)
LEDs:
(8) Status LEDs:

Data Port Speed
Data Port Link/Activity
Configuration Port Speed
Configuration Port Link/Activity
GPS Synchronization
Modulation Mode
Master/SlaveRF Status
(1) Two-Digit LED Display Calibrated in dBm
Interface
Data Port (1) 10/100/1000 Ethernet Port
Configuration Port (1) 10/100 Ethernet Port
Auxiliary Port (1) RJ-12, Alignment Tone Port
System
Maximum Throughput 2 Gbps
Maximum Range 20+ km
Packets per Second 1 Million +
Encryption 128-Bit AES
Uplink/Downlink Ratio 50% Fixed
Latency
Full Duplex Mode
Half Duplex Mode

< 200 µs at Full Throughput
< 2 ms at Full Throughput
MTU (Maximum Transmission Unit) Up to 9600



Shipping Specifications

SKU AF-24HD
Model # AF-24HD
Barcode # 810354025297
Brand Ubiquiti
Shipping Weight 28.5000kg
Shipping Width 0.500m
Shipping Height 0.700m
Shipping Length 0.800m
Shipping Cubic 0.280000000m3
Unit Of Measure ea
