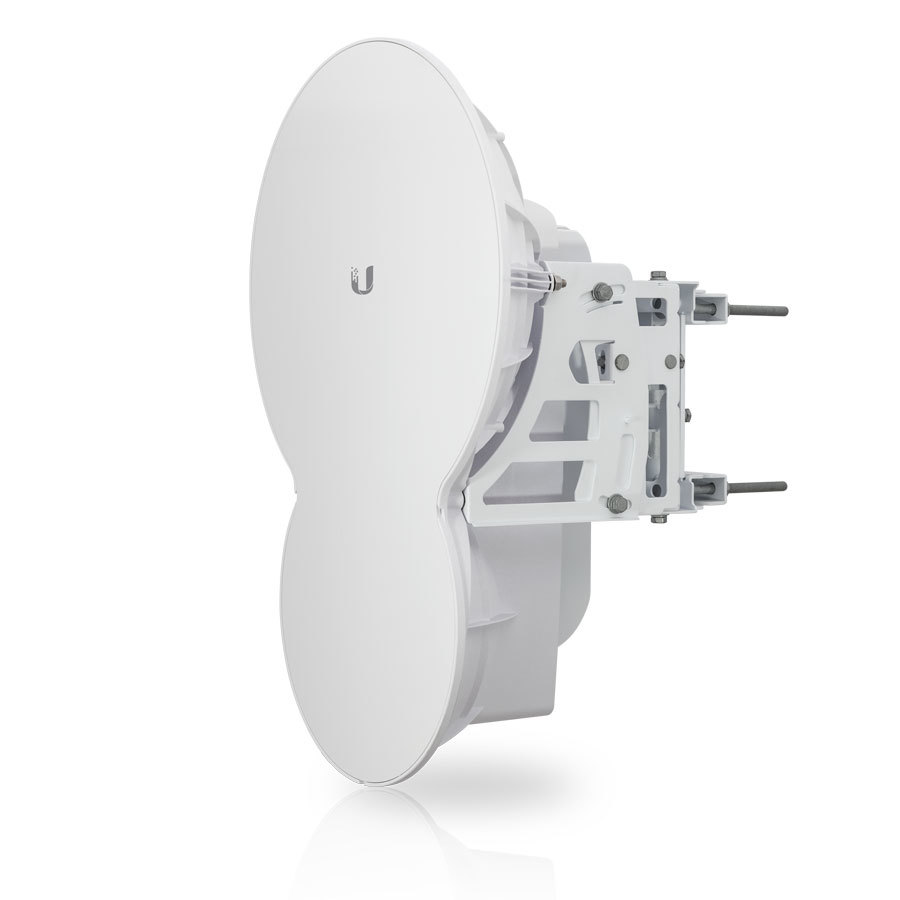

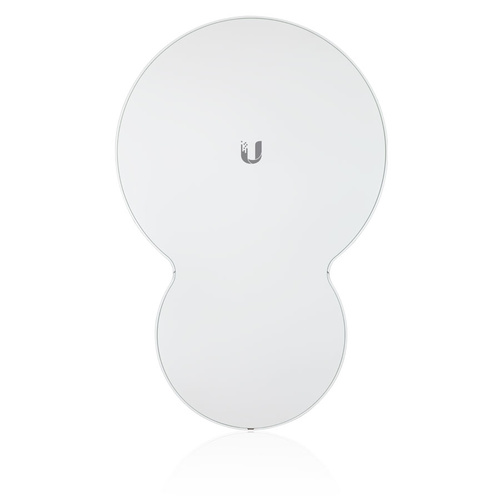

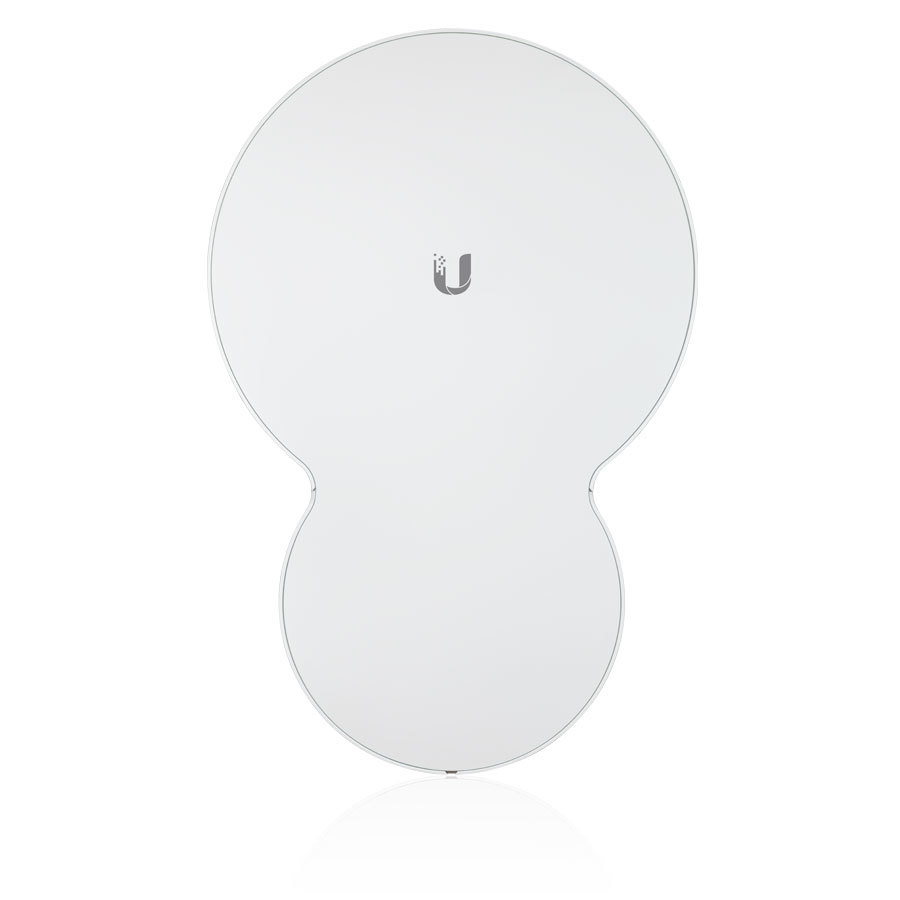

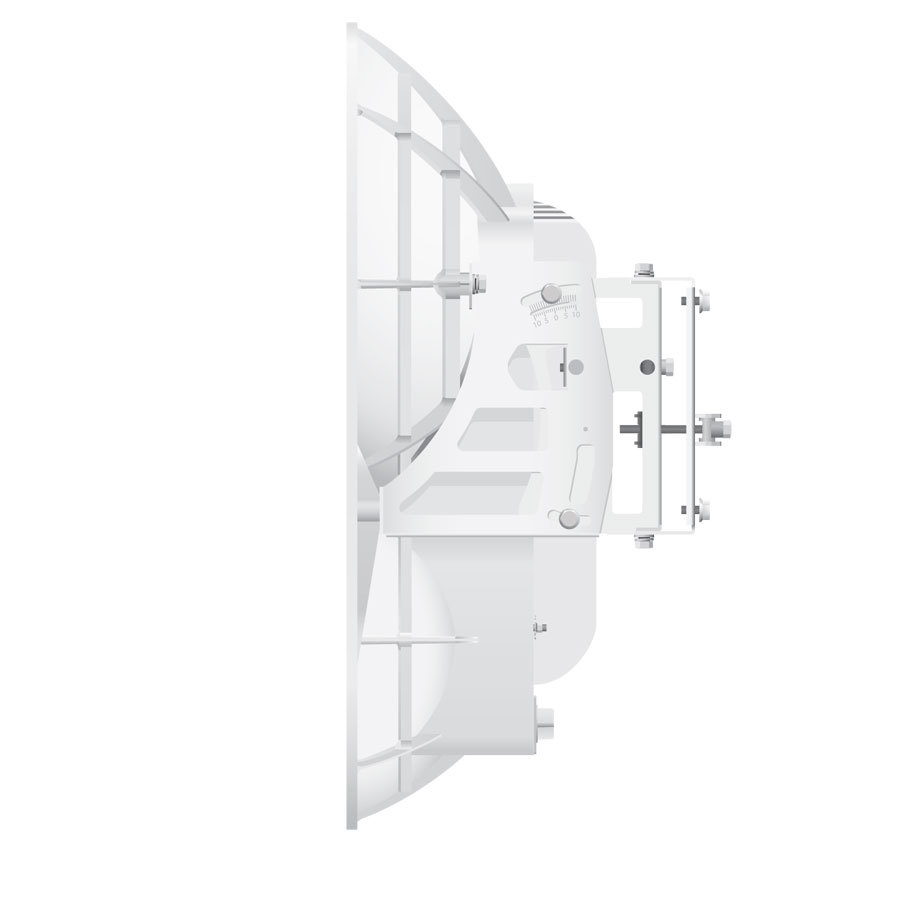

airFiber 24GHz, 1.4+Gbps 13+km Backhaul Radio

AF-24

$3,004.50
In Stock

Ubiquiti airFiber, 24 GHz Point-to-Point Gigabit Radio. 1.4+ Gbps Radio



Full-Duplex, Point-to-Point Gigabit Radio

Introducing Ubiquiti airFiber®, a truly revolutionary Point-to-Point wireless platform from Ubiquiti Networks. Housed in a compact, highly efficient form factor, airFiber delivers amazing wireless gigabit+ performance, low latency, and long range. airFiber ushers in a new era in price-disruptive wireless technology ideal for carrier backhaul, building-to-building enterprise use, or public safety applications.

Efficient by Design
Every detail of airFiber was designed and engineered by the Ubiquiti R&D Team. From the silicon chip up to the innovative split-antenna architecture, the Ubiquiti R&D Team created airFiber to deliver superior throughput with efficiency. airFiber was purpose-built to create a high performance backhaul.

Plug and Play Deployment
Based on Ubiquiti’s innovative and intuitive airOS®, the airFiber Configuration Interface enables quick deployment. With installation efficiency in mind, the mechanical design allows easy installation by one person. A two-person installation crew can effectively install and align an airFiber link. To fine-tune the alignment, the received signal levels can be conveniently accessed via any of these methods:

  • airFiber LED display
  • airFiber Configuration Interface
  • Audio tone feature

Designed for Freedom
airFiber operates in worldwide, license-free, 24 or 5 GHz frequencies. Anyone around the world can purchase and operate airFiber without any special permits, paperwork, or added licensing costs. Users are free to locate, deploy, and operate airFiber practically anywhere they choose (subject to local country regulations).

*ACMA EIRP limit at 24 GHz is 100mW (20 dBm)

(AF-24)

24 GHz Point-to-Point Gigabit Radio AF-24

Package Includes

  • 1 x airFiber AF-24

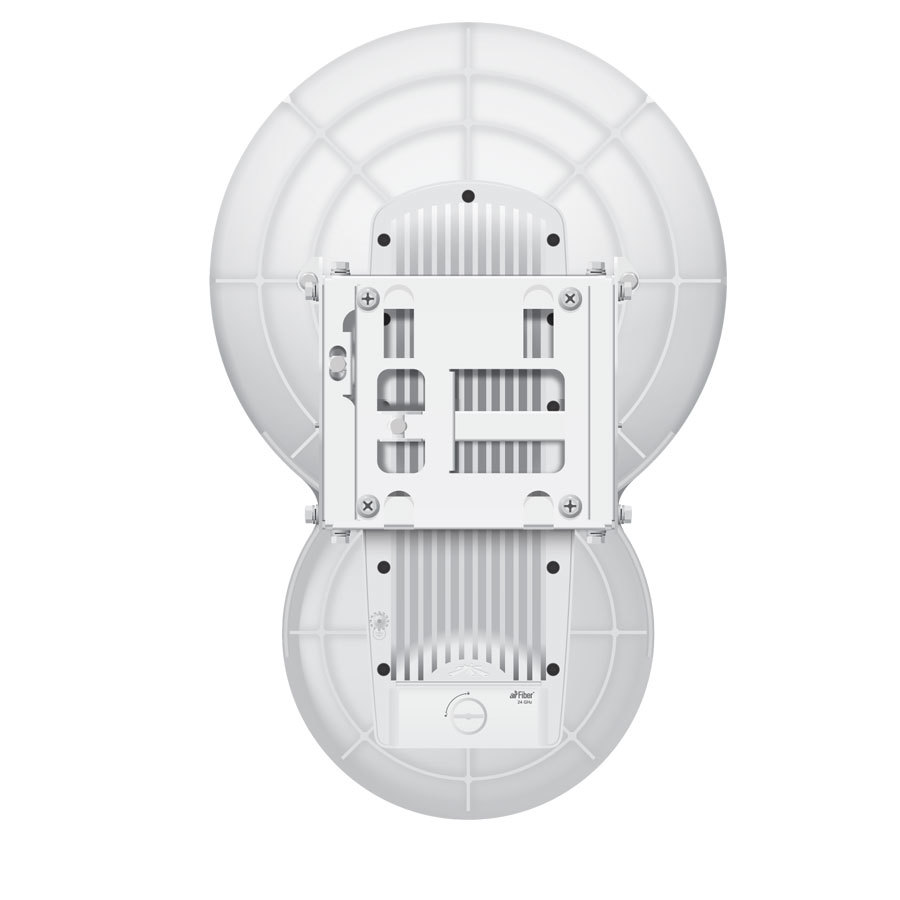

  • 1 x Pole Mount Bracket
  • 2 x Pole Clamp
  • 3 x Cable Ties
  • 4 x Carriage Bolts (M10x150)
  • 4 x Flat Washers (M10,)
  • 4 x Split Lock Washers (M10)
  • 4 x Hex Nuts (M10)
  • 1 x Gigabit PoE Adapter (50V, 1.2A)
  • 1 x Power Cord
  • Quick Start Guide

24 GHz Point-to-Point Gigabit Radio AF-24 - Specifications

airFiber AF-24
Dimensions
Radio
Box

649 x 426 x 303 mm (25.55 x 16.77 x 11.93")
725 x 520 x 410 mm (28.54 x 20.47 x 16.14")
Weight
Radio (Mount Included)
Box

10.5 kg (23.15 lb)
17 kg (37.48 lb)
Max. Power Consumption 50W
Power Supply 50V, 1.2A PoE GigE Adapter (Included)
Power Method Passive Power over Ethernet
Supported Voltage Range +42 to +58VDC, -48VDC
Certifications CE, FCC, IC
Wind Loading 480 N @ 200 km/hr (108 lbf @ 125 mph)
Wind Survivability 200 km/hr (125 mph)

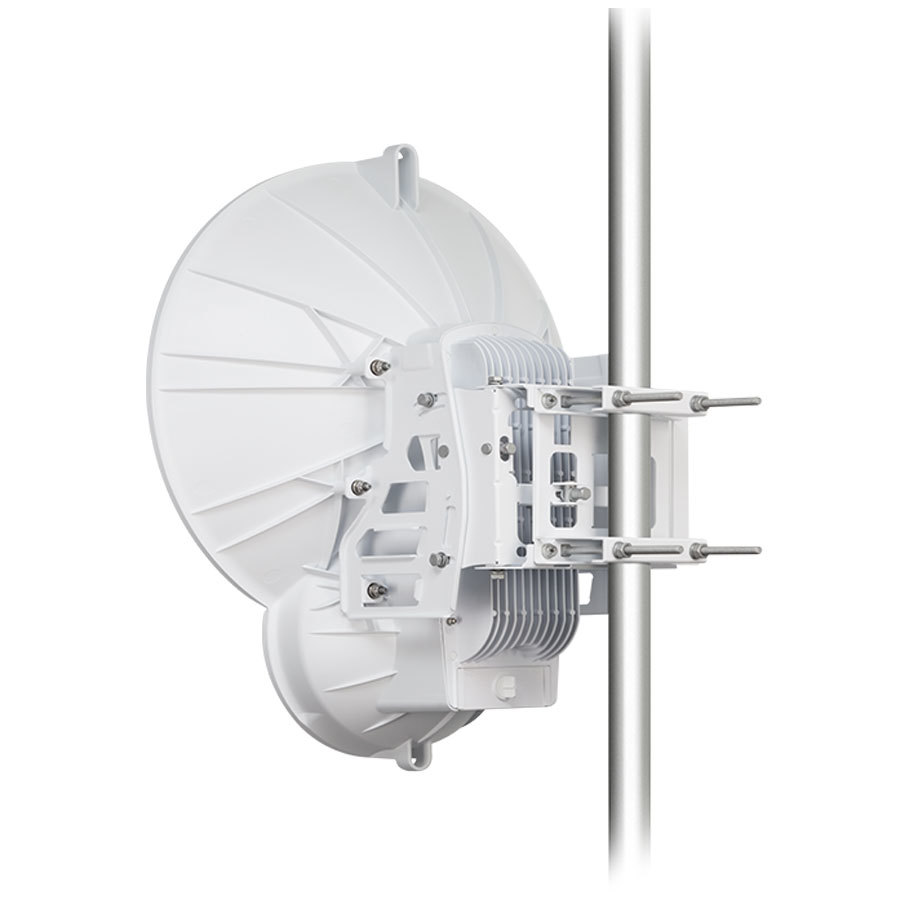

Mounting Pole Mount Kit (Included)
Operating Temperature -40 to 55° C (-40 to 131° F)
LEDs:
(8) Status LEDs:


Data Port Speed
Data Port Link/Activity
Configuration Port Speed
Configuration Port Link/Activity
GPS Synchronization
Modulation Mode
Master/Slave
RF Status
(1) Two-Digit LED Display Calibrated in dBm
Interface
Data Port (1) 10/100/1000 Ethernet Port
Configuration Port (1) 10/100 Ethernet Port
Auxiliary Port (1) RJ-12, Alignment Tone Port
System
Maximum Throughput 1.5+ Gbps
Maximum Range 13+ km
Packets per Second > 1 Million
Encryption 128-Bit AES
Uplink/Downlink Ratio 50% Fixed
Latency
Full Duplex Mode
Half Duplex Mode

< 200 µs at Full Throughput
< 2 ms at Full Throughput
MTU (Maximum Transmission Unit) Up to 9600

* Two 100 MHz channels are available:: 24.1 GHz (24.05-24.15 GHz) and 24.2 GHz (24.15-24.25 GHz)



Shipping Specifications

SKU AF-24
Model # AF-24
Brand Ubiquiti
Shipping Weight 17.0000kg
Shipping Width 0.410m
Shipping Height 0.050m
Shipping Length 0.730m
Shipping Cubic 0.014965000m3
Unit Of Measure ea
