IsoStation 5GHz AC 45° Horn Antenna 14dBi, Interchangeable Horn Antennas
NanoBeam 5AC Gen2 19dBi
In Stock: YES

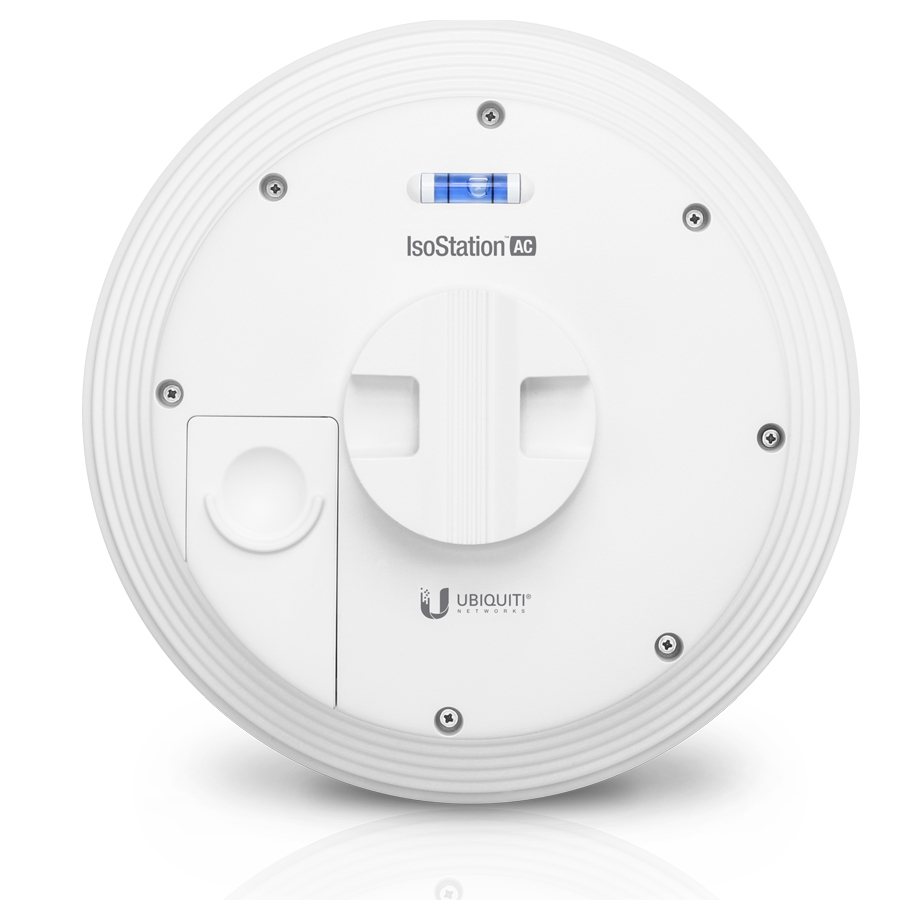

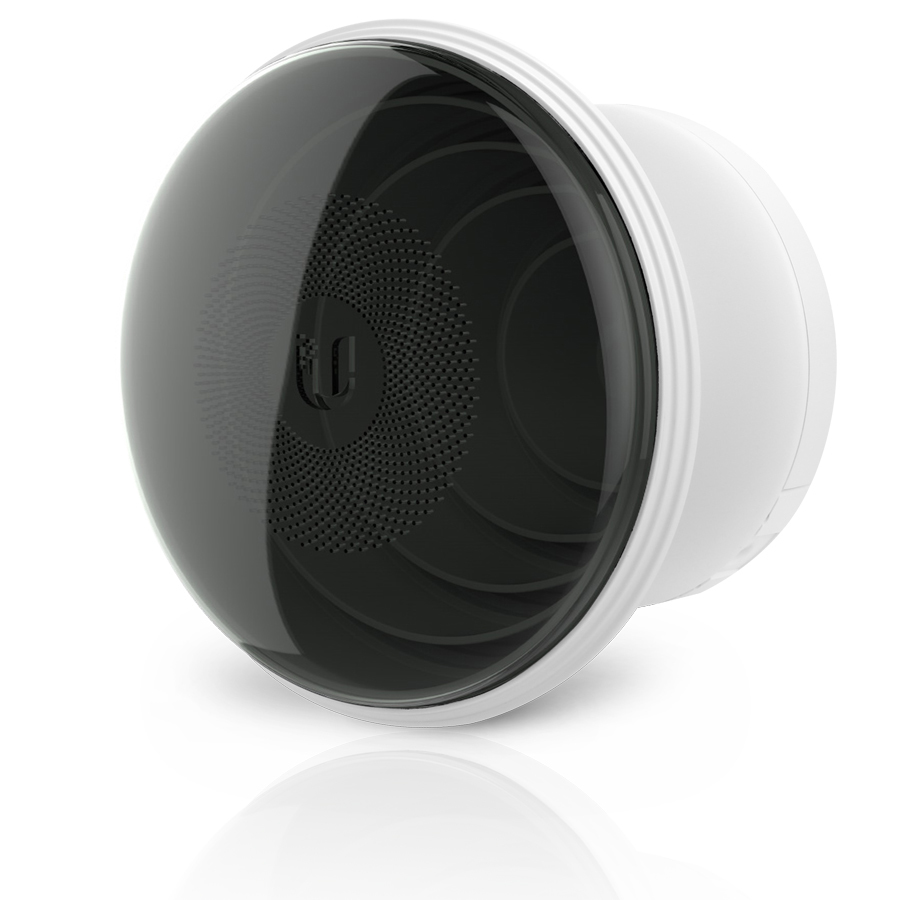

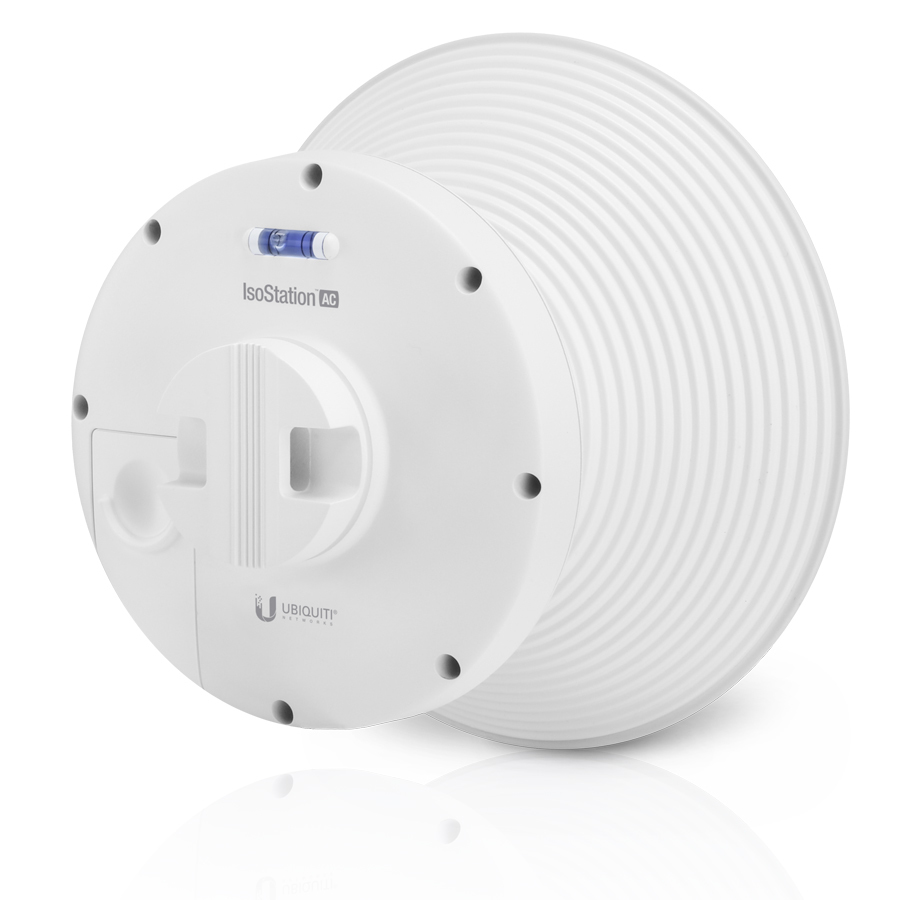

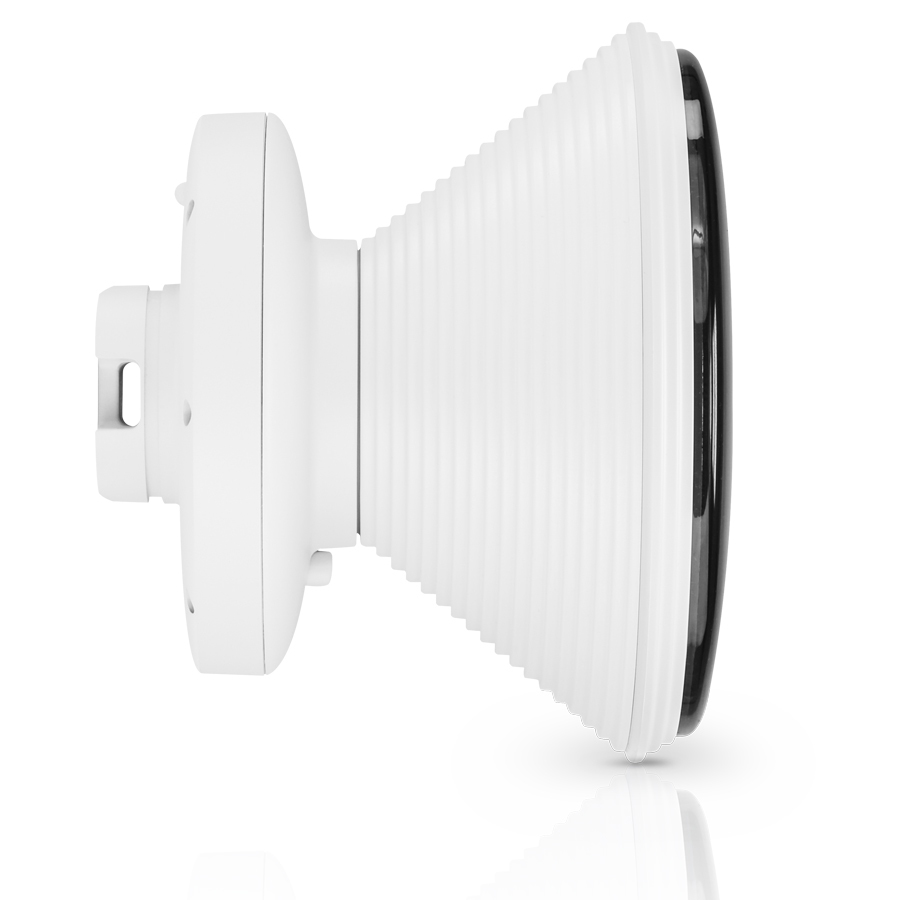

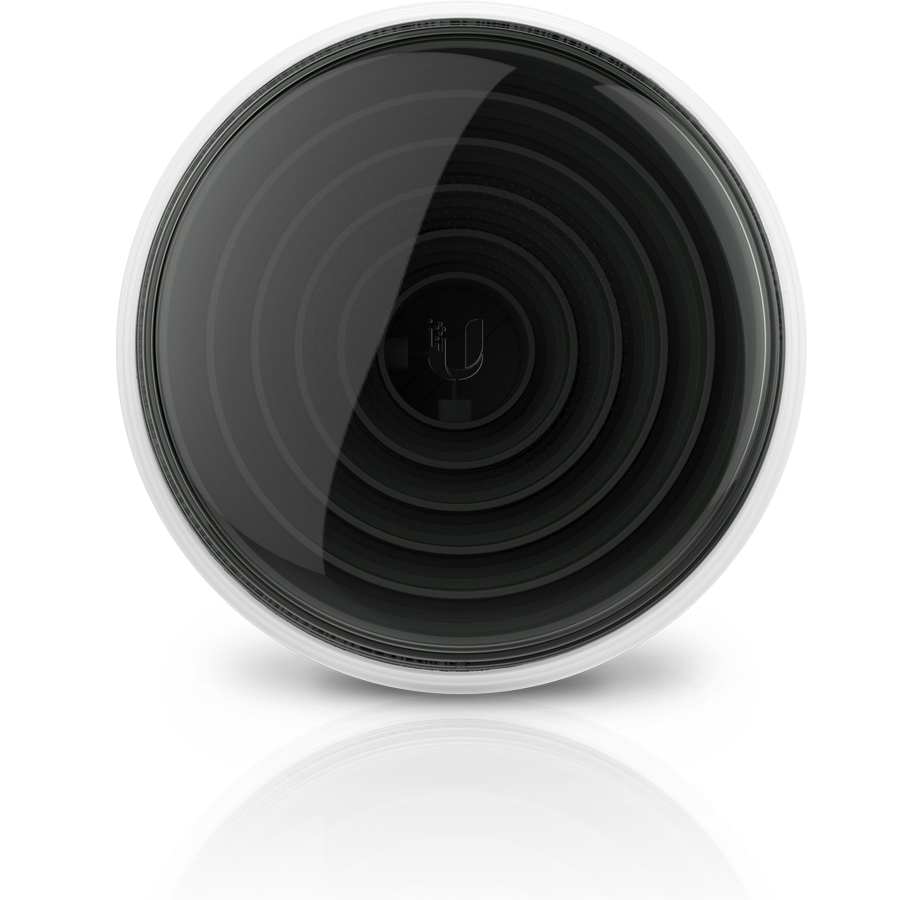

Shielded airMAX® CPE IsoStation 5 AC Interchangable Antenna 45° 14dBi
With a die-cast aluminum base and interchangeable antenna, the IsoStation™ is available in two models and brings increased performance to your network using technology that isolates beam communications between your devices. The IsoStation AC delivers throughput speeds of up to 450+ Mbps.
The IsoStationTM can use a variety of horn antenna sectors designed for increased co-location performance without sacrificing gain. Its unique beam performance and superb co-location characteristics allow for a higher density of sectors than traditional sector technology.
Enhanced Co-Location -
Asymmetrical horn antenna options (60° and 90°) have naturally attenuated side lobes and extremely low back radiation, and they offer industry-leading front-to-back ratio and low side lobe radiation. Symmetrical horn antennas (30° and 45°, the default) are ideal for cluster sector installations with high co-location requirements.
Improved Noise Immunity -
IsoStationTM blocks or spatially filters out noise, so noise immunity is improved. This feature is especially important in an area crowded with other RF signals of the same or similar frequency.
Management Wi-Fi Radio -
The IsoStationTM AC integrates a separate Wi-Fi radio for fast and easy setup using your mobile device.
The IsoStation 5AC comes with a 45° isolation antenna. We offer three optional antennas with precise radiation angles for specific beam shaping, so you can customize the IsoStation 5AC for your specific installation requirements:
All horn antennas are optimized for co-location. The asymmetrical versions (60° and 90°) narrow the elevation pattern to increase gain where users need it.
IsoStation 5GHz AC
- 1 x IsoStation 5Ghz AC
- 1 x 45° Isolation Antenna
- 1 x Metal Strap
- 1 x Gigabit PoE (24V, 0.5A) with Mounting Bracket
- 1 x Power Cord
- Quick Start Guide
IsoStation 5 AC- Specifications
|Dimensions||With Horn: 174 x 174 x 150 mm (6.85 x 6.85 x 5.91")
Without Horn 131 x 131 x 65 mm (5.16 x 5.16 x 2.56")
|Weight||With Horn: 725.7 g (1.60 lb)
408.2 g (0.90 lb)
|Beamwidth||45° (Default Horn)|
|Networking Interface||(1) 10/100/1000 Ethernet Port|
|Max. Power Consumption||8.5W|
|Power Supply||24V, 0.5A Gigabit PoE Adapter (Included)|
|Power Method||Passive PoE (Pairs 4, 5+; 7, 8 Return)|
|Supported Voltage Range||20 to 26VDC|
|Wind Loading||36N @ 200 km/h (8.09lbf @ 125 mph)|
|Wind Survivability||200 km/h (125 mph)|
|Certifications||CE, FCC, IC|
|Mounting||Pole-Mount (Kit Included)|
|Operating Temperature||-40 to 70 C (-40 to 158 F)|
|Operating Humidity||5 to 95% Noncondensing|
|Operating Frequency||Worldwide: 5150-5875 MHz
USA: U-NII-1: 5150-5250 MHz, U-NII-3: 5725-5850 MHz
|Unit Of Measure||ea|
