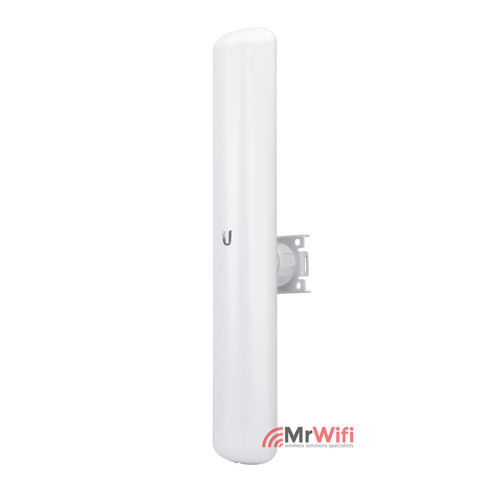

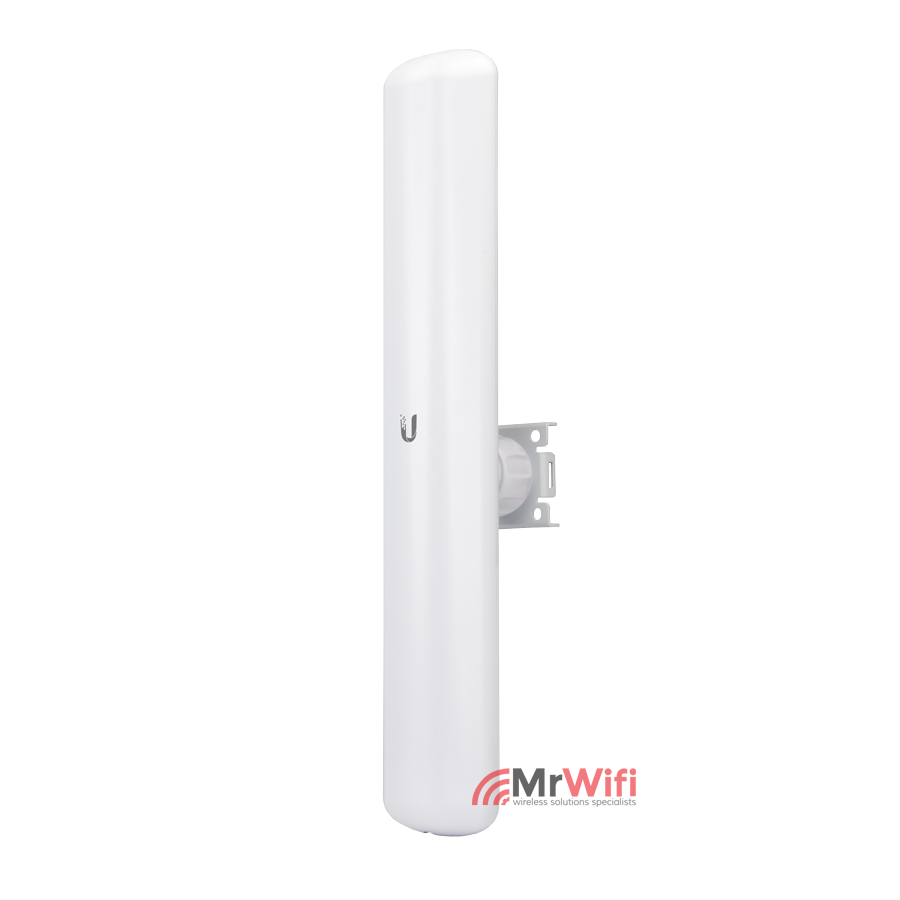

Lite AP AC
LAP-120
2x2 MIMO airMAX® ac Sector AP
The LiteAP™ ac is an ultra-lightweight airMAX ac Access Point with incredible performance and disruptive pricing. It was designed to be an affordable cost/performance solution for long-distance, wireless broadband bridging. It operates in the worldwide, license-free 5 GHz frequency range with high-performance speeds.

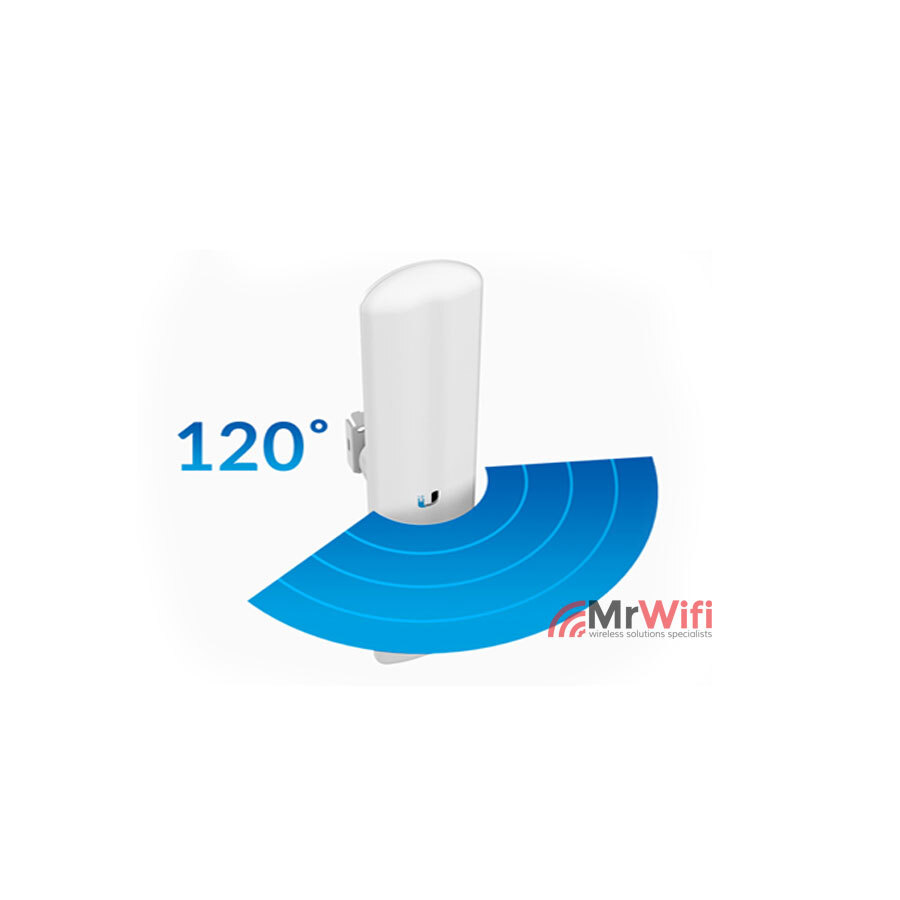

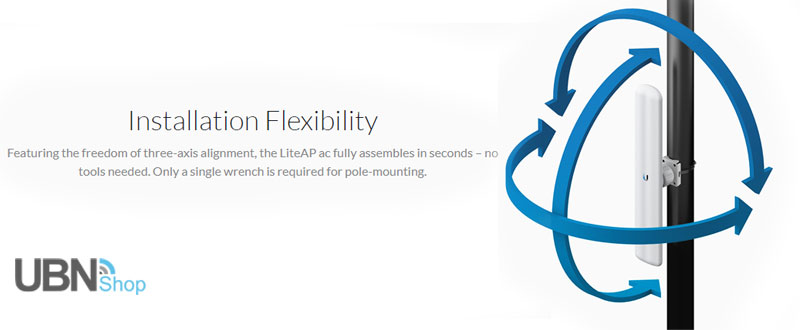

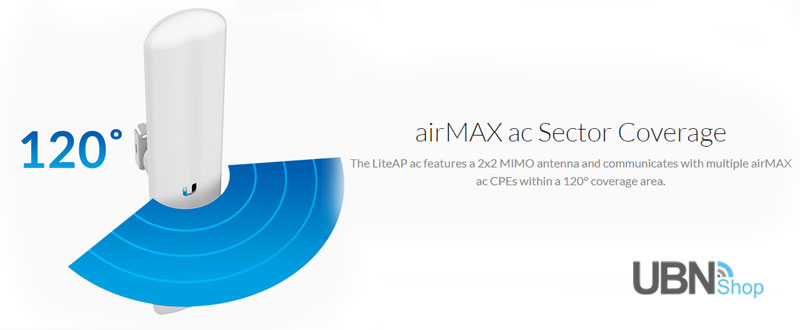

The LiteAP ac features a 2x2 MIMO antenna and communicates with multiple airMAX ac CPEs within a 120° coverage area. Featuring the freedom of three-axis alignment, the LiteAP ac fully assembles in seconds – no tools needed. Only a single wrench is required for pole-mounting.
The LiteAP™ ac is the latest evolution of a lightweight and compact, outdoor wireless broadband product from Ubiquiti Networks. It was designed to be an affordable cost/performance solution for long-distance, wireless broadband bridging. It operates in the worldwide, license-free 5 GHz frequency range with high-performance speeds. The LiteAP ac combines proprietary hardware and software technologies to deliver its breakthrough combination of throughput and range with cost-effective value.
Lite AP AC 16dBi 120° - Documents
Datatsheet LiteAP AC 16 120°Lite AP AC 16dBi 120°
Package Includes
- 1 x LiteAP
- 1 x Ball Joint Mount
- 1 x Metal Strap
- 1 x Gigabit PoE (24V, 0.5A) with Mounting Bracket
- 1 x Power Cord
- Quick Start Guide
Lite AP AC 16dBi 120° - Specifications
| LAP-120 | |
|---|---|
| Dimensions (NO MOUNT) |

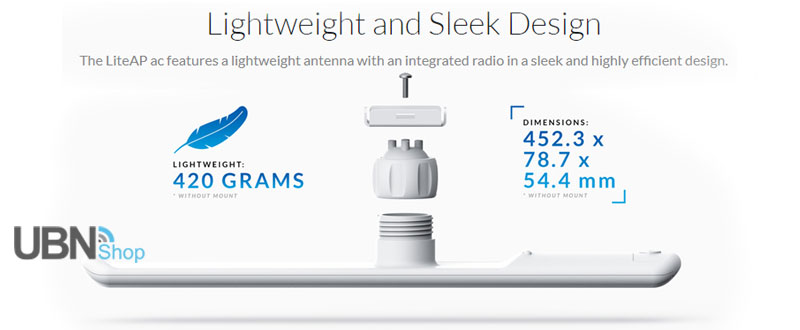

452.3 x 78.7 x 54.4 mm (17.81 x 3.10 x 2.14") |
| Weight (NO MOUNT) | 420 g (14.82 oz) |
| Mounting | Pole-Mount (Kit Included) |
| Networking Interface | (1) 10/100/1000 Ethernet Port |
| Memory | 64 MB |
| Max. Power Consumption | 7W |
| Max. TX Power | 25 dBm |
| Antenna Gain | 16 dBi |
| Operating Frequency | Worldwide: 5150-5875 MHz USA: 5150 - 5850 MHz |
| Power Supply | 24V, 0.5A Gigabit PoE Adapter (Included)c |
| Power Method | Passive PoE (Pairs 4, 5+; 7, 8 Return) |
| Processor | Atheros MIPS 74Kc, 533 MHz |
| Operating Temperature | -40 to 70° C (-40 to 158° F) |
| Operating Humidity | 5 to 95% Noncondensing |
| Shock and Vibration | ETSI300-019-1.4 |
| ETSI Specification | EN 302 326 DN2 |
| ESD/EMP Protection | ± 24 KV Contact / Air |
| Wireless Approvals | FCC, IC, CE |
Shipping Specifications
| SKU | LAP-120 |
| Model # | LAP-120 |
| Barcode # | 8.18E+11 |
| Brand | Ubiquiti |
| Shipping Weight | 0.7600kg |
| Shipping Width | 0.080m |
| Shipping Height | 0.105m |
| Shipping Length | 0.480m |
| Shipping Cubic | 0.004032000m3 |
| Unit Of Measure | ea |
