Mikrotik Dual Band Ceiling/Wall Mount AP in Weatherproof Enclosure

RBwAPG-5HacD2HnD

$170.62
Sold Out

MikroTik Dual Band Ceiling/Wall Mount AP in Weatherproof Enclosure

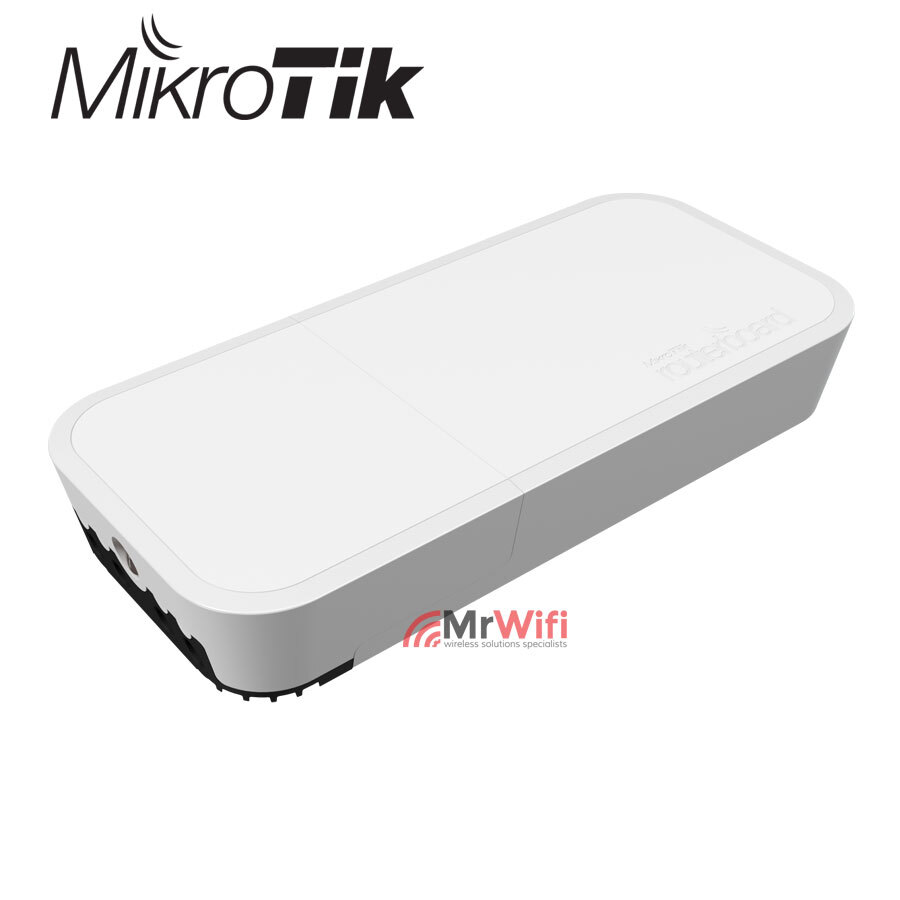

wAP ac – a small dual-band weatherproof wireless access point for mounting on a pole, wall, or the ceiling. The new revision features 2x Gigabit Ethernet ports, enhanced wireless antenna performance, more RAM, and a powerful quad-core CPU!

The wAP ac is a small weatherproof wireless access point for your mobile devices, perfect for installation outside your house, in the garden, on your porch, or anywhere else where you need a capable wireless connection. The new revision features 2x Gigabit Ethernet ports, enhanced wireless antenna performance, more RAM, and a powerful quad-core CPU!

Strong dual-chain dual-band 2.4/5 GHz wireless for concurrent coverage will solve most interference issues in a crowded environment. This is a must-have these days! You can use the 2.4 GHz channel for older devices and the 5 GHz channel for everything else since this frequency is less cluttered.

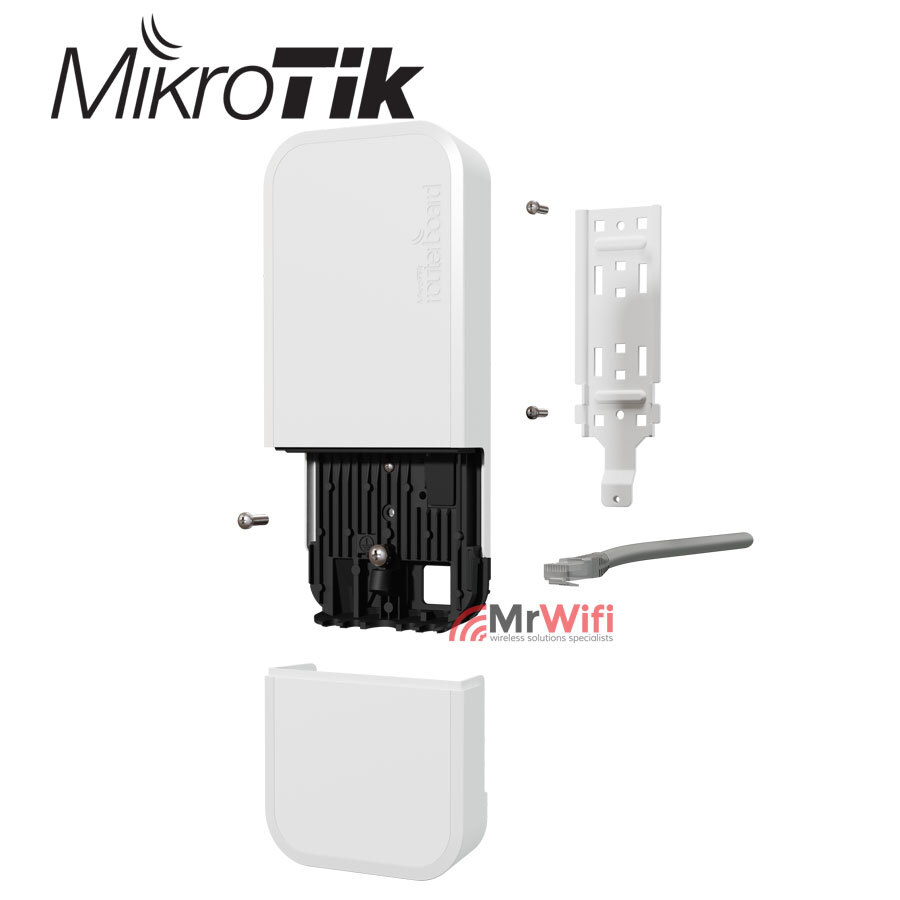

The wAP ac is weatherproof and can be fixed to any external wall from the inside of the case – for extra security and less visible attachments. The bottom part can also be secured with a special anti-vandal screw, which can only be opened by the owner.

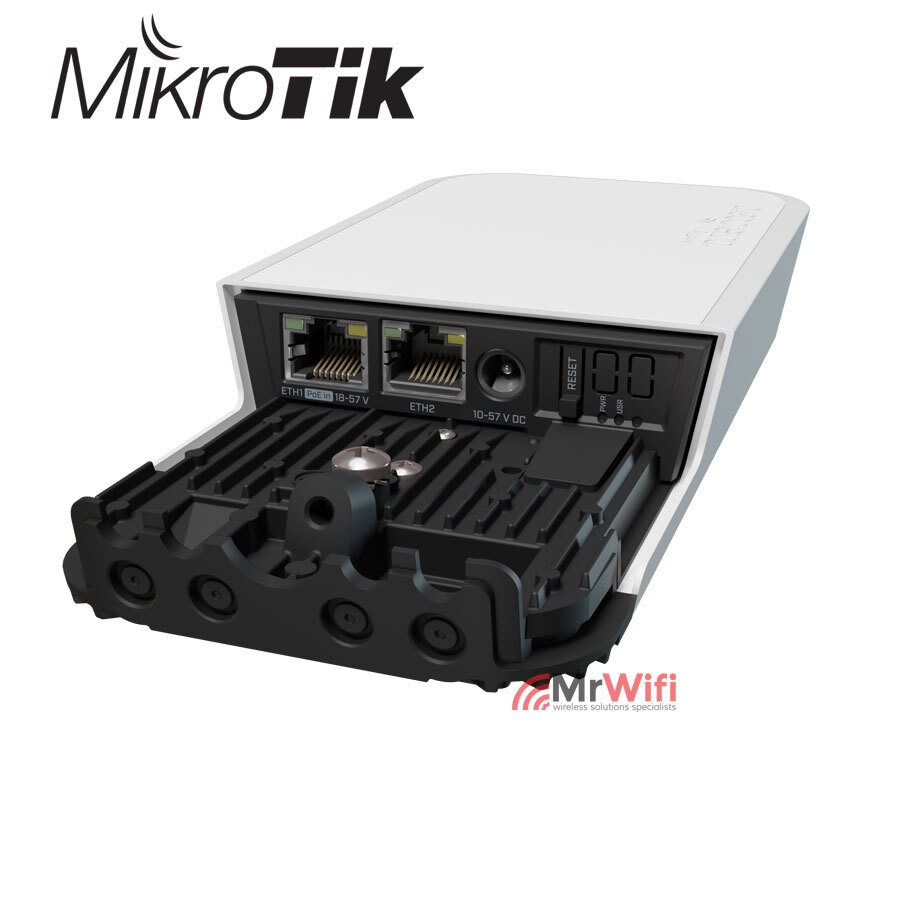

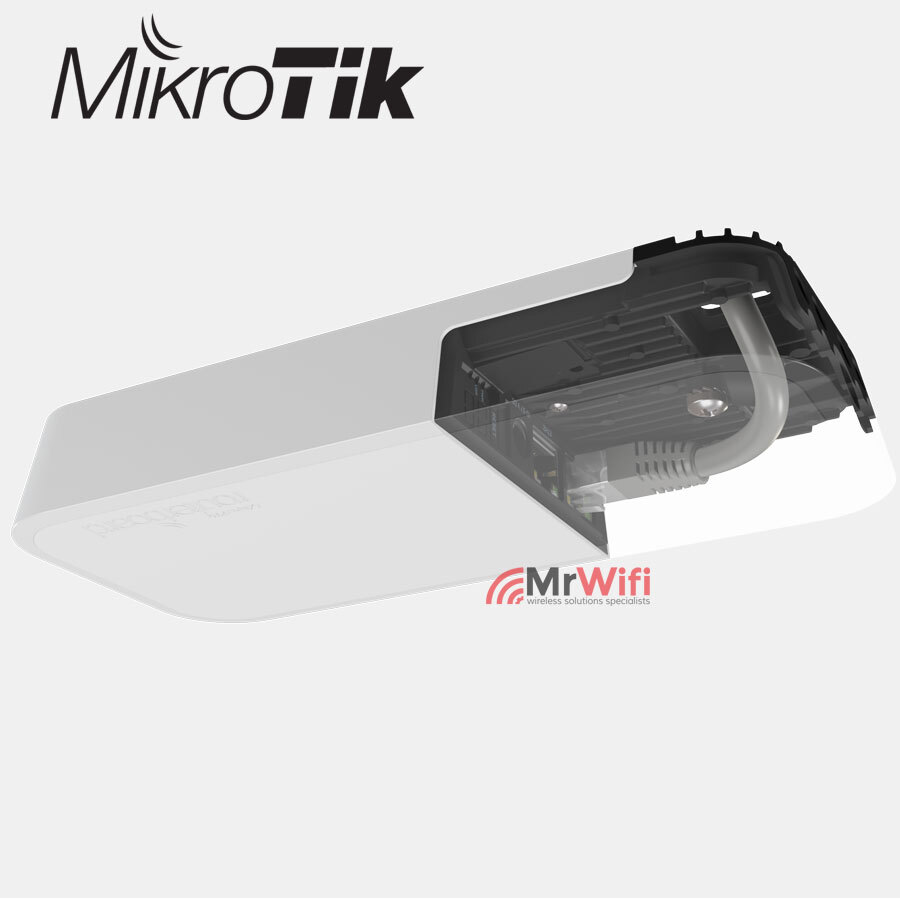

There is an opening in the back of the case, allowing you to run the Ethernet cable directly behind the unit and through the wall. This way the wAP ac attracts less attention and blends into any environment.It looks unobtrusive and sleek, available in two colors - black (RBwAPG-5HacD2HnD-BE) and white (RBwAPG-5HacD2HnD).



The device has an operating system preinstalled and licensed. No separate purchase is necessary and the product is ready to use. The device includes free software updates for the life of the product or a minimum of 5 years starting from date of purchase..



(RBwAPG-5HacD2HnD)

Dual Band Ceiling/Wall Mount AP in Weatherproof Enclosure



Pack Includes:

  • 1 x Dual Band Ceiling/Wall Mount AP in Weatherproof Enclosure
  • 1 x Gigabit PoE injector
  • 1 x K-52 fastening set

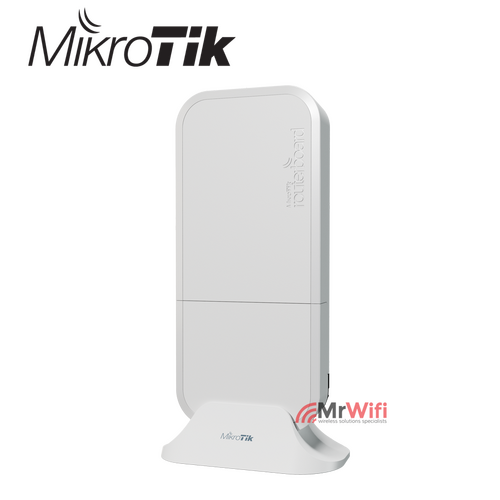

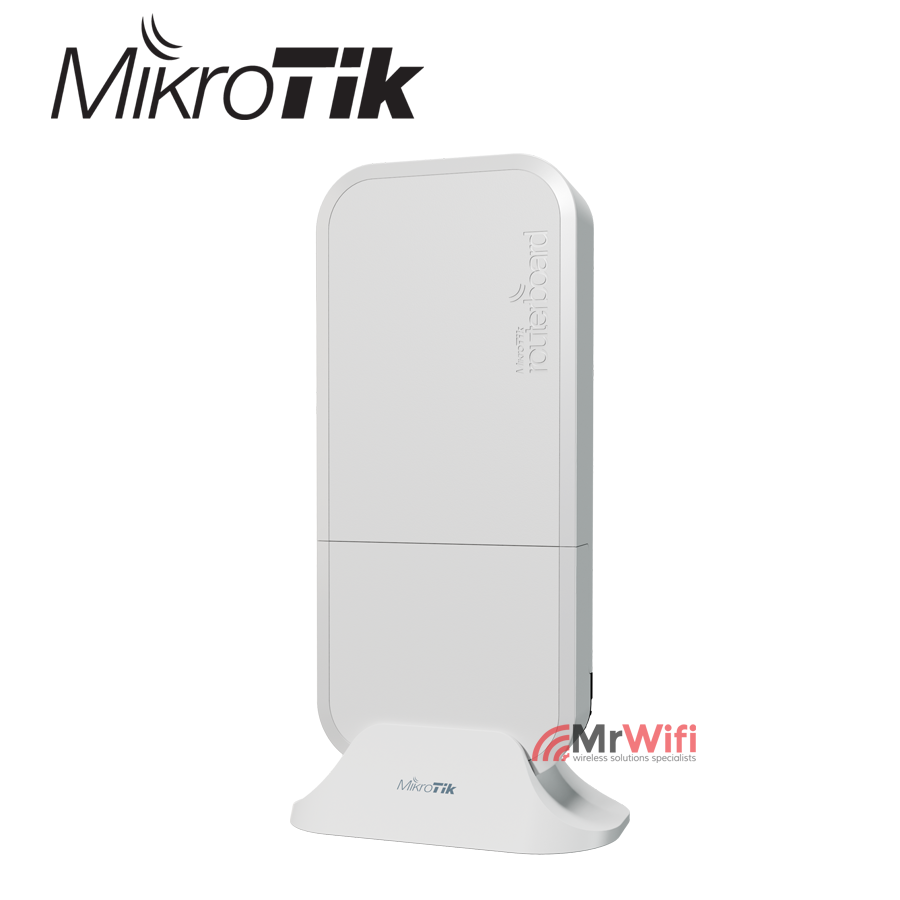

  • 1 x wAP desktop stand
  • 1 x wAP ceiling mount bracket
  • 1 x wAP mount
  • 1 x Metal ring
  • 1 x 24V 0.8A power adapter

Dual Band Ceiling/Wall Mount AP in Weatherproof Enclosure - Specifications

Specifications

Details
Product code RBwAPG-5HacD2HnD
Architecture ARM 32bit
CPU IPQ-4018
CPU core count 4
CPU nominal frequency 488-896 (auto) MHz
Dimensions 185 x 85 x 30 mm
RouterOS license 4
Operating System RouterOS
Size of RAM 128 MB
Storage size 16 MB
Storage type FLASH
MTBF Approximately 100'000 hours at 25C
Tested ambient temperature -40°C to 70°C
IPsec hardware acceleration Yes


Wireless capabilities

Details
Wireless 2.4 GHz Max data rate 300 Mbit/s
Wireless 2.4 GHz number of chains 2
Wireless 2.4 GHz standards 802.11b/g/n
Antenna gain dBi for 2.4 GHz 2.5
Wireless 2.4 GHz chip model IPQ-4018
Wireless 2.4 GHz generation Wi-Fi 4
Wireless 5 GHz Max data rate 867 Mbit/s
Wireless 5 GHz number of chains 2
Wireless 5 GHz standards 802.11a/n/ac
Antenna gain dBi for 5 GHz 2.5
Wireless 5 GHz chip model IPQ-4018
Wireless 5 GHz generation Wi-Fi 5
WiFi speed AC1200


Ethernet

Details
10/100/1000 Ethernet ports 2


Powering

Details
Number of DC inputs 2 (PoE-IN, DC jack)
DC jack input Voltage 10-57 V
Max power consumption 10 W
Max power consumption without attachments 9 W
Cooling type Passive
PoE in 802.3af/at
PoE in input Voltage 18-57 V


Certification & Approvals

Details
Certification CE, FCC, IC, EAC, ROHS
IP IP54


Other

Details
PCB temperature monitor Yes
Voltage Monitor Yes


Wireless specifications

2.4 GHz Transmit (dBm) Receive Sensitivity
1MBit/s 25 -100
11MBit/s 25 -94
6MBit/s 25 -96
54MBit/s 19 -78
MCS0 25 -96
MCS7 18 -73

5 GHz Transmit (dBm) Receive Sensitivity
6MBit/s 24 -96
54MBit/s 20 -80
MCS0 24 -96
MCS7 19 -75
MCS9 17 -70

Shipping Specifications

SKU RBwAPG-5HacD2HnD
Model # RBwAPG-5HacD2HnD
Barcode # 4752224007711
Brand Mikrotik
Shipping Weight 0.4800kg
Shipping Width 0.076m
Shipping Height 0.030m
Shipping Length 0.175m
Shipping Cubic 0.000399000m3
Unit Of Measure ea
