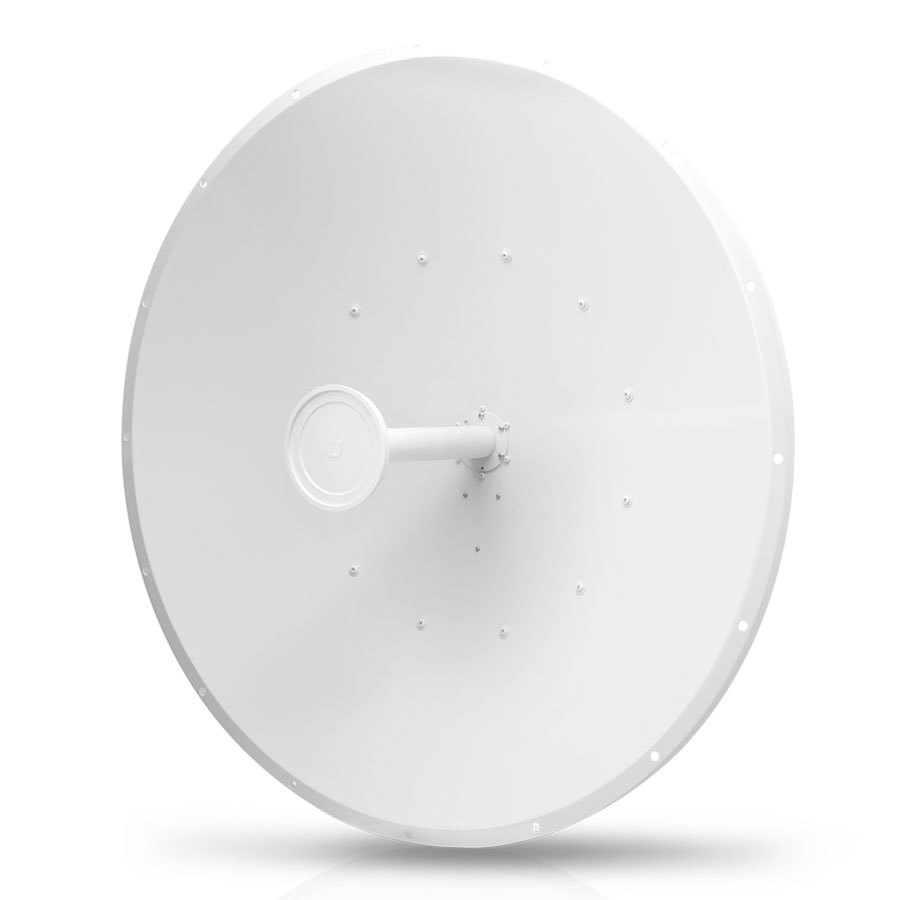

5GHz 34dBi Slant 45 Antenna for airFiber®
The airFiber® X Antennas feature significant advances in noise isolation and beam performance to complement the airFiber X radios for carrier backhauls and Point-to-Point (PtP) bridging.
Pair an airFiber® X antenna with an airFiber X radio to create the endpoint of a high-performance, Point-to-Point (PtP) bridge or network backhaul (airFiber X radio sold separately).
The airFiber X antenna delivers 2x2, dual-polarity performance. On the right is one example of how the airFiber X antenna with an airFiber X radio can be deployed as endpoints in a backhaul link to deliver bandwidth from a WISP network out to a neighborhood tower. From there, an airMAX® Sector antenna with a Rocket® radio delivers bandwidth to the WISP’s customers.
Carrier Class Construction
Incorporating a dish reflector design for excellent beam directivity, the airFiber X antennas feature robust mechanical design using industrial-strength hardware for outdoor application use.
Plug & Play Integration
airFiber X antennas and airFiber X radios have been designed to seamlessly work together. Every airFiber X antenna has a built-in airFiber X radio mount, so installation requires no special tools. Snap the airFiber X radio securely into place and mount the antenna; you then have the optimal combination of airFiber X antenna and airFiber X radio for your PtP application.
Housed in a compact form factor (378-mm diameter size), the AF-5G23-S45 offers 23 dBi of gain and features the following advantages:
- Low sidelobes reduce interference from other transmitters in the area.
- High isolation enhances performance for co-location in tower-mounted installations.
- The low-profile design with integrated radome reduces wind-loading.
airFiber X Antenna 5GHz, 34dBi Slant 45
- 1 x Dish Antenna
- 1 x Antenna Feed
- 1 x Mounting Bracket
- 1 x Protective Shroud
- 2 x Pole Clamps
- 2 x Stabilizer Brackets
- 2 x RF Cables
- 1 x Elevation Rod
- 4 x M12x180 Carriage Bolts
- 2 x M10x100 Bolts
- 3 x M10x25 Carriage Bolts
- 6 x M4 Bolts
- Quick Start Guide
airFiber X Antenna 5GHz, 34dBi Slant 45 - Specifications
|Dimensions||1050 x 1050 x 421 mm (41.34 x 41.34 x 16.57")|
|Weight||13.5 kg (29.76 lb) (Mount Included)|
|Frequency Range||5.1 - 5.8 GHz|
|F/B Ratio||30 dB|
|Wind Loading||1,779 N @ 200 km/h (400 lb @ 125 mph)|
|Wind Survivability||200 km/h (125 mph)|
|ETSI Specification||EN 302 326 DN2|
|Mounting||Universal Pole Mount, airFiber Radio Bracket, and Weatherproof RF Jumpers Included|
|Unit Of Measure||ea|
