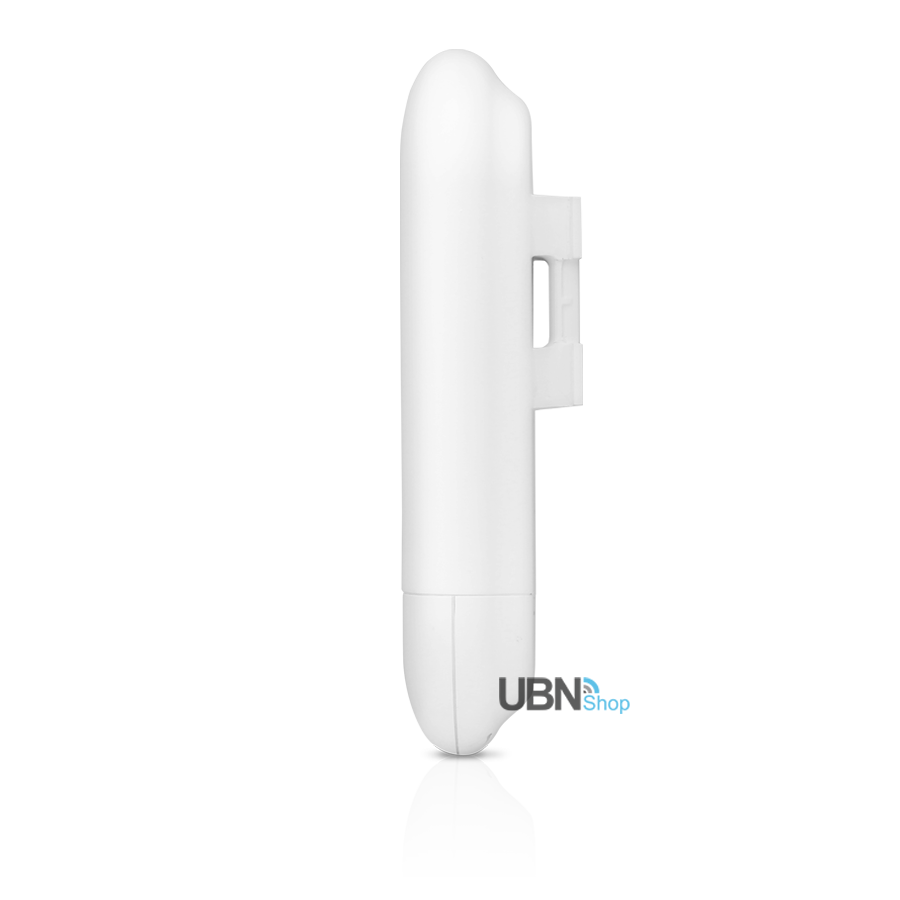

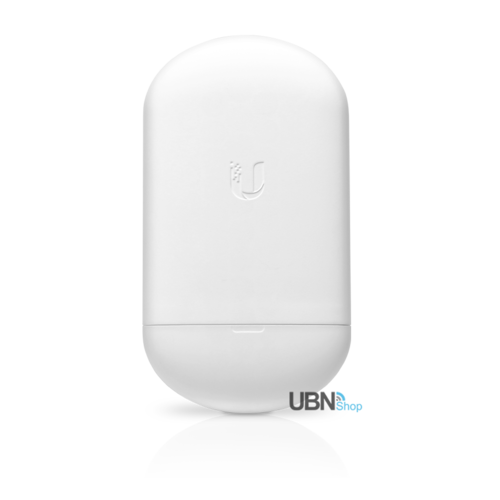

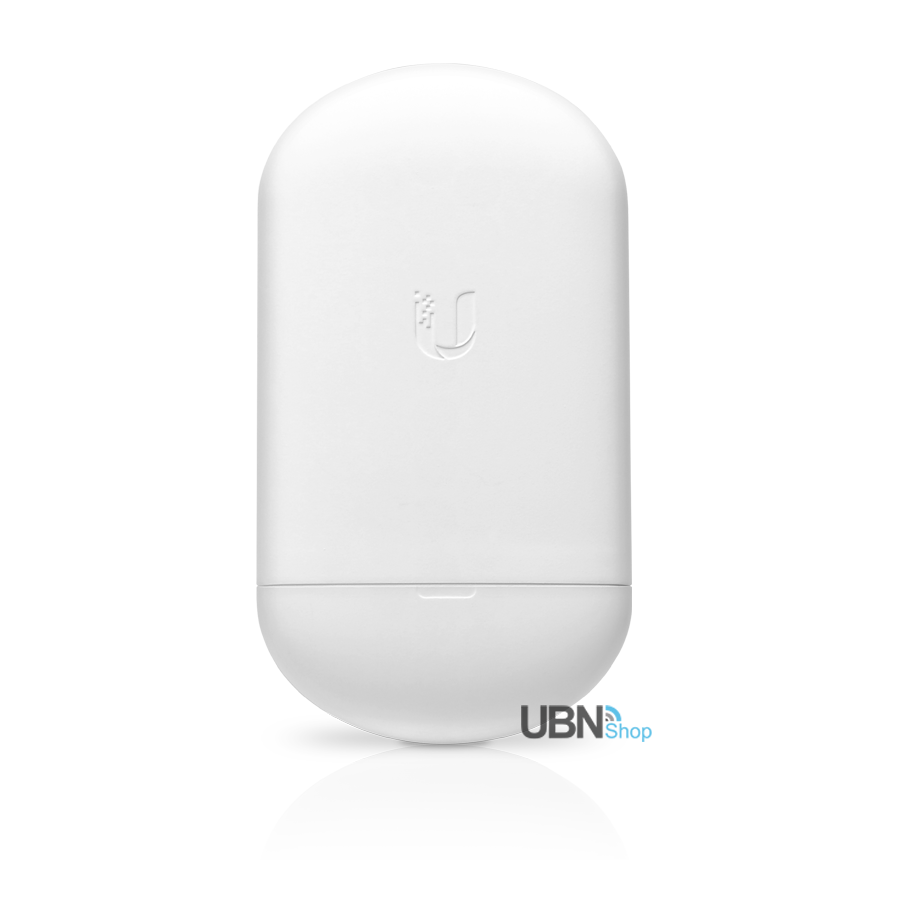

NanoStation 5 AC Loco
NS-5ACL
5 GHz airMAX® ac CPE
Featuring a panel antenna and dual-polarity performance, the NanoStation®M is ideal for Point-to-MultiPoint (PtMP) applications requiring high-performance CPE devices with a sleek form factor. Ubiquiti Networks set the bar for the world's first low-cost and efficient broadband Customer Premises Equipment (CPE) with the NanoStation® M. AC loco take the same concept to the future with sleek form factors, along with integrated airMAX (MIMO TDMA protocol) technology and dedicated Wi-Fi management.
The radio and antenna are combined to create a more efficient and compact CPE. The NanoStation AC and NanoStation AC loco get maximum gain out of the smallest footprint. The low cost, high performance, and small form factor of the NanoStation AC and NanoStation AC loco make them extremely versatile and economical to deploy.
*Does not include PoE Adapter. For compatible PoE Adapter Click Here
(NS-5ACL)

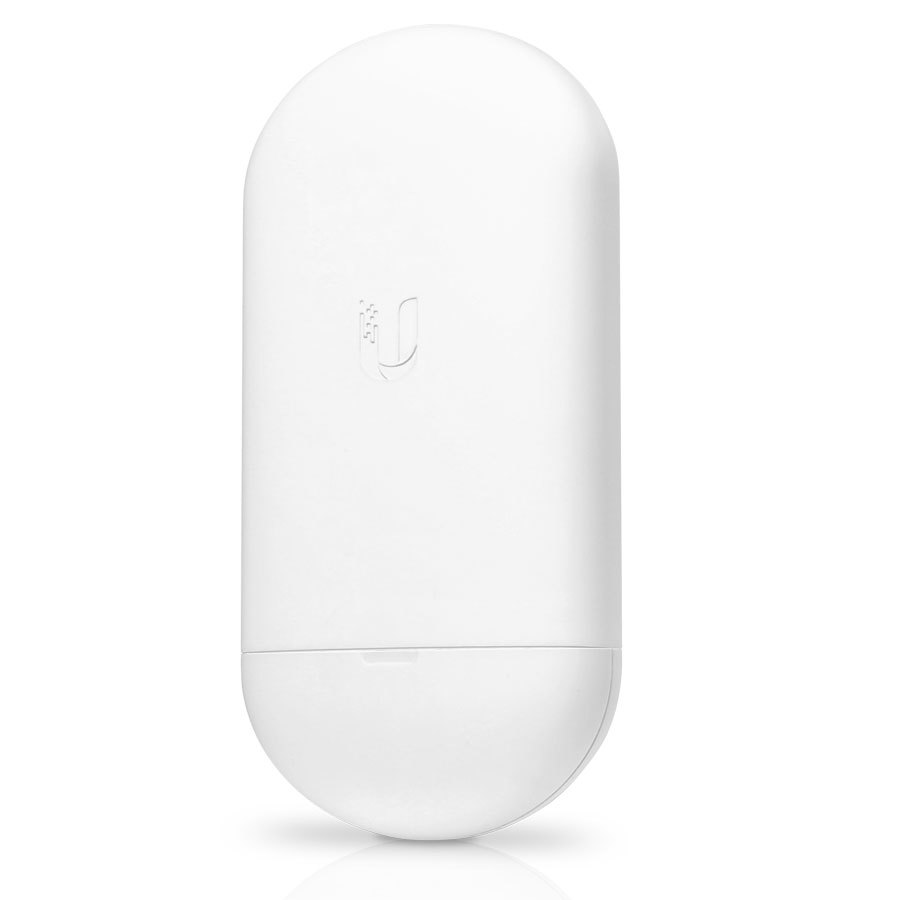

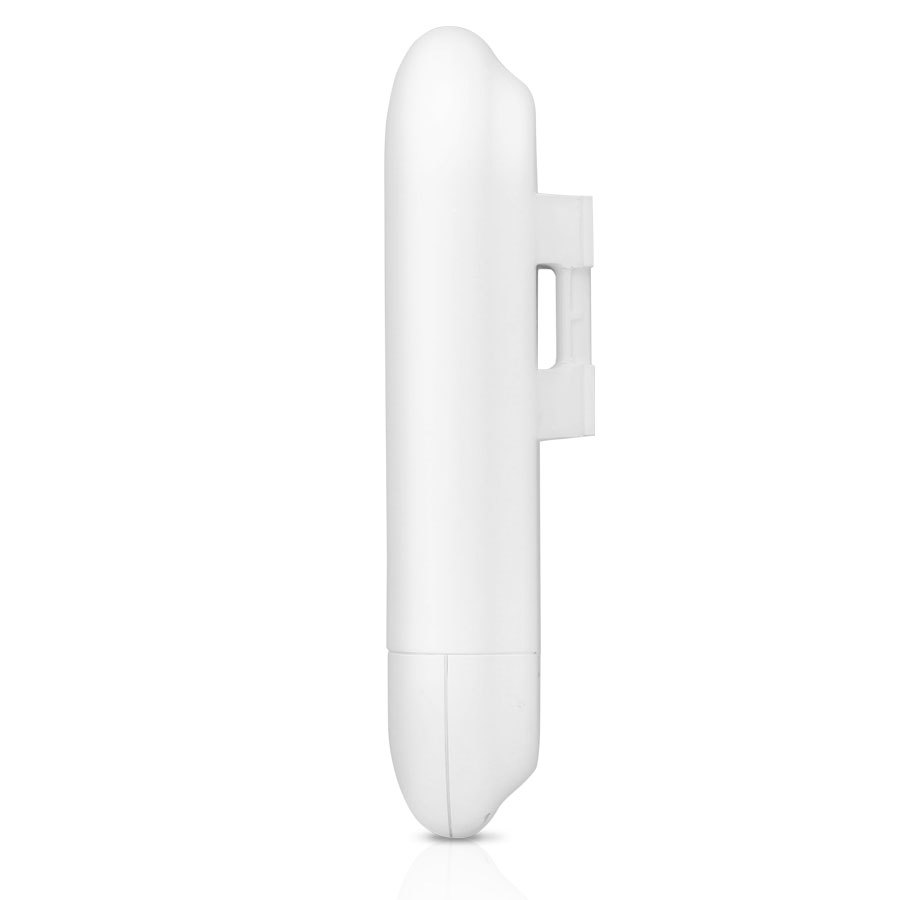

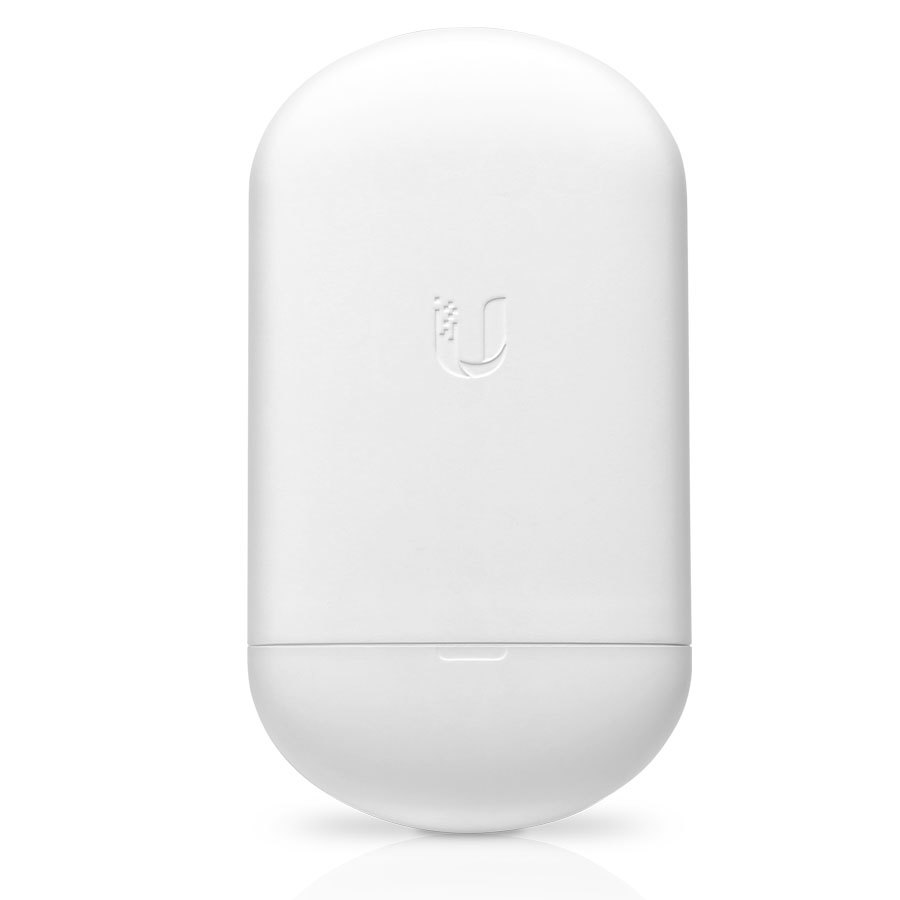

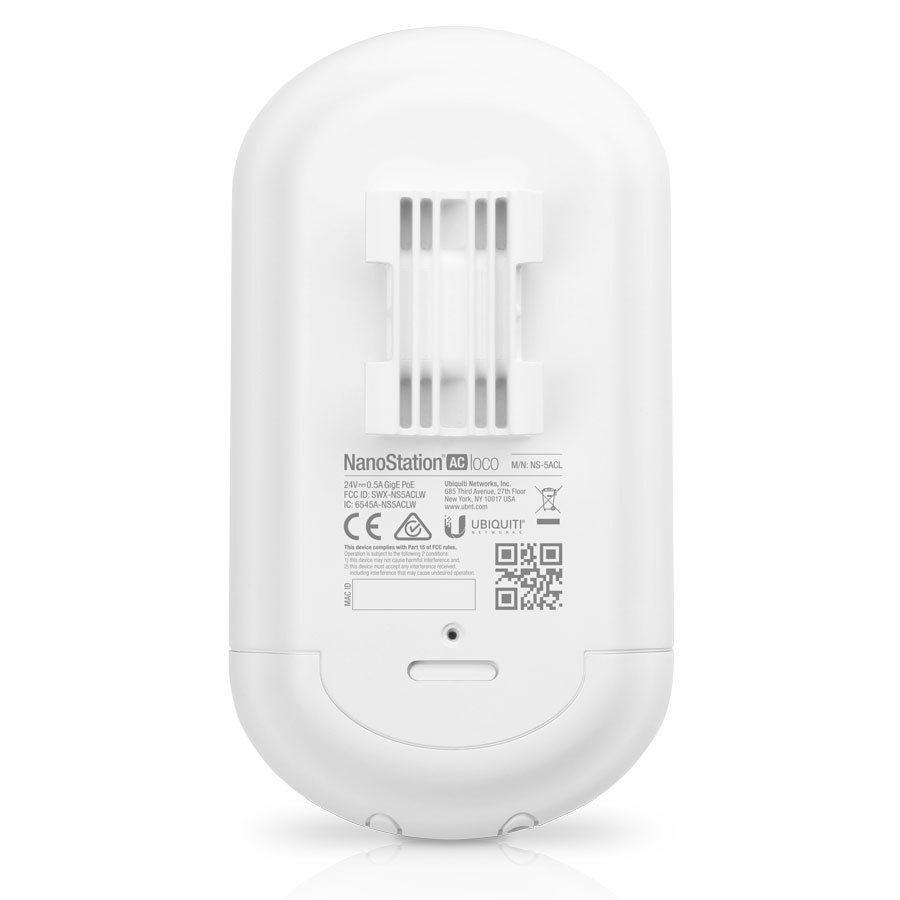

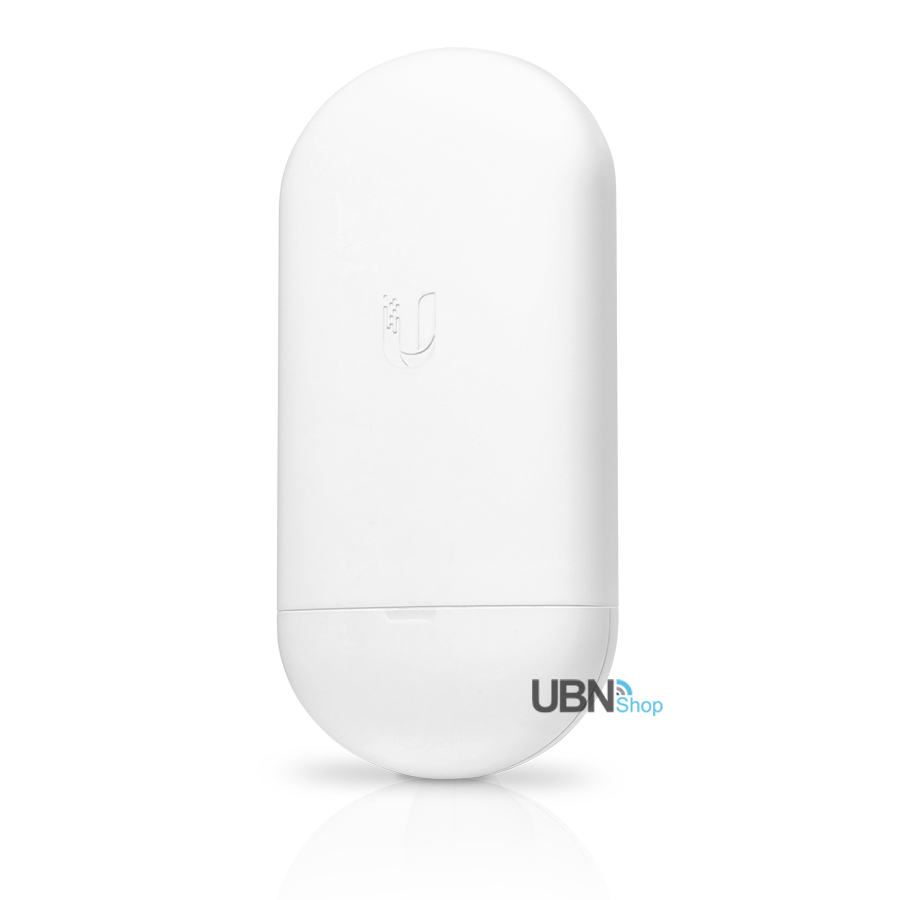

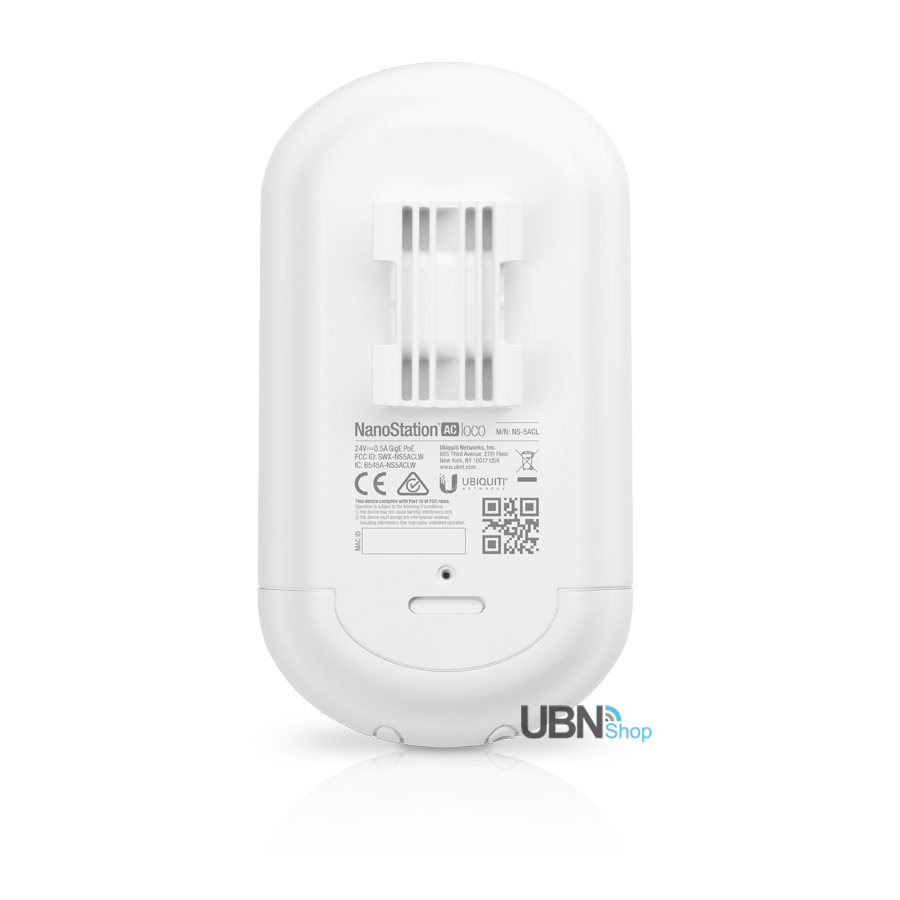

NanoStation AC Loco
Package Includes
- 1 x NanoStation AC Loco
- 1 x Zip Tie
- Quick Start Guide
NanoStation AC Loco - Specifications
| NANOSTATION NS-5ACL | |
|---|---|
| Dimensions | 179 x 77.5 x 59.1 mm (7.05 x 3.05 x 2.33") |
| Weight | 0.18 kg (6.35 oz) |
| Processor | MIPS 74K |
| Memory | 128 MB |
| Gain | 13 dBi |
| Channel Bandwidth | 10/20/30/40/50/60/80 MHz |

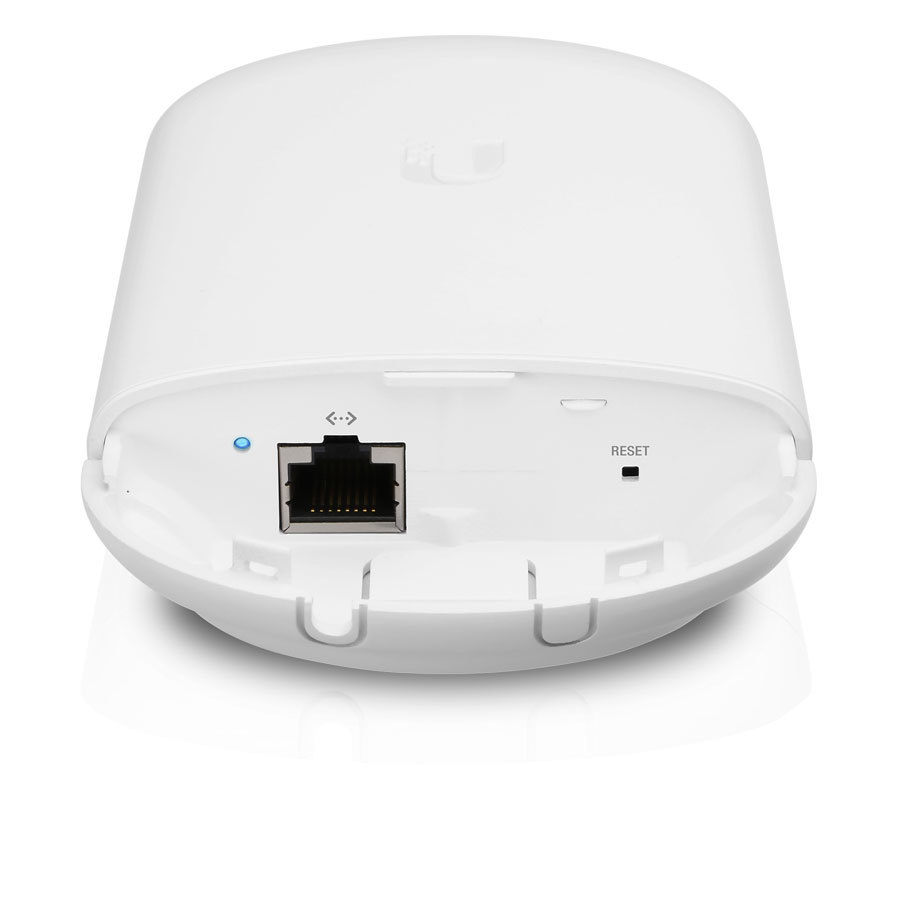

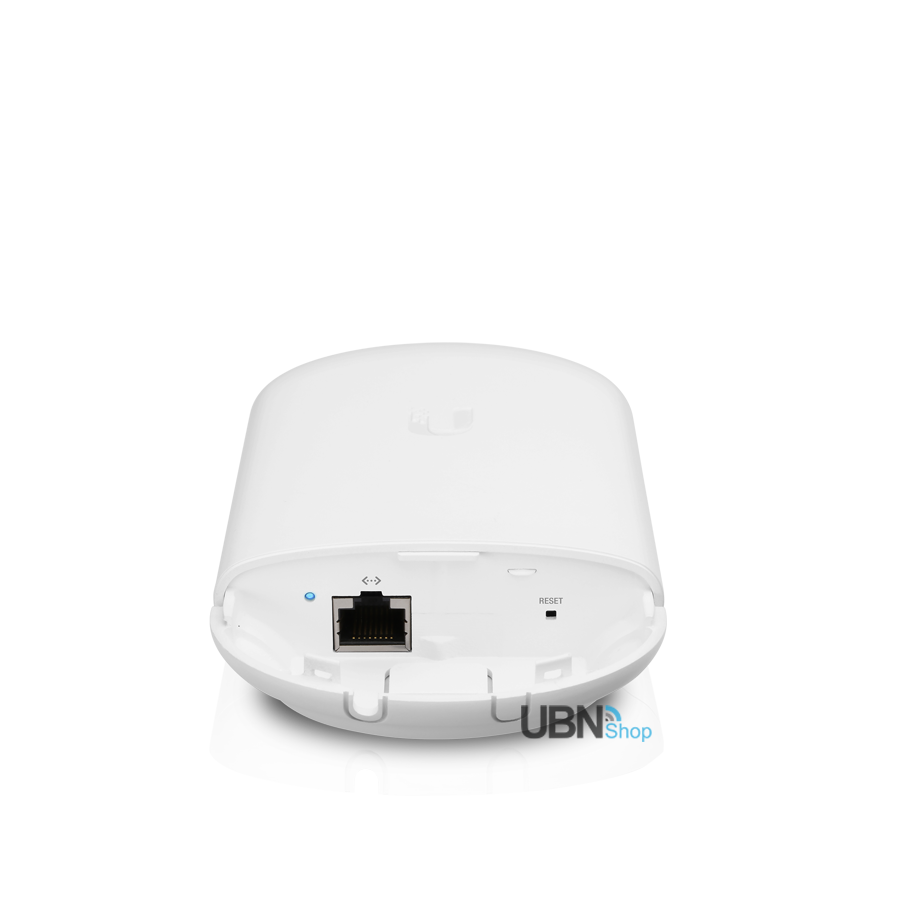

| Networking Interface | 10/100/1000 Mbps Ethernet Port |
| LEDs | Power, Ethernet, (4) Signal Strength |
| Power Method | Passive PoE (Pairs 4, 5+; 7, 8 Return) |
| Power Supply | 24V, 0.5A Gigabit PoE Supply (Not Included) |
| Max. Power Consumption | 8.5W |
| Supported Voltage Range | 24V ±10% |
| Operating Temperature | -40 to 70° C (-40 to 158° F) |
| Operating Humidity | 5 to 95% Noncondensing |
| Certifications | CE, FCC, IC |
Shipping Specifications
| SKU | NS-5ACL |
| Model # | NS-5ACL |
| Barcode # | 817882027250 |
| Brand | Ubiquiti |
| Shipping Weight | 0.2000kg |
| Shipping Width | 0.122m |
| Shipping Height | 0.096m |
| Shipping Length | 0.224m |
| Shipping Cubic | 0.002623000m3 |
| Unit Of Measure | ea |
NanoStation AC Loco - Documents
