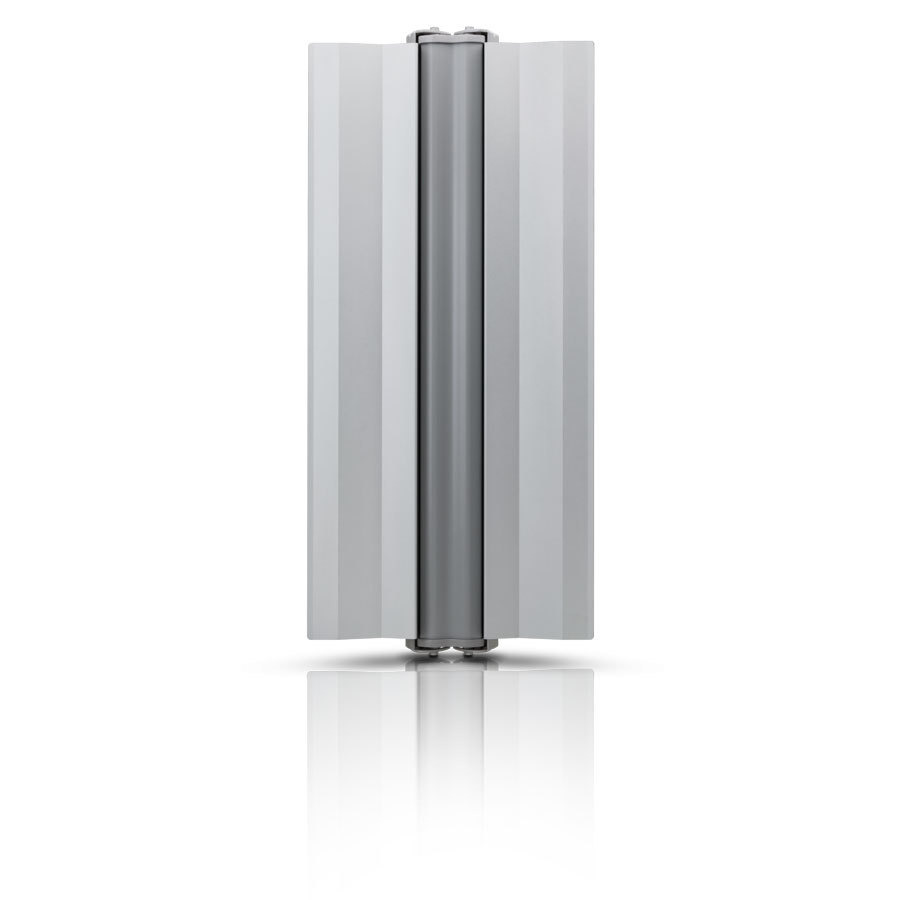

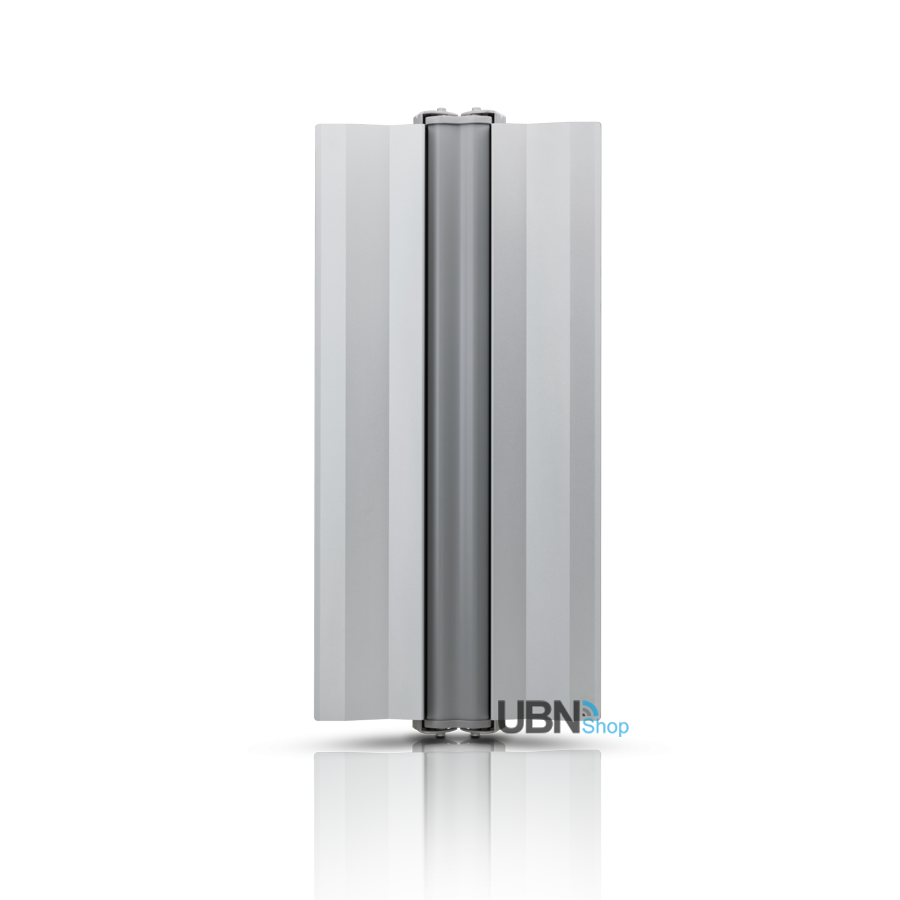

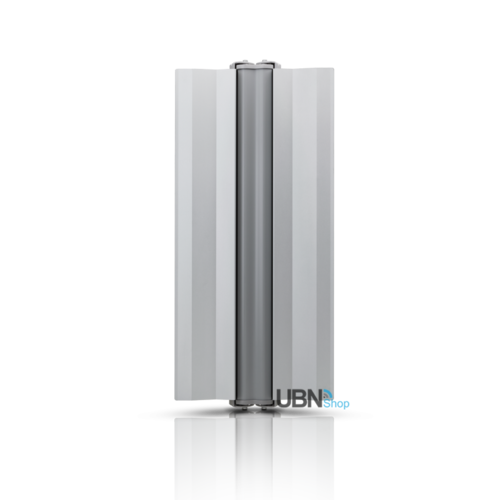

airMAX 2GHz 15 - 17dBi, 60° - 120° Titanium Sector Antenna

AM‑V2G-Ti

$420.75
In Stock

Installing the airMAX® Titanium Sector

Advanced RF Isolation Variable Beamwidth Antenna



Pair the airMAX® Sector Antenna with a Rocket™M BaseStation for sector coverage in Point-to-MultiPoint (PtMP) networks. Introducing the airMAX Titanium Sector, which continues the evolution of Ubiquiti’s best-in-class sector antennas. Advanced RF isolation and variable beamwidth configuration put the Titanium Sector at the forefront of sector antenna technology. the airMAX® Sector Antennas provide superior gain and beam performance for high-capacity, multipoint networks. The versatile airMAX® Titanium Sector models feature advanced RF isolation and adjustable beamwidth options: 60°, 90° or 120°.

Reduced Co-Location Interference

Drawing on Ubiquiti’s depth of electrical and mechanical engineering expertise, Ubiquiti has developed the airMAX Titanium Sector to be highly resistant to noise interference in co‑location deployments.

Adjustable Beamwidth Configuration

Having adjustable beamwidth options enhances scalability and streamlines inventory. The airMAX Titanium Sector may be custom configured for any deployment requiring a 60˚, 90˚, or 120˚ sector. Antenna gain changes according to the configured beamwidth.

Model 60° 90° 120°
AM-V2G-Ti 17 dBi 16 dBi 15 dBi
AM-V5G-Ti 21 dBi 20 dBi 19 dBi
AM-M-V5G-Ti 17 dBi 16 dBi 15 dBi





Increased Performance

The airMAX Titanium Sector was specifically engineered for optimal performance when paired with a Rocket™M Titanium..

  • 20% increase in performance with PtMP networks
  • Up to 90% performance improvement in a co-location environment
  • Increased durability in harsh weather

Easily Mount and Protect Your Rocket

The Titanium Sector has an integrated Rocket mount that allows you to mount the Rocket without the use of any tools. The custom-designed Protective Shroud helps to shield your Rocket from the elements.





(AM-V2G-Ti)

airMAX 2GHz 15 - 17dBi, 60° - 120° Titanium Sector Antenna

Package Includes

  • 1 x Antenna
  • 1 x Protective Shroud
  • 2 x U-Brackets
  • 2 x Pole Bracket
  • 2 x Pole Clamp
  • 4 x Carriage Bolts (M8x135)
  • 4 x Serrated Flange Bolts (M8x20)
  • 8 x Serrated Flange Nuts (M8)
  • 2 x RF Cables
  • Quick Start Guide

airMAX 2GHz 15 - 17dBi, 60° - 120° Titanium Sector Antenna - Specifications



AM-V2G-Ti
Dimensions (mm) 773 x 372 x 120 mm
Weight 6.40 kg (with Brackets)
Frequency Range 2.3 - 2.6 GHz
Gain 17 dBi @ 60°
16 dBi @ 90°
15 dBi @ 120°
Beamwidth Angles 60°/ 90°/ 120°
Elevation Beamwidth
Electrical Downtilt
Wind Survivability 125 mph
Wind Loading 92 lbf @ 100 mph
Polarization Dual-Linear
Cross-pol Isolation 25 dB Typical
Front-to-Back Ratio 30 dB Typical
Max. VSWR 1.5:1
RF Connectors 2 RP-SMA Connectors (Weatherproof )
Compatible Radios RocketM2 Titanium
RocketM2
Mounting Pole Mount (Kit Included)
ETSI Specification EN 302 326 DN2
Certifications CE, FCC, IC



Shipping Specifications

SKU AM-V2G-Ti
Model # AM‑V2G-Ti
Brand Ubiquiti
Shipping Weight 8.4500kg
Shipping Width 0.430m
Shipping Height 0.175m
Shipping Length 0.810m
Shipping Cubic 0.060952000m3
Unit Of Measure ea
