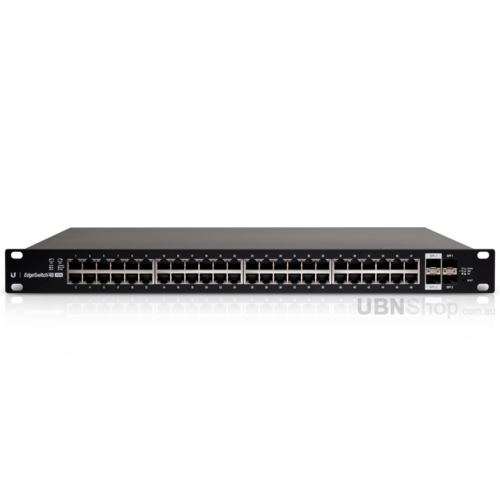

EdgeSwitch 48 Port 750W Managed Gigabit Switch PoE

ES-48-750W

$1,892.43
Sold Out
ALTERNATE PRODUCT:
USW-PRO-48-POE-
UniFi 48 Port Gigabit Switch Gen2, 802.3bt PoE, Layer3 Features and SFP+

In Stock: YES

Managed PoE+ Gigabit Switch with SFP



Build and expand your network with Ubiquiti Networks® EdgeSwitch®, part of the EdgeMAX® line of products. The EdgeSwitch is a fully managed, PoE+ Gigabit switch, delivering robust performance and intelligent switching for growing networks. The EdgeSwitch offers an extensive suite of advanced Layer-2 switching features and protocols, and also provides Layer-3 routing capability.

Switching Perfomance
The EdgeSwitch offers the forwarding capacity to simultaneously process traffic on all ports at line rate without any packet loss. The EdgeSwitch 48 750W provides total, non-blocking throughput up to 70Gbps.

PoE Flexibility
The EdgeSwitch models are available with 8, 16, 24, or 48 PoE Gigabit Ethernet ports of auto-sensing IEEE 802.3af/at or configurable 24V Passive PoE to simplify your infrastructure.

Fibre Connectivity

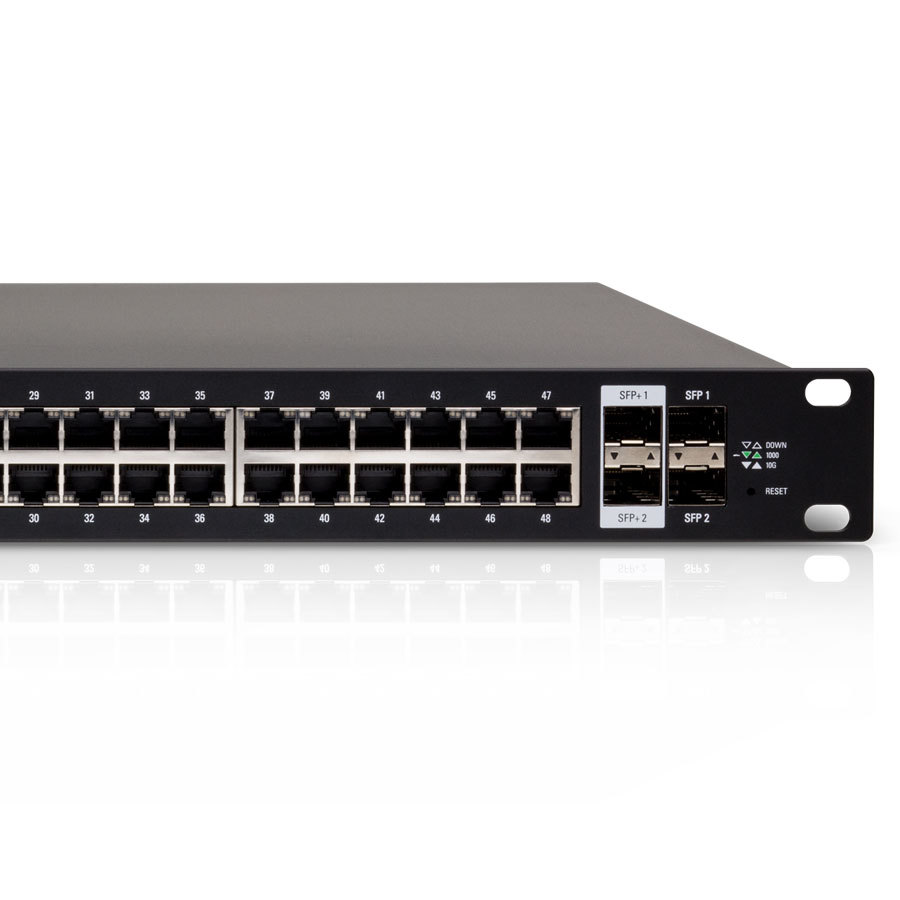

The EdgeSwitch provides fiber connectivity options for your growing networks. The 8, 16, and 24-port models include two SFP ports, providing up to 1 Gbps uplinks. For high-capacity uplinks, the 48-port models include two SFP and two SFP+ ports, providing uplinks of up to 10 Gbps

Powerful Performance
The EdgeSwitch delivers robust switching performance with its total, non-blocking throughput of up to 10 Gbps.

Switching Capacity
The EdgeSwitch offers the forwarding capacity to simultaneously process traffic on all ports at line rate without any packet loss.



(ES-48-750W)

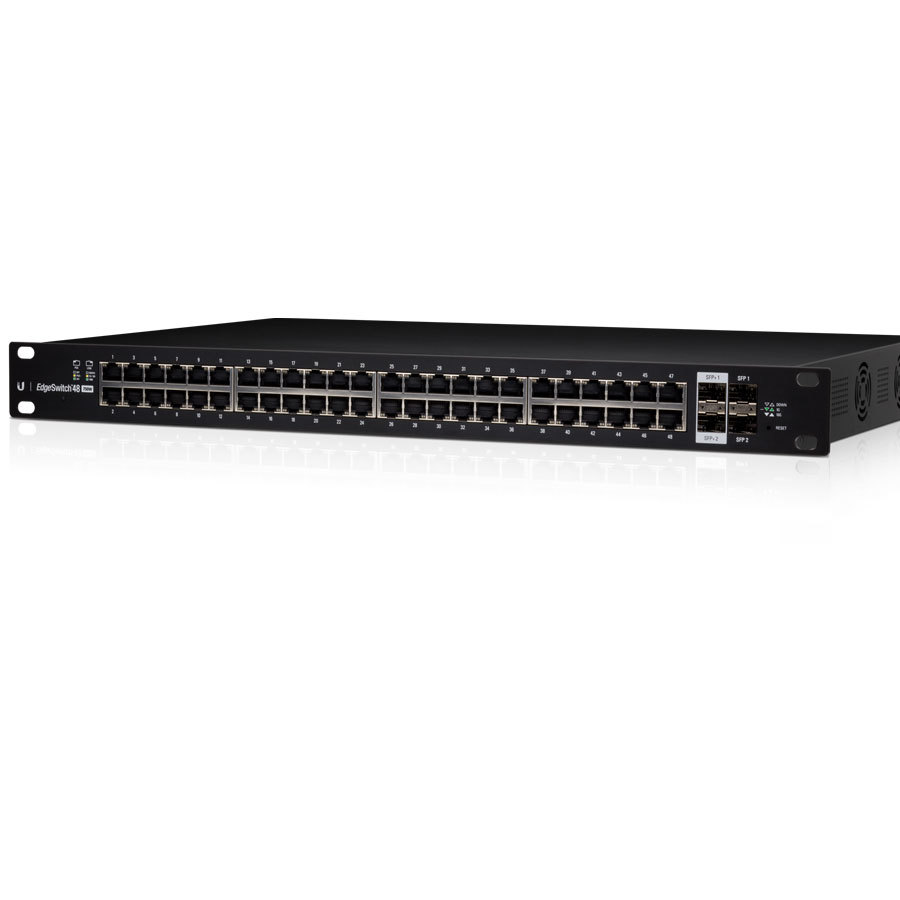

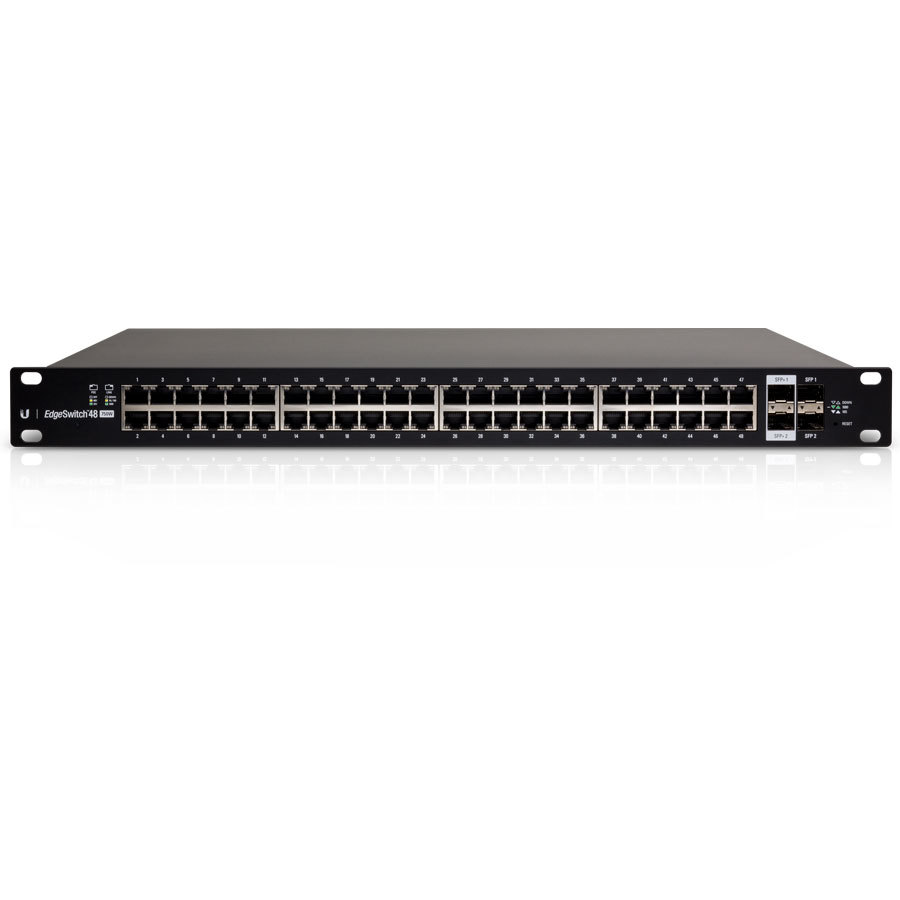

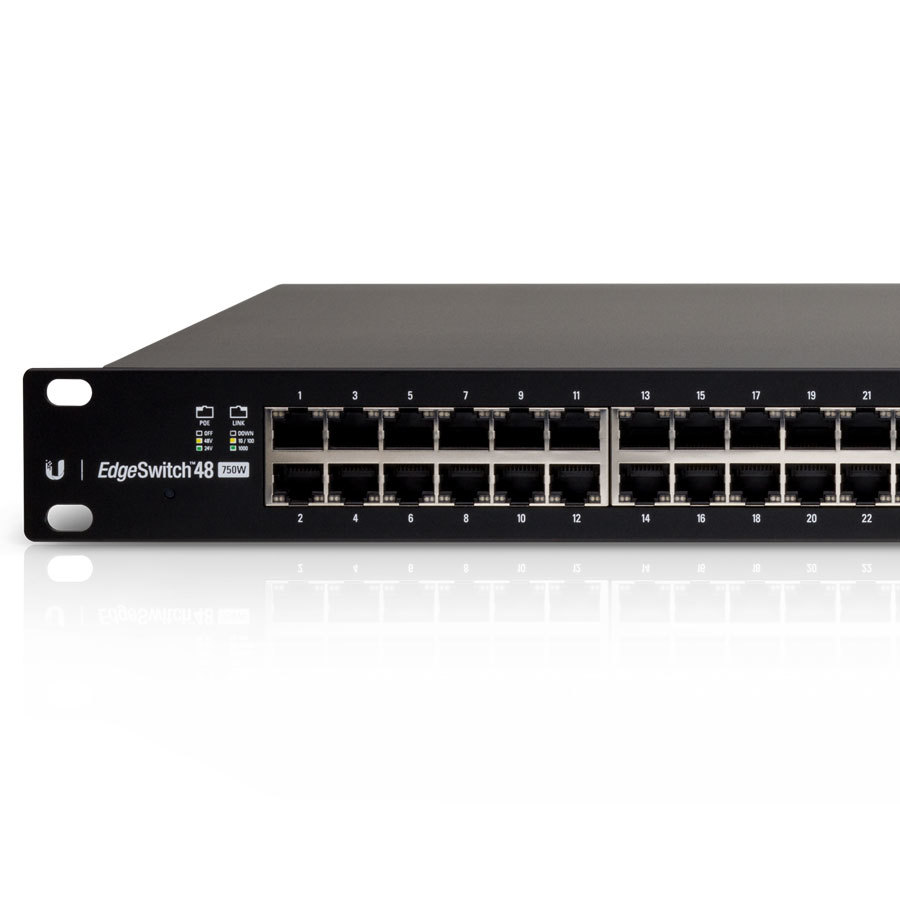

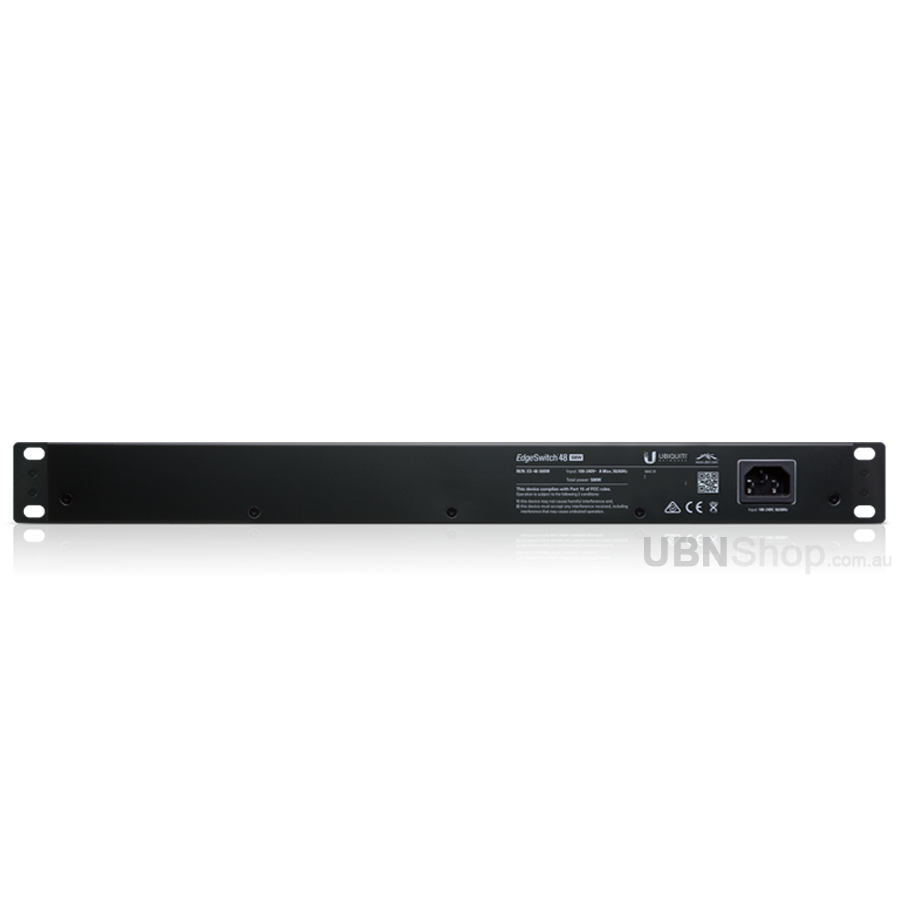

EdgeSwitch 48 Port 750W

Package Includes

  • 1 x EdgeSwitch 48 750W
  • 4 x Mounting Screws (#10-32 x 5/8")
  • 4 x Cage Nuts (#10-32 x 5/8")
  • 1 x Power Cord
  • Quick Start Guide

EdgeSwitch 48 Port 750W - Specifications

EDGESWITCH
Dimensions 485.04 x 44.45 x 347.6 mm (19.1 x 1.75 x 13.69")
Weight 5.3 kg (11.68 lb)
Total Non-Blocking Throughput 70 Gbps
Max. Power Consumption 750W
Power Method 100-240VAC/50-60 Hz, Universal Input
Power Supply AC/DC, Internal, 750W DC

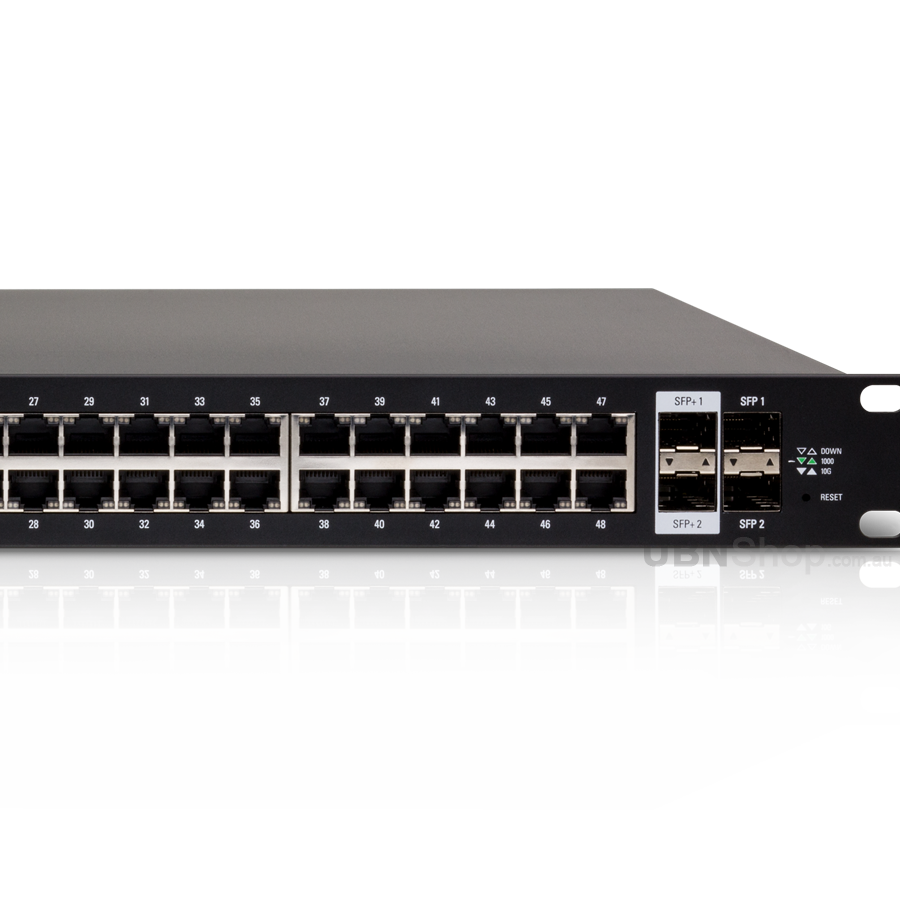

Networking Interface (48) 10/100/1000 Mbps RJ45 Ethernet Ports
(2) 1/10 Gbps SFP+ Ethernet Ports
(2) 1 Gbps SFP Ethernet Ports
Management Interface Ethernet In/Out Band
Certifications CE, FCC, IC
Rackmount Yes, 1U High
Operating Temperature -5 to 40° C (23 to 104° F)
Operating Humidity 5 to 95% Noncondensing

Shipping Specifications

SKU ES-48-750W
Model # ES-48-750W
Barcode # 817882023146
Brand Ubiquiti
Shipping Weight 6.6000kg
Shipping Width 0.420m
Shipping Height 0.095m
Shipping Length 0.570m
Shipping Cubic 0.022743000m3
Unit Of Measure ea
