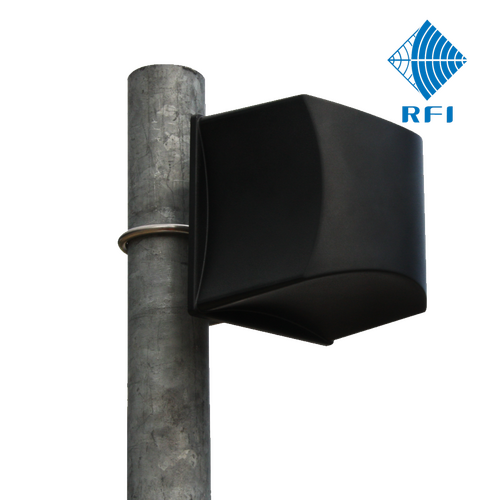

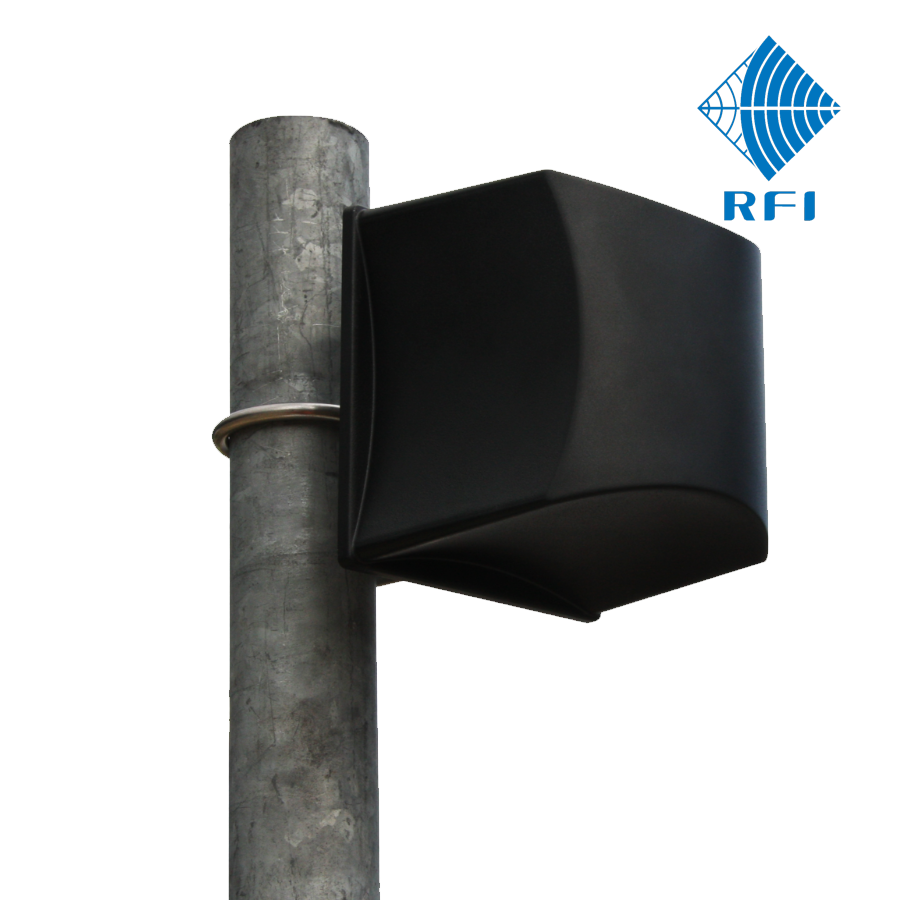

Panel Antenna Dual Band 2.4 & 5.0 GHz Directional Antenna by RFI



The PA-WIFI-N is a compact 12 dBi directional antenna designed to provide extended coverage for both 2.4 GHz & 5.8 GHz wireless networks. The directional design of the PA-WIFI-N offers increased wireless signal coverage in a specific direction allowing for improved data throughput at further distances.

Features

  • Small and Un-obtrusive Design
  • Provides a 12dbi gain for 2.4Ghz
  • Provides a 12dbi gain for 5.8Ghz
  • N female connector
  • Sealed design offering strong protection and weather resistance rating IP67
  • Rugged design for outdoor applications in the Harsh Australian Environment
  • Includes adjustable pole mount bracket (45mm max. / 23mm min.)



Panel Antenna Dual Band 2.4 & 5.0 GHz RFI

Pack Includes:

  • 1 x Panel Antenna Dual Band 2.4 & 5.0 GHz RFI
  • 1 x Pole Mount



Panel Antenna Dual Band 2.4 & 5.0 GHz RFI - SPECIFICATIONS



Packaging Carton
Cable And Connector Integrated N female connector
Band WiFi
Nominal impedance 50
Power w 25
Nominal Gain Dbi 12
Dimensions 104 x 104 x 174
VSWR <3.0:1
Termination Integrated N-type female
Construction ABS black radome with stainless steel back plate
Tuned bandwidth Full. No tuning required
Horizontal Beamwidth 40
IP Rating IP65
Brand RFI
Weight [kg] 0.484

SHIPPING SPECIFICATIONS

SKU PA-WIFI-N
Model # PA-WIFI-N
Brand RFI
Shipping Weight 0.5000kg
Shipping Width 0.104m
Shipping Height 0.174m
Shipping Length 0.104m
Shipping Cubic 0.001882000m3
Unit Of Measure ea
