airFiber Antenna 5GHz, 30dBi Slant 45
airFiber Antenna 5GHz, 34dBi Slant 45
In Stock: YES

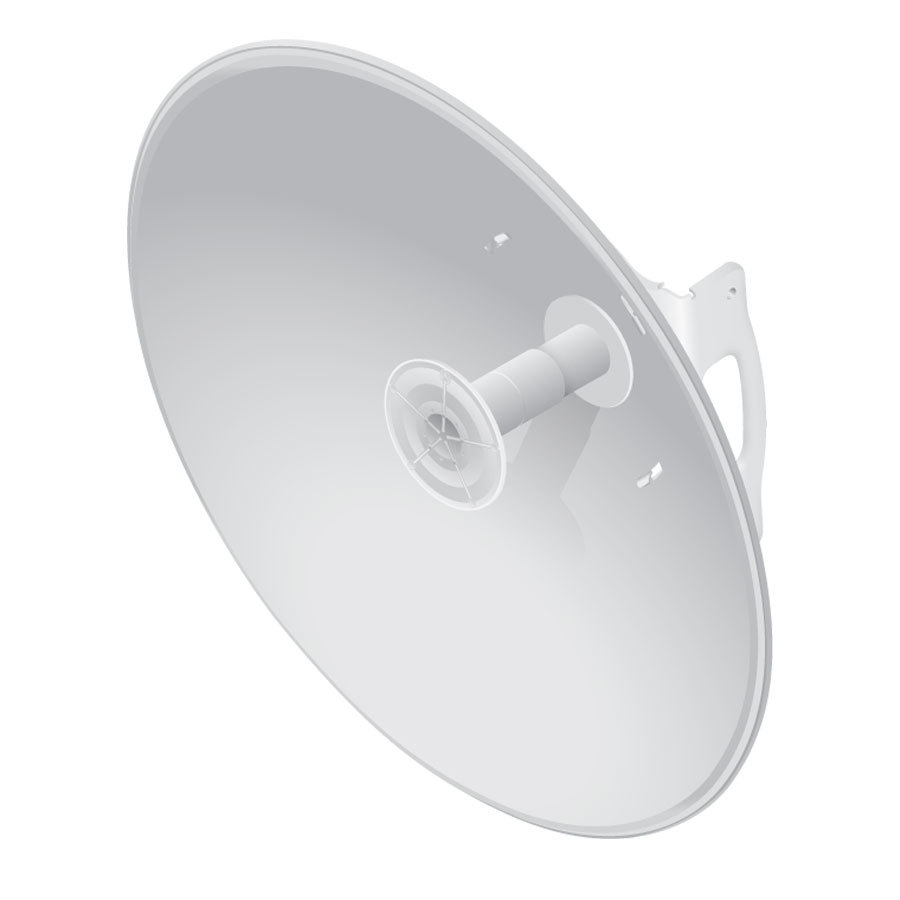

5GHz 30dBi Slant 45 Antenna for airFiber®
The airFiber® X Antennas feature significant advances in noise isolation and beam performance to complement the airFiber X radios for carrier backhauls and Point-to-Point (PtP) bridging.
Pair an airFiber® X antenna with an airFiber X radio to create the endpoint of a high-performance, Point-to-Point (PtP) bridge or network backhaul (airFiber X radio sold separately).
The airFiber X antenna delivers 2x2, dual-polarity performance. On the right is one example of how the airFiber X antenna with an airFiber X radio can be deployed as endpoints in a backhaul link to deliver bandwidth from a WISP network out to a neighborhood tower. From there, an airMAX® Sector antenna with a Rocket® radio delivers bandwidth to the WISP’s customers.
Carrier Class Construction
Incorporating a dish reflector design for excellent beam directivity, the airFiber X antennas feature robust mechanical design using industrial-strength hardware for outdoor application use.
Plug & Play Integration
airFiber X antennas and airFiber X radios have been designed to seamlessly work together. Every airFiber X antenna has a built-in airFiber X radio mount, so installation requires no special tools. Snap the airFiber X radio securely into place and mount the antenna; you then have the optimal combination of airFiber X antenna and airFiber X radio for your PtP application.
Housed in a compact form factor (378-mm diameter size), the AF-5G23-S45 offers 23 dBi of gain and features the following advantages:
- Low sidelobes reduce interference from other transmitters in the area.
- High isolation enhances performance for co-location in tower-mounted installations.
- The low-profile design with integrated radome reduces wind-loading.
airFiber X Antenna 5GHz, 30dBi Slant 45
- 1 x Dish Antenna
- 1 x Mounting Bracket
- 1 x Antenna Feed
- 1 x Lower Pole Bracket
- 1 x Upper Pole Bracket
- 1 x Support Arm
- 1 x Brace
- 4 x Screws (M6)
- 1 x Protective Shroud
- 5 x Hex Bolts (M8)
- 5 x Lock Washers (M8)
- 5 x Flat Washers (M8)
- 2 x Stabilizer Brackets
- 2 x M10x100 Bolts
- 2 x Serrated Flange Nuts (M10)
- 4 x M8x150 Carriage Bolts
- 2 x Pole Clamps
- Quick Start Guide
airFiber X Antenna 5GHz, 30dBi Slant 45 - Specifications
|Dimensions||650 x 650 x 386 mm (25.6 x 25.6 x 15.2")|
|Weight||7.4 kg (16.31 lb) (Mount Included)|
|Frequency Range||5.1 - 5.9 GHz|
|F/B Ratio||30 dB|
|Wind Loading||790 N @ 200 km/h (178 lbf @ 125 mph)|
|Wind Survivability||200 km/h (125 mph)|
|ETSI Specification||EN 302 326 DN2|
|Mounting||Universal Pole Mount, airFiber Radio Bracket, and Weatherproof RF Jumpers Included|
|Unit Of Measure||ea|
