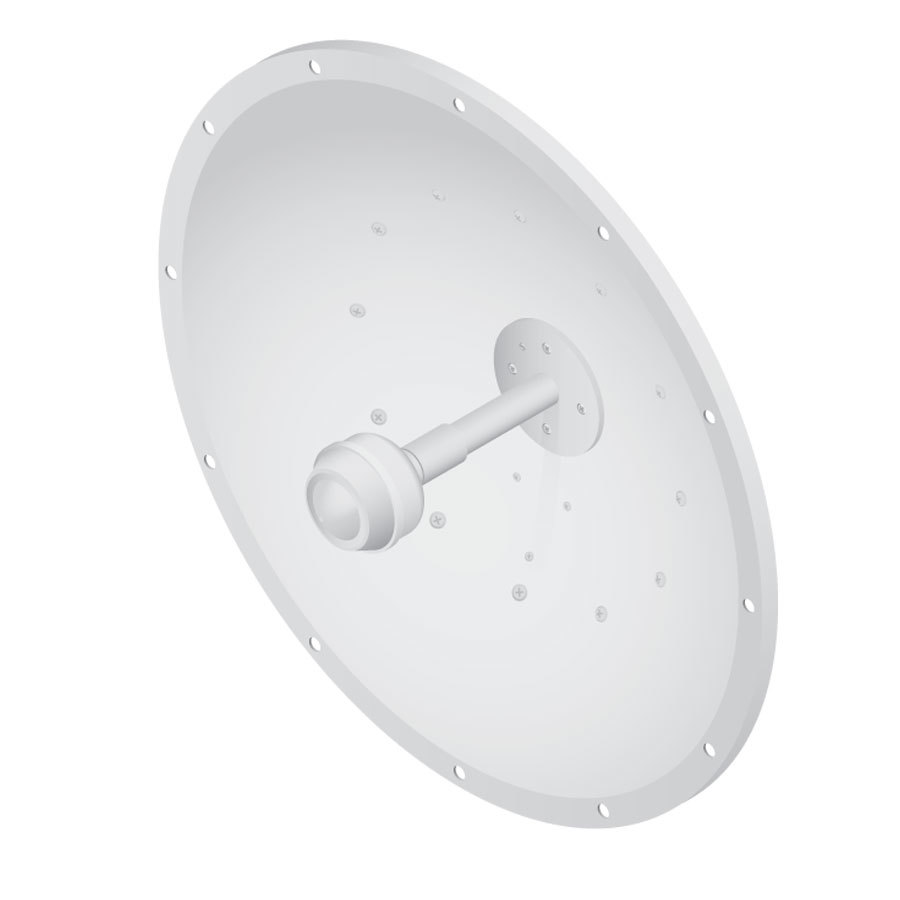

airFiber Antenna 2GHz, 24dBi Slant 45

AF‑2G24‑S45

$397.87
Sold Out

2GHz 24dBi Slant 45 Antenna for airFiber®



The airFiber® X Antennas feature significant advances in noise isolation and beam performance to complement the airFiber X radios for carrier backhauls and Point-to-Point (PtP) bridging.

Pair an airFiber® X antenna with an airFiber X radio to create the endpoint of a high-performance, Point-to-Point (PtP) bridge or network backhaul (airFiber X radio sold separately).

Powerful Performance
The airFiber X antenna delivers 2x2, dual-polarity performance. On the right is one example of how the airFiber X antenna with an airFiber X radio can be deployed as endpoints in a backhaul link to deliver bandwidth from a WISP network out to a neighborhood tower. From there, an airMAX® Sector antenna with a Rocket® radio delivers bandwidth to the WISP’s customers.

Carrier Class Construction
Incorporating a dish reflector design for excellent beam directivity, the airFiber X antennas feature robust mechanical design using industrial-strength hardware for outdoor application use.

Plug & Play Integration
airFiber X antennas and airFiber X radios have been designed to seamlessly work together. Every airFiber X antenna has a built-in airFiber X radio mount, so installation requires no special tools. Snap the airFiber X radio securely into place and mount the antenna; you then have the optimal combination of airFiber X antenna and airFiber X radio for your PtP application.

Optimal Design
The AF-5G34-S45 offers up to 34 dBi of gain in a 1050-mm diameter size.dish.

Model Frequency Gain Radome
AF-2G24-S45 2.4 GHz 24 dBi RAD-RD2







(AF-2G24-S45)

airFiber X Antenna 2.4GHz, 24dBi Slant 45

Package Includes

  • 1 x Dish Reflector
  • 1 x Antenna Feed
  • 1 x Mounting Bracket
  • 2 x Pole Clamp
  • 1 x Protective Shroud
  • 2 x Stabilizer Brackets
  • 1 x Elevation Rod
  • 4 x Carriage Bolts (M10x150)
  • 2 x M10x100 Bolts
  • 3 x M10x25 Carriage Bolts
  • 4 x M4 Bolts
  • Quick Start Guide

airFiber X Antenna 2.4GHz, 24dBi Slant 45 - Specificactions



AF-2G24-S45
Dimensions 650 x 650 x 295 mm (25.6 x 25.6 x 11.6")
Weight 9.8 kg (21.61 lb)
Frequency Range 2.3 - 2.7 GHz
Gain 24 dBi
+45° Beamwidth 6.6° (3 dB)
-45° Beamwidth 6.8° (3 dB)
F/B Ratio 28 dB
Max. VSWR 1.6:1
Wind Loading 787 N @ 200 km/h (177 lbf @125 mph)
Wind Survivability 200 km/h (125 mph)
Polarization Dual-Linear
Cross-pol Isolation 35 dB Min.
ETSI Specification EN 302 326 DN2
Mounting Universal Pole Mount, airFiber X Radio Bracket, and Weatherproof RF Jumpers Included



Shipping Specifications

SKU AF-2G24-S45
Model # AF‑2G24‑S45
Barcode # 810354023743
Brand Ubiquiti
Shipping Weight 10.0000kg
Shipping Width 0.700m
Shipping Height 0.185m
Shipping Length 0.700m
Shipping Cubic 0.090650000m3
Unit Of Measure ea
