WiFi 6 RouterBoard hAP ax² with RouterOS L4 License by MiktoTik

C52iG-5HaxD2HaxD-TC

$190.99
Sold Out

WiFi 6 RouterBoard hAP ax² with RouterOS L4 License C52iG-5HaxD2HaxD-TC by MiktoTik

A Generation 6 version of the legendary hAP ac². With PoE-in and PoE-out, much faster wireless, more RAM, and a modern CPU. The smallest fully-fledged AX router on the market!

It’s time to supercharge your home network with the Generation 6 wireless network and our latest addition to the beloved hAP series. hAP ax² has everything you might need in a primary home access point – and more! Forget endless reviews and comparisons – this is the perfect device for 99% of homes.

Wireless signal is now stronger than ever.

Here are the two main ingredients of hAP ax’s success: a state-of-the-art dual-band, dual-chain 4-4.5 dBi radio, and the 802.11ax standard with Wave2 support. Let’s compare it to the previous generation: depending on your overall setup, that means up to 40% higher speed in the 5 GHz and up to 90% higher speed in the 2.4 GHz spectrum!

Some might ask – why do we even need higher wireless speeds? Well, countless use cases have been previously impossible or difficult to pull off. For example, working with large media files over the wireless network – without the need to download and upload everything. Do you really have the time to wait? Grab a hAP ax² and save more time for the essential things in life!

The modern quad-core CPU running at 864 MHz combined with a solid GB of RAM packs a hefty punch when it comes to heavy operations like complex firewall rules, IPsec hardware encryption, using more threads or experimenting with the most advanced RouterOS features. And with the addition of WPA3 advanced encryption support, you’re safer than ever before.

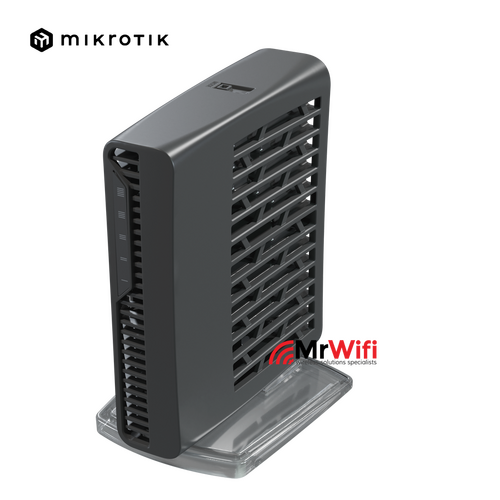

Like the previous models, hAP ax² can be mounted vertically, horizontally, or even on the wall – without sacrificing the strong signal.

With so many products and features on the market, even an experienced user can become confused. So it’s time for a simple truth for a simple choice: you can’t go wrong with a hAP ax² in most homes.

FEATURES:

  • CPU Quad-Core IPQ-6010 864 MHz
  • CPU architecture ARM 64bit
  • Size of RAM 1 GB>
  • Storage 128 MB, NAND

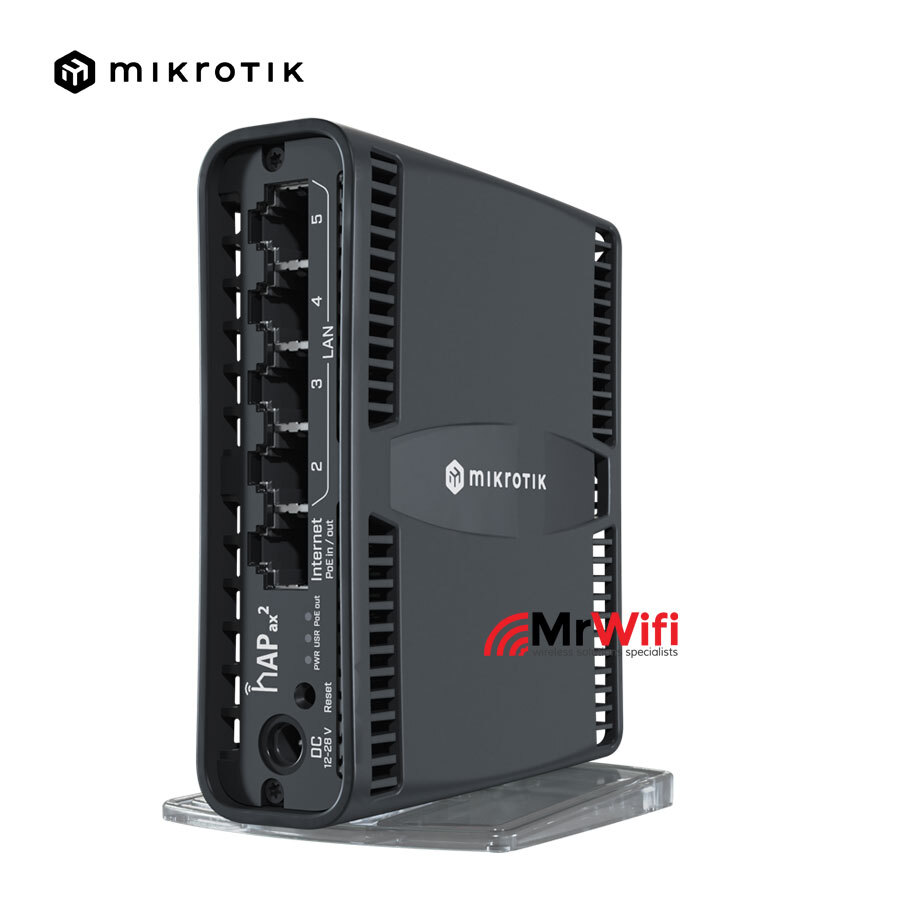

  • Number of 1G Ethernet ports 5
  • Number of 1G Ethernet ports with PoE-out 1
  • Switch chip model IPQ-6010
  • Wireless interface model QCN-5052
  • Wireless 2.4 GHz 802.11ax dual-chain, 5 GHz 802.11 802.11ax dual-chain
  • Wireless antenna max gain 2.4 GHz (4.5 dBi), 5 GHz (4 dBi)
  • Dimensions 120 x 101 x 37 mm
  • Operating system RouterOS, License level 4
  • Operating temperature -40°C to +50°C

Powering

  • Number of DC inputs 2 (PoE-in, DC jack)
  • PoE-in input Voltage 18-28 V
  • DC jack input Voltage 12-28 V
  • PoE-out Passive PoE Ether1, max out per port output (input < 30 V): 600mA
  • Max total out 0.6 A
  • Total output power 16.8 W
  • Power adapter nominal voltage 24 V
  • Power adapter nominal current 1.2 A
  • Max power consumption (without attachments) 12 W
  • Max power consumption 27 W

(C52iG-5HaxD2HaxD-TC)

Mikrotik hAP ax²



Pack Includes:

  • 1 x hAP ax2
  • 1 x hAP case base
  • 1 x K-47 wall mount set
  • 1 x 24V 1.2A power supply (straight plug)

Mikrotik hAP ax² - Specifications

Specifications

Details
Product code C52iG-5HaxD2HaxD-TC
Architecture ARM 64bit
CPU IPQ-6010
CPU core count 4
CPU nominal frequency 864 MHz
Switch chip model IPQ-6010
RouterOS license 4
Operating System RouterOS (v7 only)
Size of RAM 1 GB
Storage size 128 MB
Storage type NAND
MTBF Approximately 100'000 hours at 25C
Tested ambient temperature -40°C to 50°C
IPsec hardware acceleration Yes
Suggested price $99.00

Wireless capabilities

Details
Wireless 5 GHz Max data rate 1200 Mbit/s
Wireless 5 GHz number of chains 2
Wireless 5 GHz standards 802.11a/n/ac/ax
Antenna gain dBi for 5 GHz 4
Wireless 5 GHz chip model QCN-5052
Wireless 5 GHz generation Wi-Fi 6
Wireless 2.4 GHz Max data rate 574 Mbit/s
Wireless 2.4 GHz number of chains 2
Wireless 2.4 GHz standards 802.11b/g/n/ax
Antenna gain dBi for 2.4 GHz 4.5
Wireless 2.4 GHz chip model QCN-5022
Wireless 2.4 GHz generation Wi-Fi 6
WiFi speed AX1800

Ethernet

Details
10/100/1000 Ethernet ports 5
Number of 1G Ethernet ports with PoE-out 1

Powering

Details
Number of DC inputs 2 (DC jack, PoE-IN)
DC jack input Voltage 12-28 V
Max power consumption 27 W
Max power consumption without attachments 12 W
Cooling type Passive
PoE in Passive PoE
PoE in input Voltage 18-28 V

PoE-out

Details
PoE-out ports Ether 1
PoE out Passive PoE
Max out per port output (input 18-30 V) 600 mA
Max total out (A) 0.6 A
Total output current 0.6
Total output power 16.8W

Certification & Approvals

Details
Certification CE, FCC, IC, EAC, ROHS
IP 20

Other

Details
CPU temperature monitor Yes
Mode button Yes
SKU C52iG-5HaxD2HaxD-TC
Model # C52iG-5HaxD2HaxD-TC
Barcode # 4752224007124
Brand Mikrotik
Shipping Weight 0.4800kg
Shipping Width 0.034m
Shipping Height 0.098m
Shipping Length 0.119m
Shipping Cubic 0.000397000m3
Unit Of Measure ea
