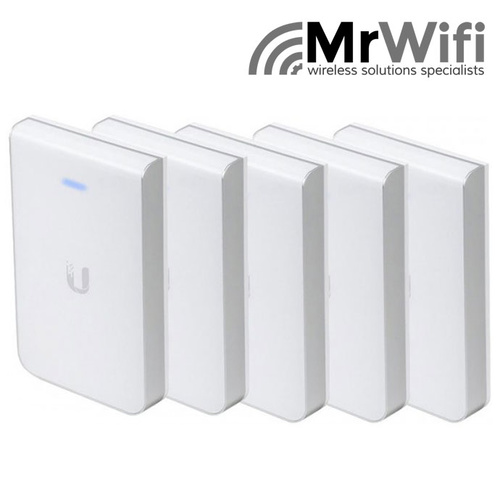

UniFi AC In-Wall Access Point 5 Pack

UAP-AC-IW-5

$809.88
Sold Out
ALTERNATE PRODUCT:
UAP-IW-HD-
UniFi In-Wall HD Access Point

In Stock: YES

UniFi In–Wall AC 802.11ac Wi–Fi Access Point 5 Pack



Convert an Ethernet wall jack into a dual-band 802.11AC Wi-Fi access point with two Gigabit Ethernet ports. Ideal for new or retrofit installations, the UniFi® AC In-Wall is designed to convert an Ethernet wall jack into a dual-band 802.11AC Wi-Fi access point with two Gigabit Ethernet ports. One of the ports provides PoE for powering and connecting an 802.3af device to the network. The UniFi AC In-Wall is capable of wireless speeds of up to 1167 Mbps with a range of up to 100 meters.

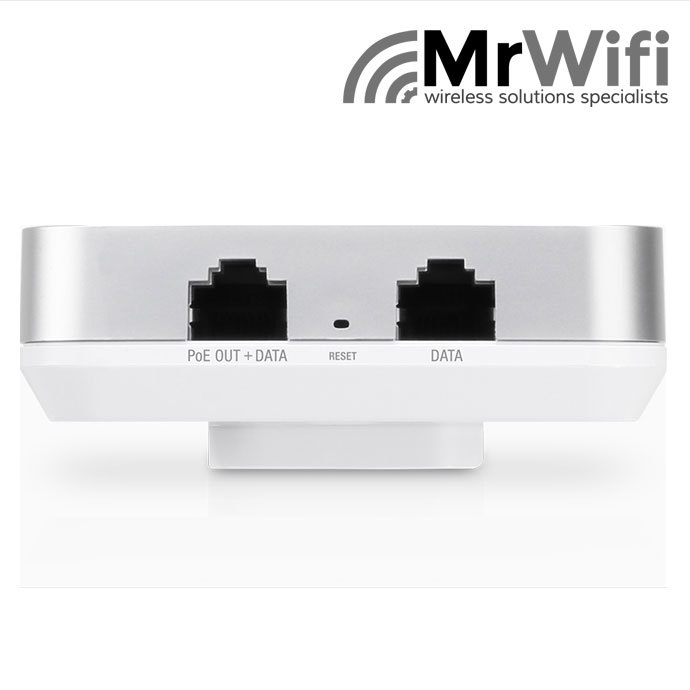

Versatile Data and PoE Output

An Ethernet wall jack becomes an access point, a gigabit switch, and a PoE power source. Wire a workstation and power a VoIP phone. Or power a US-8 for even more Ethernet ports.



(UAP-AC-IW-5)

Ubiquiti UniFi AC In‑Wall Wi-Fi Access Point

Pack Includes:

  • 5 x 1 UAP-AC-IW
  • 5 x 1 Cover Plate
  • 5 x 1 Back Plate
  • 5 x 4 Wall-Mount Screws
  • 5 x 4 Security Torx Screws
  • 5 x 2 Phillips Screws
  • Quick Start Guide

UniFi AC In‑Wall Wi-Fi Access Point - Specifications

UAP-AC-IW
Dimensions 139.7 x 86.7 x 25.75 mm (5.5 x 3.41 x 1.01")
Weight 200 g (6.43 oz)
Networking Interface (3) 10/100/1000 Ethernet Ports
Button(s) Reset
Power Method 802.3at PoE+ Supported
Power Supply Power Supply UniFi PoE Switch (Not Included)
Power Save Supported
PoE Out 48V Pass-Through (Pins 1, 2+; 3, 6-)
Max. Power Consumption
with PoE Passthrough
7W
19W*
Max. TX Power
2.4 GHz
5 GHz

20 dBm
20 dBm
Antennas
2.4 GHz
5 GHz

(1) Dual-Band Antenna, Single-Polarity
1 dBi
2 dBi
Wi-Fi Standards 802.11 a/b/g/n/ac
Wireless Security WEP, WPA-PSK, WPA-Enterprise (WPA/WPA2, TKIP/AES)
BSSID Up to 8 per Radio
Mounting 1-Gang Electrical Wall Box (Not Included)
Operating Temperature -10 to 50° C (14 to 122° F)
Operating Humidity 5 to 95% Noncondensing
Certifications CE, FCC, IC
*Requires 802.3at PoE+ switch
Advanced Traffic Management
VLAN 802.1Q
Advanced QoS Per-User Rate Limiting
Guest Traffic Isolation Supported
WMM Voice, Video, Best Effort, and Background
Concurrent Clients 250+
Supported Data Rates(Mbps)
Standard Data Rates
802.11ac 6.5 Mbps to 867 Mbps (MCS0 - MCS9 NSS1/2, VHT 20/40/80)
802.11n 6.5 Mbps to 300 Mbps (MCS0 - MCS15, HT 20/40)
802.11a 6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11g 6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11b 1, 2, 5.5, 11 Mbps

SHIPPING SPECIFICATIONS

SKU UAP-AC-IW-5
Model # UAP-AC-IW-5
Barcode # 8.10E+11
Brand Ubiquiti
Shipping Weight 1.2000kg
Shipping Width 0.135m
Shipping Height 0.095m
Shipping Length 0.250m
Shipping Cubic 0.003206000m3
Unit Of Measure ea

Ubiquiti UniFi AC In‑Wall Wi-Fi Access Point - Documents
