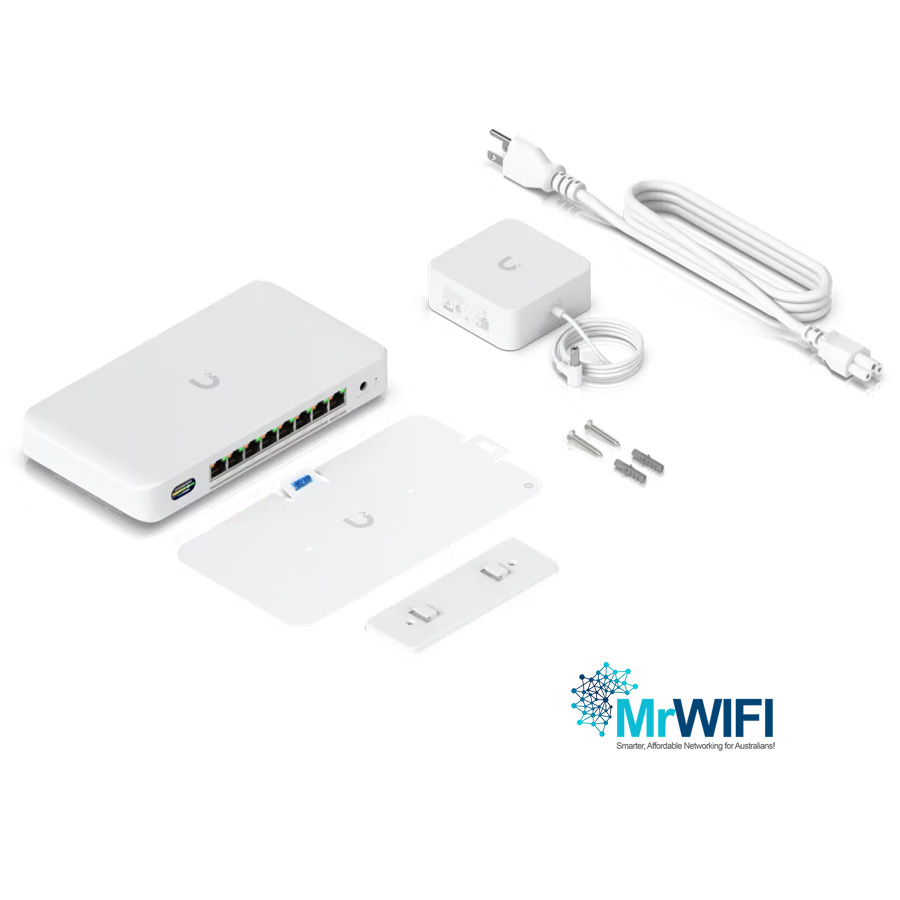

Expand Your Network Wirelessly with the Ubiquiti UniFi Device Bridge Switch

Tired of trenching conduits, cutting concrete, or running expensive fibre lines just to get a network switch into a hard-to-wire location? The Ubiquiti UniFi Device Bridge Switch (UDB-SWITCH) is a revolutionary networking solution that eliminates the need for a physical uplink cable, creating a high-performance "wired island" anywhere within range of your UniFi WiFi network.

By uniquely combining an 8-port Multi-Gigabit PoE+ switch with integrated WiFi 7 wireless bridging, the UDB-SWITCH allows you to deploy a fully managed cluster of devices—such as UniFi Protect cameras, access points, and IoT hardware—using only a single power outlet.

High-Capacity WiFi 7 Wireless Uplink

Featuring dedicated 5 GHz and 6 GHz wireless backhaul capabilities, the UDB-SWITCH utilizes UniFi WiFi Auto-Link to deliver lightning-fast, ultra-low latency wireless throughput (up to 5.8 Gbps on the 6 GHz band). This future-proofed wireless link acts exactly like a physical cable, delivering seamless network extension to outbuildings, warehouses, temporary retail sites, or historical properties where drilling is restricted.

Multi-Gigabit Power over Ethernet (PoE+)

Don't let the wireless uplink fool you—the local performance is completely uncompromised. The UDB-SWITCH features one 10 GbE RJ45 port for high-speed device aggregation and seven 2.5 GbE RJ45 ports. All eight ports support PoE+ (up to 30W per port), meaning you can power and connect power-hungry equipment directly from the unit. Out of the box, the included 60W adapter supplies 35W of total PoE availability, which can be expanded up to a massive 185W using an optional 210W power supply.

Centralised UniFi Management

It acts as a managed Layer 2 device but features a unique twist: it has a built-in wireless bridge that allows it to connect to your UniFi network wirelessly rather than relying entirely on a wired uplink. Like all enterprise gear in the UniFi ecosystem, the UDB-SWITCH is fully managed through the UniFi Network Application. Enjoy real-time traffic monitoring, native VLAN management, and automated firmware updates. It also includes a convenient 0.96" LCM status display on the front panel for quick at-a-glance network diagnostics.

Key Features & Benefits:

• No Uplink Cable Required: Seamlessly bridges wirelessly back to your main UniFi network using high-capacity 5 GHz and 6 GHz bands.

• Multi-Gigabit Ports: Equipped with (1) 10 GbE port and (7) 2.5 GbE ports to avoid any local data bottlenecks.

• Full PoE+ Capabilities: Supports up to 30W per port to run cameras, access points, and door access hubs.

• Flexible PoE Budget: Delivers 35W PoE out of the box; expandable up to 185W with an upgraded power adapter.

• Compact Deployment: Elegant polycarbonate design suitable for clean desktop placement or sleek wall mounting.

• Enterprise Security & Compliance: Supports WPA3 SAE (Always On) wireless security and is fully NDAA compliant.
