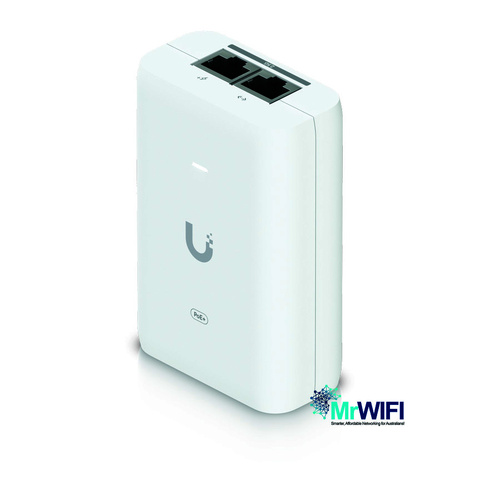

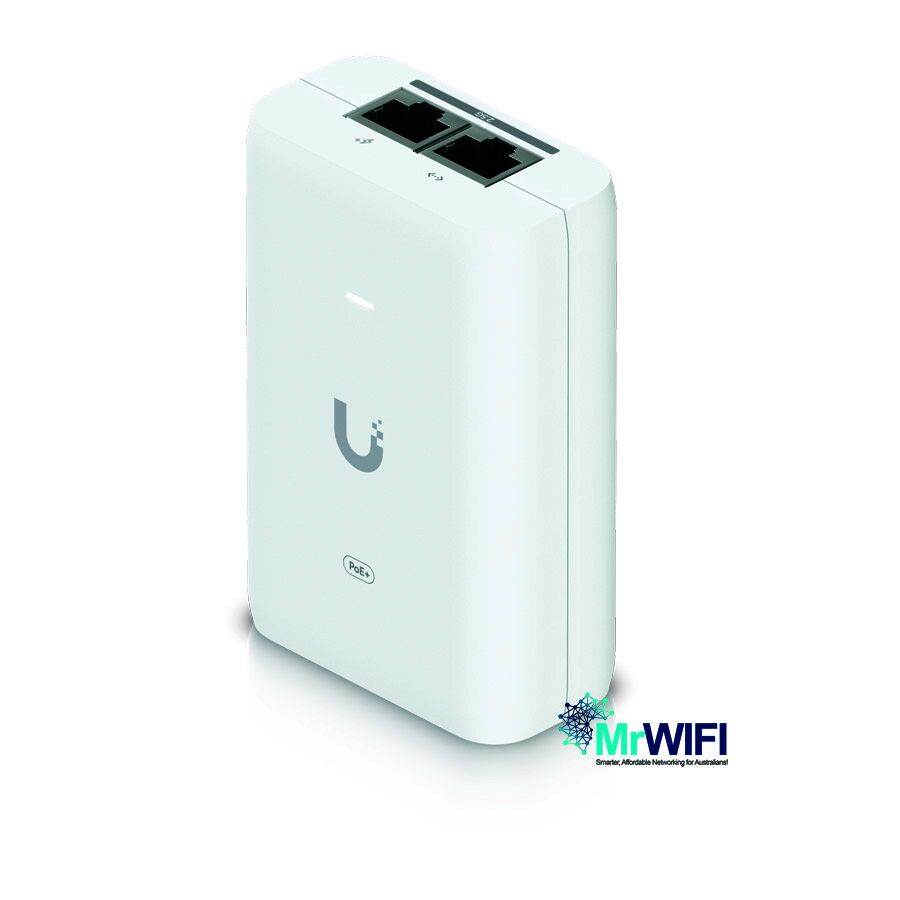

Ubiquiti PoE+ 2.5G Adapter (30W), Power UniFi PoE+ Devices with 2.5 Gigabit LAN Connection



An adapter that can power UniFi PoE+ devices, reduce dependency on PoE switch power, and provide a Multi-Gigabit LAN connection.

Delivers up to 30W of PoE+

Surge, peak pulse, and overcurrent protection

Contains RJ45 data input, AC cable with earth ground, and PoE+ output

LED indicator for status monitoring



Compatibility

U7-Pro U7-Outdoor U7-Pro-Max
U7-Pro-Wall U7-Pro-Outdoor U7-IW
U7-Lite U6-Enterprise-IW U6-Enterprise

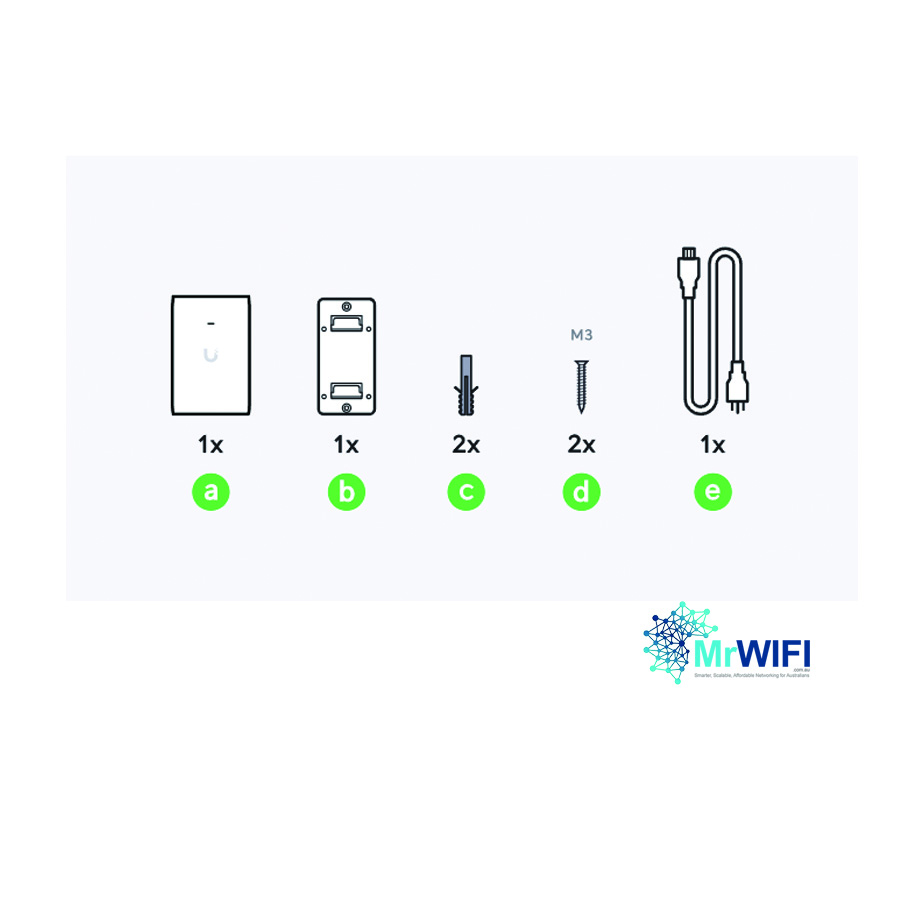

What's In The Box? UACC-POE-PLUS-2.5G



UACC-POE+-2.5G PoE Adapter UniFi WITB @ MrWiFi

Ubiquiti PoE+ 2.5G Adapter (30W), Power UniFi PoE+ Devices with 2.5 Gigabit LAN Connection- Specifications:

Parameter Specification
Overview Dimensions
Dimensions 93 x 62 x 35 mm (3.7 x 2.4 x 1.4")
Weight 156 g (5.5 oz)
Output Voltage 48V DC @ 0.65A
Rated Voltage 100—240V AC @ 50/60Hz
LAN Activity Indicator No
Gigabit LAN Port Yes
Remote Reset Capability No
Reset Button No
2-pair Powering Pins 4, 5 (+) and 7, 8 (-)
Clamping Protection 11V Data, 60V power
Data In / PoE RJ45 Shielded Socket
Input Current 0.75A Max.
Inrush Current <150A peak @ 230V AC
Efficiency >87%
Switching Frequency 65 kHz Max.
Output Ripple 1% Max.
Line Regulation ≤ 1%
Load Regulation ≤ 3%
Max. Surge Discharge 1500A (8/20 μs) power
Peak Pulse Current 36A (10/1000 μs) data
Response Time <1 ns
Shunt Capacitance <5 pF data
Surge Protection Difference and common mode
Ambient Storage Temperature -30 to 70°C (-22 to 158° F)
Ambient Operating Temperature 0 to 40° C (32 to 104° F)
Ambient Operating Humidity 10 to 95% noncondensing
NDAA Compliant Yes
Certifications CE, FCC, IC, UL, UKCA, KC, CCC, RoHS

Shipping Specifications

SKU
SKU UACC-POE-PLUS-2.5G
Model # UACC-PoE+-2.5G
Barcode # 810084699492
Brand Ubiquiti
Shipping Weight 0.1560kg
Shipping Width 0.112m
Shipping Height 0.056m
Shipping Length 0.184m
Shipping Cubic 0.001154048m3
Unit Of Measure ea
