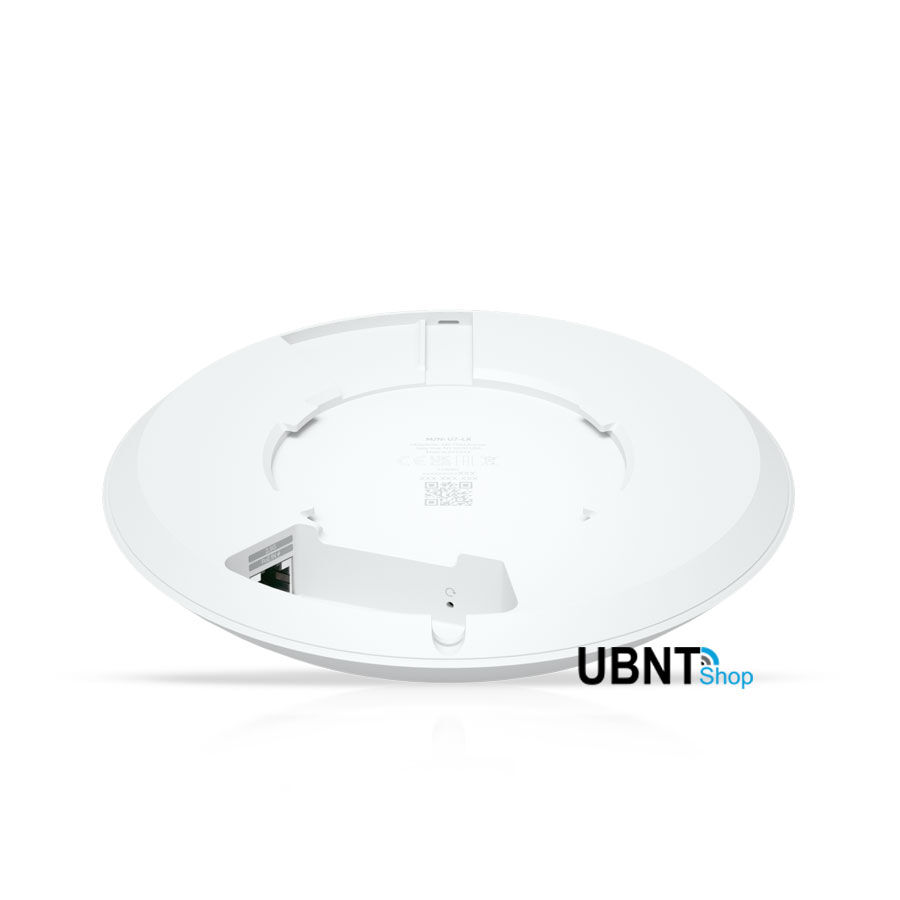

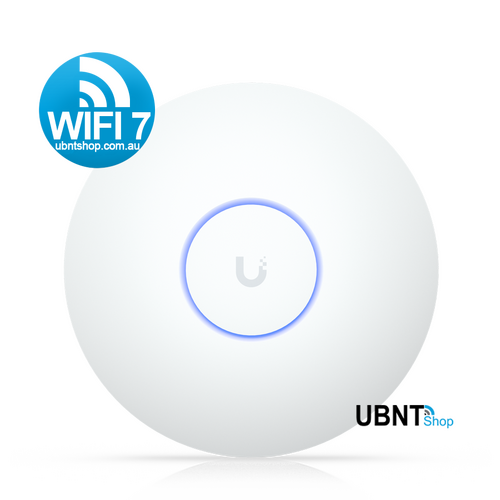

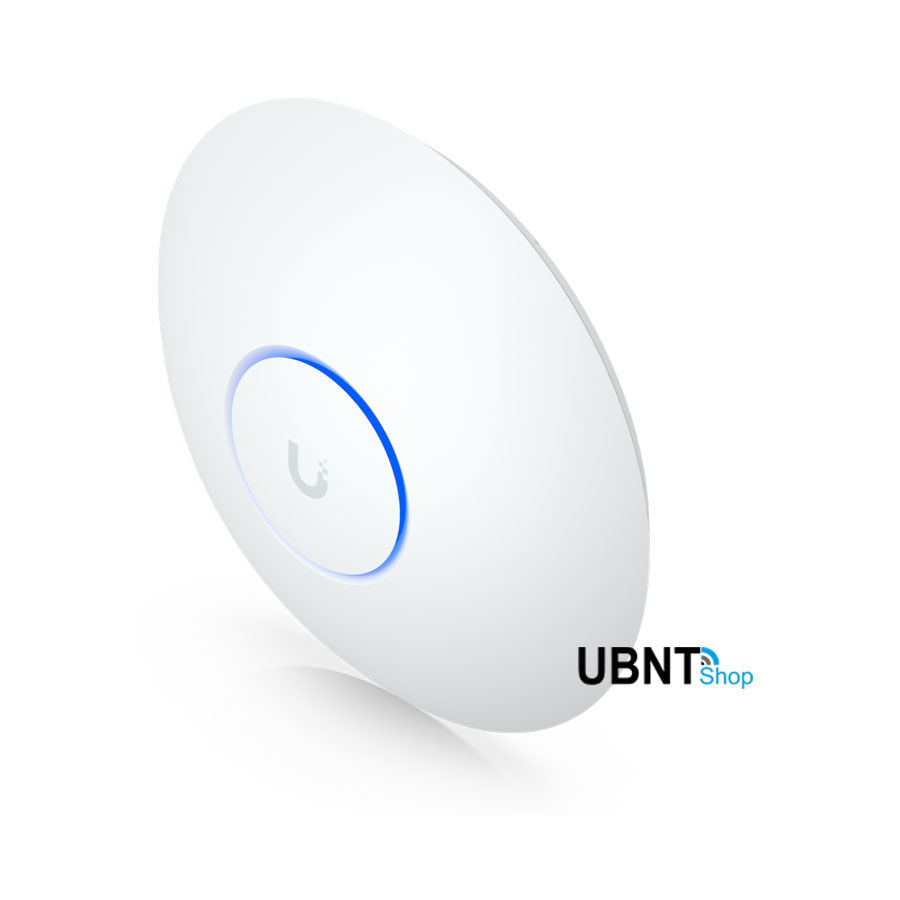

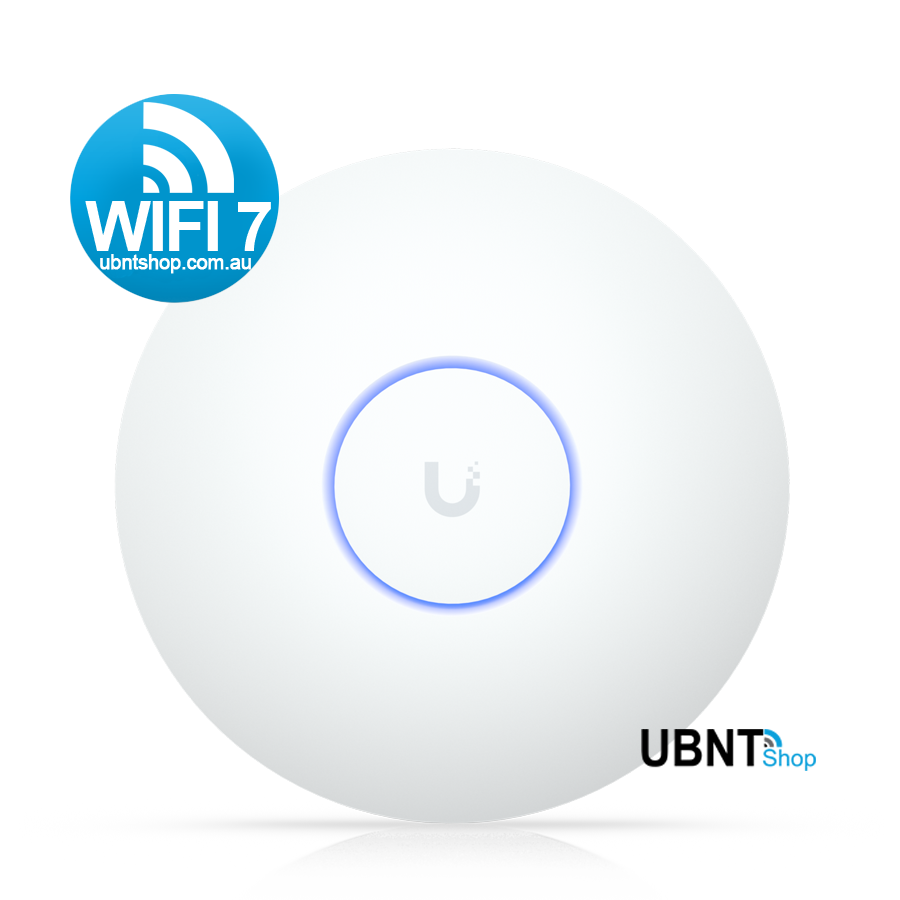

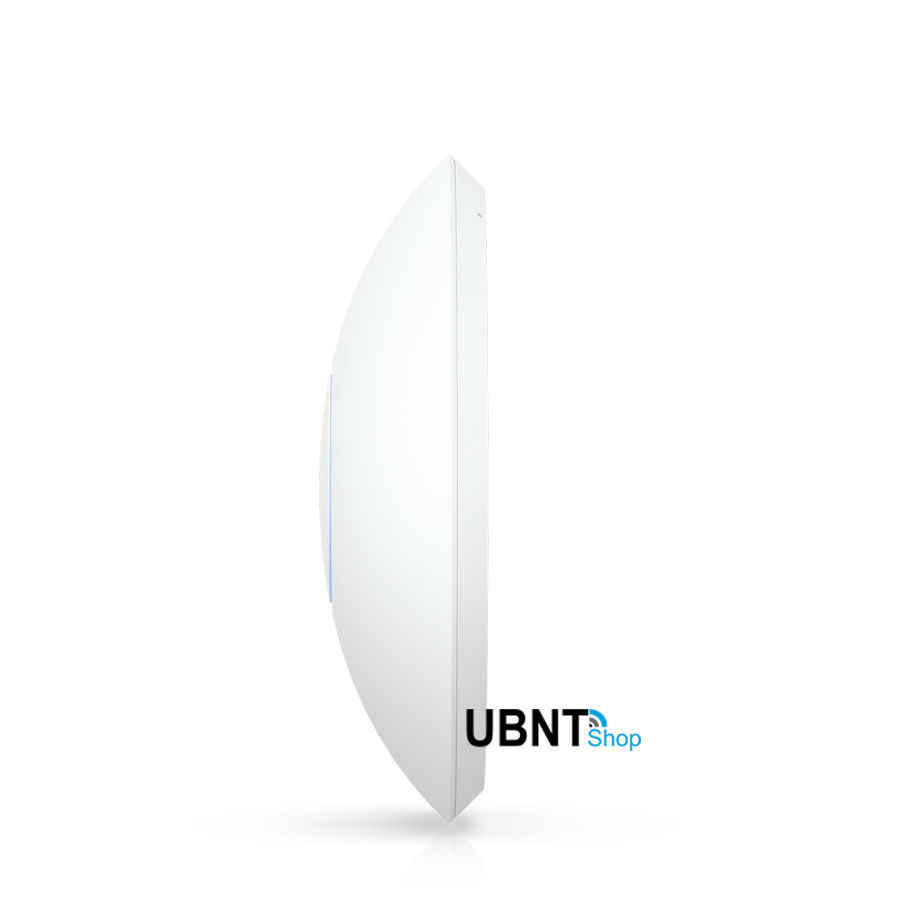

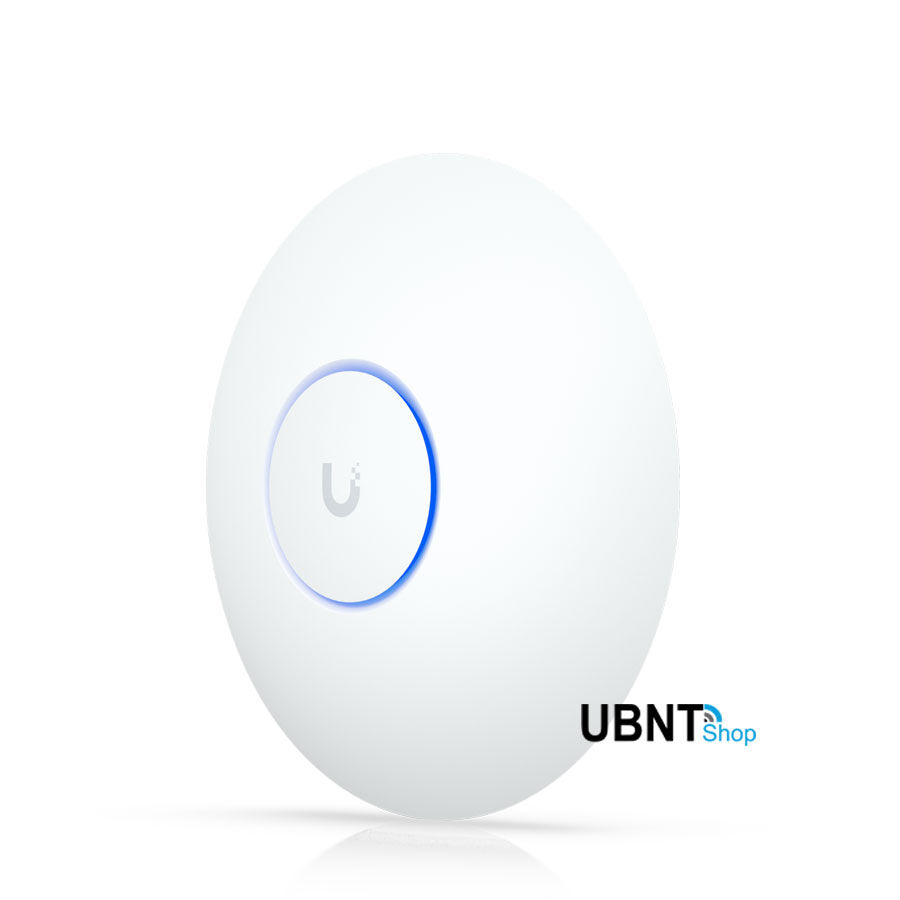

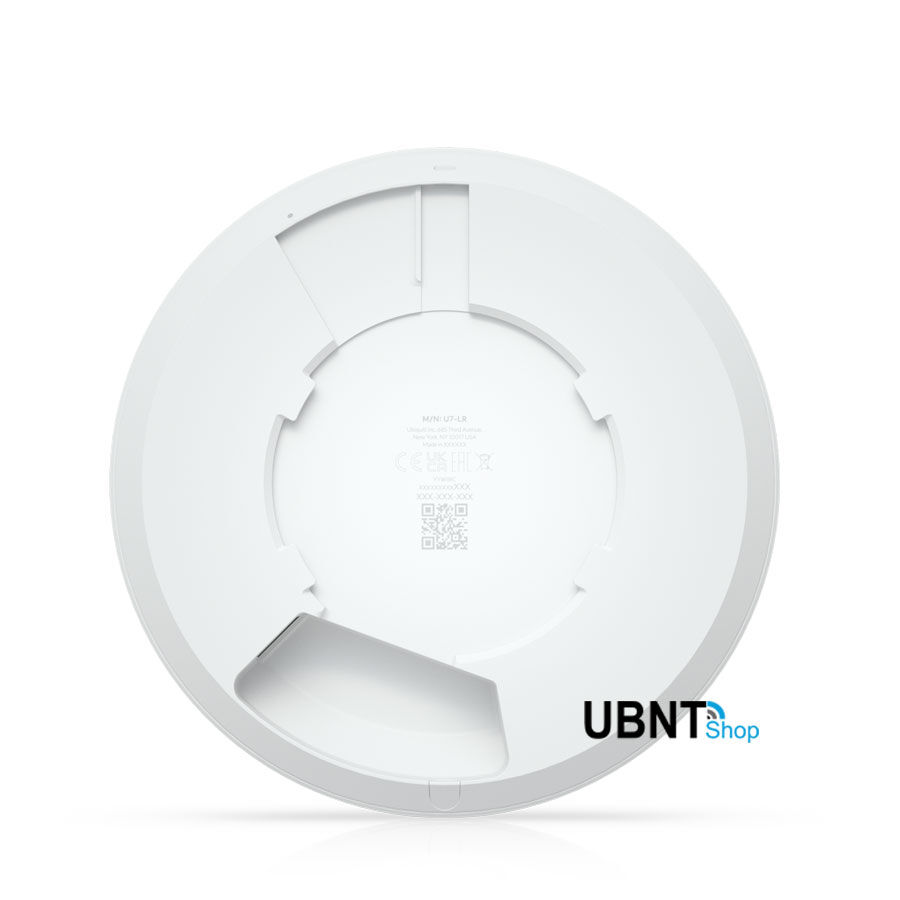

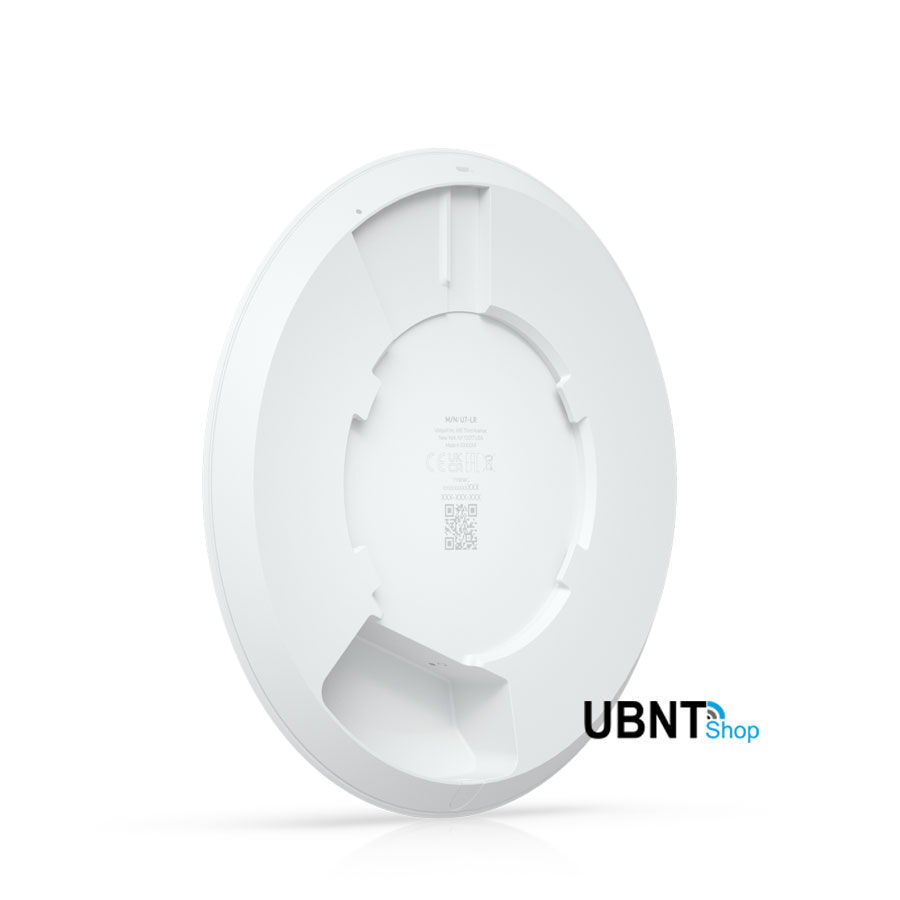

Ubiquiti U7 Long-Range, Compact, Ceiling-mount WiFi 7 AP, 5 Spatial Streams, Extended Signal Range, Cover Up to160m², 300+ Devices, Uplink 2.5GbE- Specifications:

Dimensions

Ø175.7 x 43 mm (Ø6.9 x 1.7")

WiFi Standard

WiFi 7

Spatial Streams

5

Coverage Area

160 m² (1,750 ft²)

Max. Client Count

300+

Uplink

2.5 GbE

Mounting

Ceiling, Wall (Plastic Mounting Plate included)

Power Method

PoE

MIMO

5 GHz

3 x 3 (DL/UL MU-MIMO)

2.4 GHz

2 x 2 (DL/UL MU-MIMO)

Max. Data Rate

5 GHz

4.3 Gbps (BW160)

2.4 GHz

688 Mbps (BW40)

Antenna Gain

5 GHz

6 dBi

2.4 GHz

4 dBi

Max. TX Power

5 GHz

27 dBm

2.4 GHz

26 dBm

Supported Data Rates

802.11be (WiFi 7)

7.3 Mbps to 4.3 Gbps (MCS0 - MCS13 NSS1/2/3, EHT 20/40/80/160)

802.11ax (WiFi 6)

7.3 Mbps to 3.6 Gbps (MCS0 - MCS11 NSS1/2/3, HE 20/40/80/160)

802.11ac (WiFi 5)

6.5 Mbps to 2.6 Gbps (MCS0 - MCS9 NSS1/2/3, VHT 20/40/80/160)

802.11n

6.5 Mbps to 450 Mbps (MCS0 - MCS23 , HT 20/40)

Wireless Meshing

✓

Band Steering

✓

802.11v BSS Transition Management

✓

802.11r Fast Roaming

✓

802.11k Radio Resource Management (RRM)

✓

Advanced Radio Management

✓

Passpoint (Hotspot 2.0)

✓

Captive Hotspot Portal

Custom Branding Landing Page

✓

Voucher Authentication

✓

Payment-Based Authentication

✓

External Portal Server Support

✓

Password Authentication

✓

Guest Network Isolation

✓

Private Pre-Shared Key (PPSK)

✓

WiFi Speed Limiting

✓

Client Device Isolation

✓

WiFi Schedules

✓

RADIUS over TLS (RadSec)

✓

Dynamic RADIUS-assigned VLAN

✓

Hardware

Max. Power Consumption

14W

Includes PoE Adapter

—

Supported Voltage Range

42.5—57V DC

Networking Interface

(1) 2.5 GbE RJ45 port

Weight

448 g (15.8 oz)

Management

Ethernet

Enclosure Material

Polycarbonate, aluminum alloy

Mount Material

Polycarbonate, galvanized steel (SGCC)

LEDs

System

White/Blue

Channel Bandwidth

HT 20/40, VHT 20/40/80/160, HE 20/40/80/160, EHT 20/40/80/160 (MHz)

NDAA Compliant

✓

Certifications

CE, FCC, IC

Ambient Operating Temperature

-30 to 50° C (-22 to 122° F)

Ambient Operating Humidity

5 to 95% noncondensing

Software

Application Requirements

UniFi Network

Version 9.1.120 and later

Mobile App

iOS™ version 10.20.2 and later Android™ version 10.21.7 and later
