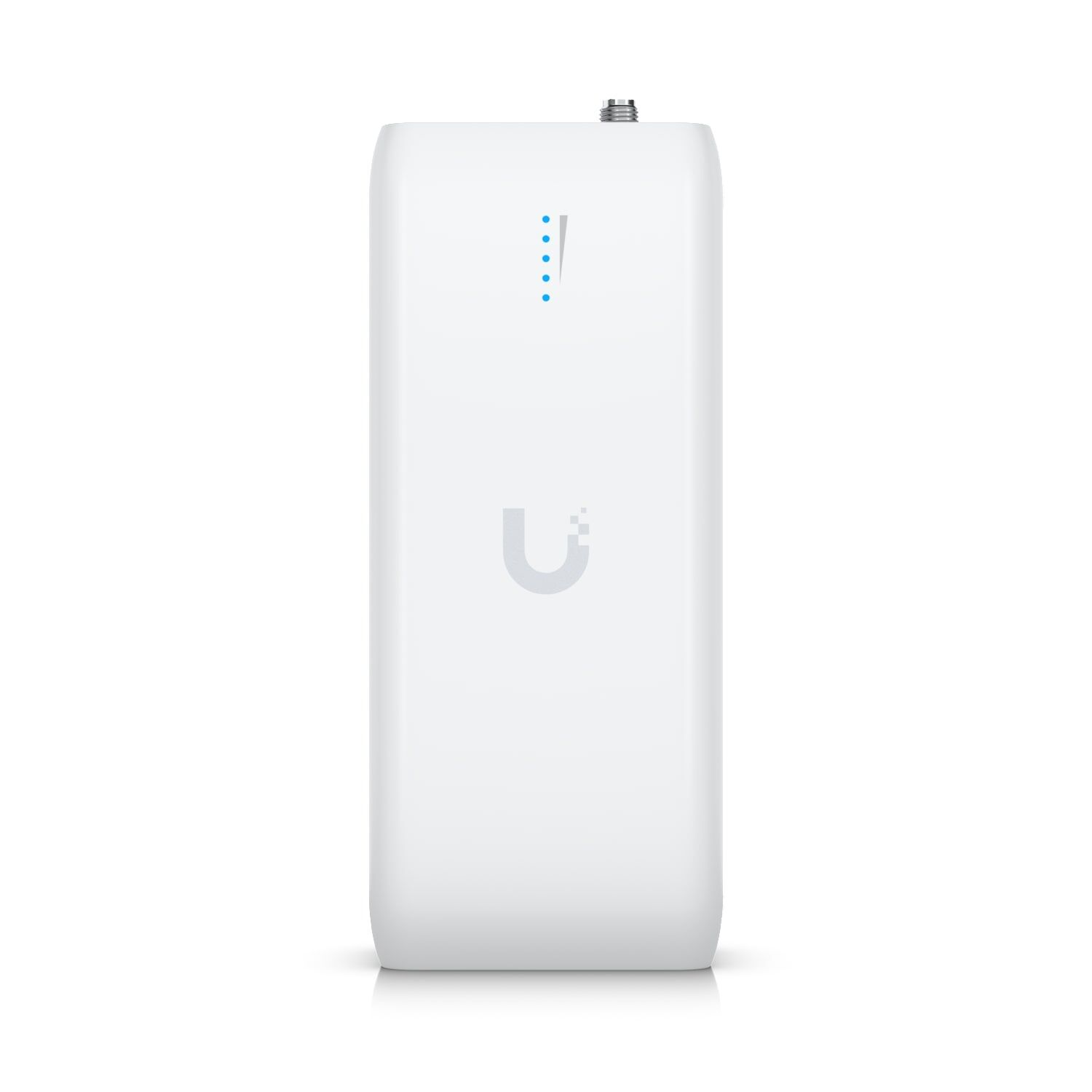

Ubiquiti Device Bridge,Plug-and-play, Wireless Bridging PoE Adapter with Integrated UniFi WiFi Auto-Link



Ubiquiti Device Bridge SKU: UDB Description: Plug-and-play, wireless bridging PoE adapter with integrated UniFi WiFi Auto-Link. Tech Specs: Click Here Installation Guide: Click Here Features: •(1) GbE LAN port that provides up to 15W of PoE •5 GHz band with up to 867 Mbps throughput rate •Compatible with UniFi Protect PoE cameras, Talk phones, and various IoT devices via an Ethernet connection Note. UniFi Consoles and APs must have the latest software updates installed.

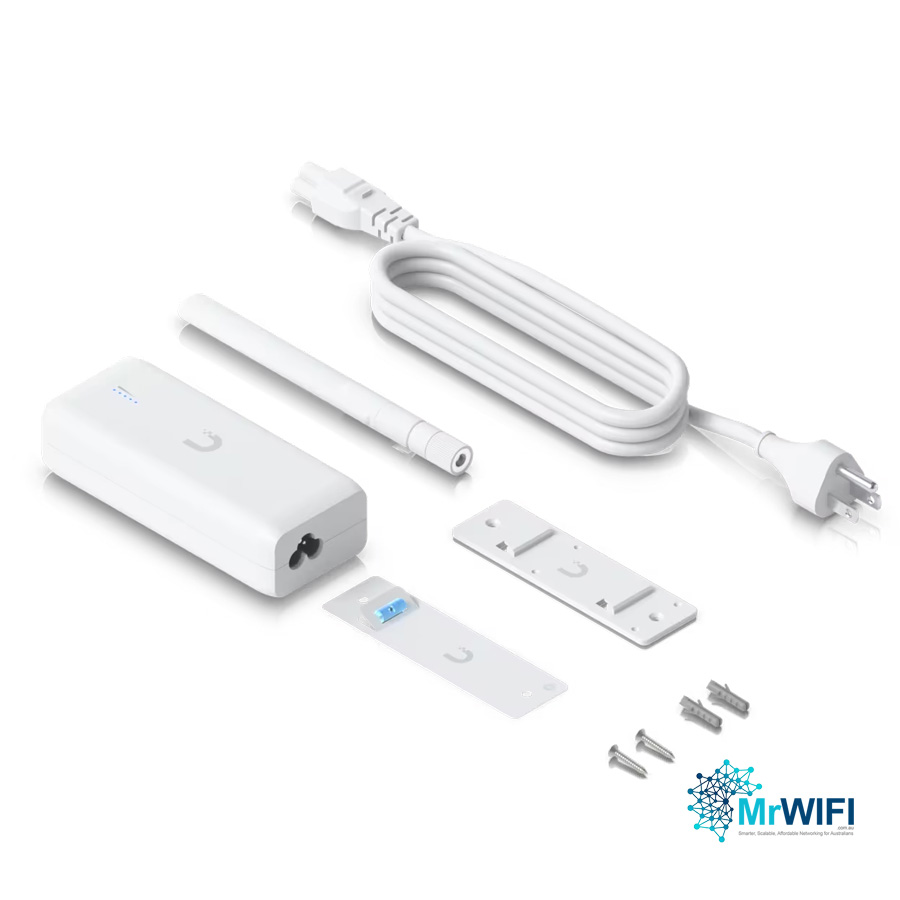

What's In The Box? UDB

UniFi Device Bridge UDB What's In The Box @ MrWiFi



Ubiquiti Device Bridge,Plug-and-play, Wireless Bridging PoE Adapter with Integrated UniFi WiFi Auto-Link- Specifications:

Mechanical
Dimensions 130 x 55 x 34 mm (5.1 x 2.2 x 1.3")
Weight 200 g (7.1 oz)
Enclosure material Polycarbonate
Mount material Polycarbonate
Hardware
Management interface WiFi
Networking interface (1) GbE RJ45 port
PoE interface (1) Passive PoE output
Button (1) Factory-reset
LED (4) Blue: signal
(1) White/blue: indicator
Power method 100—240V AC, 0.45A Max., 50/60 Hz
Max. power consumption AC input: 25W
Excluding PoE output: 10W
Max. PoE wattage per port 15W
Supported voltage range 100—240V AC
WiFi standards 802.11a/n/ac
Max. TX power
2.4 GHz
5 GHz
6 GHz


21 dBm
MIMO
2.4 GHz
5 GHz
6 GHz


2 x 2
Max. data rate
2.4 GHz
5 GHz
6 GHz


866.7 Mbps (BW80)
Antenna gain
2.4 GHz
5 GHz
6 GHz


Internal antenna : 5 dBi / External omni antenna : 4 dBi
Antenna (1) Internal antenna
(1) RP-SMA connector for external omni-antenna
Mounting Wall (Included)
Ambient operating temperature -10 to 40° C (14 to 104° F)
Ambient operating humidity 5 to 95% noncondensing
Certifications CE, FCC, IC
Supported Data Rates
802.11a 6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11n 6.5 Mbps to 300 Mbps (MCS0 - MCS15, HT 20/40)
802.11ac 6.5 Mbps to 866.7 Gbps (MCS0 - MCS9 NSS1/2, VHT 20/40/80)

Shipping Specifications

SKU
SKU UDB
Model # UDB
Barcode # 8.10E+11
Brand Ubiquiti
Shipping Weight 0.5200kg
Shipping Width 0.068m
Shipping Height 0.185m
Shipping Length 0.120m
Shipping Cubic 0.001509600m3
Unit Of Measure ea
