UniFi U-AirWire WiFi7 Mesh Bridge
U-AIRWIRE
UniFi U-AirWire WiFi7 Mesh Bridge
High-performance WiFi 7 client adapter with STR MLO, enabling simultaneous full-duplex links for ultra-low latency, extended range, and true multi-gigabit real-world speeds.

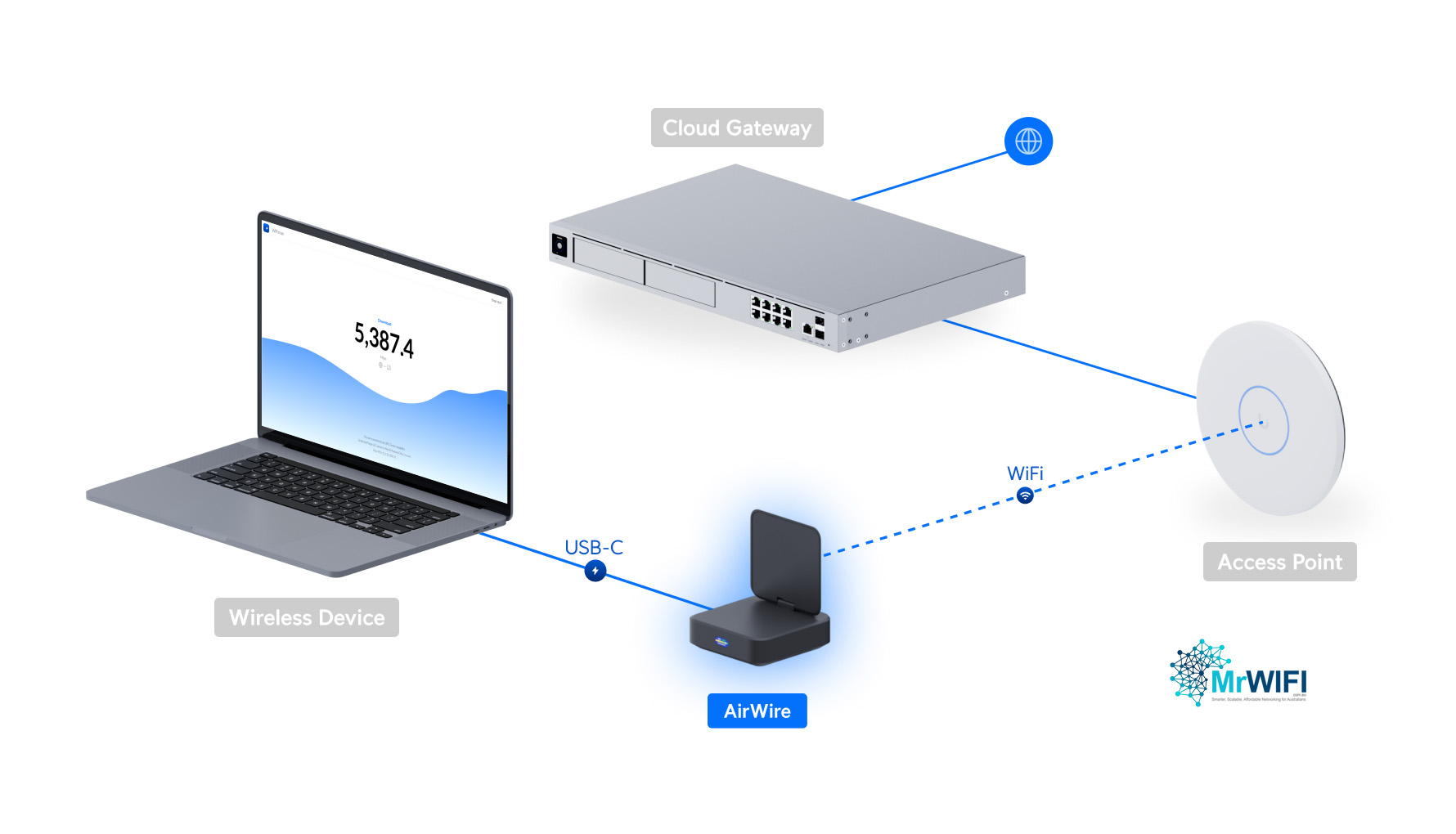

The UniFi AirWire (U-AirWire) is a high-performance WiFi 7 client adapter released in early 2026. Unlike traditional USB WiFi dongles, it is a "Super-Client" designed to bridge the gap between powerful WiFi 7 infrastructure (like U7 APs) and client devices that typically lack the hardware to utilize WiFi 7’s full potential.
It is particularly effective for professional workstations or remote office desks where running Ethernet cables is impractical but multi-gigabit speeds are required.
Core Capabilities
- STR MLO (Simultaneous Transmit and Receive): The standout feature. While most WiFi 7 clients only switch between bands, AirWire uses both 5 GHz and 6 GHz simultaneously. This creates a true aggregated link for higher throughput and ultra-low latency.

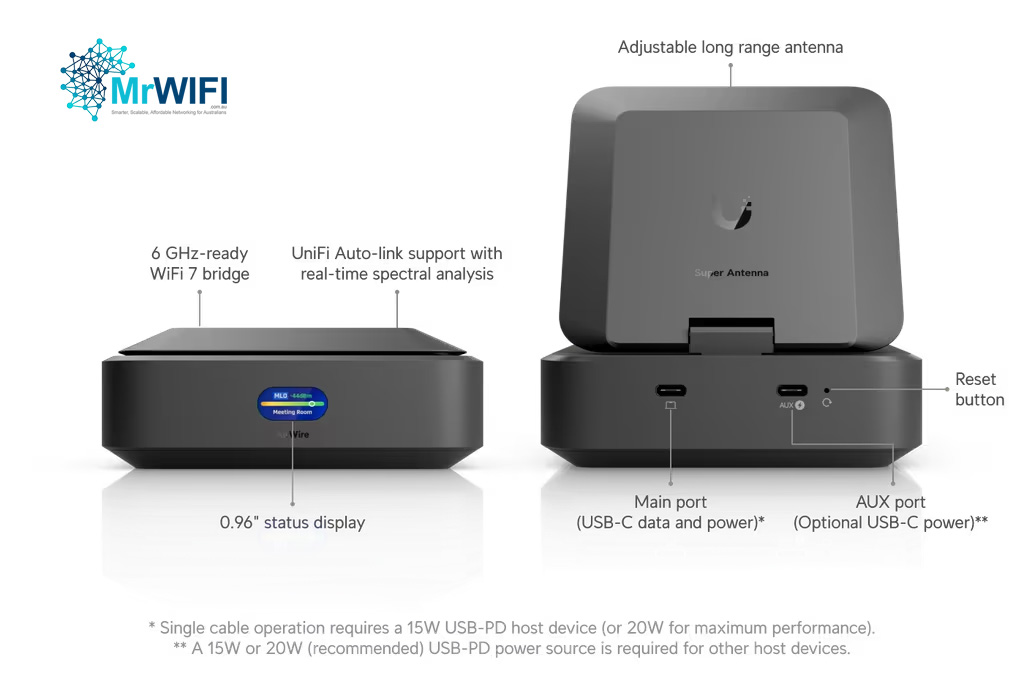

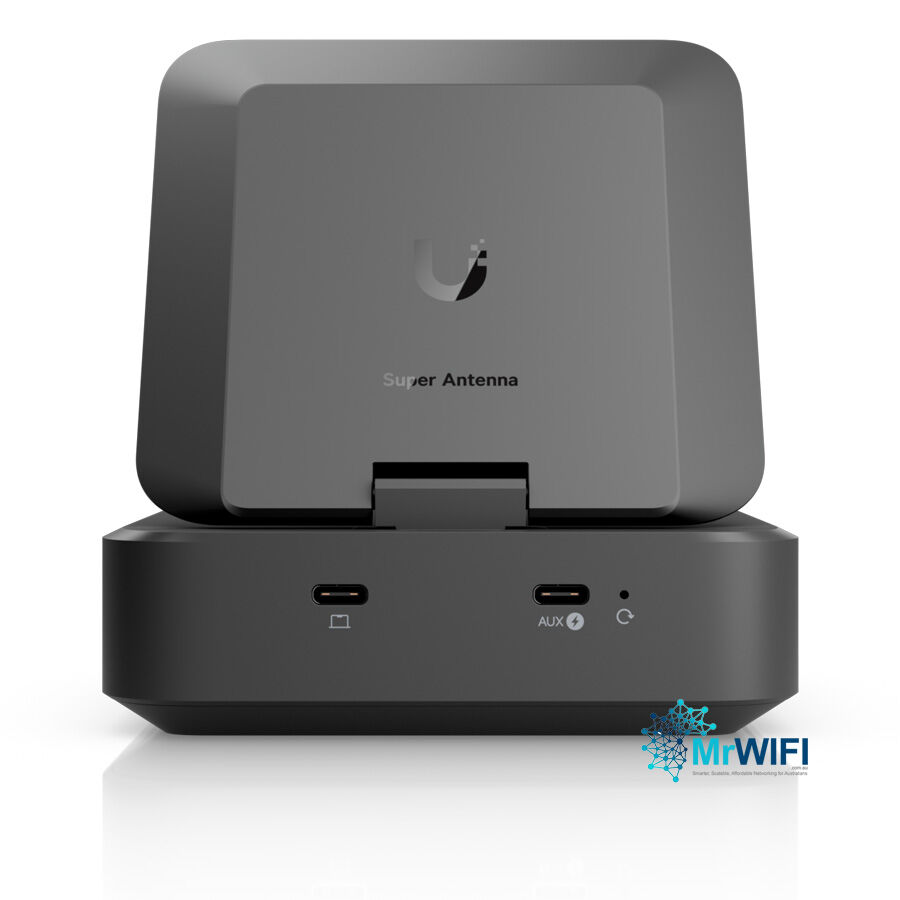

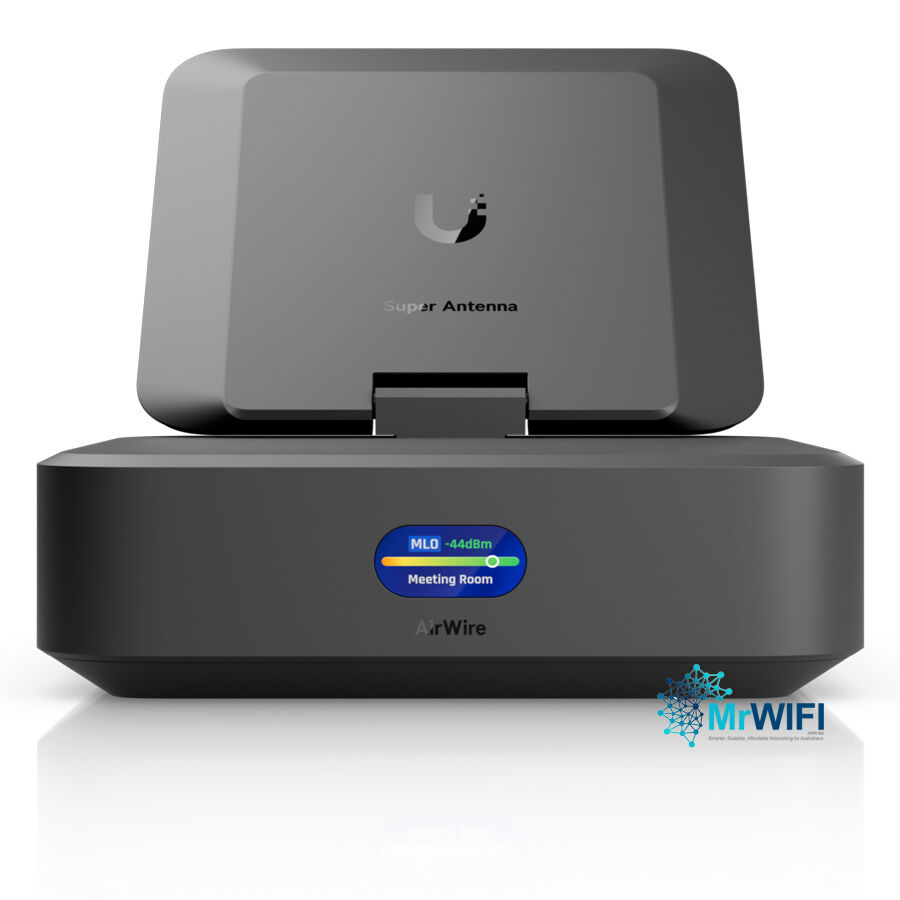

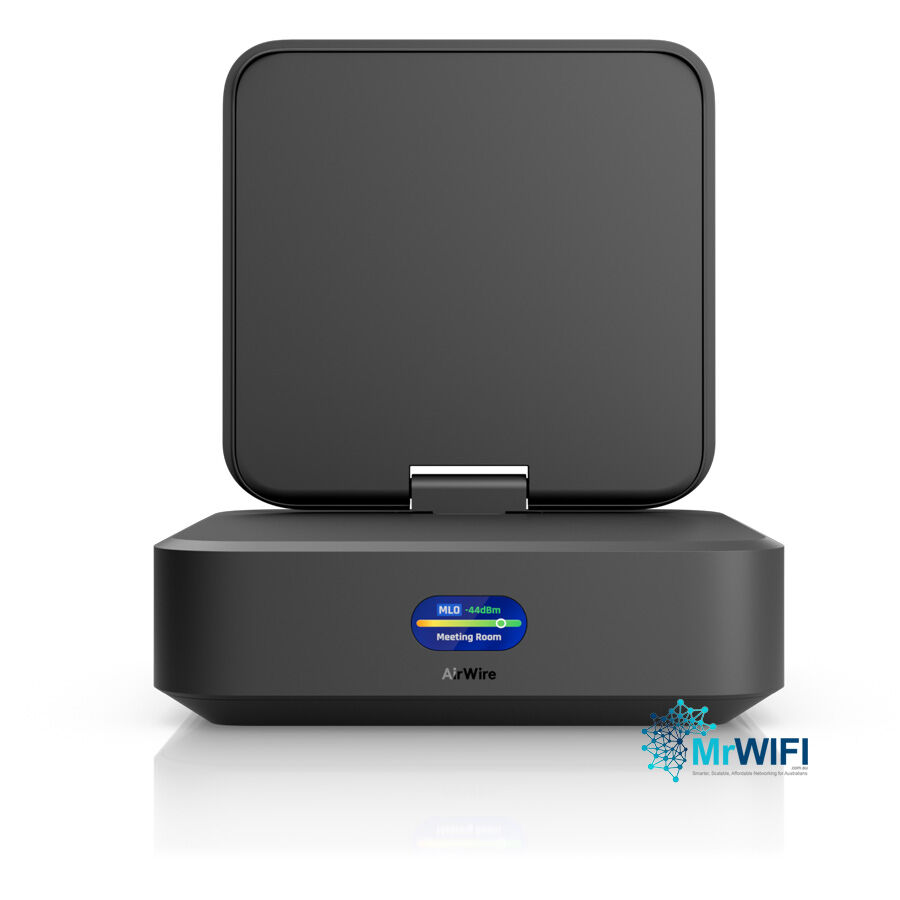

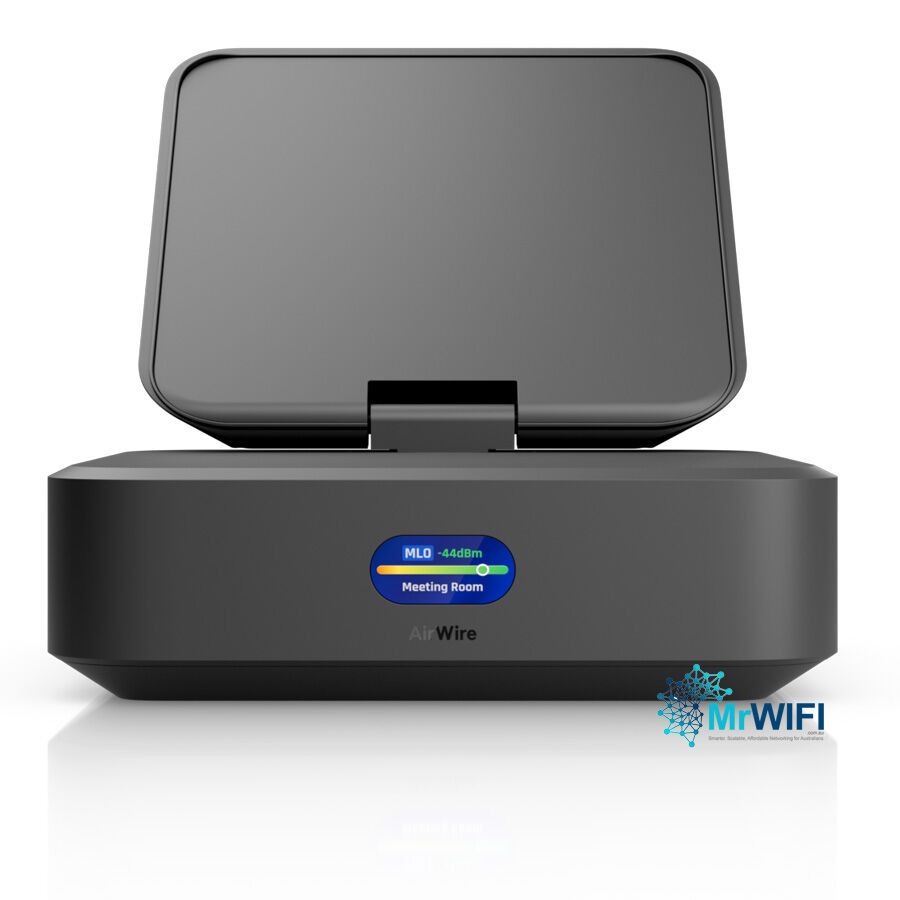

- Super-Antenna System: Includes a built-in directional antenna that can be unfolded and aimed toward the nearest Access Point. Ubiquiti claims up to 3x the usable range compared to standard laptop or desktop WiFi chips.
- Dedicated Scanning Radio: Features an independent radio for real-time spectral analysis, allowing administrators to see RF interference from the exact perspective of the client device.
- UniFi Auto-Link: Integrates directly into the UniFi Network application. It can be "adopted" like an Access Point, ensuring secure, instant onboarding.
Key Technical Specifications
| Feature | Specification |
| Networking Interface | (1) 5 GbE port (USB 3.2 Gen 2) |
| WiFi Standard | WiFi 7 (802.11be) |
| Max. Data Rate | 6 GHz: 5.8 Gbps / 5 GHz: 4.3 Gbps |
| MIMO | 2 x 2 on both 5 GHz and 6 GHz |
| Antenna Gain | 11 dBi (Directional) |
| Power Supply | USB PD (5/9/12V). Needs 15W for Standard; 20W for Performance mode |

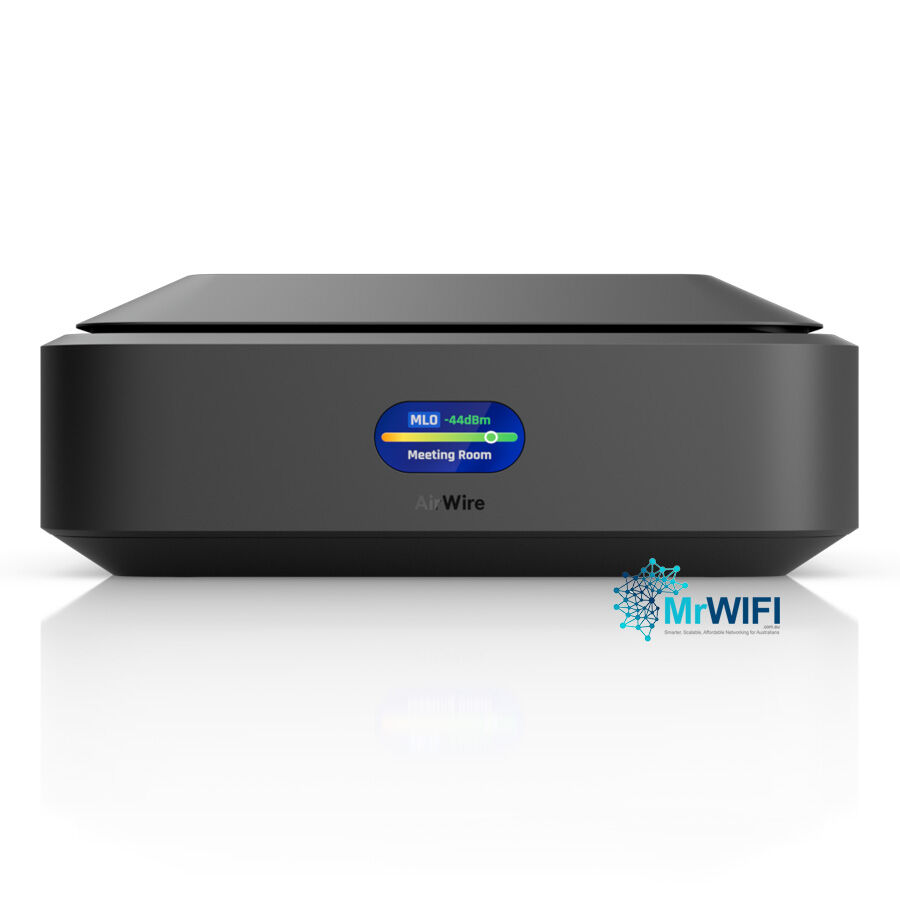

| Display | 0.96" OLED status display |
| Form Factor | Desktop / Portable with integrated stand |
Operational Modes
AirWire performance is power-dependent based on the host device's USB-C output:
- Standard Mode (15W): Operates at roughly 2.5 Gbps full duplex. This is the typical output for most modern laptops.

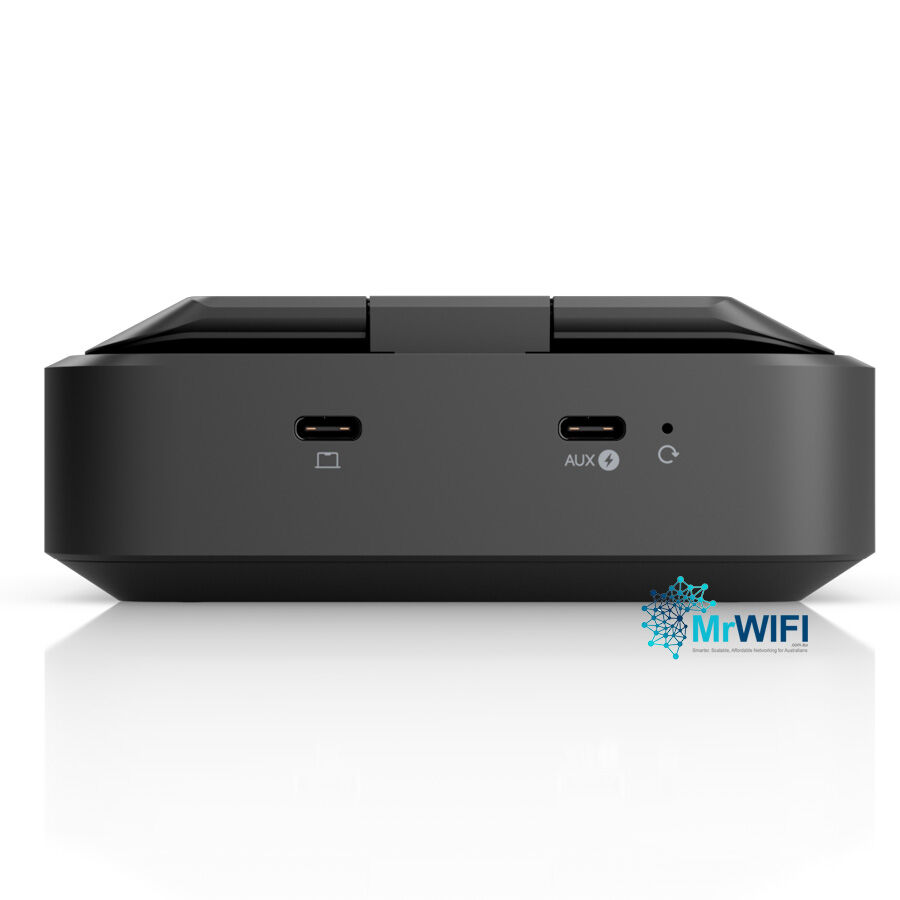

- Enhanced Mode (20W): Unlocks the full 5 Gbps throughput potential. This usually requires a high-power USB-C port on a desktop or an auxiliary power source via the AUX port.
Note: To achieve full STR MLO performance, the AirWire must be paired with a UniFi WiFi 7 Access Point (such as the U7 Pro or U7 Enterprise). It is compatible with older APs but will operate as a standard high-gain WiFi adapter in those cases.

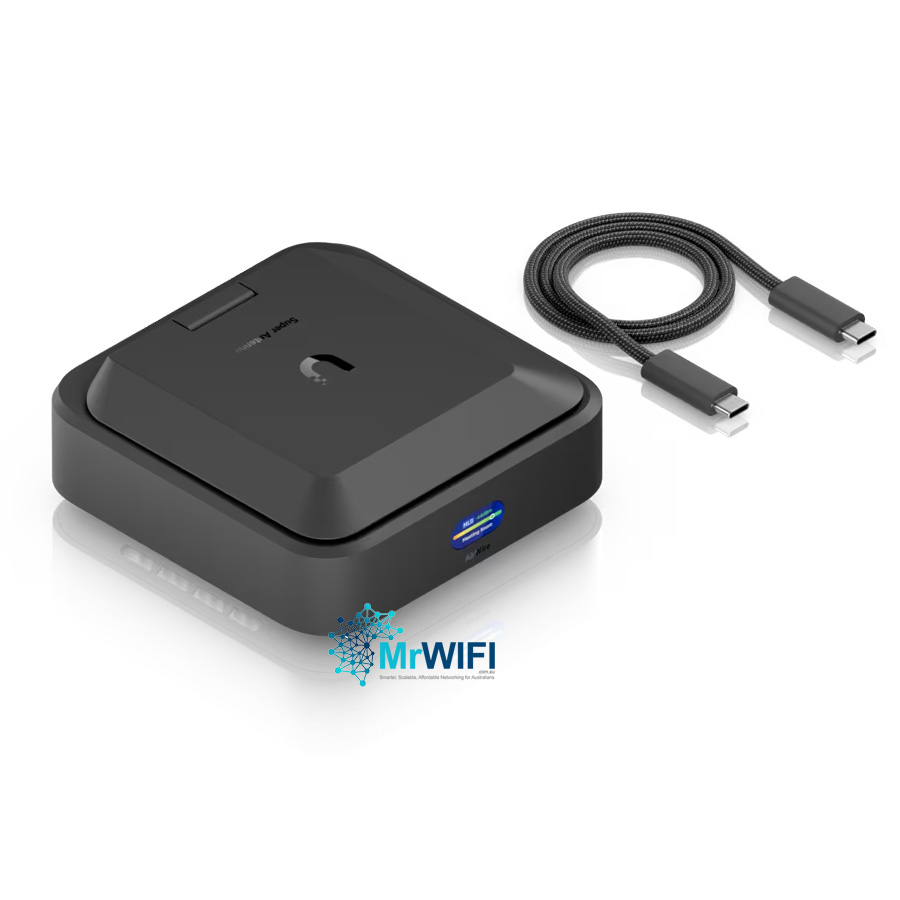

What's In The Box? U-AIRWIRE

UniFi U-AirWire WiFi7 Mesh Bridge- Specifications:
Mechanical & Environmental
| Feature | Specification |
| Dimensions | 117 x 117 x 42.5 mm (4.6 x 4.6 x 1.7") |
| Weight | 537 g (1.2 lb) |
| Enclosure Material | Polycarbonate |
| Display | 0.96" status display |
| Operating Temperature | -10 to 40° C (14 to 104° F) |
| Operating Humidity | 5 to 95% noncondensing |
| Compliance | NDAA Compliant, CE, FCC, IC |
Hardware & Power
| Feature | Specification |
| Networking Interface | (1) 5 GbE port (USB3.2 Gen2) |
| Management | USB-C |
| Power Supply | USB PD 5/9/12V (15W Normal / 20W Performance mode) |
| Max. Power Consumption | 18W |
WiFi & Wireless Performance
| Feature | 5 GHz Band | 6 GHz Band |
| WiFi Standard | WiFi 7 | WiFi 7 |
| MIMO | 2 x 2 (DL/UL MU-MIMO) | 2 x 2 (DL/UL MU-MIMO) |
| Max. Data Rate | 4.3 Gbps (BW240) | 5.8 Gbps (BW320) |
| Antenna Gain | 11 dBi | 11 dBi |
| Max. TX Power | 25 dBm | 20 dBm |
| Spatial Streams | 2 | 2 |
| Wireless Meshing | Yes | Yes |
Networking Support
| Feature | Specification |
| Channel Bandwidth | 20, 40, 80, 160, 240, 320 MHz |
| Spectral Analysis | Real-Time Spectral Analysis supported |
| Uplink | WiFi |
Supported Data Rates
| Standard | Supported Rates |
| 802.11be (WiFi 7) | 7.3 Mbps to 5.8 Gbps (MCS0 - MCS13 NSS1/2, EHT 20/40/80/160/320) |
| 802.11ax (WiFi 6) | 7.3 Mbps to 2.4 Gbps (MCS0 - MCS11 NSS1/2, HE 20/40/80/160) |
| 802.11ac (WiFi 5) | 6.5 Mbps to 1.7 Gbps (MCS0 - MCS9 NSS1/2, VHT 20/40/80/160) |
| 802.11n | 6.5 Mbps to 300 Mbps (MCS0 - MCS15, HT 20/40) |
Shipping Specifications | |
| SKU | |
| SKU | U-AIRWIRE |
| Model # | U-AirWire |
| Brand | Ubiquiti |
| Shipping Weight | 0.1000kg |
| Shipping Width | 0.085m |
| Shipping Height | 0.020m |
| Shipping Length | 0.110m |
| Shipping Cubic | 0.000187000m3 |
| Unit Of Measure | ea |
UniFi U-AirWire WiFi7 Mesh Bridge- Documents
