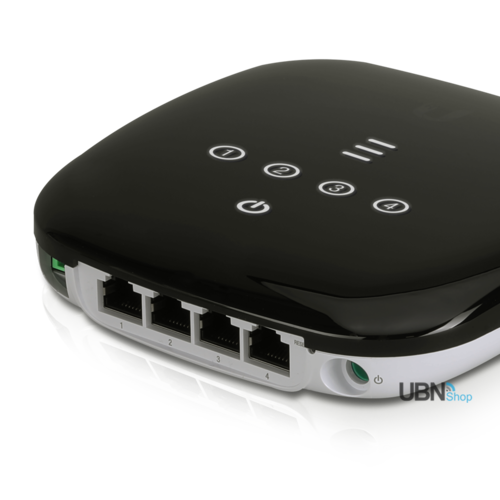

4-Port GPON Router with Wi-Fi



UF-WIFI is a Gigabit Passive Optical Network CPE with built-in WiFi and multiple VLAN-aware switch ports.

Sporting a sleek industrial design, the U Fiber WiFi is a robust, high‑performance GPON CPE that features an informational LED display with 4 Ethernet ports and WiFi.

Features:

  • High-Performance GPON CPE
  • GPON WAN Port SC/APC Fiber Connector
  • 4-Port RJ45 10/100/1000 VLAN-aware Switch
  • 802.11n WiFi
  • LED diodes for easy diagnostics
  • Up to 2.4 Gbps Downstream and 1.2 Gbps Upstream
  • Powerful Layer 2/3 Management Features*

Router mode coming soon*

List of Supported 3rd Party OLT's - Click Here

U Fiber Nano GPON with WiFi



Pack Includes:

  • 1 x Ubiquiti Fiber Nano WiFi
  • 4 x Screws
  • 4 x Screw Anchors
  • 1 x Power Adapter (24V, 0.5A)
  • Quick Start Guide

U Fiber WiFi - Specifications

UFiber WiFi (Model: UF-WIFI)
Dimensions 126.34 x 126.09 x 31.65 mm
(4.97 x 4.96 x 1.25")
Weight 190 g (6.70 oz)
Networking Interfaces (1) SC/APC, GPON WAN
(4) Gigabit RJ45, Ethernet LAN
(1) Wi-Fi, 802.11n
Networking Interface Speeds
GPON WAN, ITU G.984

GbE LAN
Wi-Fi

2.488 Gbps Downstream
1.244 Gbps Upstream
10/100/1000 Mbps
300 Mbps
Management Interface In-Band Ethernet/PON
Normal Optical Power Range TX (Class B+): 1.5 to 5 dBm
RX: -28 to -8 dBm
Power Method DC Jack, 24VDC
24V Passive PoE (Pins 4, 5+; 7, 8-)
Power Supply 100-240VAC / 50-60 Hz Universal AC/DC
Power Adapter: 24V / 0.5A
Max. Power Consumption 7W
Supported Voltage Range 20 to 28V
Processor Specs MIPS, 900 MHz
Memory Information 256 MB DDR
Buttons (1) Reset
Operating Temperature -10 to 45° C (14 to 113° F)
Operating Humidity 10 to 90% Noncondensing
Certifications CE, FCC, IC

Shipping Specifications

SKU UF-WIFI
Model # UF-WIFI
Barcode # 8.18E+11
Brand Ubiquiti
Shipping Weight 0.2000kg
Shipping Width 0.080m
Shipping Height 0.030m
Shipping Length 0.080m
Shipping Cubic 0.000192000m3
Unit Of Measure ea
