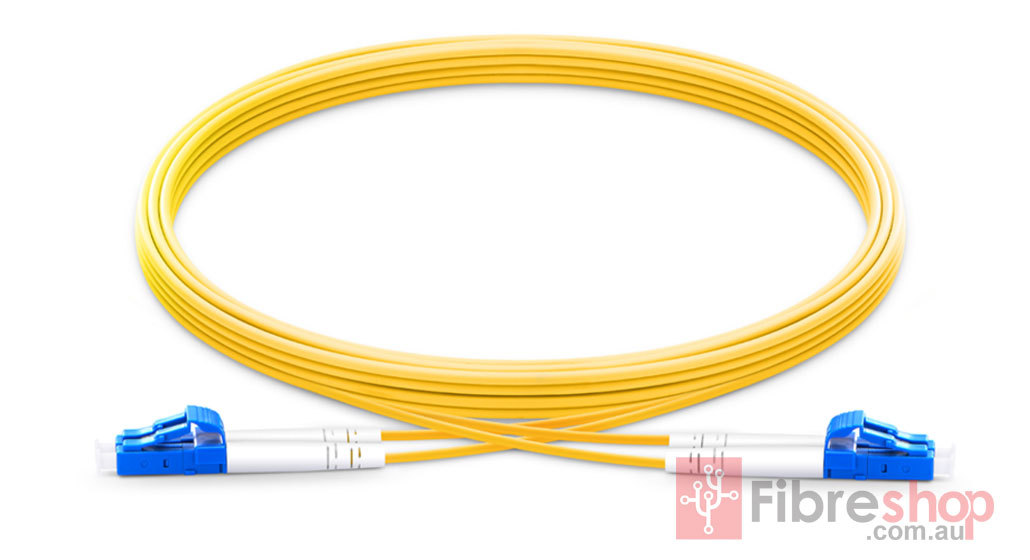

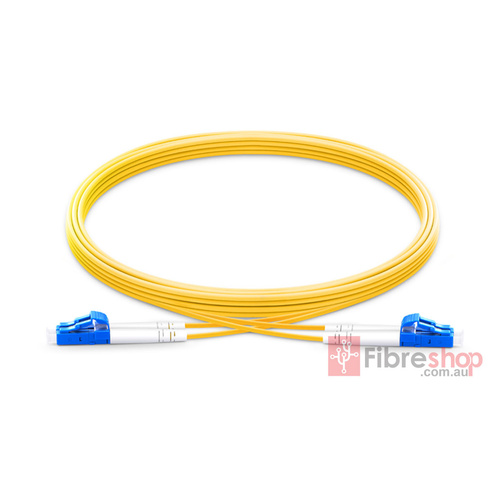

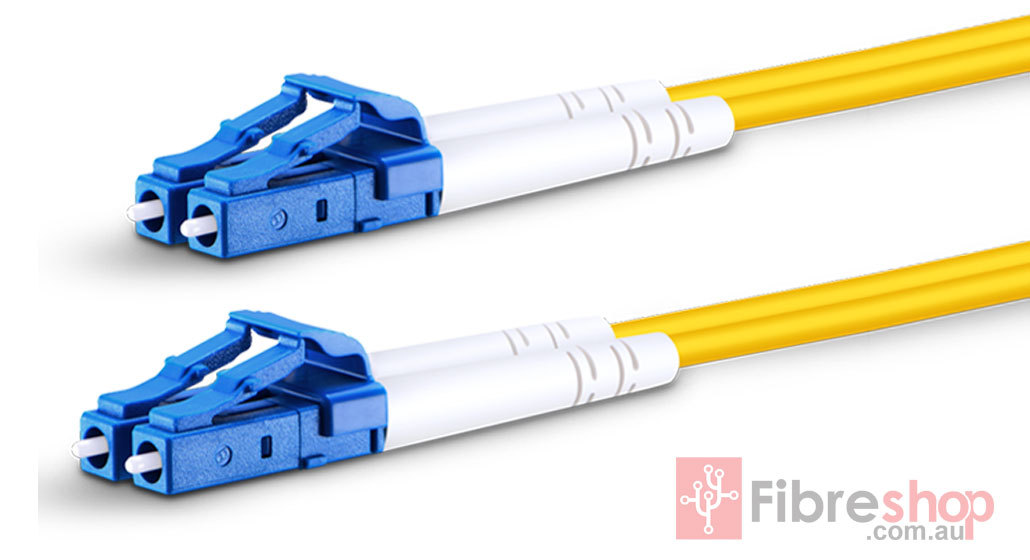

Fibre Patch Cable Single Mode 1M LC UPC to LC UPC Duplex 2.0mm OFNP 9/125
FS-SM-LCU-LCU-DX-OFNP-1M
$27.95
In Stock
ALTERNATE PRODUCT:
FS-SM-LCU-LCU-DX-OFNP-2M-2M LC UPC to LC UPC Duplex 2.0mm OFNP 9/125 Single Mode Fibre Patch Cable
In Stock: YES
High Quality and Cost-effective 9/125μm Singlemode Fibre Patch Cable
The 9/125μm single mode fibre patch cable meets RoHS compliant, and all cables are 100% optically tested for insertion loss to ensure high quality, it is very cost-effective for network cabling.
| Connector | LC to LC | Jacket OD | 2.0mm |
| Fibre Mode | 9/125μm | Jacket Color | Yellow |
| Polish | UPC to UPC | Wavelength | 1310/1550nm |
| Fibre Type | Duplex | Jacket Material | OFNP |
| Insertion loss | ≤0.3dB | Interchangeability | ≤0.2dB |
| Return loss | ≥50dB | Vibration | ≤0.2dB |
| Operating temperature | -40~75°C | Storage temperature | -45~85°C |
| Polarity | A(Tx) to B(Rx) | Fibre Grade | G652D |
(FS-SM-LCU-LCU-DX-OFNP)
| SKU | FS-SM-LCU-LCU-DX-OFNP |
| Model # | FS-SM-LCU-LCU-DX-OFNP |
| Brand | FibreShop |
| Shipping Weight | 0.0280kg |
| Shipping Width | 0.010m |
| Shipping Height | 0.020m |
| Shipping Length | 0.020m |
| Shipping Cubic | 0.000004000m3 |
| Unit Of Measure | ea |
