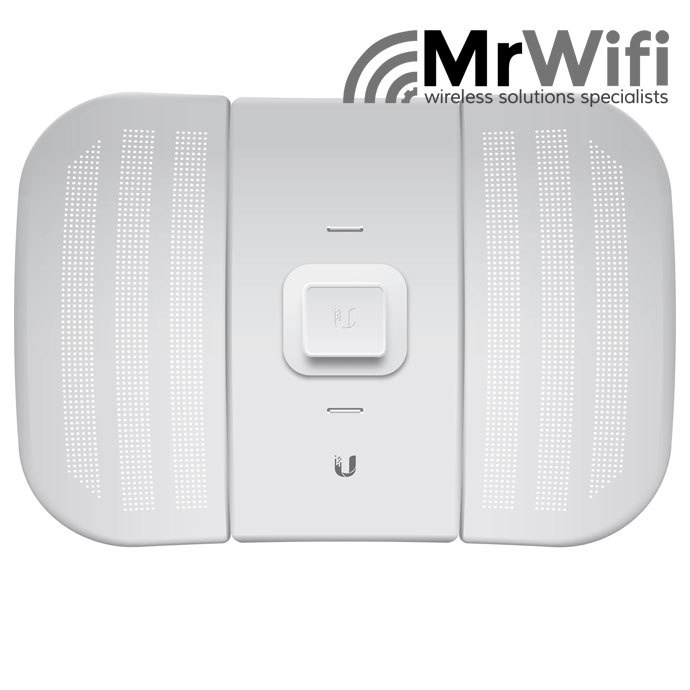

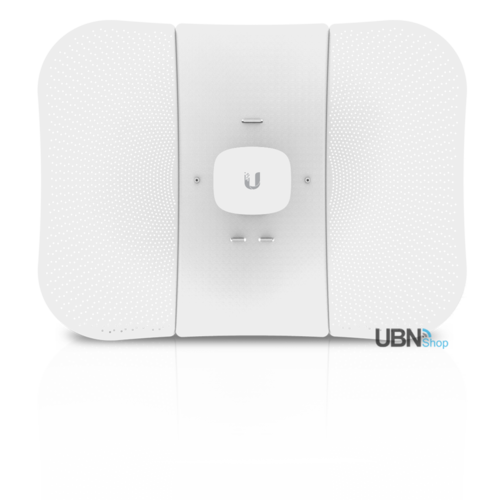

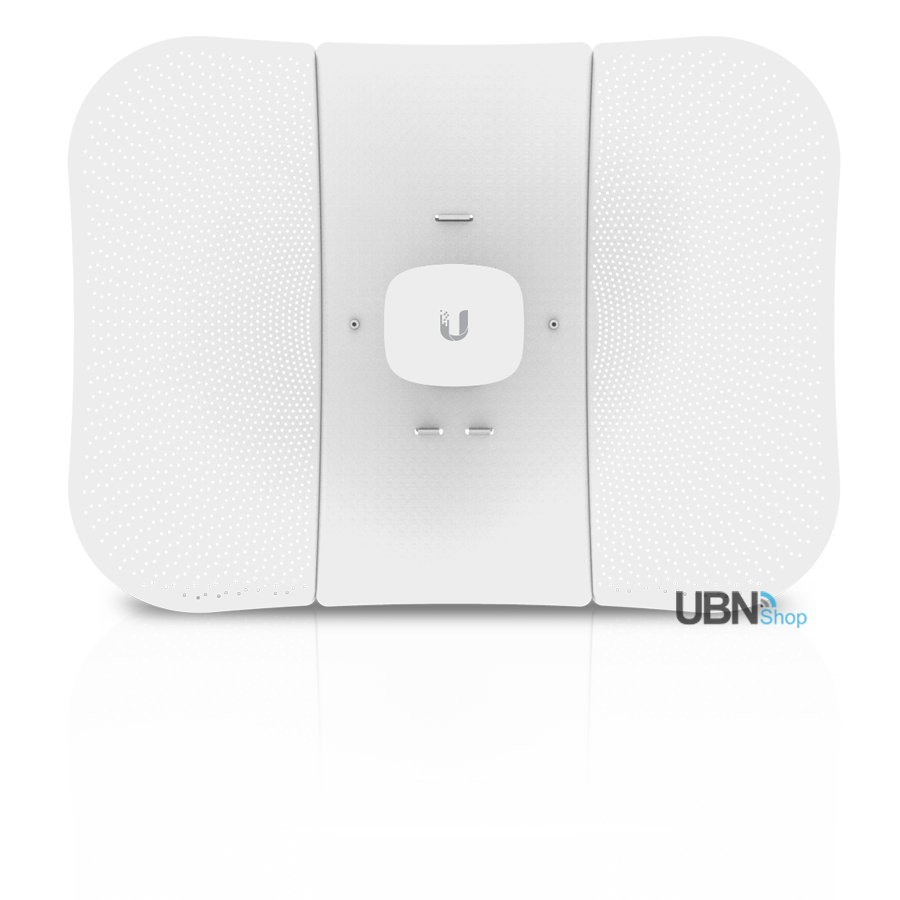

LiteBeam AC Gen2 Long Range

LBE‑5AC‑LR

$232.38
In Stock

2x2 MIMO airMAX® ac CPE Long Range



The LiteBeam® AC is an ultra-lightweight airMAX ac CPE device with incredible range and disruptive pricing. It also offers the freedom of three-axis alignment, the LiteBeam® AC fully assembles in seconds – no tools needed. Only a single wrench is required for pole-mounting. A lightweight form factor contained within ultra-compact packaging, the LiteBeam® AC is ideal for shipping and logistics.

Improved Mounting and Surge Protection
Featuring enhanced protection against ESD events, the LiteBeam® AC offers a more robust mount with separate azimuth and elevation adjustments.

High-Gain, Directional, 2x2 MIMO Antenna -
The LiteBeam® AC LR provides 26 dBi of gain for long-distance connectivity and uses a directional antenna pattern for improved noise immunity.









Breakthrough Industrial Design
Featuring the freedom of three-axis alignment, the LiteBeam® AC fully assembles in seconds – no tools needed. Only a single wrench is required for pole-mounting.

(LBE-5AC-LR)

LiteBeam 5AC LR - Specifications

Package Includes

  • 1 x Antenna Feed
  • 1 x Center Reflector Panel
  • 2 x Side Reflector Panels
  • 1 x Feed Receiver
  • 1 x Azimuth Mount
  • 1 x Elevation Mount
  • 1 x Metal Strap
  • 1 x Knob Kit
  • 1 x Gigabit PoE (24V, 0.3A) with Mounting Bracket
  • 1 x Power Cord
  • Quick Start Guide

LiteBeam 5AC LR - Specifications

LITEBEAM LBE-5AC-LR
Dimensions 512.5 x 385.75 x 258.3 mm (20.18 x 15.19 x 10.17")
Weight
With Mount:
Without Mount:

1.360 kg (2.998 lb)
1.735 kg (3.825 lb)
Networking Interface (1) 10/100/1000 Ethernet Port
Gain 26 dBi
Max. Power Output 25 dBm
Max. Power Consumption 7W
Power Supply 24V, 0.3A Gigabit PoE Adapter (Included)
Power Method Passive PoE (Pairs 4, 5+; 7, 8 Return)
Supported Voltage Range 24V ± 10%
Processor Specs MIPS 74Kc
Memory 64 MB DDR2
LED's Power, Ethernet
Enclosure Characteristics Reflector (Aluminum) / Plastic: PC
Mounting Pole-Mounting Kit (Included)
ESD/EMP Protection ± 24 kV Contact / Air
Operating Temperature -40 to 70° C (-40 to 158° F)
Operating Humidity 5 to 95% Noncondensing
Certifications CE, FCC, IC
Wind Survivability 200 km/h (125 mph)
Wind Loading 550 N @ 200 km/h (123.6 lbf @ 125 mph)
Operating Frequency Worldwide: 5150-5875 MHz
USA: U-NII-1: 5150 - 5250, U-NII-2-A: 5250 - 5350 MHz, U-NII-2C: 5470 - 5725 MHz, U-NII-3: 5725 - 5850 MHz



Shipping Specifications



SKU LBE-5AC-LR
Model # LBE‑5AC‑LR
Barcode # 817882026345
Brand Ubiquiti
Shipping Weight 1.2000kg
Shipping Width 0.170m
Shipping Height 0.126m
Shipping Length 0.312m
Shipping Cubic 0.006683000m3
Unit Of Measure ea
