Blackhawk Omni Trucker EDGE Antenna 4.6/6.3dBi 95cm White

ANT-BH-OM-202TW

$299.95
Sold Out - Backorder Available

Antenna Colour

BLACKHAWK TRUCKER EDGE 698-2100 6/8DBI ANTENNA V1.8 – ROBUST THREAD (95CM)



The Trucker Edge Antenna is designed to provide optimal gain across 3G and 4G bands used when travelling throughout Australia & abroad. This powerful bulbar antenna provides the optimum 6 dBi gain, providing best performance in both flat remote areas and when travelling amongst hills and tall trees.

As a bulbar mounted antenna the Trucker Edge sports an extra-heavy-duty stainless-steel bell-spring for rough corrugations and a strong tapered fiberglass radome that provides consistent radiative performance in all directions. The antenna has a 4.5 meter PTL-240 Ultra-Flex cable which is an industry-standard for high vibration mining machinery and industrial plant and provides the lowest per-meter loss of all similar sized coaxial cables.

The antenna has been optimised for the cellular Low Band (700 to 960 MHz) which is used by all network operators as the primary band for voice & data services. With the coming 3G switch-off, Trucker Edge is built ready for 5G (NR850).

Features

  • Length 95cm Blackhawk Omni Trucker Edge Antenna.
  • Optimum 6 dBi gain for flat and hilly areas
  • Extra heavy-duty stainless steel spring
  • High vibration PTL-240 Ultra-Flex cabling
  • 4.5 metres of cable with an industry standard SMA Male connector
  • Suitable for outdoor sheds, caravans, motor homes and freight vehicles
  • Ideal antenna for the Cel-Fi GO vehicle booster.
  • The 68cm Blackhawk Omni Trucker Edge COMPACT is also available as a shorter alternative.





(ANT-BH-OM-202)

Blackhawk Omni Trucker Antenna

Pack Includes:

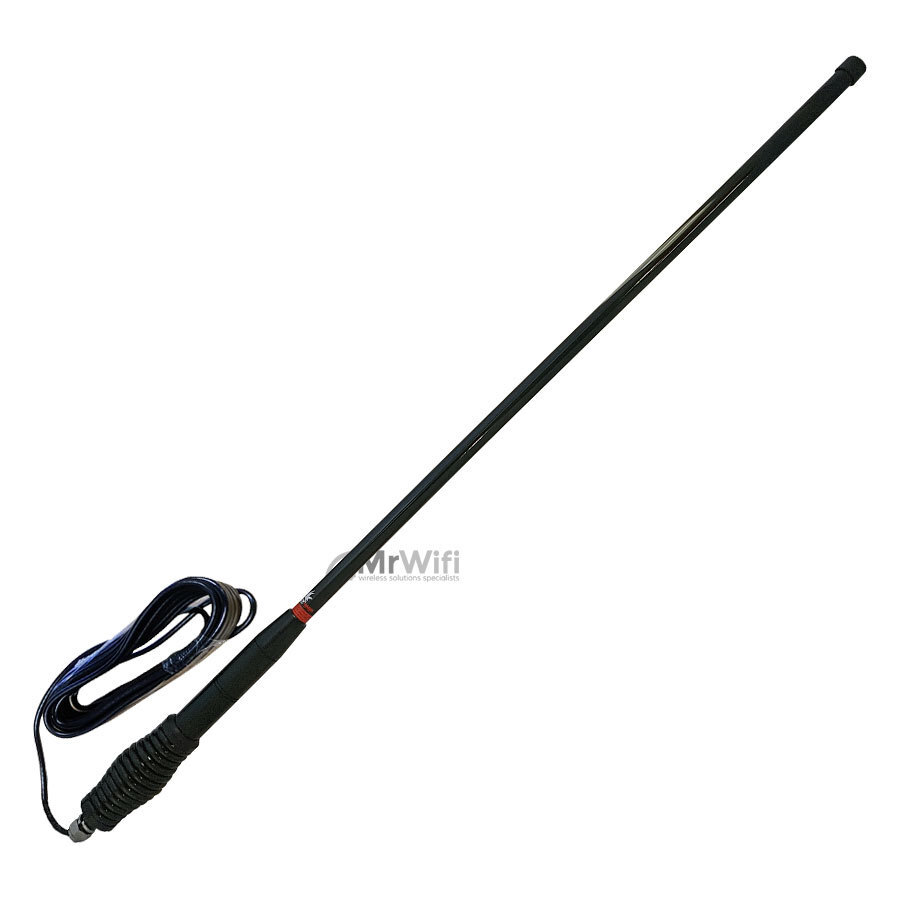

  • Blackhawk Omni Trucker Antenna 95cm (Black or White)



Blackhawk Omni Trucker EDGE Antenna - Specifications

NETWORK COMPATABILITY
Network Bandwidth Coverage Gain
Telstra 4GX 700 MHz Yes 6 dBi
Telstra Next-G 850 MHz Yes 6 dBi
Telstra 4G 1800 MHz Yes 8 dBi
Telstra 3G (Metro) 2100 MHz Yes 8 dBi
Telstra 4G (Metro) 2600 MHz No -

Optus 4G+ 700 MHz Yes 6 dBi
Optus 3G 900 MHz Yes 6 dBi
Optus 4G 1800 MHz Yes 6 dBi
Optus 3G (Metro) 2100 MHz Yes 6 dBi
Optus 4G TDD 2300 MHz No -
Optus 4G (Metro) 2600 MHz No -

Vodafone 4G+ 850 MHz Yes 6 dBi
Vodafone 3G 900 MHz Yes 6 dBi
Vodafone 4G 1800 MHz Yes 8 dBi
Vodafone 3G (Metro) 2100 MHz Yes 8 dBi
ELECTRICAL SPECIFICATIONS
Frequency Range 698-960 MHz / 1710-2100 MHz
Input Impedance 50 Ω
Peak Gain 6 / 8 dBi
VSWR ≤3.0:1 / ≤2.0:1
Polarisation Vertical, Linear
Horizontal Beamwidth 360° (omnidirectional)
Vertical Beamwidth 22 / 12°
Maximum Input Power 50 W
MECHANICAL SPECIFICATIONS
Input Connector SMA Male
Cable 4 m PT240 cable
Lightning Protection DC Ground
Antenna Construction Fibreglass radome, heavy duty spring base
Mounting L bracket for fender mounting
Dimensions 950 x Ø20 mm
Weight 1.8 kg
Rated Wind Velocity 210 km/h
Operating Temperature -40 to +65°C
Antenna Color Black or White



Shipping Specifications

SKU ANT-BH-OM-202
Model # ANT-BH-OM-202
Brand Blackhawk
Shipping Weight 3.0000kg
Shipping Width 0.080m
Shipping Height 0.080m
Shipping Length 0.980m
Shipping Cubic 0.006272000m3
Unit Of Measure ea
