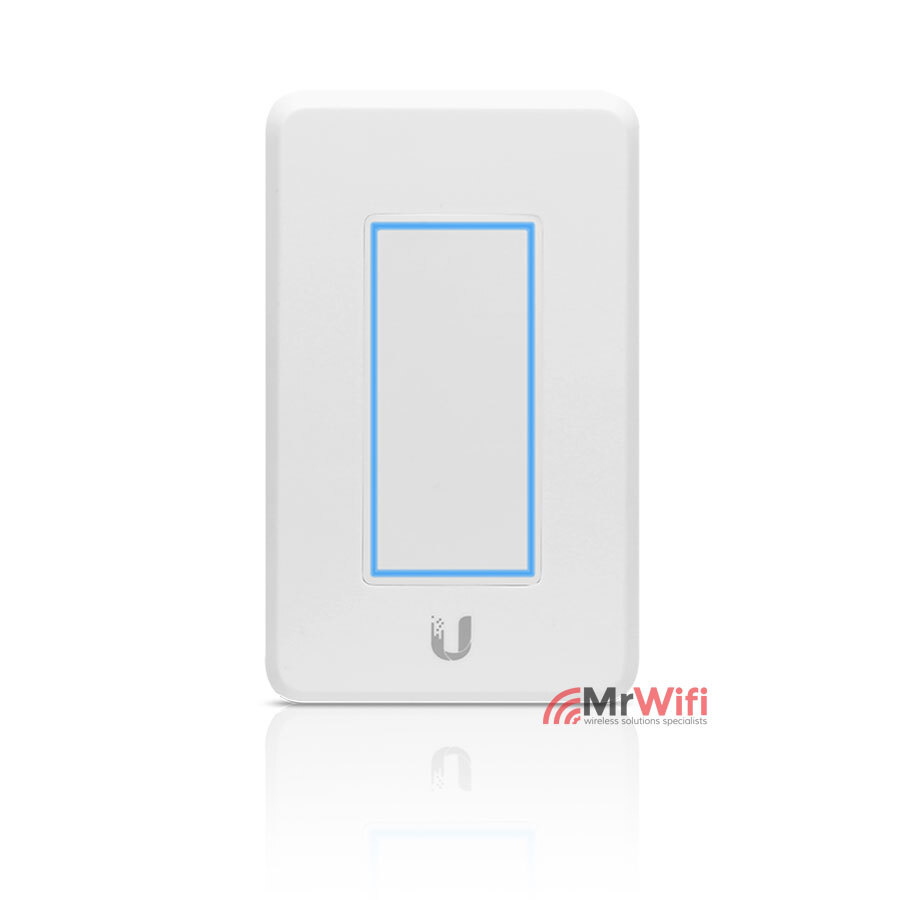

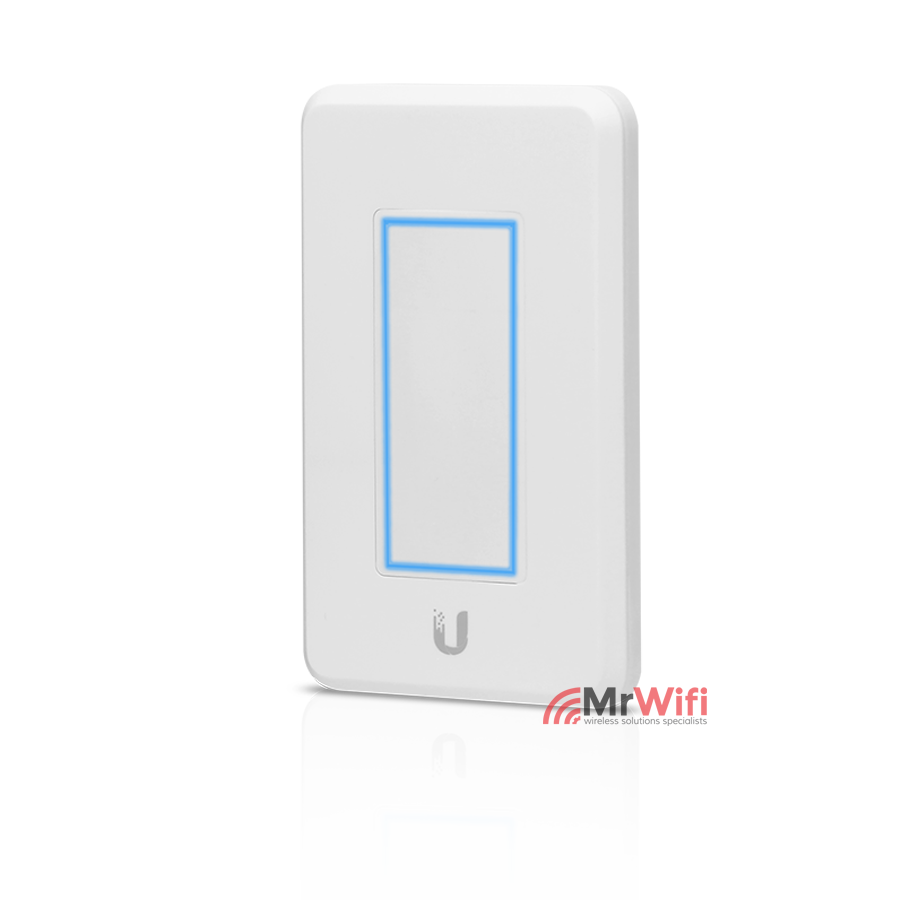

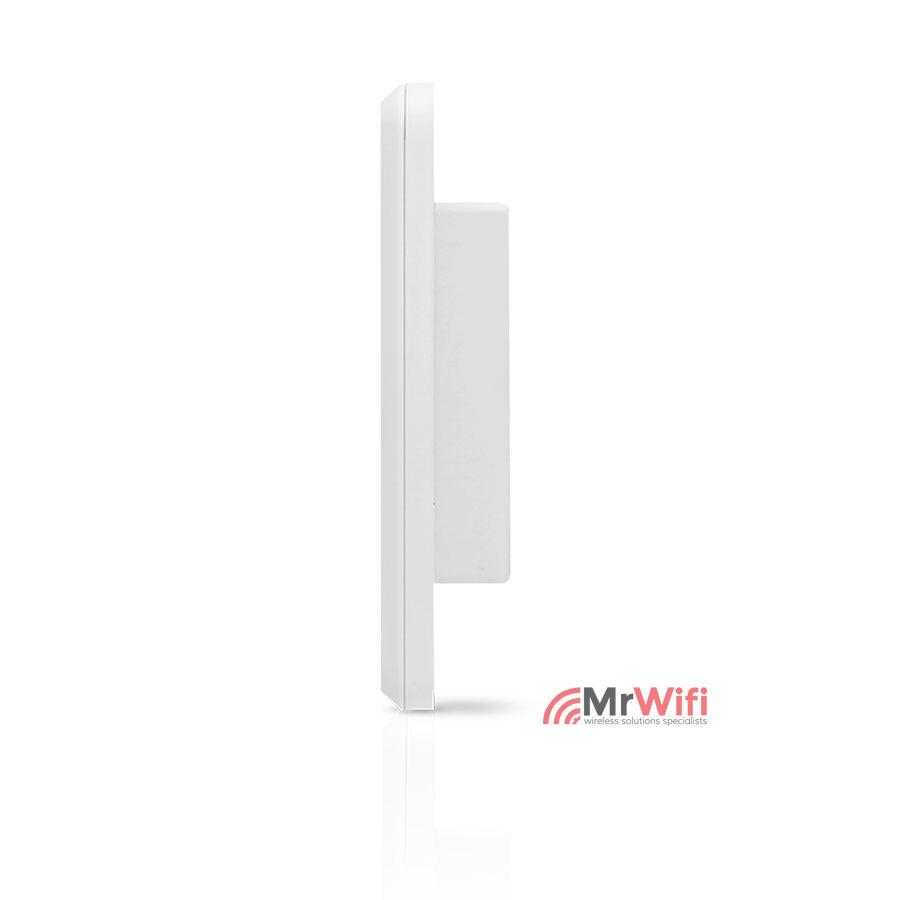

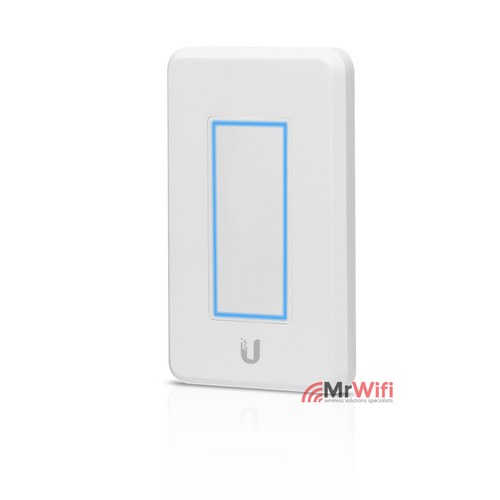

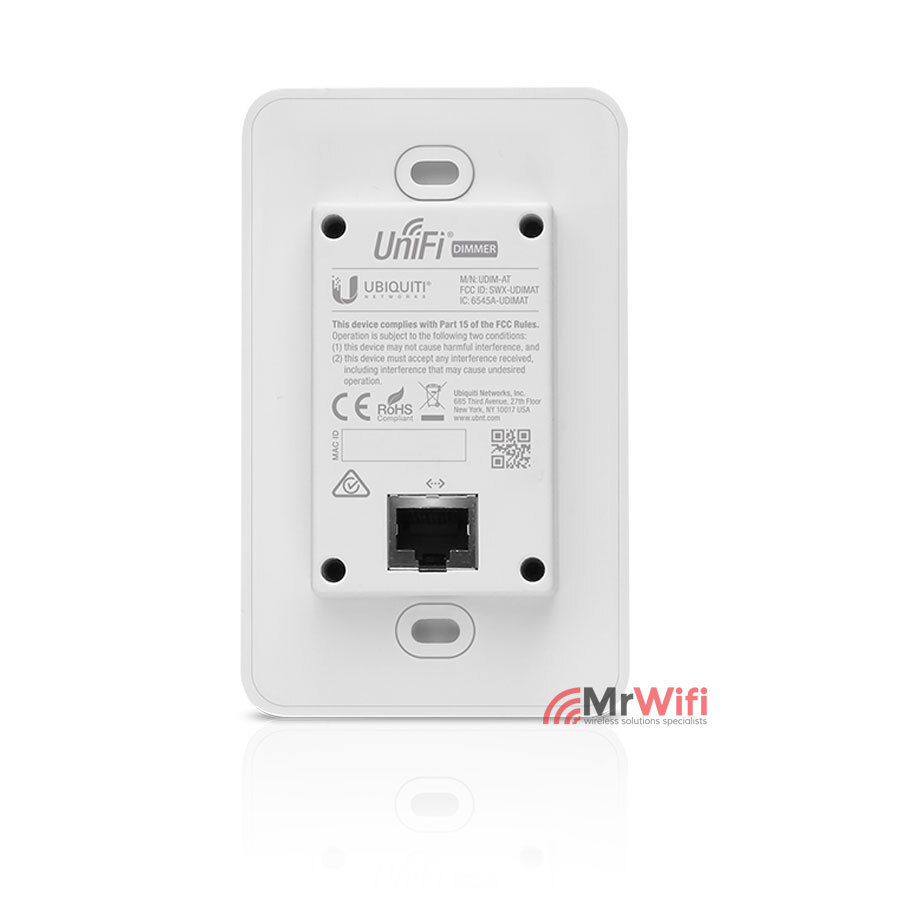

Ubiquiti UniFi Light Dimmer for UniFi LED Lights, PoE Powered
UDIM-AT
$79.15
Sold Out
Ubiquiti UniFi Light Dimmer for unifi LED lights, PoE Powered
The UniFi Dimmer is a smart in-wall dimmer switch for use with the UniFi LED Lighting System. Powered by PoE, the UDIM-AT is designed to fit in an electrical switch box and networked by Ethernet. Use the intuitive UniFi LED App and EoT Controller to configure the UDIM-AT to control a defined group of UniFi LED Lights.
Features -
- Powered by 802.3af PoE
- Configured and Managed by UniFi LED App and UniFi LED Controller
- For Use with the UniFi LED Lighting System
- Configure and Control Multiple UniFi LED Lights
- Physical On/Off and Dimming Features
- Fits 1-Gang In-Wall Electrical Box
Network-Managed LED Lighting Panel and Dimmer Switch PoE Powered
Ubiquiti Networks introduces the ultimate in lighting efficiency and convenience.
Ubiquiti Networks introduces the ultimate in lighting efficiency and convenience.
Control Flexibility with UniFi LED Lighting Controller
Control remotely using the UniFi LED Controller or UniFi LED app, or control locally using the UniFi Dimmer Switch.
Control remotely using the UniFi LED Controller or UniFi LED app, or control locally using the UniFi Dimmer Switch.
(UDIM-AT)
Ubiquiti UniFi Light Dimmer for UniFi LED lights, PoE Powered
Pack Includes:
- 1 x Ubiquiti UniFi Light Dimmer for UniFi LED lights, PoE Powered
- Quick Start Guide
Ubiquiti UniFi Light Dimmer for UniFi LED lights, PoE Powered - Specifications
| UniFi Dimmer Switch | |
| UDIM-AT | |
| Dimensions | 71 x 115 x 25 mm (2.8 x 4.53 x 0.98") |
| Weight | 90 g (3.2 oz) |
| Management Interface | UniFi LED Controller UniFi LED App |
| Networking Interface | 10/100 Ethernet Port |
| Buttons | Reset |
| LEDs | Status |
| Power Method | 802.3af PoE |
| Power Supply | UniFi Switch (802.3af) |
| Supported Voltage Range | 48V |
| Max. Power Consumption | 5W |
| Max. LED Panels per Dimmer Switch | 128 (Recommended) |
| Operating Temperature | 0 to 40° C (32 to 104° F) |
| Operating Humidity | 10 to 90% Noncondensing |
| Certifications | CE, FCC, IC |
Shipping Specifications
| SKU | UDIM-AT |
| Model # | UDIM-AT |
| Brand | Ubiquiti |
| Shipping Weight | 0.1100kg |
| Shipping Width | 0.076m |
| Shipping Height | 0.030m |
| Shipping Length | 0.120m |
| Shipping Cubic | 0.000274000m3 |
| Unit Of Measure | ea |
Ubiquiti UniFi Light Dimmer for UniFi LED lights, PoE Powered - Documents
Datasheet ULED
Quick Start Guide UDIM-ATBe The First To Review This Product!
