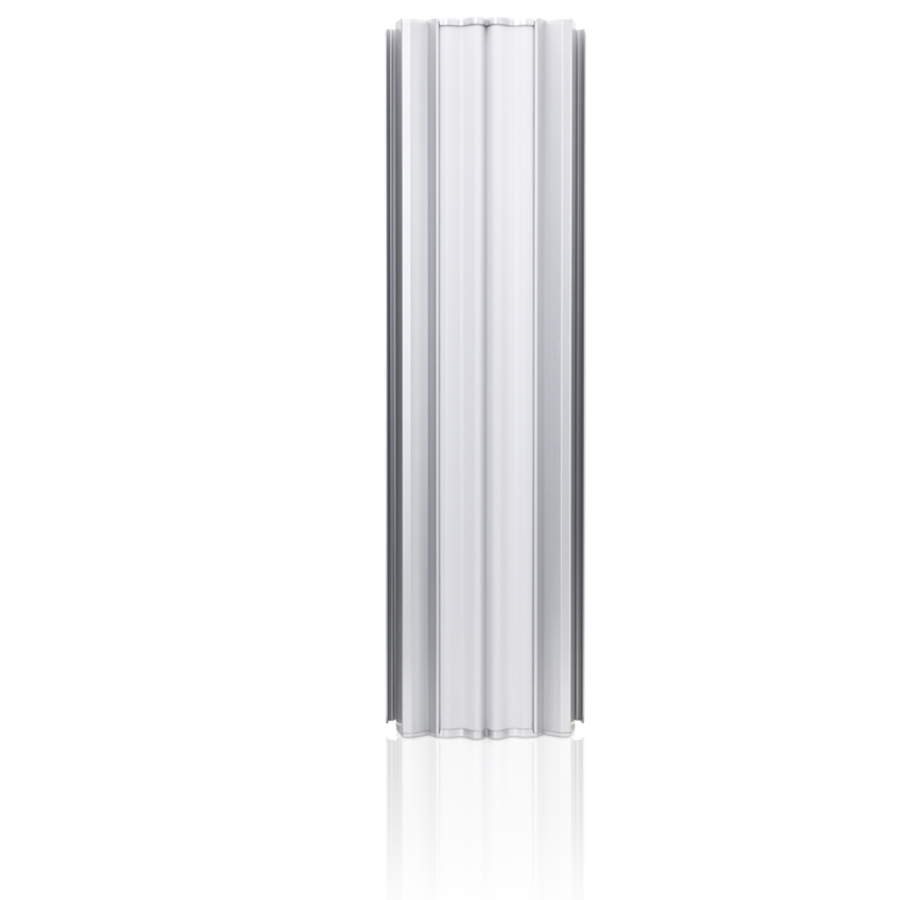

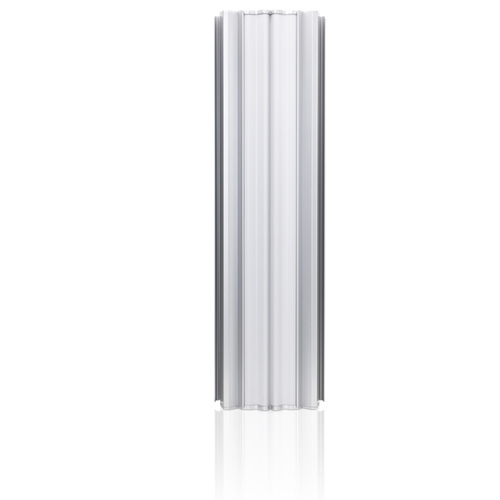

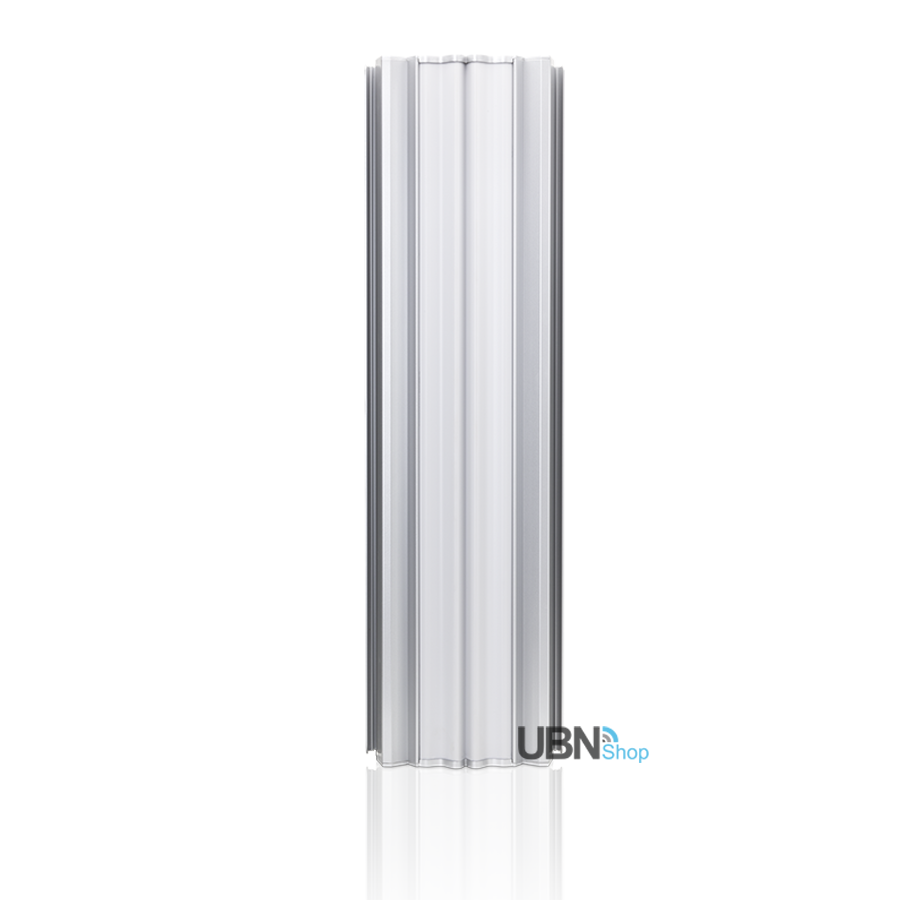

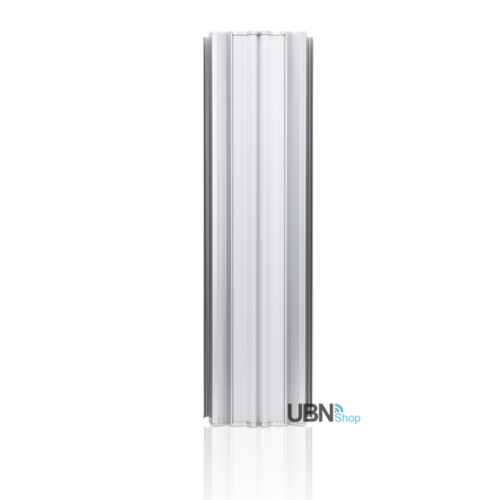

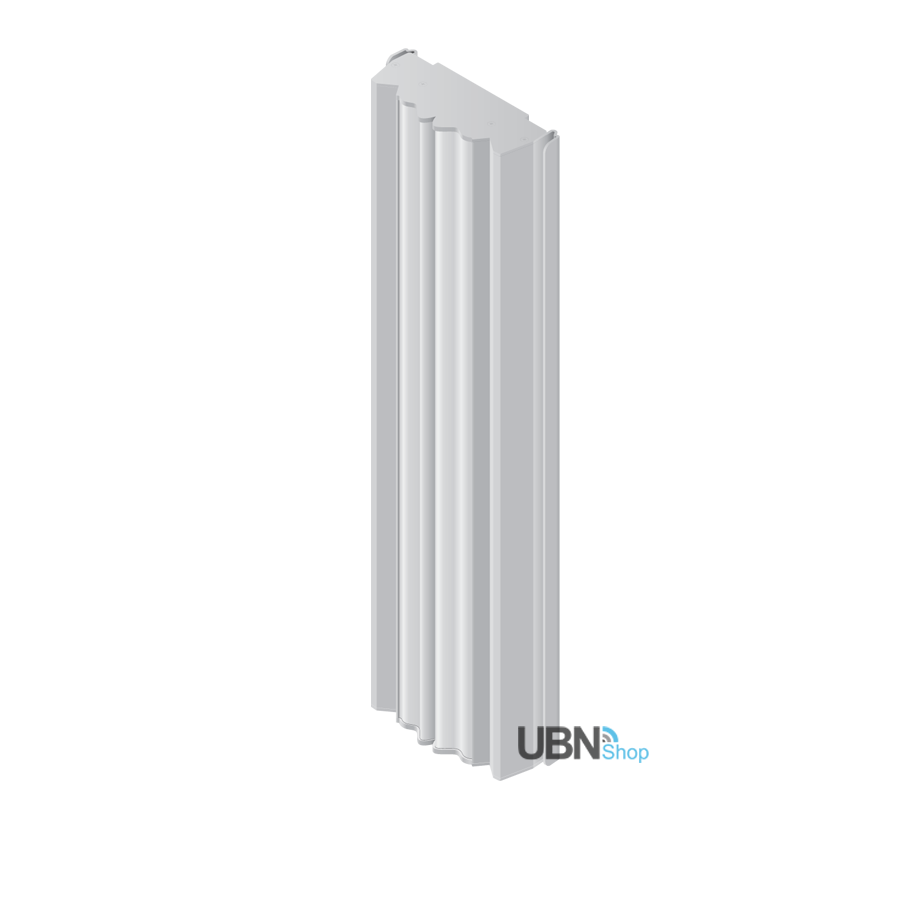

airMAX 5AC 22dBi 45° Sector Antenna
AM‑5AC22-45
airMAX® ac 2x2 BaseStation Sector Antenna

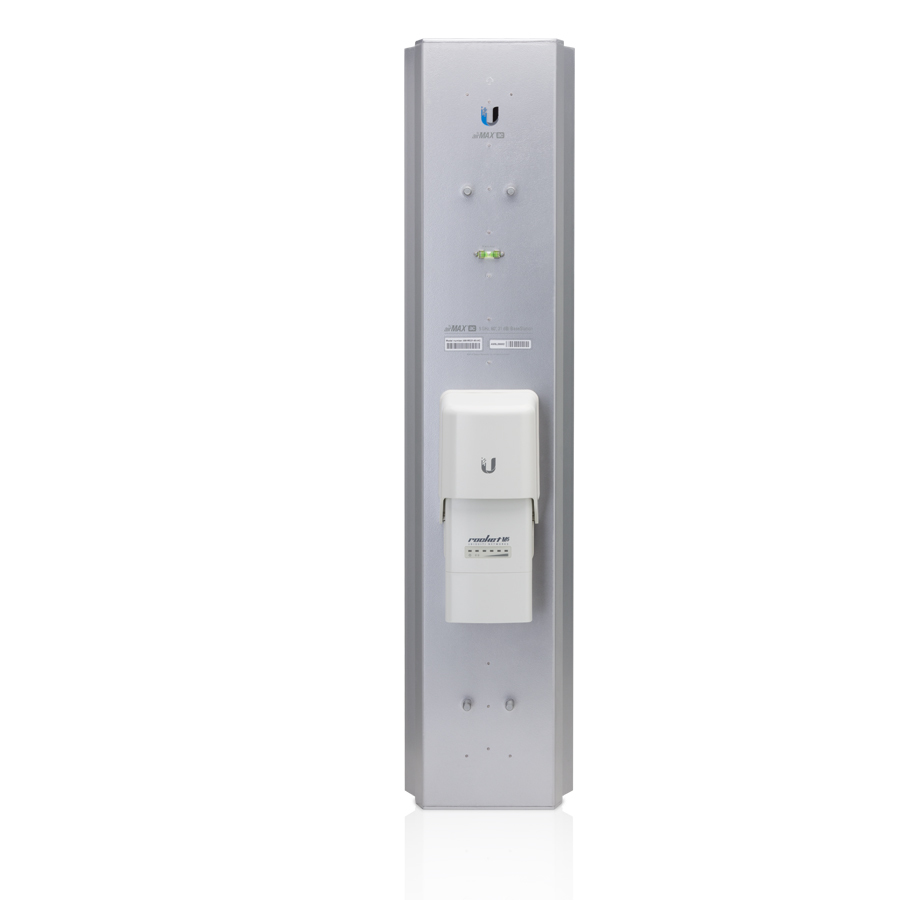

As the next generation of 2x2 MIMO sector antennas from Ubiquiti Networks, the airMAX® ac Sector Antennas feature significant advances in scalability, noise isolation, and beam performance to complement the Rocket™5ac radios. They are also compatible with RocketM5 models; however, optimal performance requires the Rocket5ac.
Breakthrough Performance
The airMAX ac Sector Antennas are highly resistant to noise interference in co-location deployments. The innovative deflector design, together with the reduced sidelobes and backlobes, reject interference from other transmitters in the area – potentially on the same tower. Improved Signal-to-Noise Ratio (S/N or SNR) allows a higher-order modulation to be used, for example, 256QAM rather than 16QAM. This increases the number of bits per second for a fixed bandwidth (or data rate). Due to innovative design, the airMAX ac Sector Antennas provide higher gain and superior beam performance for high-capacity, multipoint networks.
(AM-5AC22-45)
airMAX 5AC 22dBi 45° Sector Antenna
Package Includes
- 1 x Antenna
- 3 x Protective Shroud
- 2 x U-Brackets
- 2 x Pole Bracket
- 2 x Pole Clamp
- 4 x Carriage Bolts (M8x135)
- 4 x Serrated Flange Bolts (M8x20)
- 8 x Serrated Flange Nuts (M8)
- 2 x Waterproof RF Cables
- Quick Start Guide
airMAX 5AC 22dBi 45° Sector Antenna - Specifications
| airMAX - AM-5AC22-45 | |
|---|---|
| Dimensions (mm) | 750 x 215 x 94 |
| Weight | 6 kg |
| Frequency Range | 5.10 - 5.85 GHz |
| Gain | 22 dBi |
| HPOL Beamwidth | 45° (6 dBi) |
| VPOL Beamwidth | 45° (6 dBi) |
| Electrical Beamwidth | 4° |
| Electrical Downtilt | 2° |
| Max. VSWR | 1.5:1 |
| Wind Survivability | 200 km/h (125 mph) |
| Wind Loading | 347 N @ 200 km/h (78 lbf @ 125 mph) |
| Polarization | Dual-Linear |
| Cross-pol Isolation | 30 dB Min. |
| ETSI Specification | EN 302 326 DN2 |

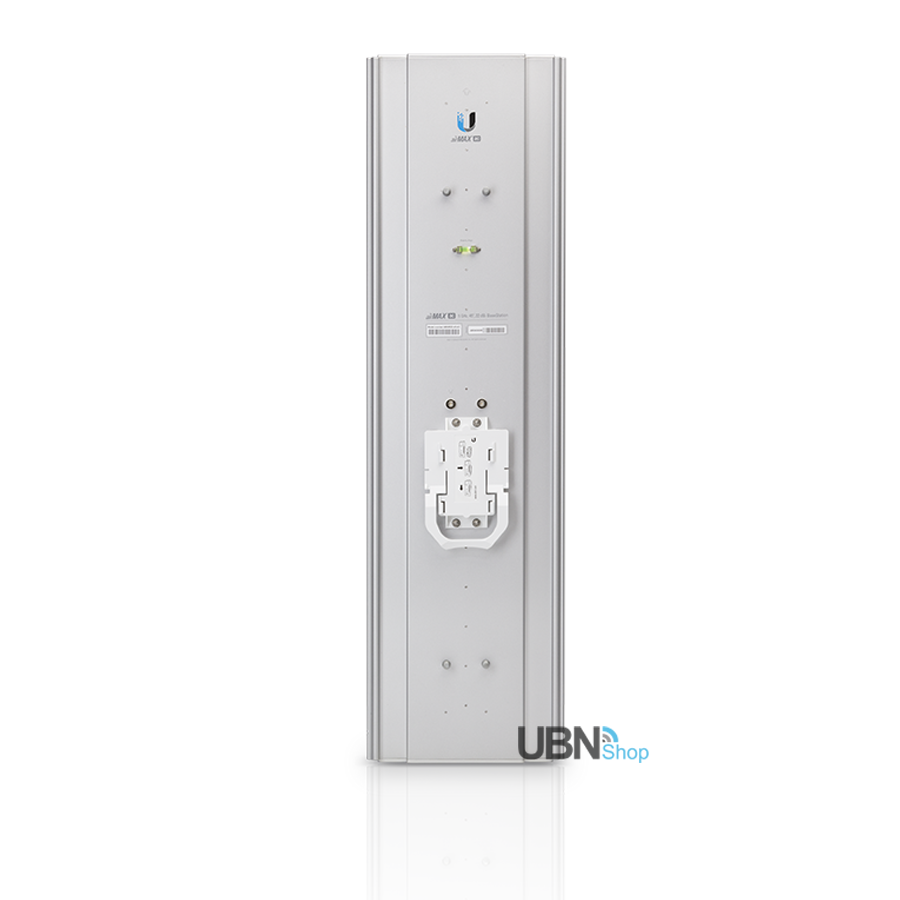

| Mounting | Universal Pole Mount, RocketM Bracket, and Weatherproof RF Jumpers Included |
Shipping Specifications
| SKU | AM-5AC22-45 |
| Model # | AM‑5AC22-45 |
| Barcode # | 810354021404 |
| Brand | Ubiquiti |
| Shipping Weight | 4.8000kg |
| Shipping Width | 0.173m |
| Shipping Height | 0.078m |
| Shipping Length | 0.750m |
| Shipping Cubic | 0.010120000m3 |
| Unit Of Measure | ea |
airMAX 5AC 22dBi 45° Sector Antenna - Documents
