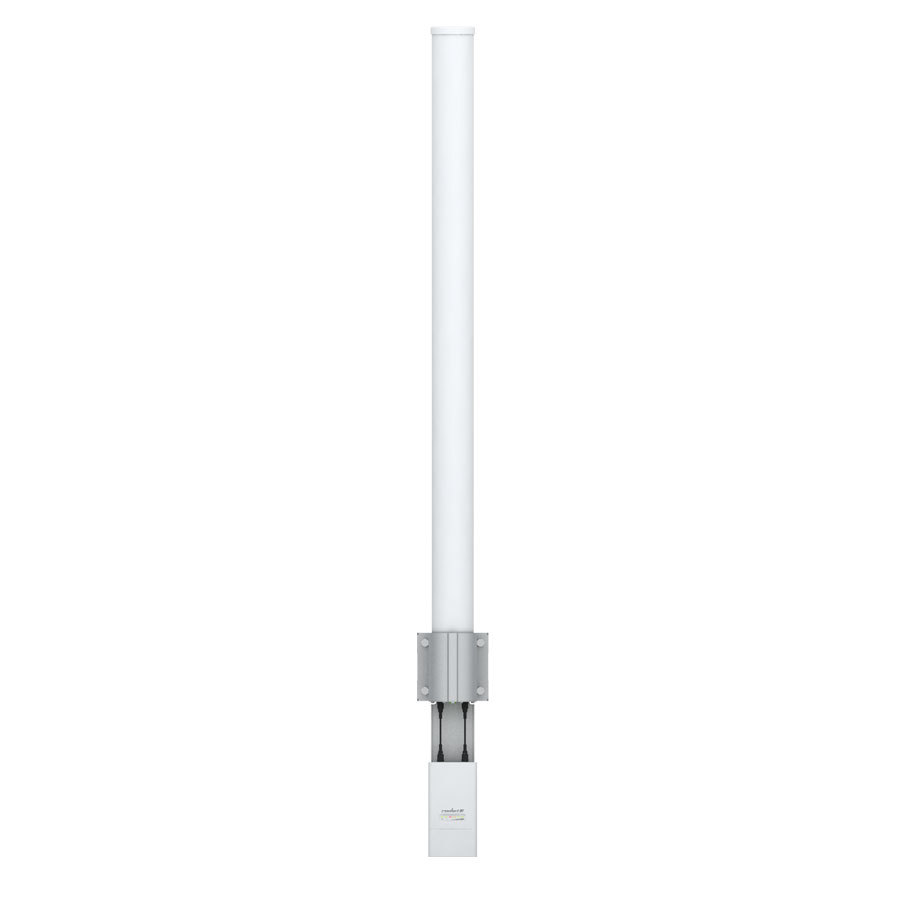

airMAX 2GHz 13dBi 360° BaseStation Omni Antenna

AMO‑2G13

$489.50
In Stock
ALTERNATE PRODUCT:
AMO-2G10-
airMAX 2GHz 10dBi 360° BaseStation Omni Antenna

In Stock: YES

2x2 Dual-Polarity MIMO Omni Antenna



The airMAX® Omni Antenna is a carrier-class 2x2 dual-polarity MIMO omnidirectional antenna designed to seamlessly integrate with Rocket radios (Rocket sold separately). On the right is one example of how the airMAX Omni Antenna can be deployed in a Point-to-MultiPoint (PtMP) network.

Flexibility
To support your specific application, the airMAX Omni Antenna is available in multiple frequency models:

  • 2.4 GHz
  • 3 GHz
  • 5 GHz



Breakthrough Design
The airMAX Omni Antenna is the first of its kind to feature a patented, dual-polarity omni design.

Coverage
The airMAX Omni Antenna provides powerful 360° coverage, 2x2 MIMO performance in Line-of-Sight (LoS) or Non-Line-of-Sight (NLoS) applications.

Durable Construction
Each airMAX Omni Antenna features a robust mechanical design for outdoor application use.

Plug and Play Integration
Every airMAX Omni Antenna has a built-in Rocket mount, so installation requires no special tools. Snap the Rocket securely into place and mount the antenna; you then have the optimal combination of Rocket radio and airMAX Omni Antenna for your application. Pair the Rocket radio with the airMAX Omni Antenna to create a powerful omnidirectional basestation. This combination gives network architects unparalleled flexibility and convenience.







(AMO-2G13)

airMAX 2GHz 13dBi 360° BaseStation Omni Antenna

Package Includes

  • 1 x Antenna
  • 2 x Pole Clamp
  • 4 x Carriage Bolts (M8x120)
  • 4 x Serrated Flange Nuts (M8)
  • 2 x RF Cables
  • Quick Start Guide

airMAX 2GHz 13dBi 360° BaseStation Omni Antenna - Specifications

AMO-2G13
Dimensions (mm) 1390 X 122 X 105
Weight 2.4 kg
Frequency Range 2.35 - 2.55 GHz
Gain 13 dBi
Elevation Beamwidth
Max. VSWR 1.7:1
Downtilt
Wind Survivability 125 mph
Wind Loading 16 lb @ 100 mph
Polarization Dual-Linear
Cross-pol Isolation 25 dB min.
ETSI Specification EN 302 326 DN2 E
Mounting Universal Pole Mount, RocketM Bracket, and Weatherproof RF Jumpers Included



Shipping Specifications

SKU AMO-2G13
Model # AM‑2G13
Barcode # 810354020964
Brand Ubiquiti
Shipping Weight 4.0500kg
Shipping Width 0.158m
Shipping Height 0.133m
Shipping Length 1.448m
Shipping Cubic 0.030428000m3
Unit Of Measure ea
