airFiber 11FX, 11GHz High Band Duplexer
AF-11FX-DUP-H
$349.40
Sold Out

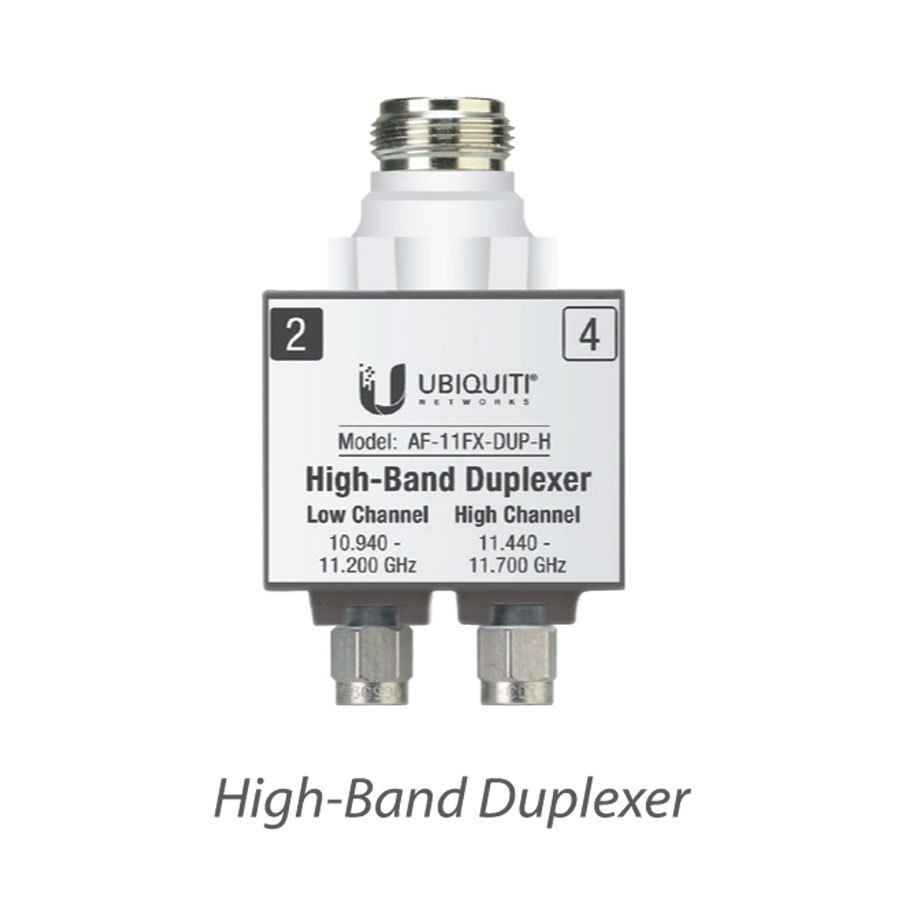

airFiber 11FX, 11GHz High Band Duplexer
11GHz High Band Duplexer for Licensed Backhaul Radio AF-11FX

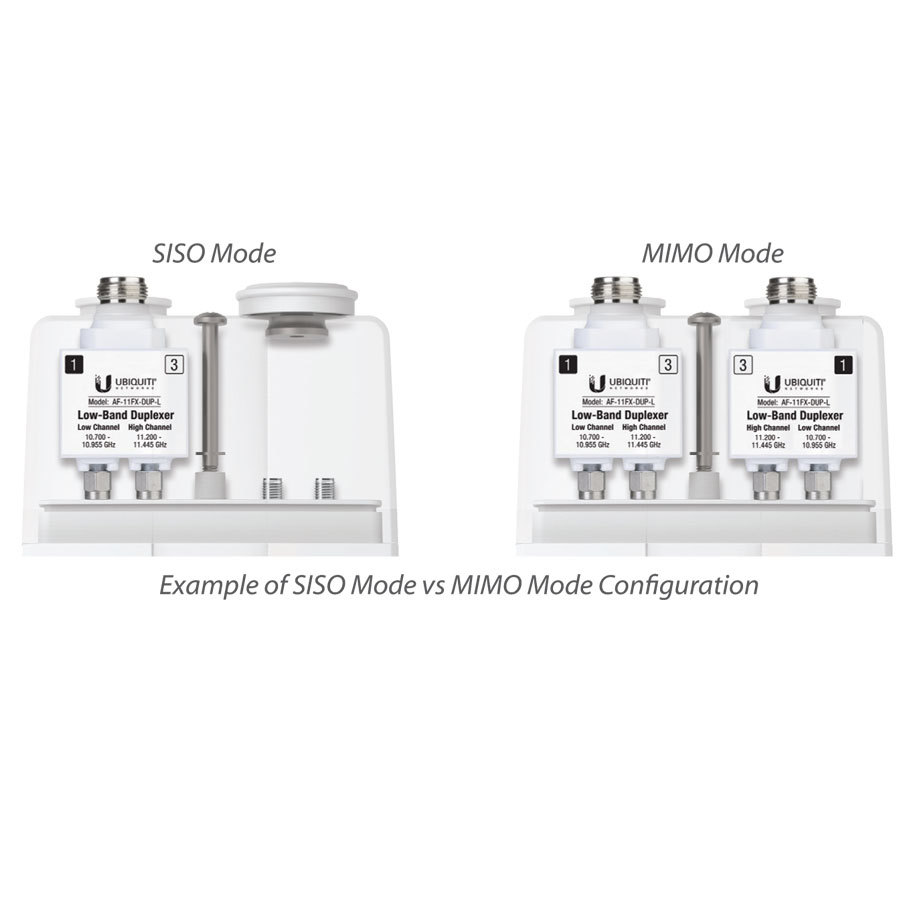

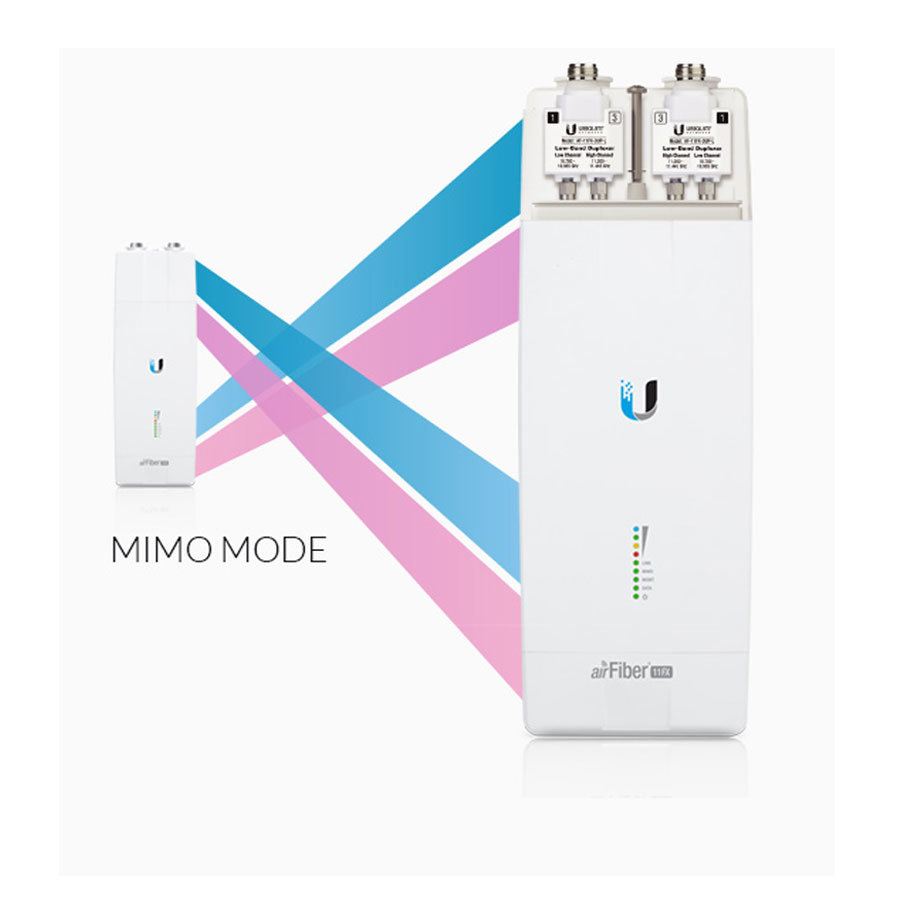

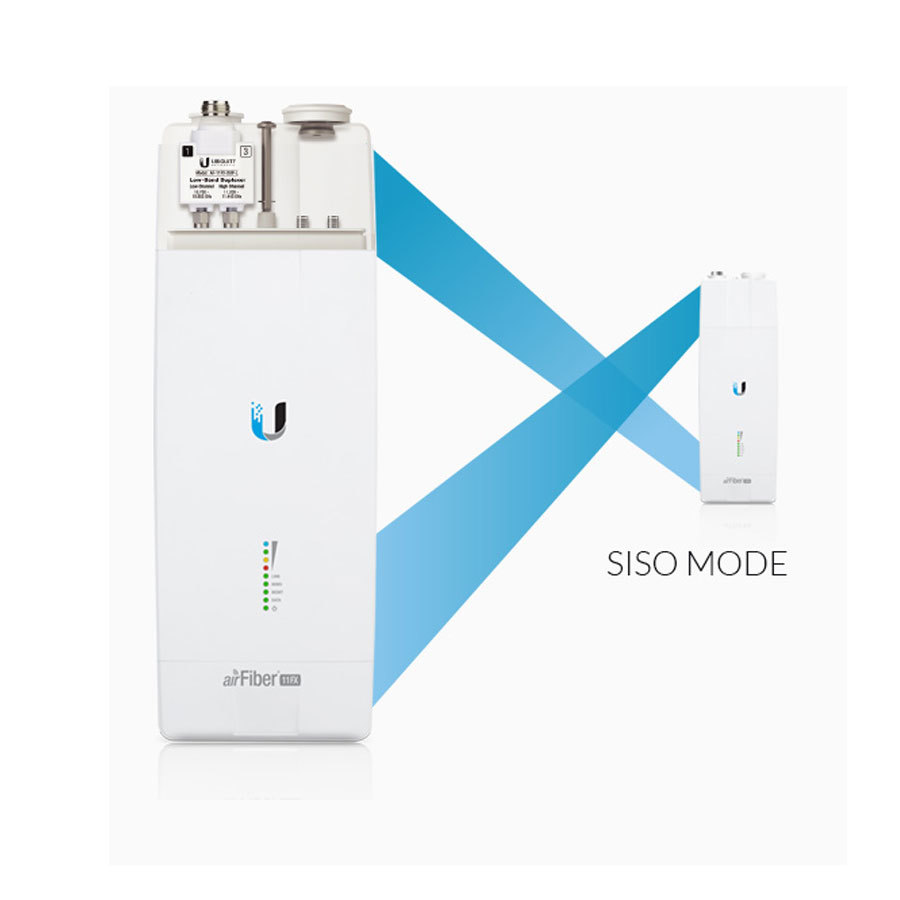

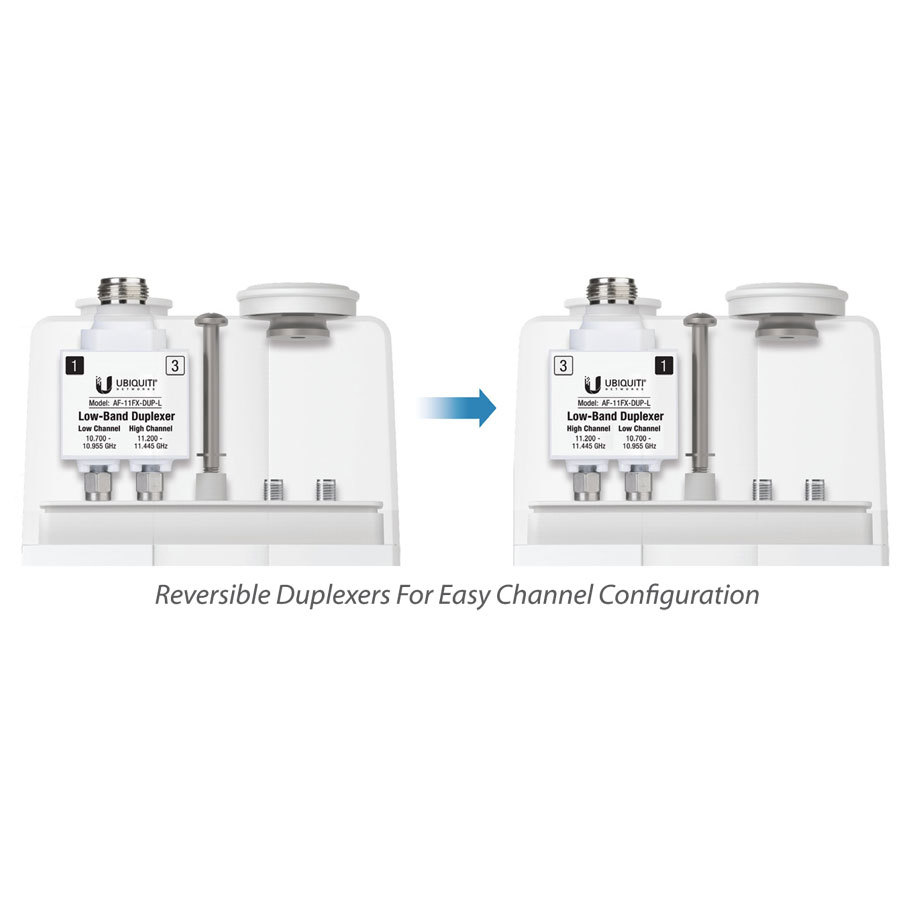

The AF-11FX-DUP-H is designed to fit the AF-11FX Radio (Sold Seperately). The AF-11FX features a unique modular duplexer design to suit multiple frequency configurations. Each AF-11FX radio can be configured to support any allowable frequency by simply changing the duplexers (sold separately) for high‑band or low‑band use in the 10.7 - 11.7 GHz allocation. Each duplexer has a low channel and a high channel that can be configured by simply reversing the position of the duplexer.
Duplexer Channel Range
| Duplexer | Low Channel | High Channel | Model |
| Low-Band Duplexer | 10.700 - 10.955 GHz | 11.200 - 11.445 GHz | AF-11FX-DUP-L |
| High-Band Duplexer | 10.940 - 11.200 GHz | 11.440 - 11.700 GHz | AF011FX-DUP-H |
Datasheet airFiber AF-11FX(AF-11FX-DUP-H)
| SKU | AF-11FX-DUP-H |
| Model # | AF-11FX-DUP-H |
| Brand | Ubiquiti |
| Shipping Weight | 0.3000kg |
| Shipping Width | 0.300m |
| Shipping Height | 0.200m |
| Shipping Length | 0.300m |
| Shipping Cubic | 0.018000000m3 |
| Unit Of Measure | ea |
