airFiber 11FX, 11GHz Low Band Duplexer



11GHz Low Band Duplexer for Licensed Backhaul Radio AF-11FX

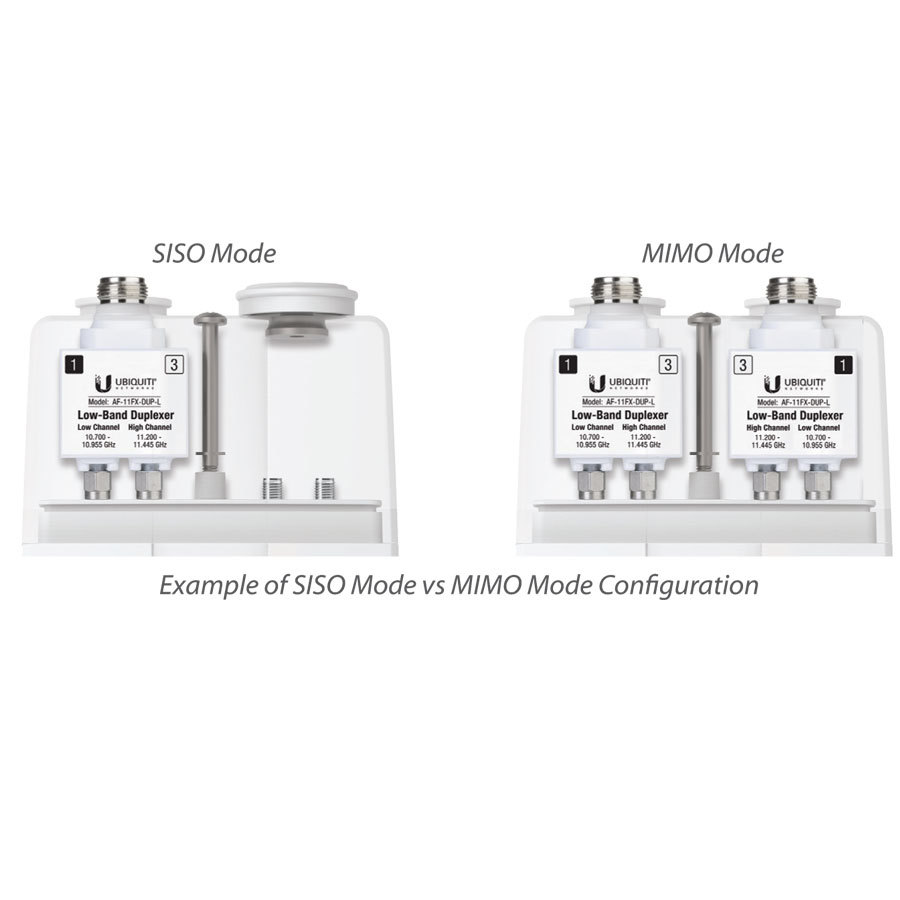

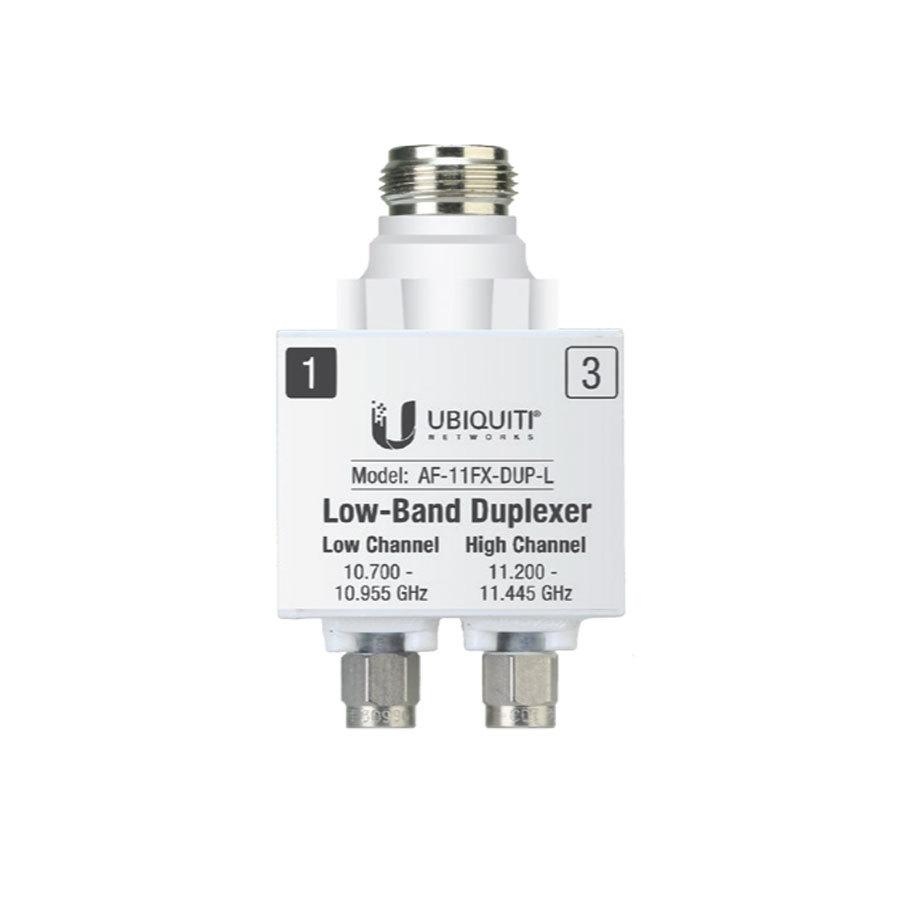

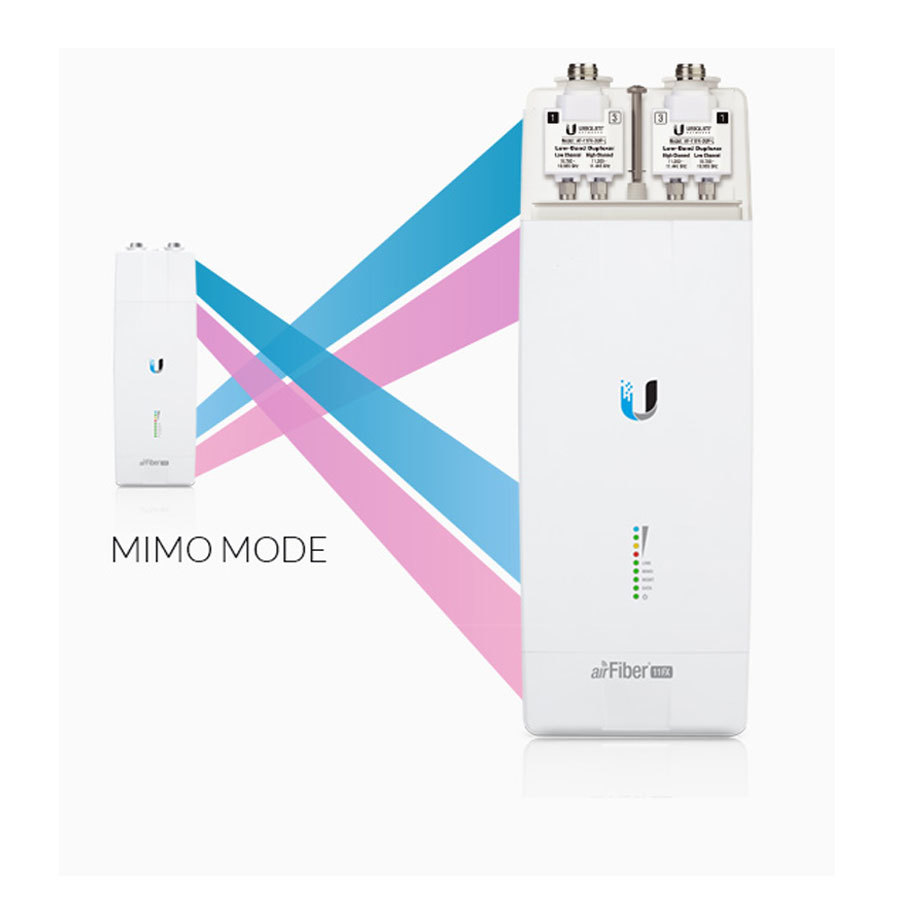

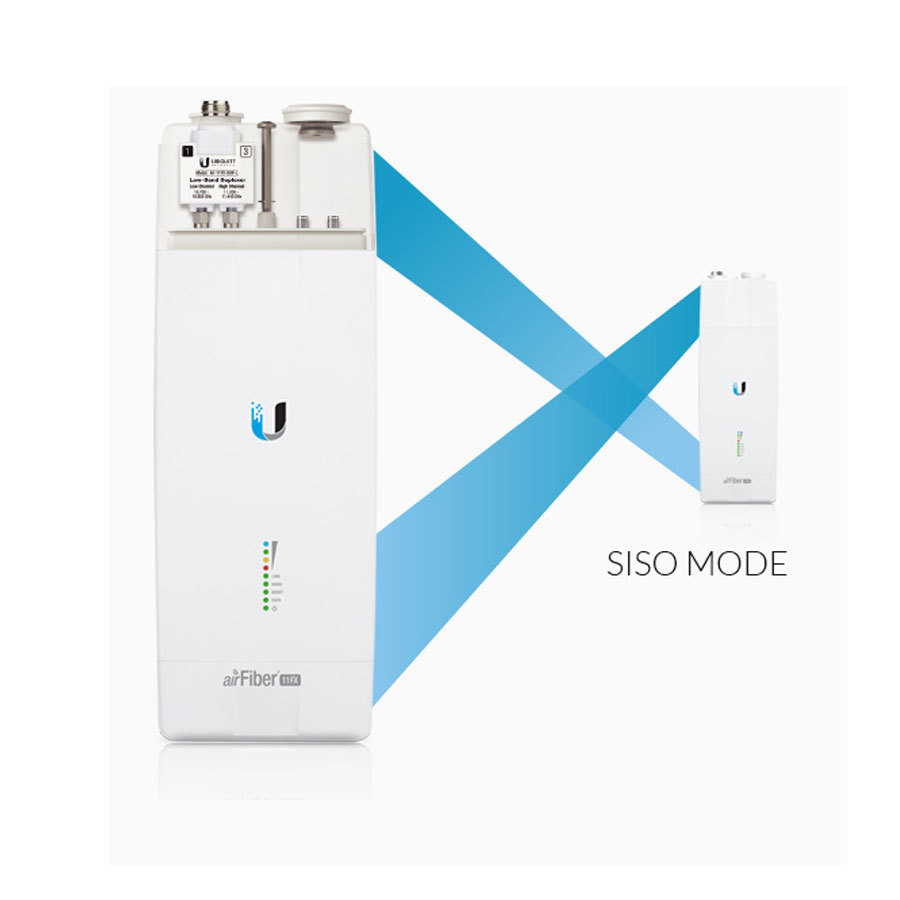

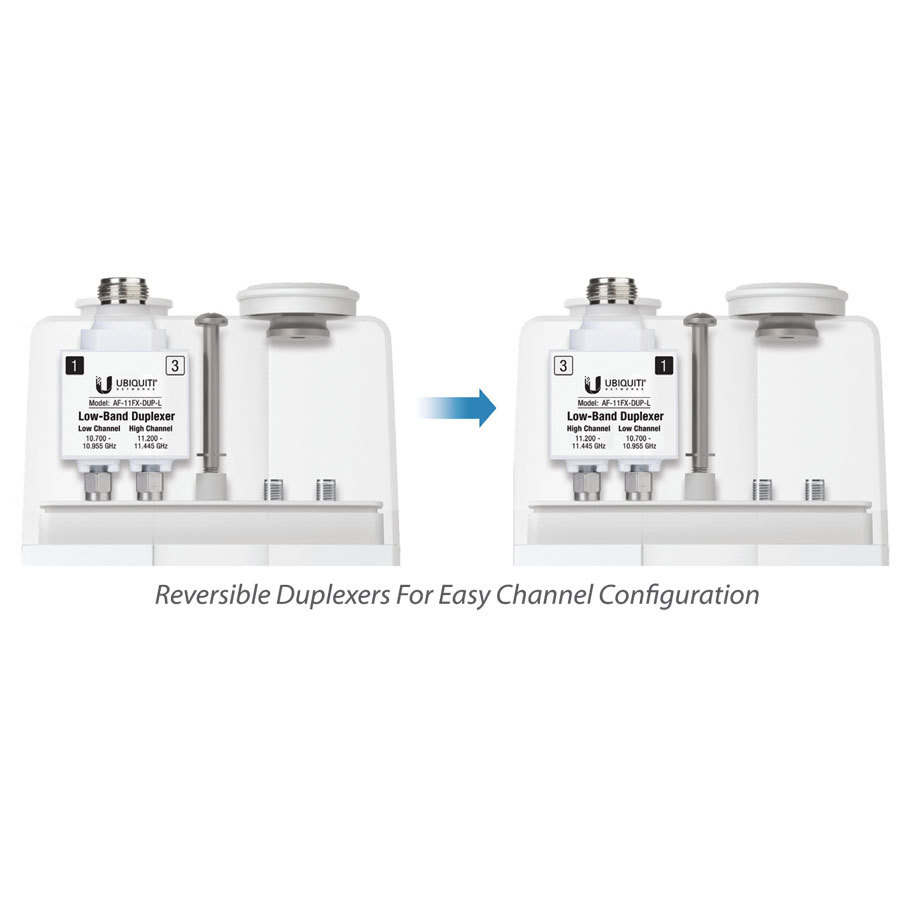

The AF-11FX-DUP-L is designed to fit the AF-11FX Radio (Sold Seperately). The AF-11FX features a unique modular duplexer design to suit multiple frequency configurations. Each AF-11FX radio can be configured to support any allowable frequency by simply changing the duplexers (sold separately) for high‑band or low‑band use in the 10.7 - 11.7 GHz allocation. Each duplexer has a low channel and a high channel that can be configured by simply reversing the position of the duplexer.

Duplexer Channel Range

Duplexer Low Channel High Channel Model
Low-Band Duplexer 10.700 - 10.955 GHz 11.200 - 11.445 GHz AF-11FX-DUP-L
High-Band Duplexer 10.940 - 11.200 GHz 11.440 - 11.700 GHz AF011FX-DUP-H



SKU 455040
Model # AF-11FX-DUP-L
Brand Ubiquiti
