EdgePower 54V, 150W, DC

EP-54V-150W-DC

$198.31
In Stock

Ubiquiti EdgePower, Modular AC Power Supply for EdgePoint



Modular DC Power Supply for EdgePoint
The EdgePower™ is a high-power, modular PSU system designed to connect to EdgePoint™ routers/switches, and provide reliable power to attached PoE devices. The EdgePower uses modular PSUs for flexible configuration options. The EdgePower can utilize two modular PSUs to provide up to 300W of power, or be configured to provide up to 150W of power with an automatic PSU backup.

The EdgePower consists of a rack-mountable, two-bay housing and control unit, and includes one AC-DC 54V, 150W PSU module. The second PSU bay can house an AC-DC or DC-DC PSU module (sold separately):

  • EP-54V-150W-AC
  • EP-54V-150W-DC

High Power
The EdgePower provides up to 150W of power output. With an optional PSU in the secondary bay, the EdgePower may be configured to deliver up to 300W of power.

Backup PSU
The secondary PSU may be configured as a backup PSU. In backup mode, the secondary PSU remains inactive and offline. If failure of the primary PSU is detected, the secondary PSU automatically activates to supply continuous power.

Designed For Use With
EdgePower 54V, 150W Power Supply Unit (Sold Seperately)

Remote Monitoring
Designed for convenient management, the EdgePower Configuration Interface allows administrators to configure and monitor PSU features in a simple, graphical user interface.







(EP-54V-150W-DC)

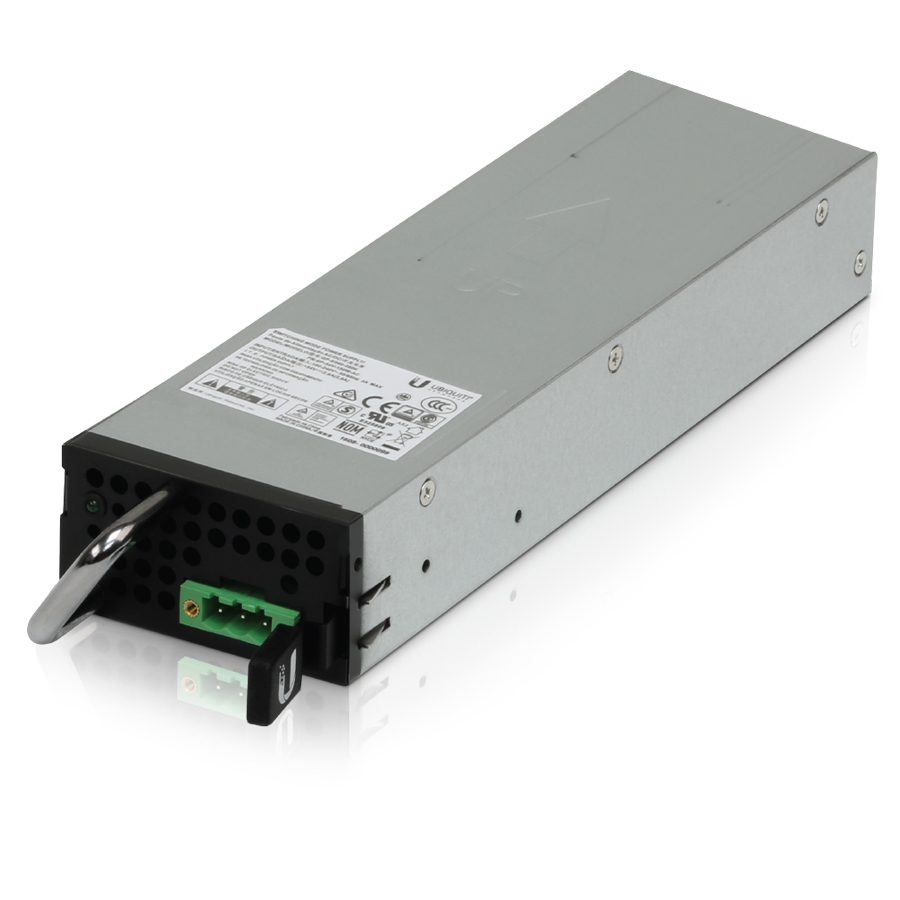

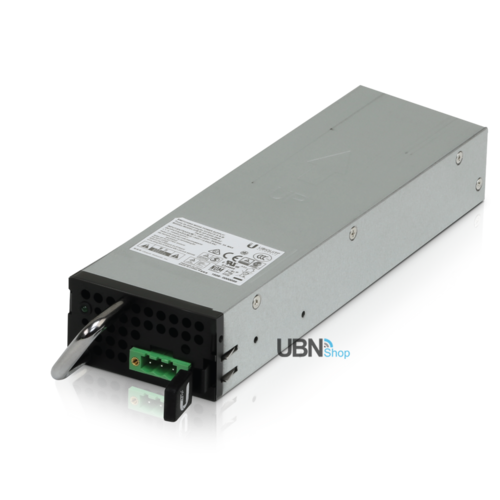

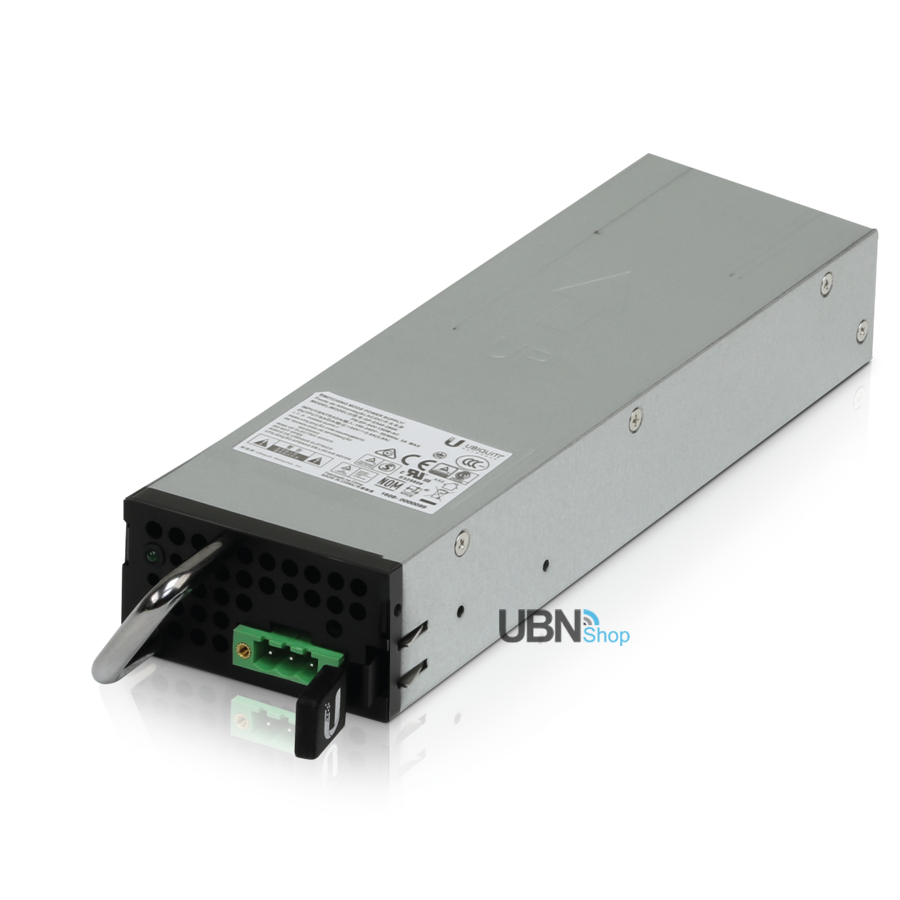

EdgePower 54V 150W Power Module DC

Package Includes

  • 1 x EP-54V-150W-DC
  • Quick Start Guide

EdgePower 54V 150W Power Module DC - Specifications



Power Method DC/DC 150W for 22 - 60V Input, DC Terminal Block for 54V Output
Power Supply DC/DC 150W for 22 - 60V Input
Supported Voltage Range DC/DC for 22 - 60V Input, 54V Output
Battery Type 2/3/4 Series Lead Acid Battery
Maximum Charging Voltage
  • 2 Series
  • 3 Series
  • 4 Series
  • 26.8 - 27.5V
  • 40.2 - 41.2V
  • 53.6 - 55V
Discharge Protection Voltage
  • 2 Series
  • 3 Series
  • 4 Series
  • 21.5V
  • 32V
  • 43V
Charging Current
  • 2 Series
  • 3 Series
  • 4 Series
  • 0.3A
  • 0.3A
  • 0.2A
LED System On/Off
Operating Temperature 0 to 40° C (32 to 104° F)
Operating Humidity 10 to 90% RH
ESD/EMP Protection Air ± 8KV; Contact ± 6KV
Certifications CE, FCC, IC

Shipping Specifications

SKU EP-54V-150W-DC
Model # EP-54V-150W-DC
Barcode # 709257388571
Brand Ubiquiti
Shipping Weight 1.5000kg
Shipping Width 0.200m
Shipping Height 0.050m
Shipping Length 0.300m
Shipping Cubic 0.003000000m3
Unit Of Measure ea
