2 Way Splitter SMA Female 698-4000MHz Micro Strip Power Divider. Buy Online in Australia The "STRIPPA"

SPLIT-OA-SMA-2W

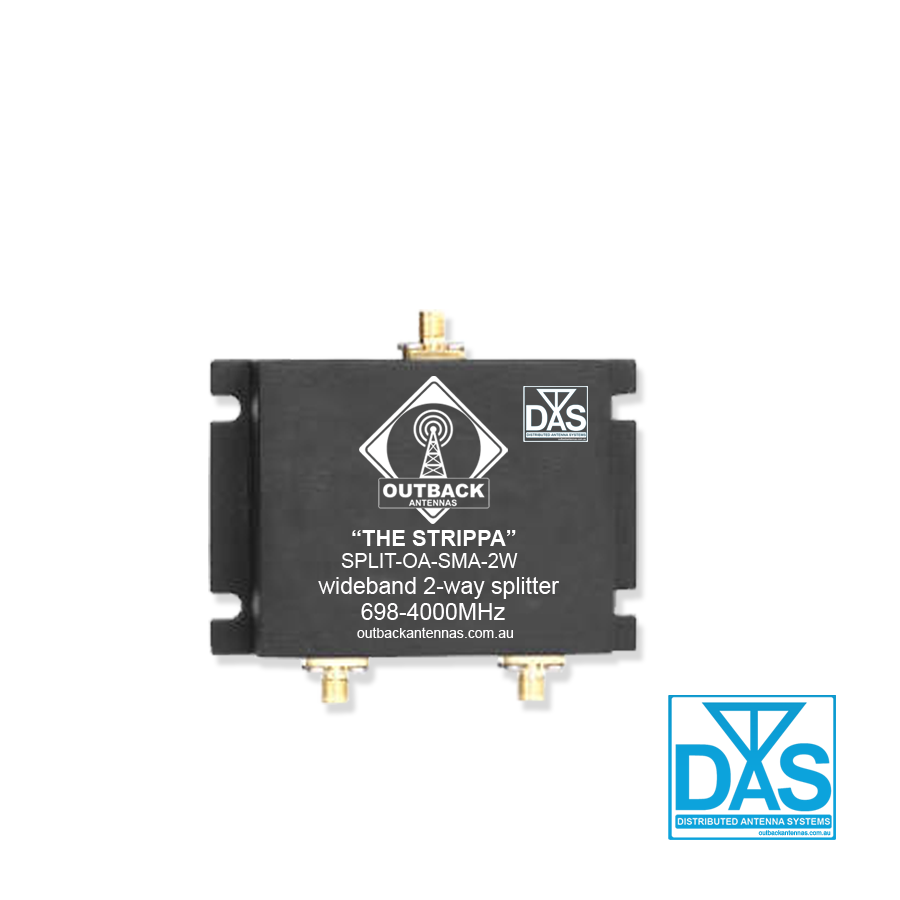

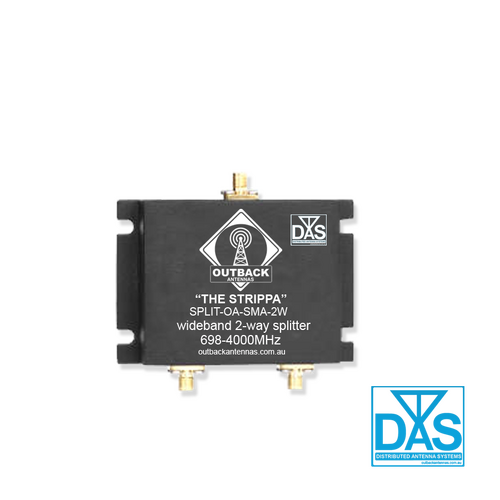

The "STRIPPA" Power Divider 2 Way Microwave RF Splitter 698-4000MHz with SMA Female Connector



The 2 Way Splitter 700-4000MHz with N Female Connector by Outback Antennas

The "STRIPPA" 2 Way Splitter 698~960,1427-4000MHz with SMA Female Connector is designed to operate on the cellular network with all mobile carriers, regardless of what frequency they operate on. Perfect for indoor mobile repeater applications.

Outback Antenna provide the perfect solution for voice and data applications. Perfect repeater applications so ensure complete indoor coverage.

Features

  • Wide Band Range 698~960,1427-4000MHz
  • Suitable for all mobile carriers
  • or 2.4Ghz WiFi Applications
  • Distributed Antenna Systems (DAS)
  • High Quality
  • Indoor & outdoor IP64
  • SMA Female connectors
  • Ideal for Cel-Fi GO repeater applications for Home. Office, Marine and Caravan

Dimensions (mm) : 100Lx110Wx10H

Weight: 80g

(SPLIT-OA-SMA-2W)

The "STRIPPA" Power Divider 2 Way Microwave Splitter 698-4000MHz with SMA Female Connectors

Pack Includes:

  • 1 x "STRIPPA" Power Divider 2 Way Microwave Splitter 700-4000MHz with SMA Female Connectors



The "STRIPPA" Micro Strip Power Divider 2 Way Microwave Splitter 698-4000MHz with SMA Female Connector - SPECIFICATIONS



Model
The "STRIPPA" Splitter 698-4000MHz(Micro strip)
Frequency Range
698-4000MHz(Micro strip)
Split Way
2
3
4
6
8
VSWR
≤1.3: 1
Insertion Loss(dB)
≤0.9
≤1.2
≤1.2
≤1.2
≤1.2
Split Loss(db)
≤3.0
≤4.8
≤6.0
≤7.8
≤9.0
Average Power(W)
50
3rd Order IMD(dBc)
≤-140/-155/-160@2x43dBm
Impedance(Ω)
50
50
Connectors Type
SMA Female
SMA Female
Operation Temp.(℃)
-35~+65
Application
Indoor or Outdoor IP64
Indoor or Outdoor IP64
Finish
Black Plated
Black Plated



SHIPPING SPECIFICATIONS

SKU SPLIT-OA-SMA-2W
Model # SPLIT-OA-SMA-2W
Barcode # 4.81E+11
Brand OUTBACK ANTENNAS
Shipping Weight 0.5000kg
Shipping Width 0.195m
Shipping Height 0.102m
Shipping Length 0.195m
Shipping Cubic 0.003879000m3
Unit Of Measure ea

The "STRIPPA" Micro Strip Power Divider 2 Way Microwave Splitter 698-4000MHz with SMA Female Connectors - Documents
